Rod Actuator WAY Mingardi D16 Fce Stroke 300-500mm 230V

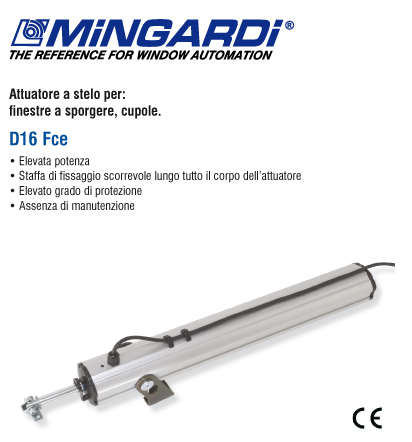

Rod actuator for top hinged windows and domes

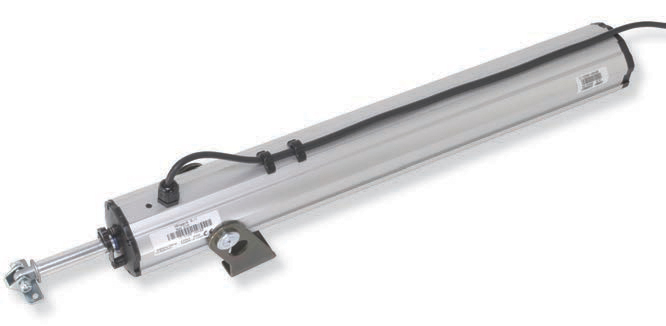

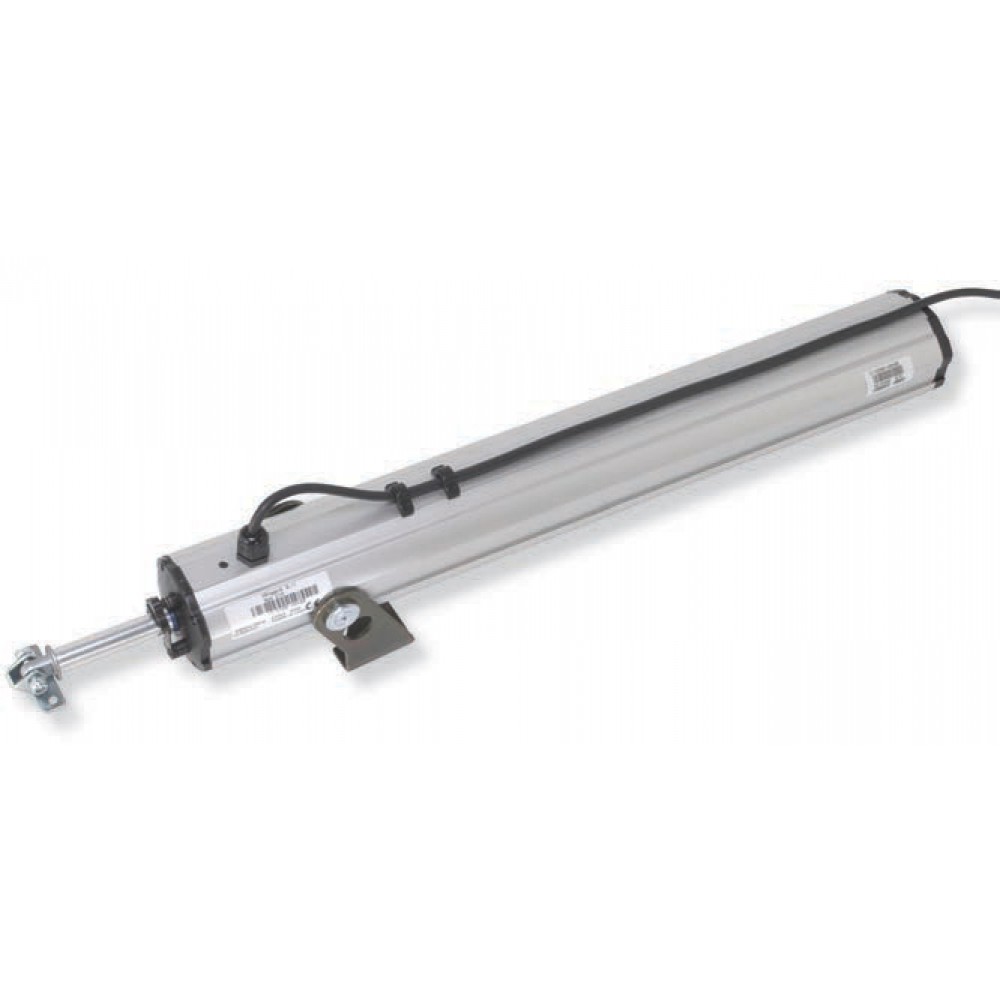

Rod actuator D16 Mingardi with rigid rod movement, highly resistant to peak loads.
peration 230V~ 50 Hz power supply.
It complies with 2006/95 LVD - 2004/108 EMC directives.
It is equipped with limit switches and relays for the parallel connection.
Incorporated thermal overload protection.
Available colours: anodised silver. Complete with fixing accessories.
Characteristics:
- High power;
- Fixing bracket sliding along the whole body;
- High protection degree;
- Maintenance free;
- Protection degree electrical devices: IP 55;
- Limit switch closing-opening: Microswitch;
- Colour: Anodised Silver (A);
- Operating temperature: -10°C +40C°.
Technical Features*
| Code |
Description |
Voltage |
Thrust Tensile |
Stroke |
Power Consumption |
Speed Min. |
| 2700298 |
D16 300 mm - (A) |
230 V~ / 50 Hz |
1000N |
300mm |
270W |
ca. 21 mm/s |
| 2700301 |
D16 500 mm - (A) |
230 V~ / 50 Hz |
1000N |
500mm |
270W |
ca. 21 mm/s |
*The values indicated on the table are average values were recorded in condition of normal use.

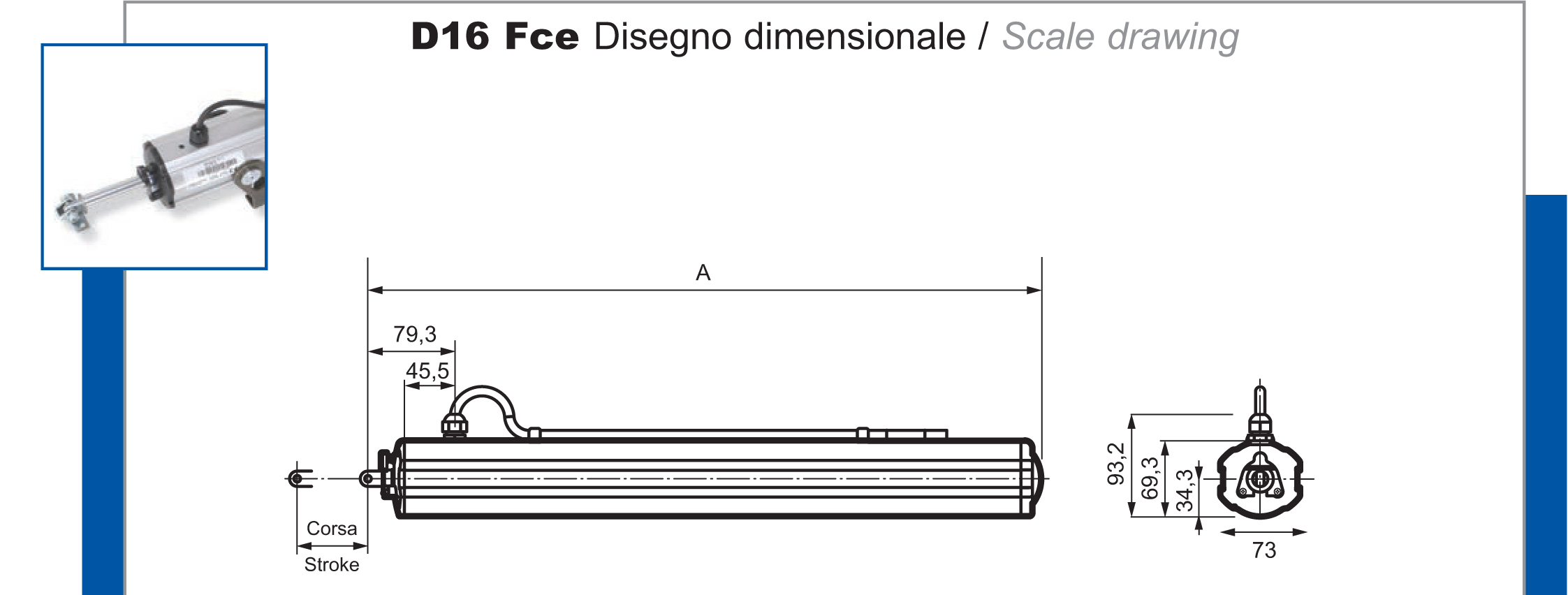

Stroke/A: 300mm (A:415,5mm), 500mm (A: 615,5mm).
