Rack Actuator Airwin A65 650N 24V L=<1250 Comunello Mowin

Comunello Mowin
Code: AIRWIN A65 24V
€ 98,28
Prices excluding VAT
Are you looking for an actuator from the Comunello catalog that is not on our site? Contact us and ask for a quote.

- +

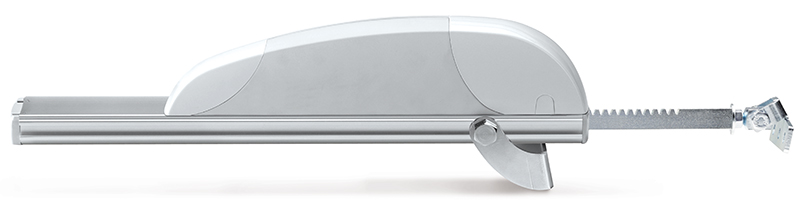

Rack Actuator Airwin A65 650N 24V L=<1250 Comunello Mowin
Airwin A65 STANDARD 24V
​L = < 1250 mm


Rack actuator for opening/closing SHED top-hung windows, skylights, brise soleil blades and domes.

The box contains all the parts and equipment you need to make set up and connection as easy as possible.
The Raywin actuator range are in compliance with Directives EC (EMC, LVD and R&TTE directives) as amended.

Package contents: Rack type actuator provided with electric supply cable, anchor bracket and adjusting screws, fixing bracket for top-hung windows and domes and multi-lingual user’s guide.

Rack actuator Airwin Mowin Comunello

Airwin Rack actuator Comunello shed top-hung windows skylights brise soleil blades and domes

Technical features:
  • Model: Airwin A65 24V;
  • Electrical power supply: 24V;
  • Operation: S2 4min;
  • Thrust force: 650N;
  • Tension force: 650N;
  • Stroke speed unloaded: 10 mm/s;
  • Protection class: IP44;
  • Double insulation: Low voltage;
  • Power consumption: 1,85 A;
  • Power: 45 W;
  • Operating temperature: - 5 ° / + 50 °;

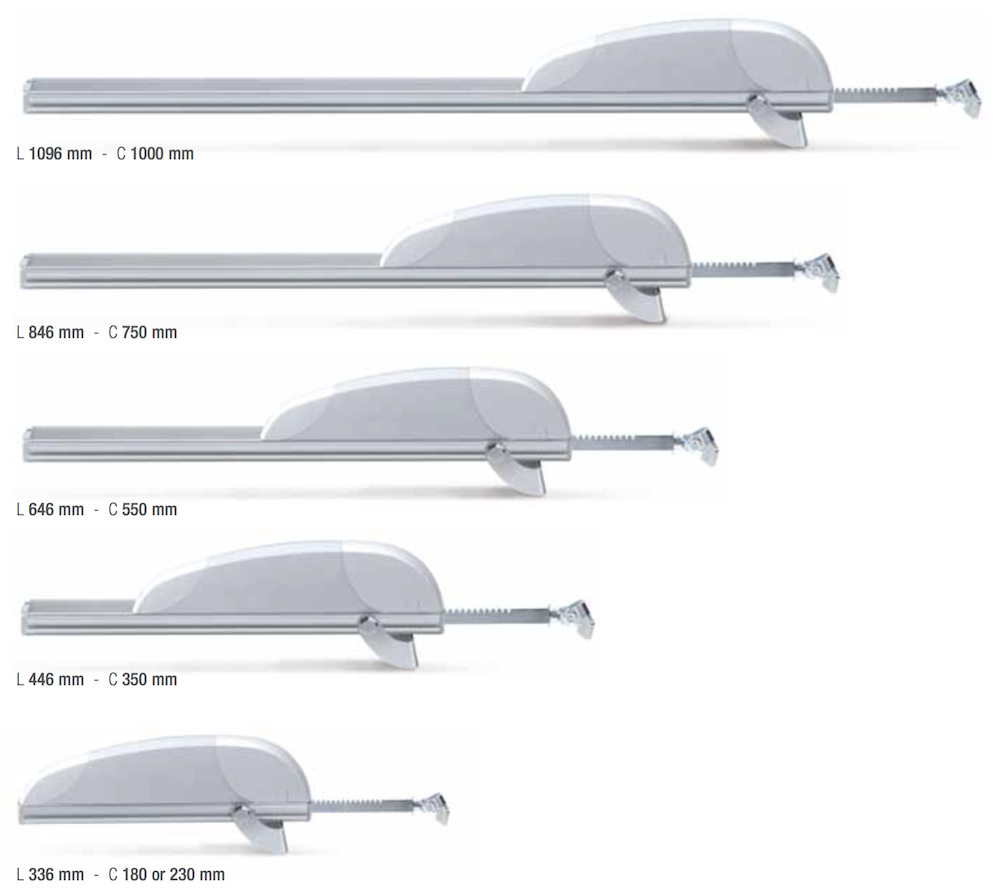

  • Strokes available: 180 – 230 – 350 – 550 – 750 – 1000 mm;
  • Open limit switch: on impact;
  • Closed limit switch: on impact;
  • Soft Start / Soft Stop: Yes / Yes;
  • Obstacle detection: Yes;
  • Parallel connection: Yes (max 30 actuators);
  • Synchronization: No;

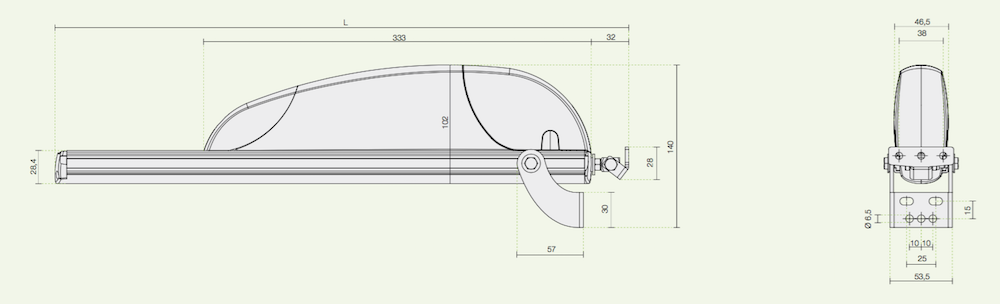

  • Dimensions: 96 + stroke x 103 x 47 (except stroke 180) mm.

Rack actuator Comunello Airwin A65

Rack actuator Airwin A65

Comunello Mowin

Comunello Mowin
The Mowin® project comes out of Comunello’s 45 years experience in mechanical opening systems for doors, windows and gates. The guarantee of high quality and durability associated with all Comunello products continues in the brand new Mowin® mechanical actuators, which, when combined with the fanatical attention was also devote to the development of  electronic parts and programming, enable us to offer products that are stable and yet extremely flexible, suitable for a broad range of applications for windows, domes, skylights, brise soleil blades, awnings and roller shutters. Contemporary styling that reflects the utmost attention to detail means that the Mowin® series of products have exactly what it takes to assume a benchmark role also in the field of home automations.

Window automation: a new challenge in the consolidation of our position as a top player with a high class Italian touch.
