Drive Evo 0 Mingardi Rack Actuator with Brackets

Mingardi
Brands: Mingardi
Code: DRIVE EVO 0
-25%
€ 156,99 € 209,32
Prices excluding VAT
Are you looking for an actuator from the Mingardi catalog that is not on our site? Contact us and ask for a quote.

- +

Drive Evo 0 Mingardi Rack Actuator with Brackets

Drive Evo 0 Mingardi offers maximum flexibility thanks to its different configurations.

Drive Evo 0 Mingardi attuatore a cremagliera applicazioni

Why choose the Drive Evo 2 Mingardi gearmotor?

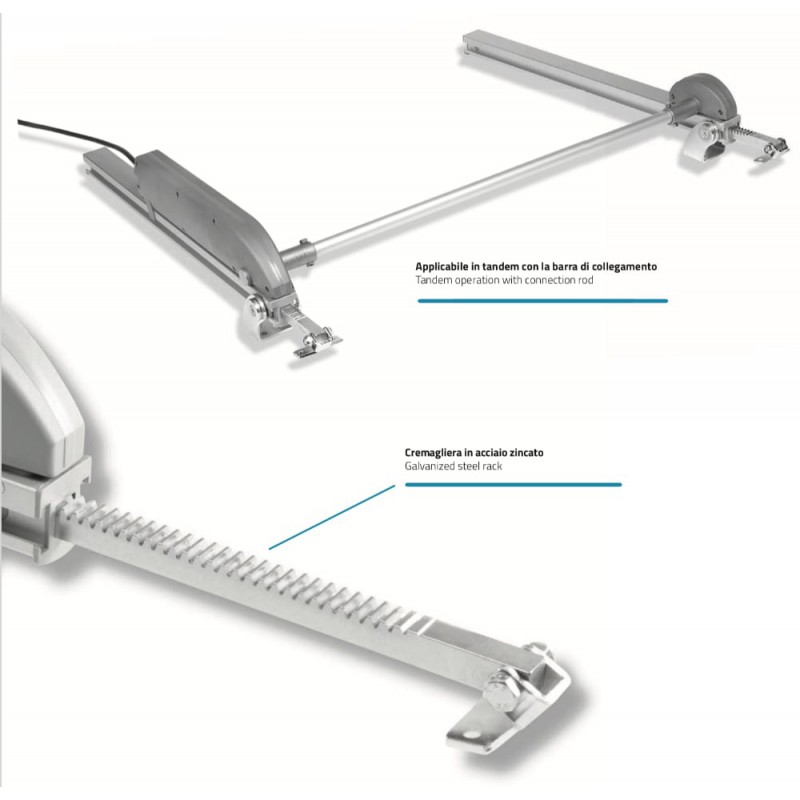

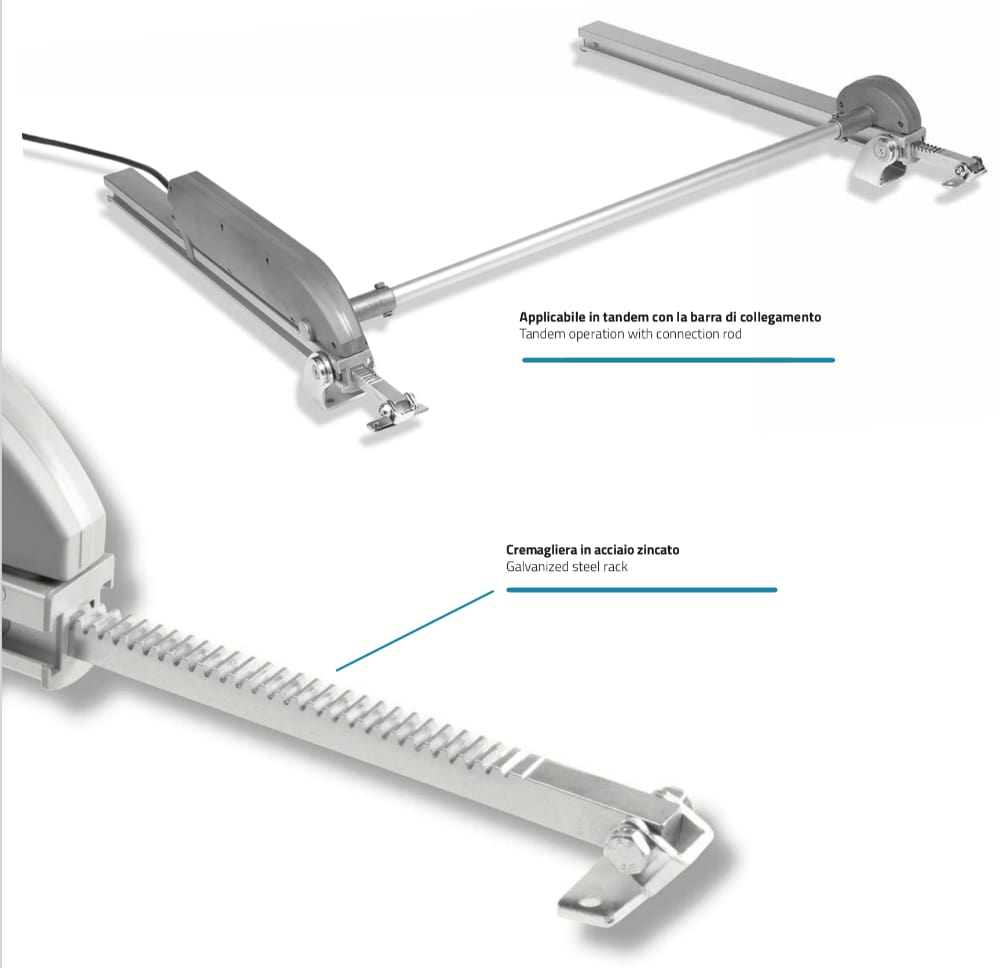

  • Suitable for large windows in tandem application;
  • Strokes up to 1000 mm;
  • Extended voltage 110 - 240V AC (50 / 60Hz);
  • Double electrical insulation: Class II;
  • Degree of protection: IP 55 electrical parts;
  • Soft stop closure to preserve the window:
  • Steel rack;
  • Tilting fixing bracket sliding on the whole rack body.

Drive Evo 0 Mingardi Attuatore a Cremagliera con Staffe

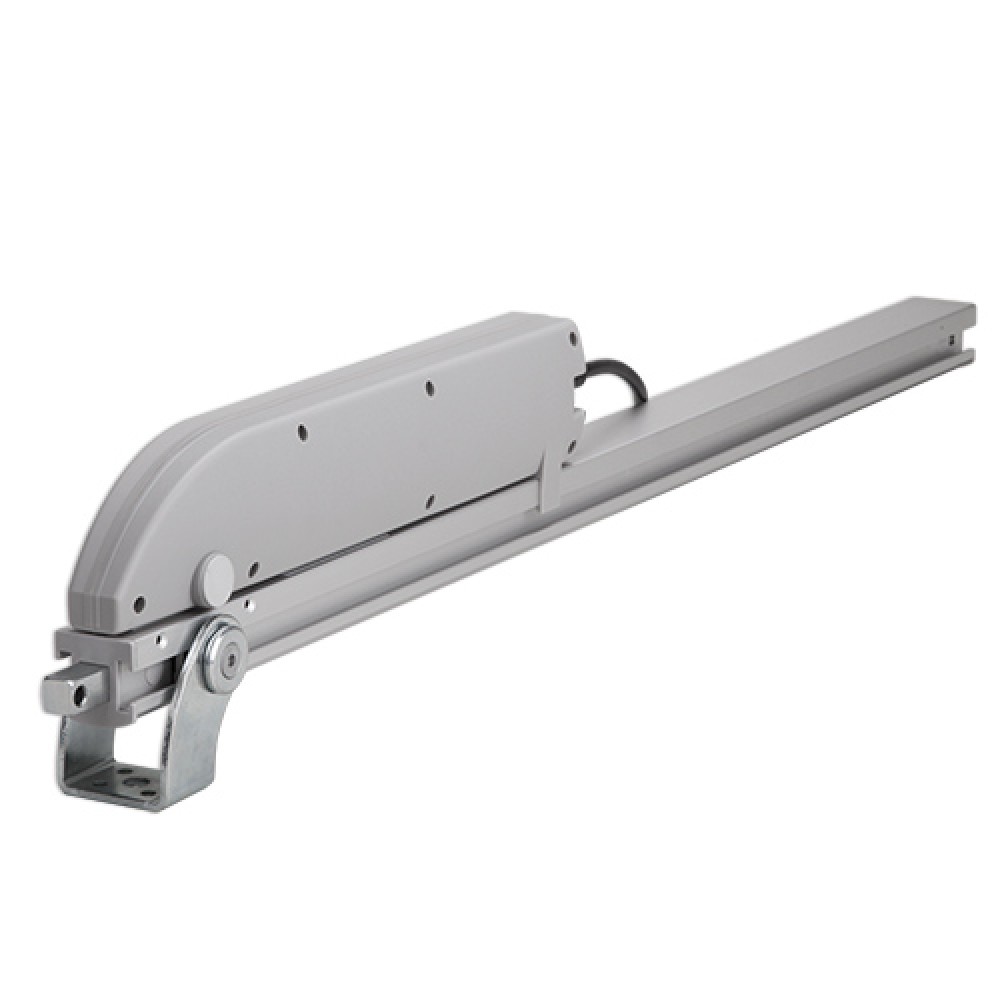

Drive Evo 0, the rack and pinion motor with an aluminum body

  • Electric linear rack actuator 12x12 section contained inside the tubular aluminum body ;
  • Operation with power supply voltage 110 - 240 V AC (50/60 Hz);
  • Compliant with the relevant European Directives;
  • Equipped with electronic limit switch system in opening and closing with overload protection;

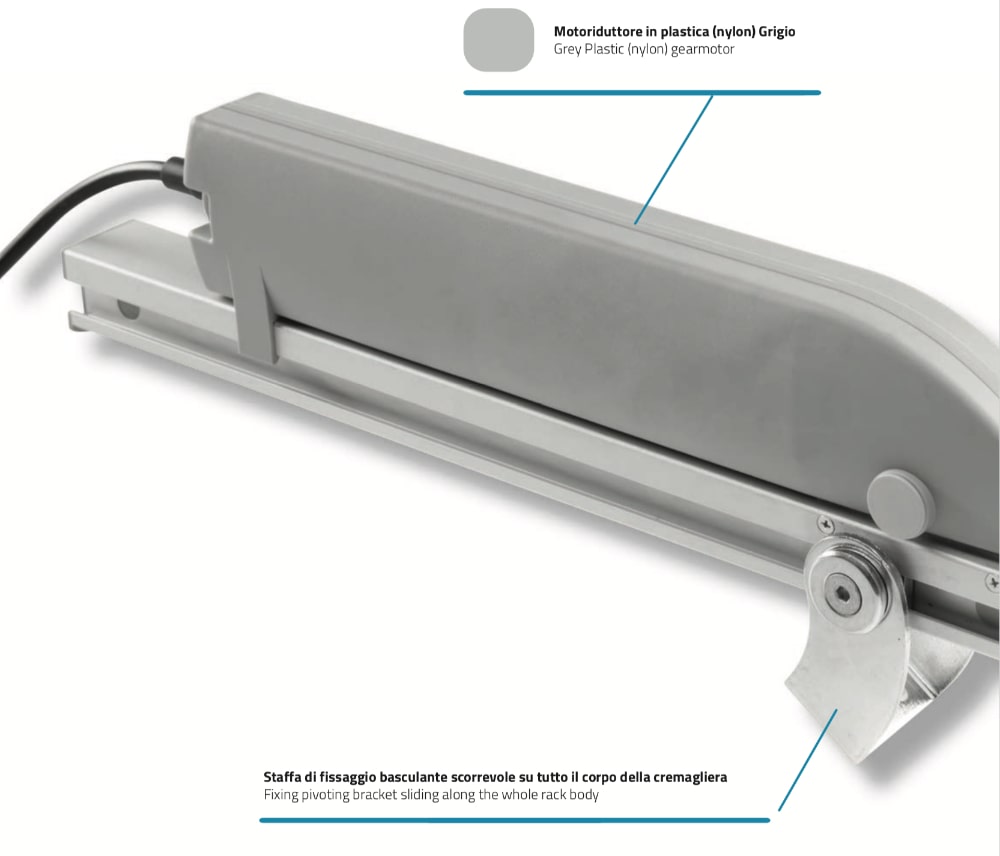

  • Parallel connectable, gearmotor body in plastic (nylon);
  • Colors: gray gearmotor (G), silver tubular body complete with fixing accessories .

Caratteristiche tecniche DRIVE Evo 2 Mingardi attuatore a cremagliera

Drive Evo 0 Mingardi Attuatore a Cremagliera con Staffe

Technical features Drive Evo 2 Mingardi rack actuator:

  • Force: Thrust - Traction: 500N;
  • Voltage: 110 - 240V AC (50 / 60Hz);
  • Opening and closing limit switches: Electronic;
  • Degree of protection (for internal use): IP55 electronic parts;
  • Operating temperature: -10 ° C + 40 ° C;
  • Black cable: PVC L. 1500 mm;
  • Certifications: CE.

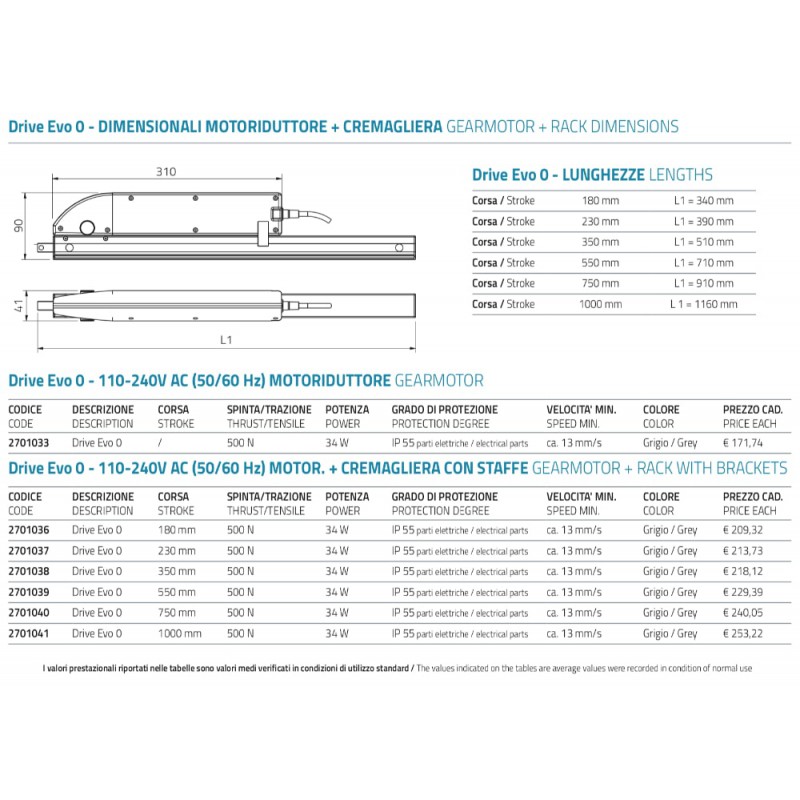

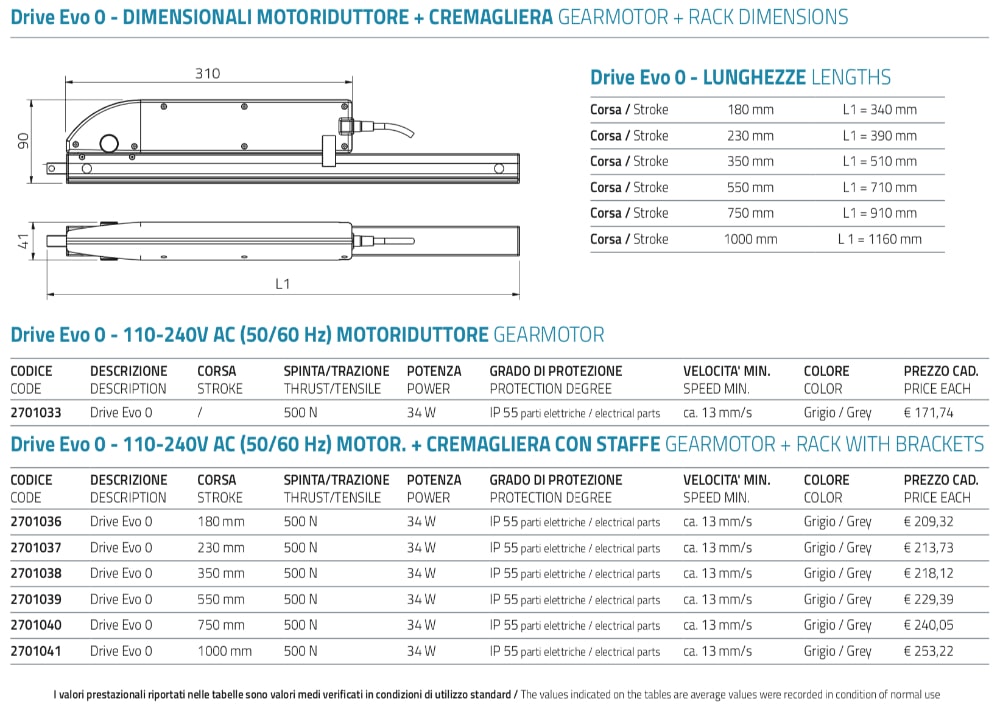

Drive 0 Mingardi Strokes:

  • Stroke 180mm - L1 = 340 mm;
  • Stroke 230mm - L1 = 390 mm;
  • Stroke 350mm - L1 = 510 mm;
  • Stroke 550mm - L1 = 710 mm;
  • Stroke 750mm - L1 = 910 mm;
  • Stroke 1000mm - L1 = 1160 mm.


Caratteristiche tecniche Drive Evo 0 Mingardi attuatore a cremagliera
