Micro Evo 1 Mingardi Double Link Chain Actuator for Windows

Mingardi
Brands: Mingardi
Code: MICRO EVO 1
-30%
€ 145,37 € 207,67
Prices excluding VAT
You have chosen:
Are you looking for an actuator from the Mingardi catalog that is not on our site? Contact us and ask for a quote.

- +

Micro Evo 1 Mingardi Double Link Chain Actuator for Top Hinged or Vasistas Windows

Thanks to its versatility, Micro Evo 1 adapts perfectly to any application.

  • Wide range of voltages and strokes;

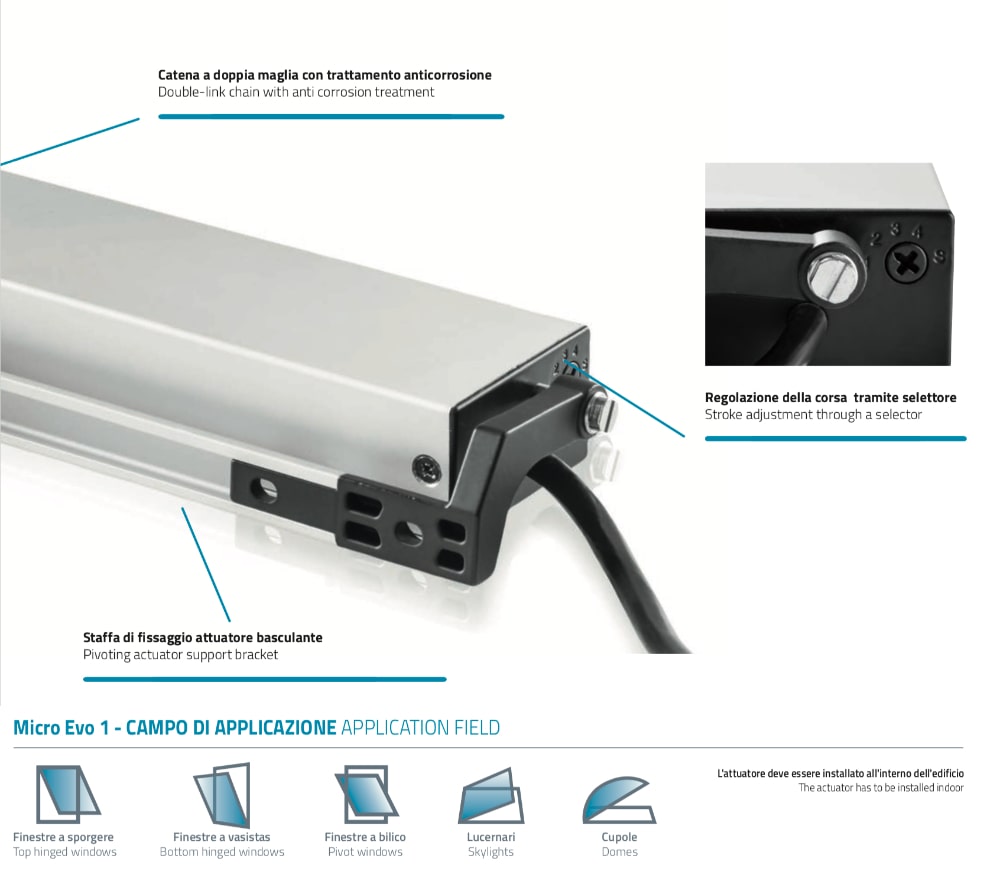

  • Possibility of stroke adjustment by selector;
  • Synchronization function, which can be managed directly on the site, for the application of several actuators on the same window;
  • Limit switch self-learning;
  • Soft stop closure to preserve the window;
  • Double electrical insulation: Class II AC version - Class III DC version;

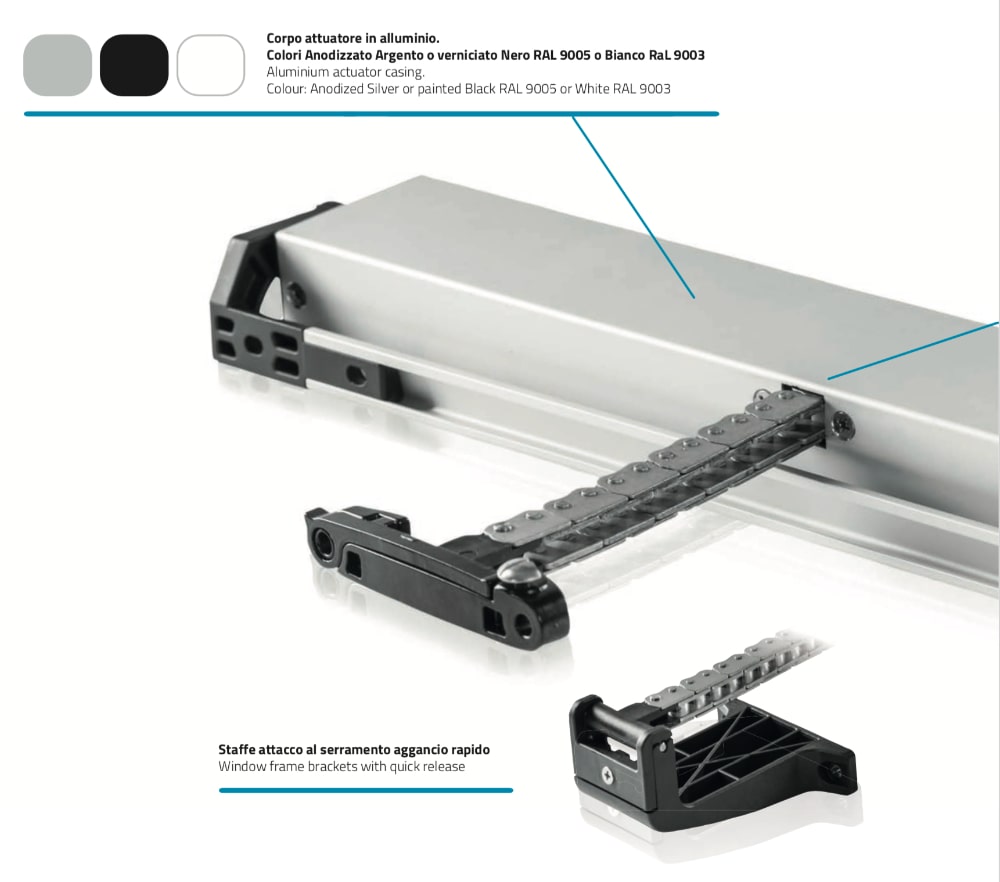

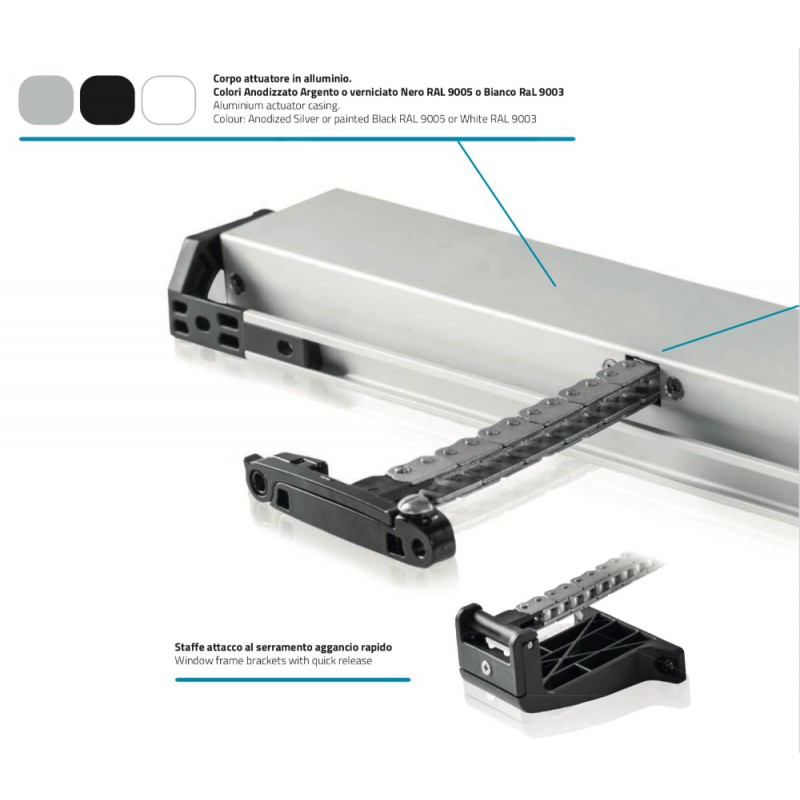

  • Aluminum casing;
  • Reduced height: 35 mm;
  • Easy to install thanks to the new simplified fixing system.

Micro Evo 1 Mingardi Attuatore a Catena Doppia Maglia per Finestre a Sporgere o Vasistas

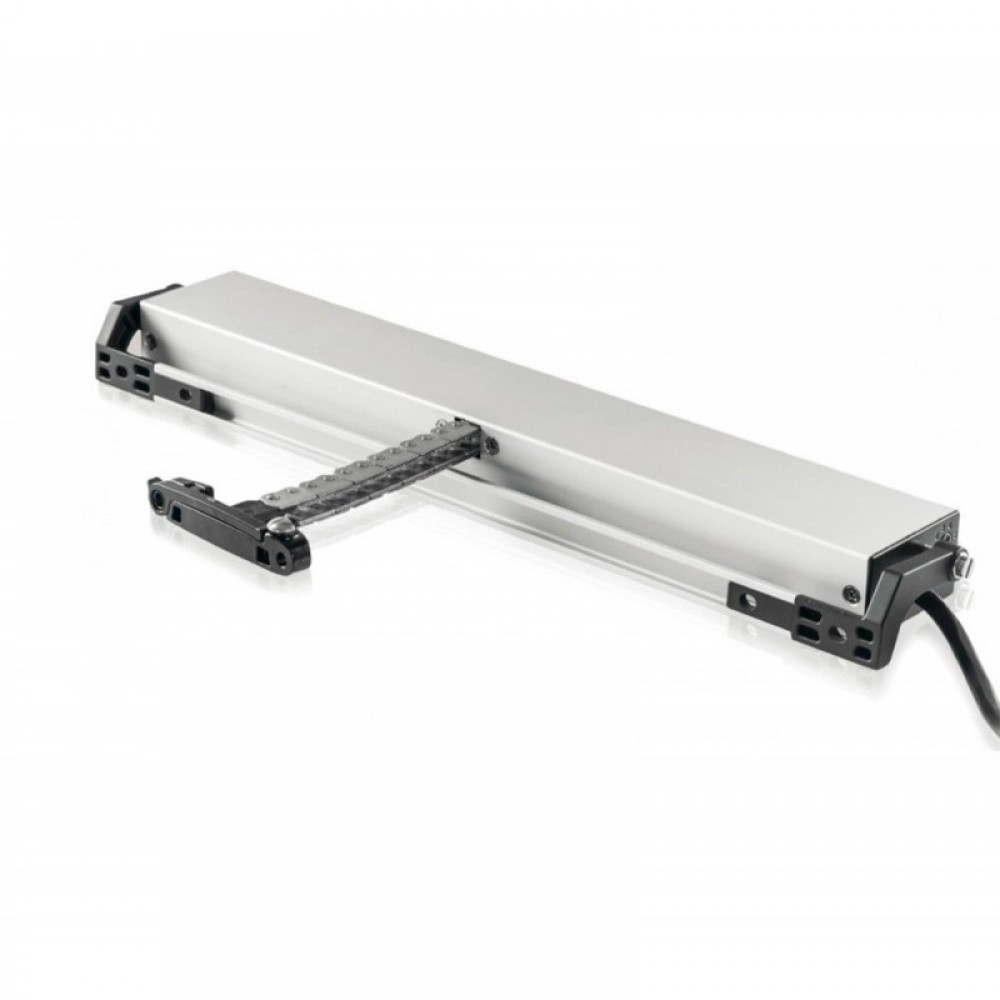

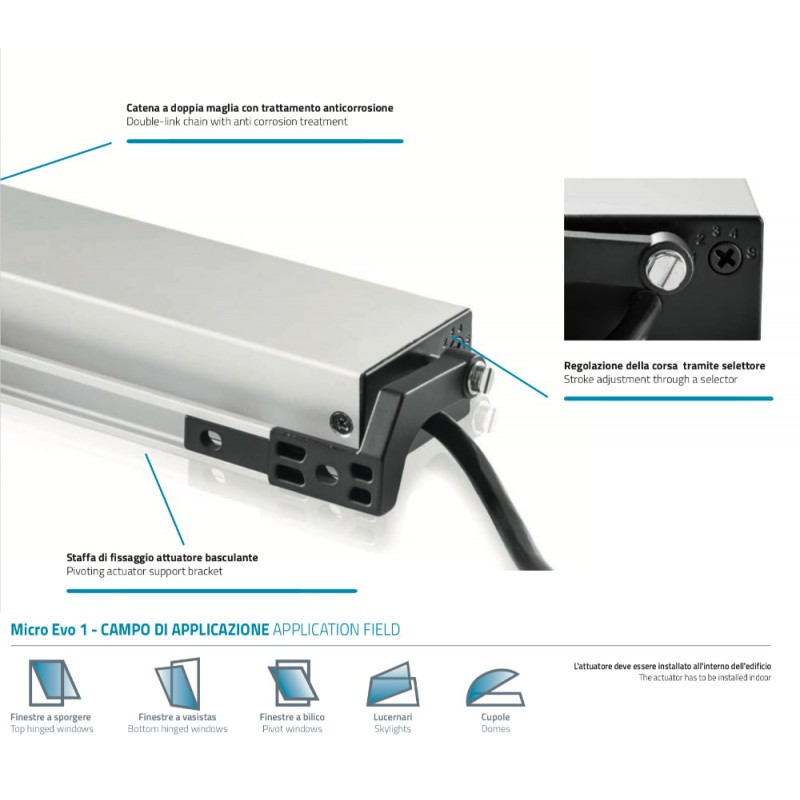

Micro Evo 1 Mingardi: linear electric actuator with double link articulated chain contained within a metal casing.

  • Equipped with overload protection system and automatic limit switch adjustment in closing.
  • It has 4 types of electronically selectable strokes.
  • Equipped with a synchronization system capable of coordinating the movement of the chain of several actuators (up to 4) without the need for any external control unit.
  • Available in the version operating with alternating current (110-240 V, 50/60 Hz) or direct current (24 V) power supply voltage.
  • Can be connected in parallel.
  • Compliant with the relevant European Directives.
  • Available in the version with silver or black casing (RAL9005) with accessories and black cable or with white casing (RAL9003) with accessories and white cable.
  • Complete with accessories for installation on top hinged windows or vasistas.

Micro Evo 1 Mingardi: attuatore elettrico lineare a catena articolata a doppia maglia contenuta all'interno di un involucro metallico.

Caratteristiche tecniche Micro Evo 1 Mingardi attuatore a catena

Micro Evo 1 Mingardi chain actuator technical features:

  • Force: Thrust - Traction: 300N;
  • Voltage: 110-240V AC (50 / 60Hz) or 24V DC;
  • Power: 110-240V AC: 25W - 24V DC: 24W;
  • Selectable stroke (mm): 100 - 200 - 300 - 400;
  • Opening and closing limit switches: Electronic;
  • Degree of protection (for internal use): IP32;
  • Operating temperature: -10 ° C + 40 ° C;
  • Minimum speed: approx. 13 mm / s;
  • Cable: 110-240V AC: Black or White PVC / 24V DC: Black or White RUBBER - L.1500;
  • Certifications: CE.
  • Synchronization: Yes max 4 actuators;
  • Soft stop closing: Yes.

Compatible with radio receiver 2701029.

Caratteristiche tecniche Micro Evo 1 Mingardi attuatore a catena

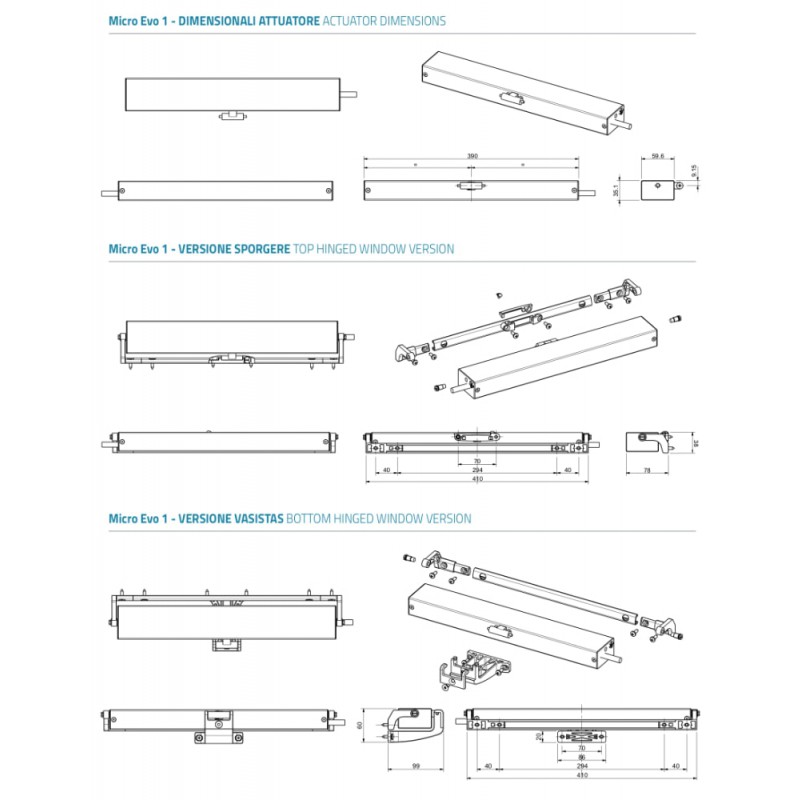

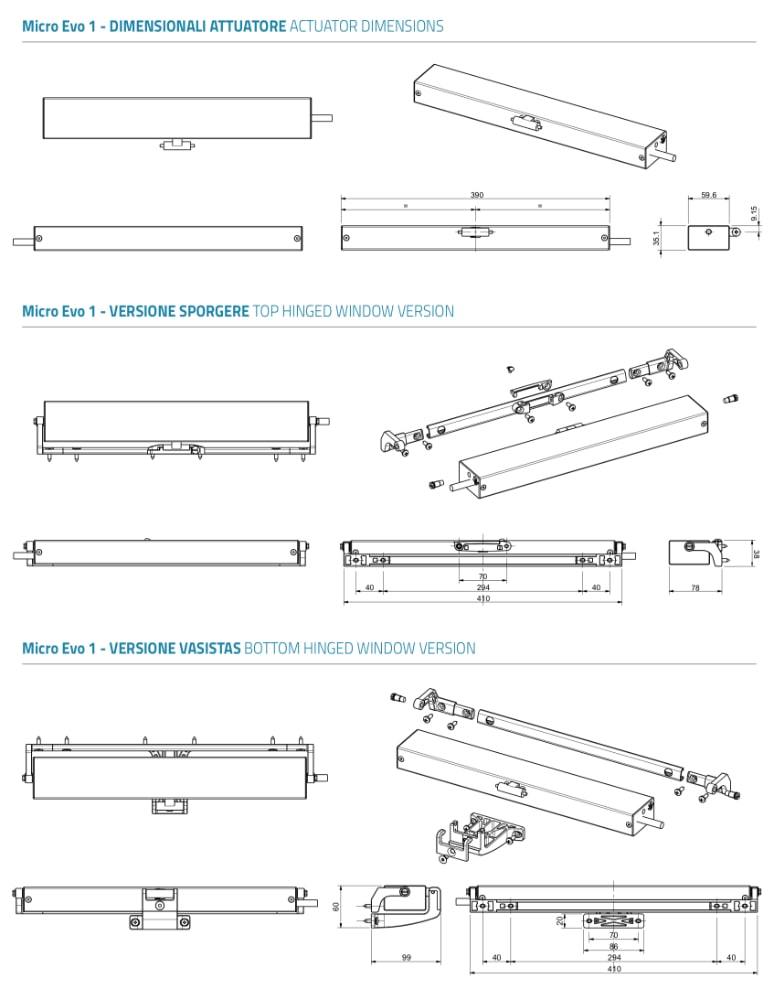

Micro Evo 1 - PACKAGING CONFIGURATION:

  • Micro Evo 1 Mingardi actuator;
  • Tilting actuator support bracket;
  • Bracket for application on top-hung windows;
  • Bracket for application on a transom window;
  • Window fixing brackets included.
