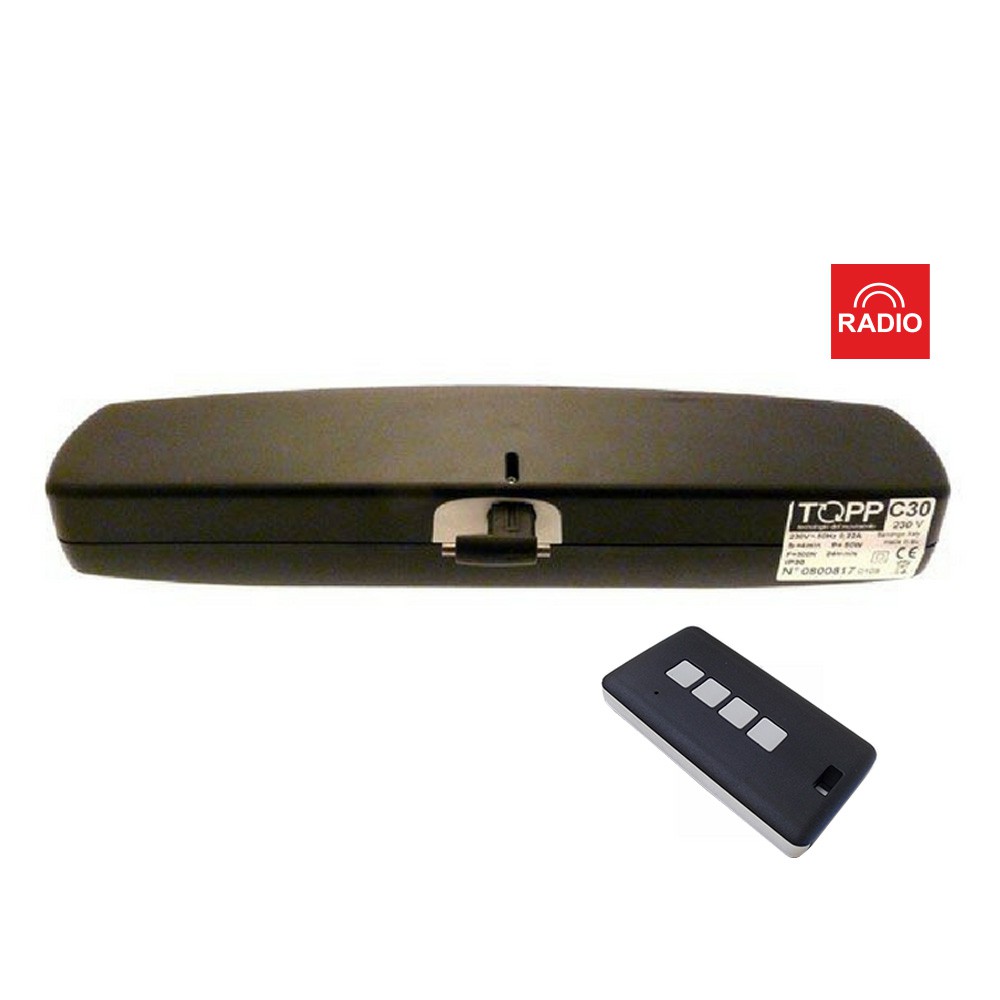

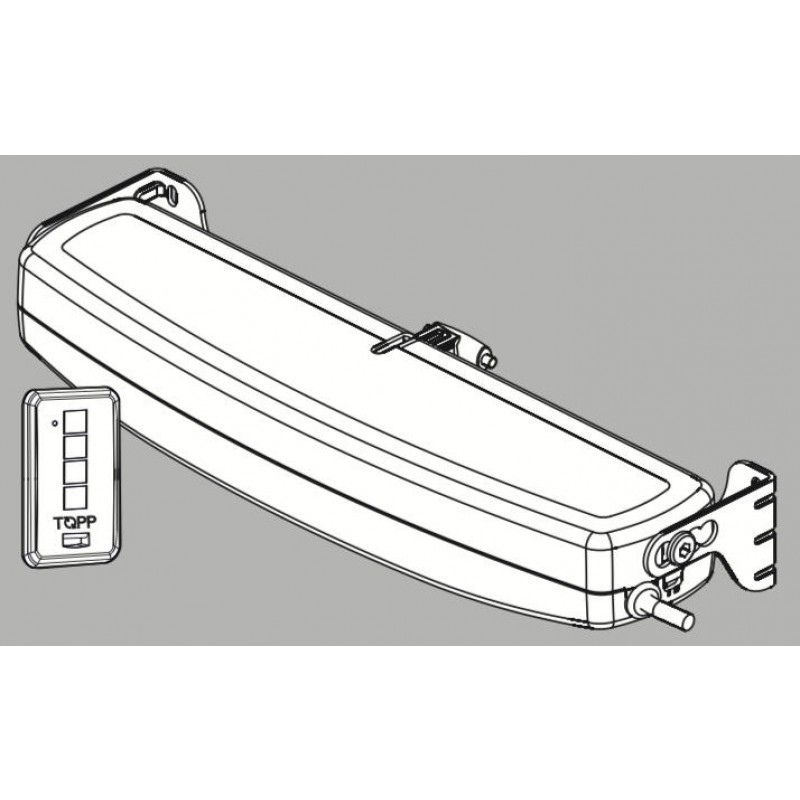

Chain Actuator Topp C30 Radio 230V 50Hz with TR4 Remote Control Included
1 Push Point Black Grey or White - with TR4 remote control
Electric actuator Topp, model C30 Radio with double link articulated chain, contained in a suitable casing, complete with support and fitting accessories for top and bottom hung windows.
- Operation at 230V 50Hz.
- Maximum applicable load 300N.
- Rapid hooking system for the adjustment to the frame.
- Stroke adjustable at 200 or 380 mm by an external selector.
- Electronics with acoustic device that warns of any incorrect installations.
- CE marked device.
Technical characteristics chain actuator Topp C30 Radio
- Power supply voltage: 230V 50Hz;
- Max recommended load in thrust: 300N;
- Max recommended load in traction: 300N;
- Strokes: 200 and 380mm;
- Absorbed current: 0,26A;
- Idle translation speed: 27mm/s;
- Duration of the idle stroke: 14s;
- Double electrical insulation: yes;
- Service type: S2 of 4min;
- Operating temperature: - 5 / + 50 °C;
- Protection degree of electric devices: IP30;
- Adjustment of the window frame connection: 15mm;
- Adjustment of pins for the swivel brackets: 15mm;
- Parallel connection of two or more C30: yes;
- Chain position control: yes;
- Stroke end: encoder;
- Electronics with acoustic device to warn the user of wrong installation (buzzer): yes;

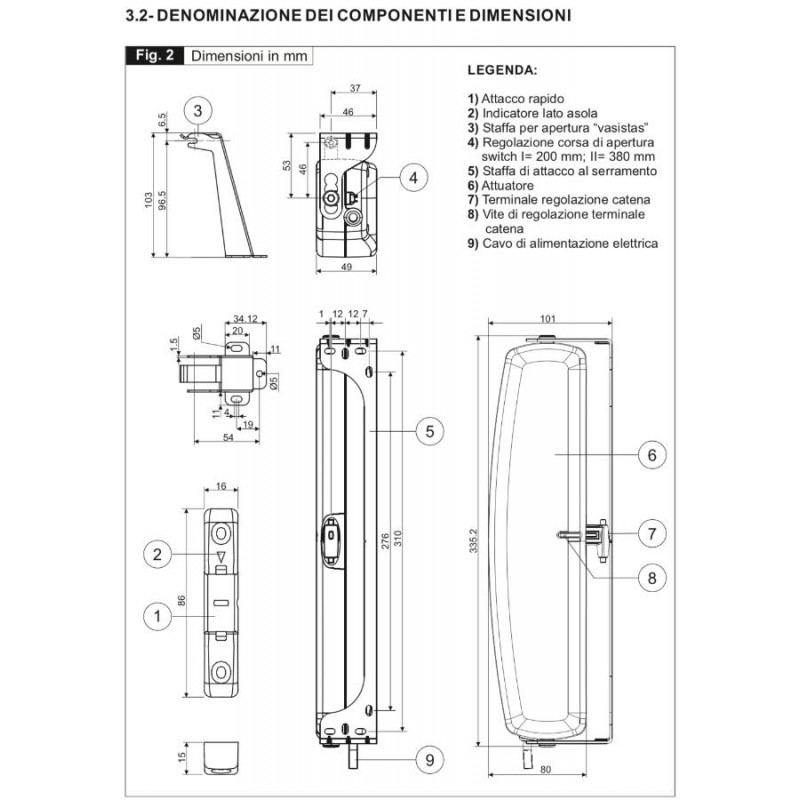

- Dimensions: 337,2x80x49mm;
- Weight: 1,1kg.
Applications: bottom and top hung windows, domes, skylights.

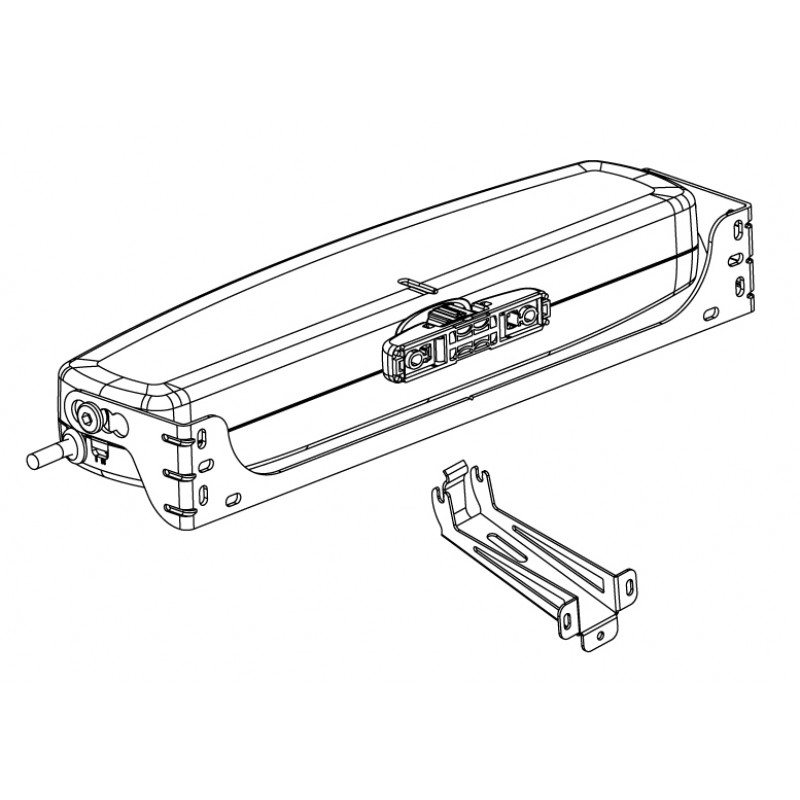

What is included? Chain actuator (spare parts included), swivel frontal brackets set for top/bottom hung windows, upper bracket for bottom hung windows, ARS rapid hooking device to the frame.
Why choose C30 Topp?
- Double link chain with very high resistance on top loads;
- Fast hooking and unhooking system to the window (international patent).
- Simple swiwel bracket for fast installations to windows at any type and size.
- Telescopic chain terminal with fast adjustment (from 0 to 15mm) also with totally retracted chain, for application on windows with overhung element (international patent).
- Swiwel bracket with additional adjusting system of 15mm for application on windows with overhung element.
