Supermaster Ultraflex UCS 230Vac Chain Actuator 400N

Ultraflex (UCS)
Code: SUPERMASTER 230 Vac
-35%
€ 180,05 € 277,00
Prices excluding VAT
Are you looking for an actuator from the Ultraflex catalog that is not on our site? Contact us and ask for a quote.

- +

Supermaster 230Vac - Ultraflex Chain Actuator UCS 400N ( 300N for 800mm stroke )

Greater push force for heavy leaves: 400 N - Wide stroke: 450-600-800 mm

  • Stroke (to choose between): 450-600-800 mm;
  • Color (to choose between): anodized silver, anodized dark brown, painted white RAL 9010;

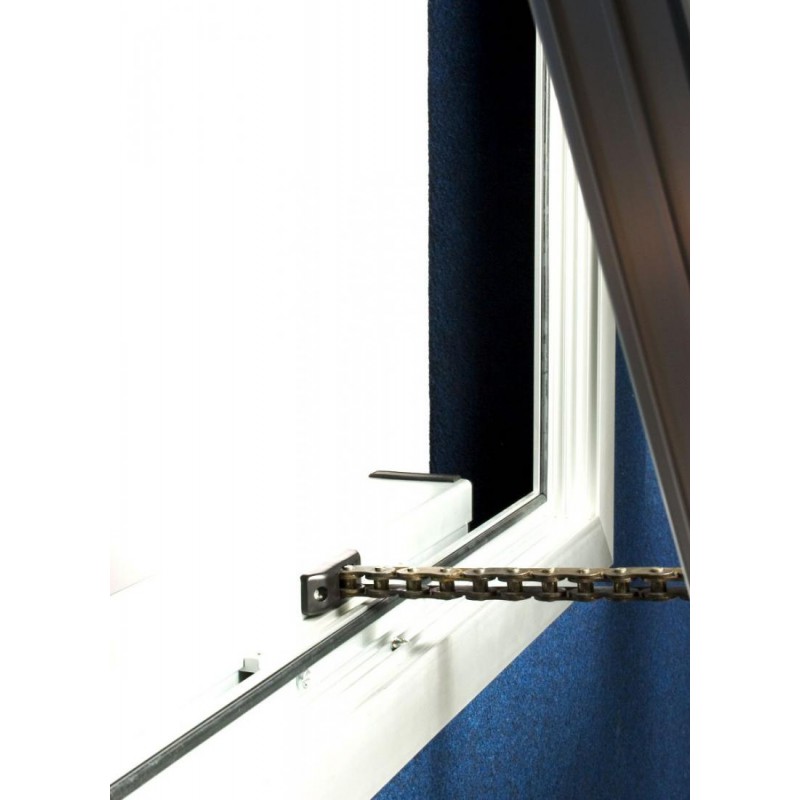

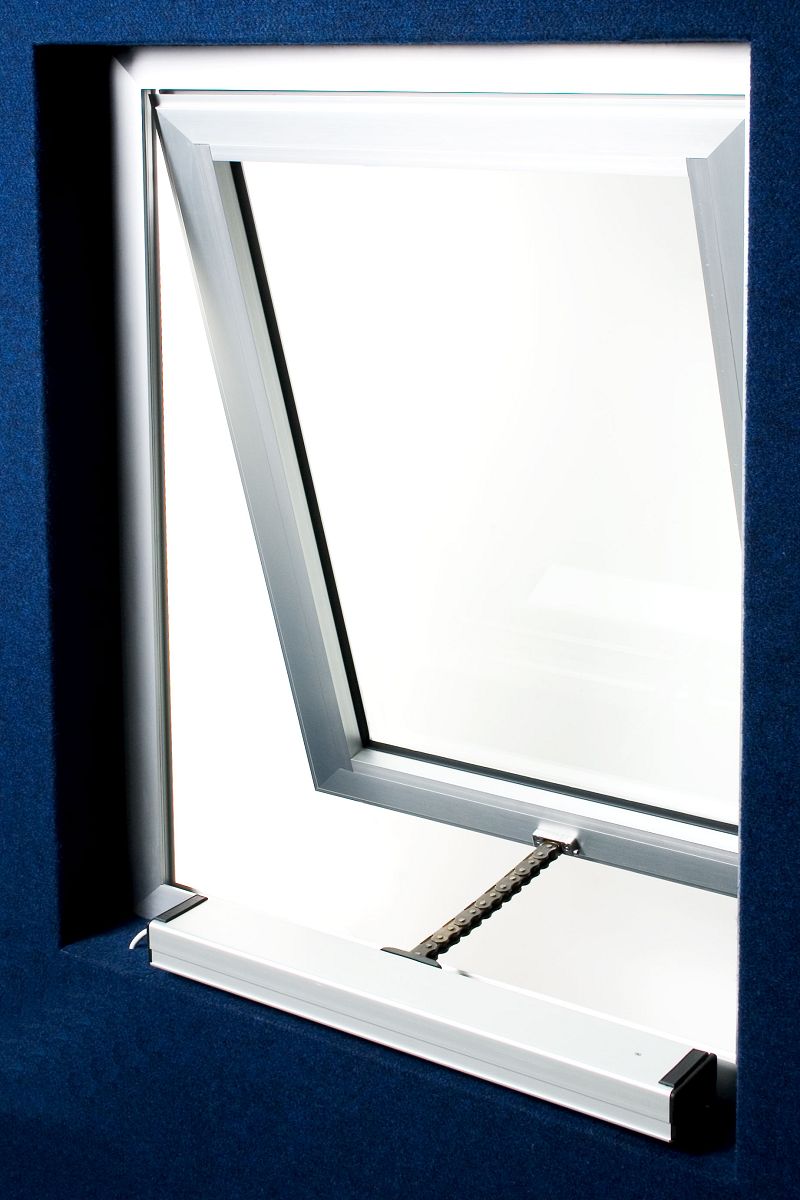

  • Examples of applications: projecting, bottom-hung (accessories sold separately).


Supermaster: the actuator to move even the heaviest leaves!

The widest stroke (up to 800mm) and the greatest force for a chain actuator: it solves problems of moving very heavy leaves and the need for large openings without encumbrance inside the compartment.

Minimum window height: 900mm for 450mm stroke, 1200mm for 600mm stroke, 1600mm for 800mm stroke.

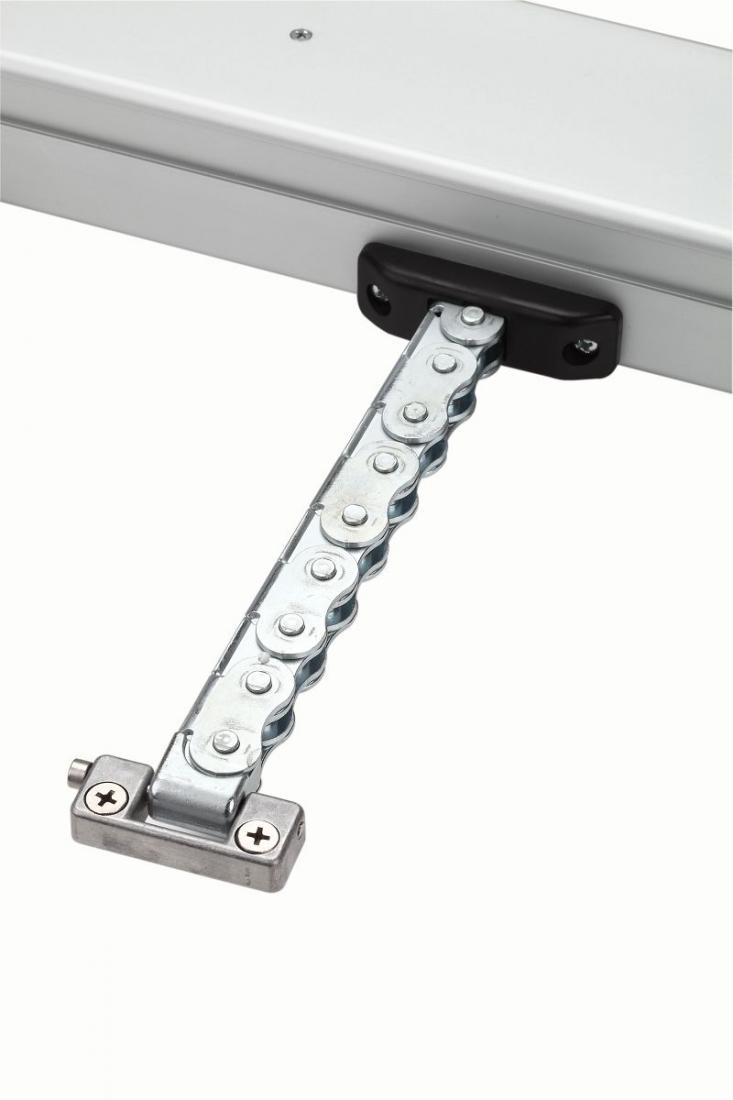

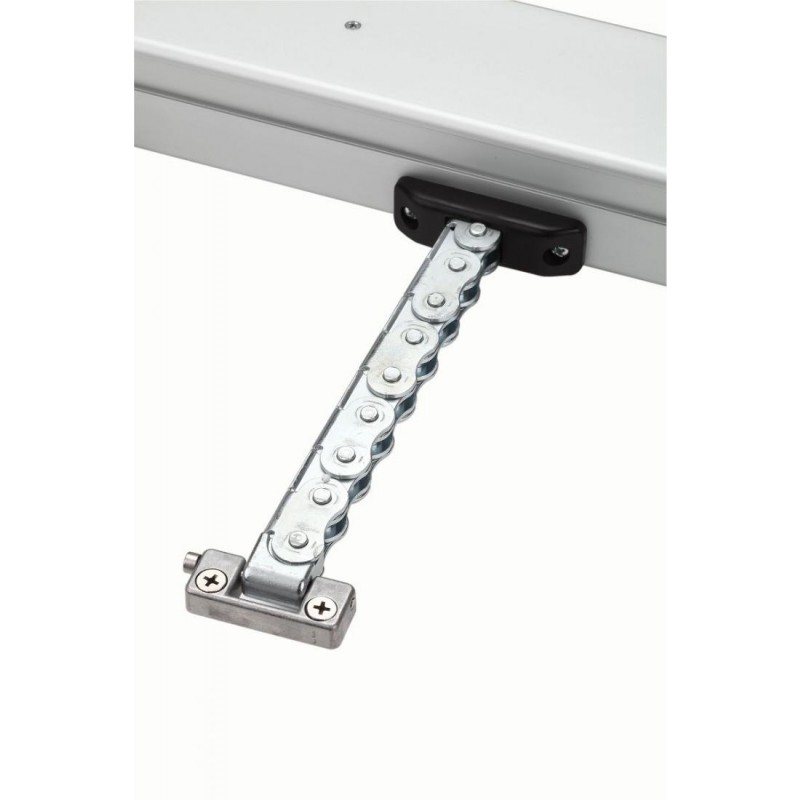

  • Large double link chain.
  • Supplied with 2-3m of electric cable.
  • Enclosure in anodized (silver and dark brown) or painted (white) extruded aluminum.

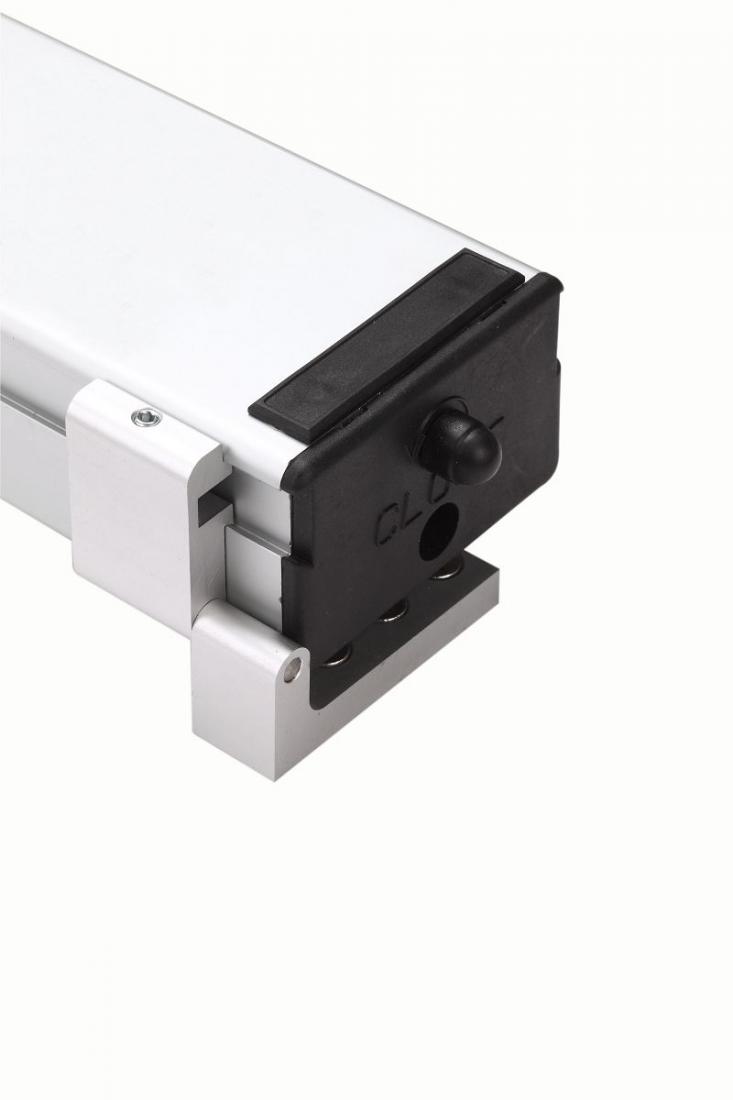

  • Window closing signal via red light on the actuator.
  • The greater stroke (800 mm) is indicated only for bottom-hung windows.

Supermasters


Technical features chain actuator Supermaster 230Vac Ultraflex UCS

  • POWER SUPPLY 230 Vac ± 10%
  • ELECTRICAL CONNECTION 3 wires + earth
  • STROKE 450 - 600 - 800 mm
  • PUSH FORCE 400 N (300 N for 800mm stroke)
  • FORCE IN TRACTION 400 N
  • SPEED ~23 mm/s
  • ABSORPTION (at maximum load) 0.8 A
  • CAN BE CONNECTED IN PARALLEL YES
  • LIMIT SWITCHES microswitches
  • Thermal PROTECTION
  • PROTECTION DEGREE IP 20.

CODE MODEL DESCRIPTION
40462T Supermaster AC Supermaster actuator 230Vac 450 A ANODISED SILVER
40465Z Supermaster AC Supermaster actuator 230Vac 450 B ANODIZED BROWN
40466B Supermaster AC Supermaster actuator 230Vac 450 W PAINTED WHITE RAL 9010
40452P Supermaster AC Supermaster actuator 230Vac 600 A ANODISED SILVER
40464X Supermaster AC Supermaster actuator 230Vac 600 B DARK BROWN ANODIZED
40454U Supermaster AC Supermaster actuator 230Vac 600 W PAINTED WHITE RAL 9010
40518U Supermaster AC Supermaster 230Vac 800 A ANODISED SILVER actuator
40753T Supermaster AC Supermaster actuator 230Vac 800 B DARK BROWN ANODIZED
40774O Supermaster AC Supermaster actuator 230Vac 800 W PAINTED WHITE RAL 9010

Accessories that can be purchased separately: aluminum sliding bracket with shim bar cod. 40460N, aluminum dovetail swing bracket kit cod. 40560T, bottom hung kit: aluminum sliding bracket with shim bar and painted steel bottom hung bracket cod. 40472W.

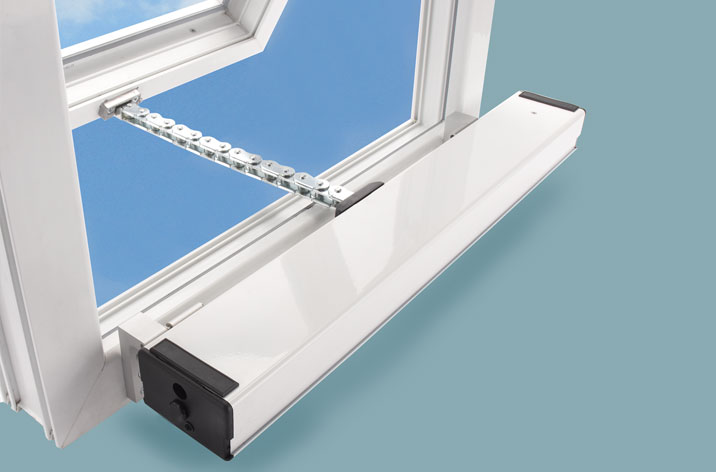

Supermaster UCS ultraflex protruding sash actuator


Choose Ultraflex UCS: remote control systems for windows and domes

This company is part of the Ultraflex Group which, for over 70 years of industrial and commercial activity, includes companies in the design, production and distribution of components and accessories for the nautical sector, for the industrial sector, for the building sector, for road signs and commercial, for the use of alternative energies.
