STILE UCS Ultraflex - Chain Actuator for Windows - Vasistas and Top Hinged

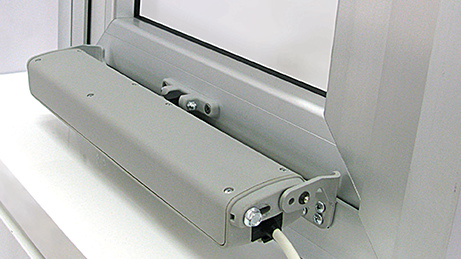

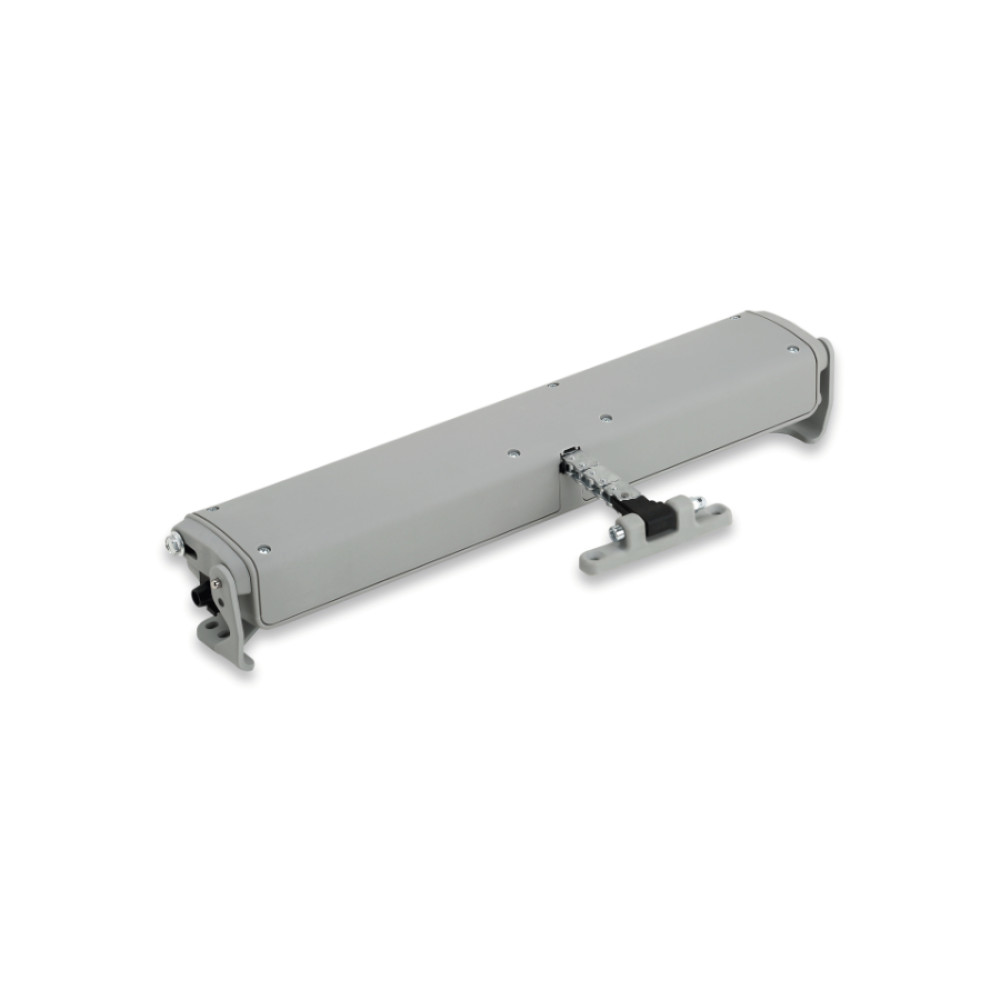

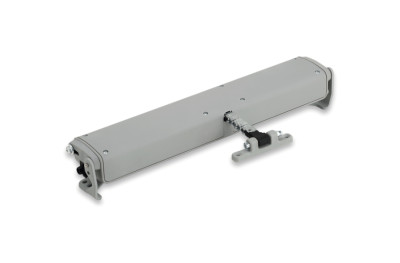

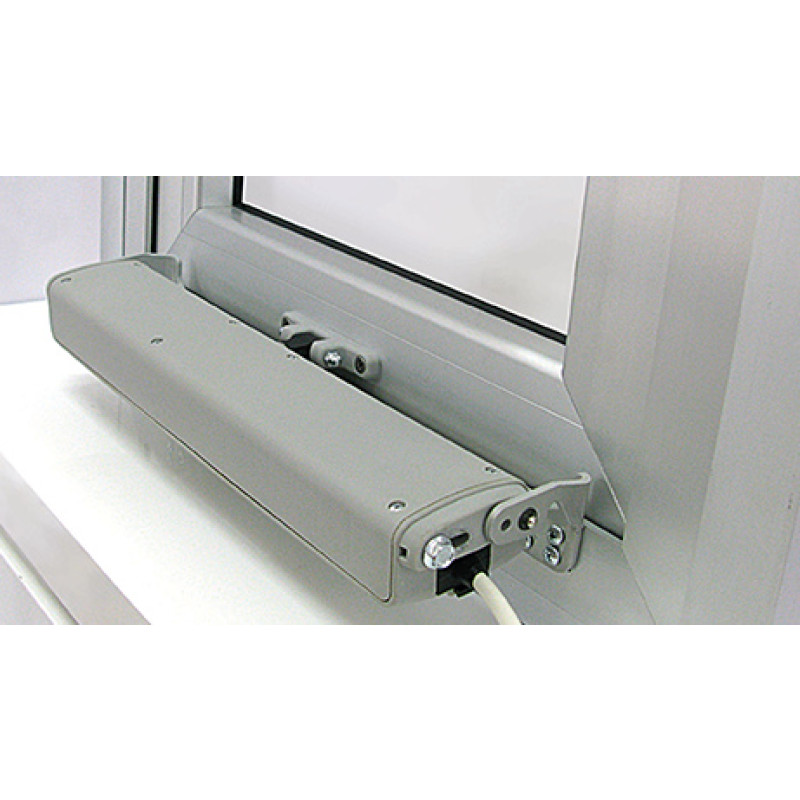

STILE UCS Ultraflex electric chain actuator, designed for the automation of
top-hung and top-hung windows, including roof frames or heavy sashes.
Thanks to the
high-strength double-link chain, this STILE UCS Ultraflex
chain actuator allows for smooth, reliable and safe movement (even in the presence of heavy loads).
Available in three colours –
white, grey and black – it can be purchased with or without a hopper opening bracket, depending on your needs.
Perfect for indoor installations, it is supplied with a removable connector for quick electrical connection, and has a limit switch system with microswitches, thermal protection and closing signal.
Main features of the STILE UCS Ultraflex chain actuator
- Application : window motors for hopper, top-hung and roof windows.
- Chain : double link for greater mechanical resistance.
- Casing : Glass-fiber reinforced nylon, durable and lightweight.
- Insulation : double electrical insulation (no earth connection required).
- Assembly : easy and safe, thanks to the adjustable bracket system (included).
- Reporting : feedback at closing.
- Compatibility : can be installed on windows with 4-lever hinges (on request).

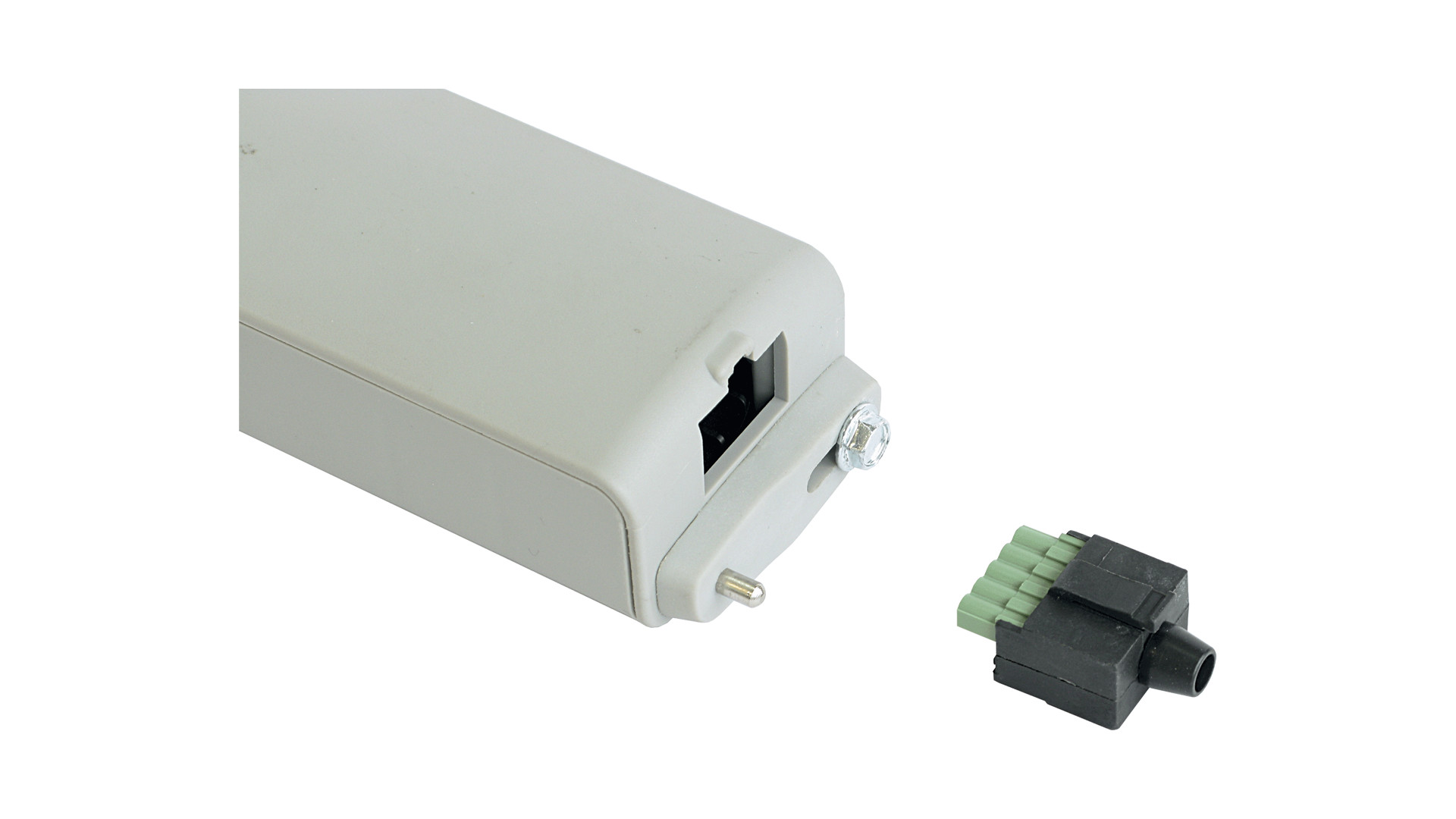

- Connectivity : Removable connector included for quick connection.

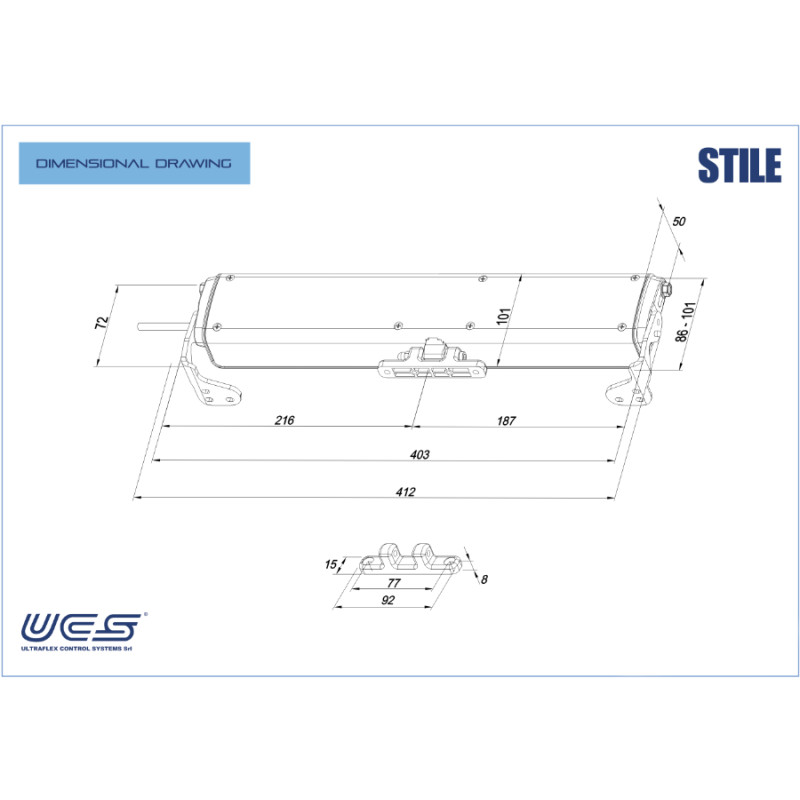

Technical specifications STILE UCS Ultraflex
- Power supply : 230 Vac ±10% – 50/60 Hz;
- Maximum current consumption : 0.8 A;
- Push and pull force : 300 N;
- Speed (no load) : approx. 30 mm/s;
- Selectable stroke : 230 mm or 400 mm;
- End of stroke : with microswitches;
- Thermal protection : present;
- Electrical insulation : double insulation, no earth connection required (Class 2);
- Degree of protection : IP20;
- Electrical connection : 3 wires (OPEN / CLOSE / COM);
- Duty cycle : 3% (maximum 3 continuous cycles without pause);
- Locking force : 800 N;
- Parallel connection : Supported.
Choice of STILE Ultraflex engine configuration
- Actuator only

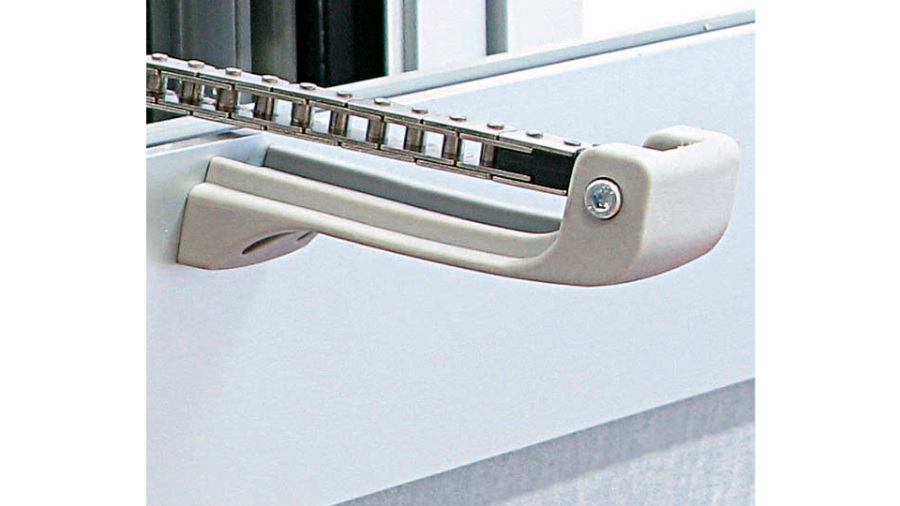

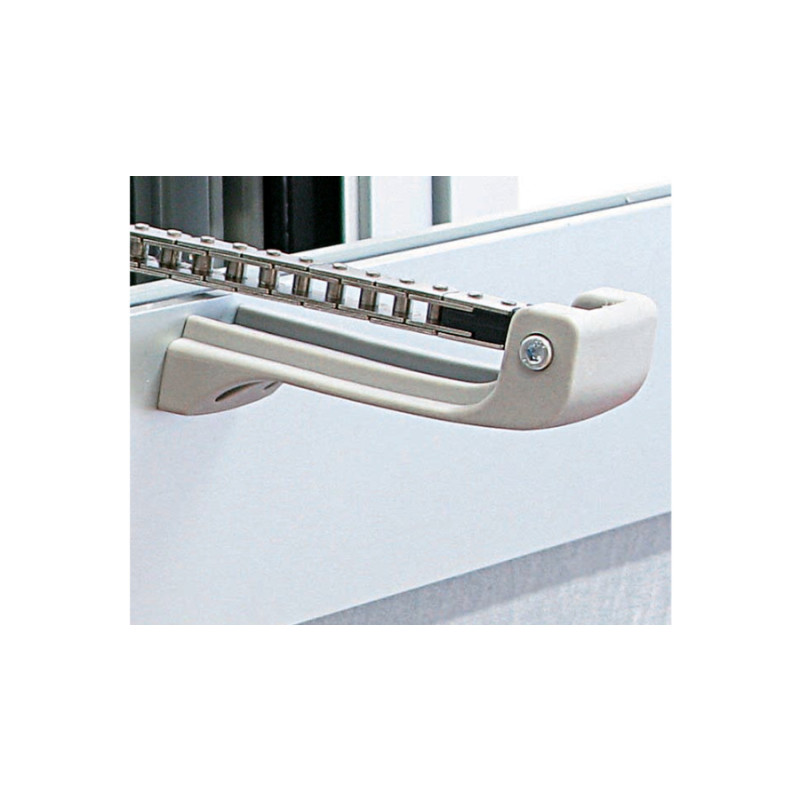

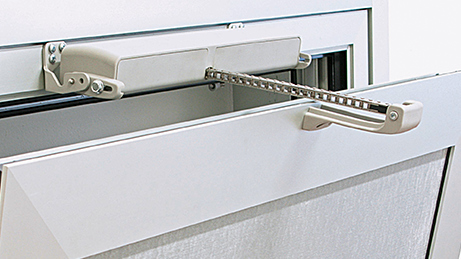

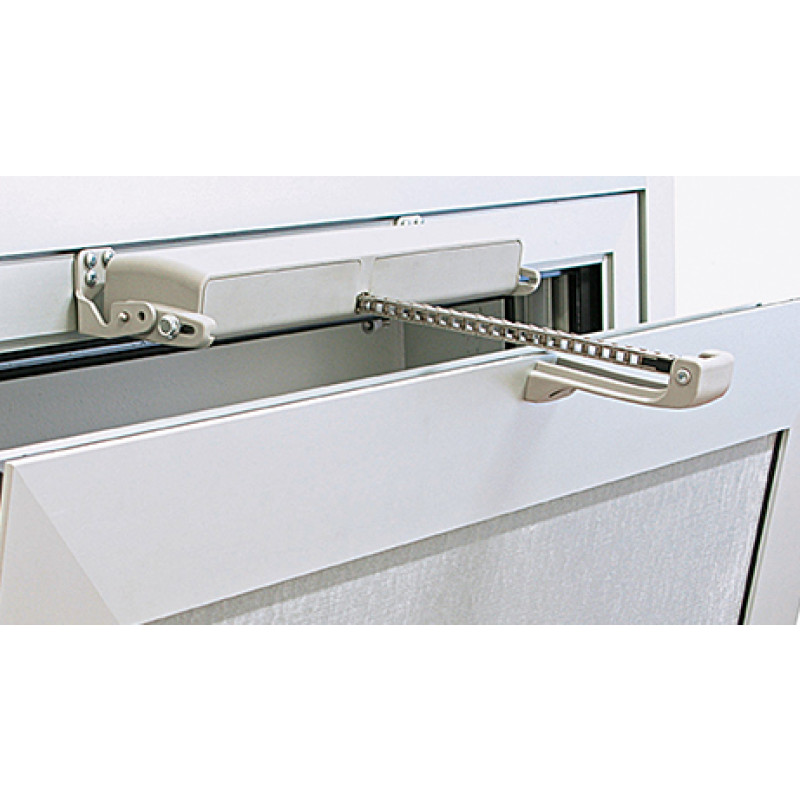

- Actuator with bracket for vasistas opening
Note: Please select your desired combination (color and configuration) before adding to cart.
Accessories included with the UCS STILE engine

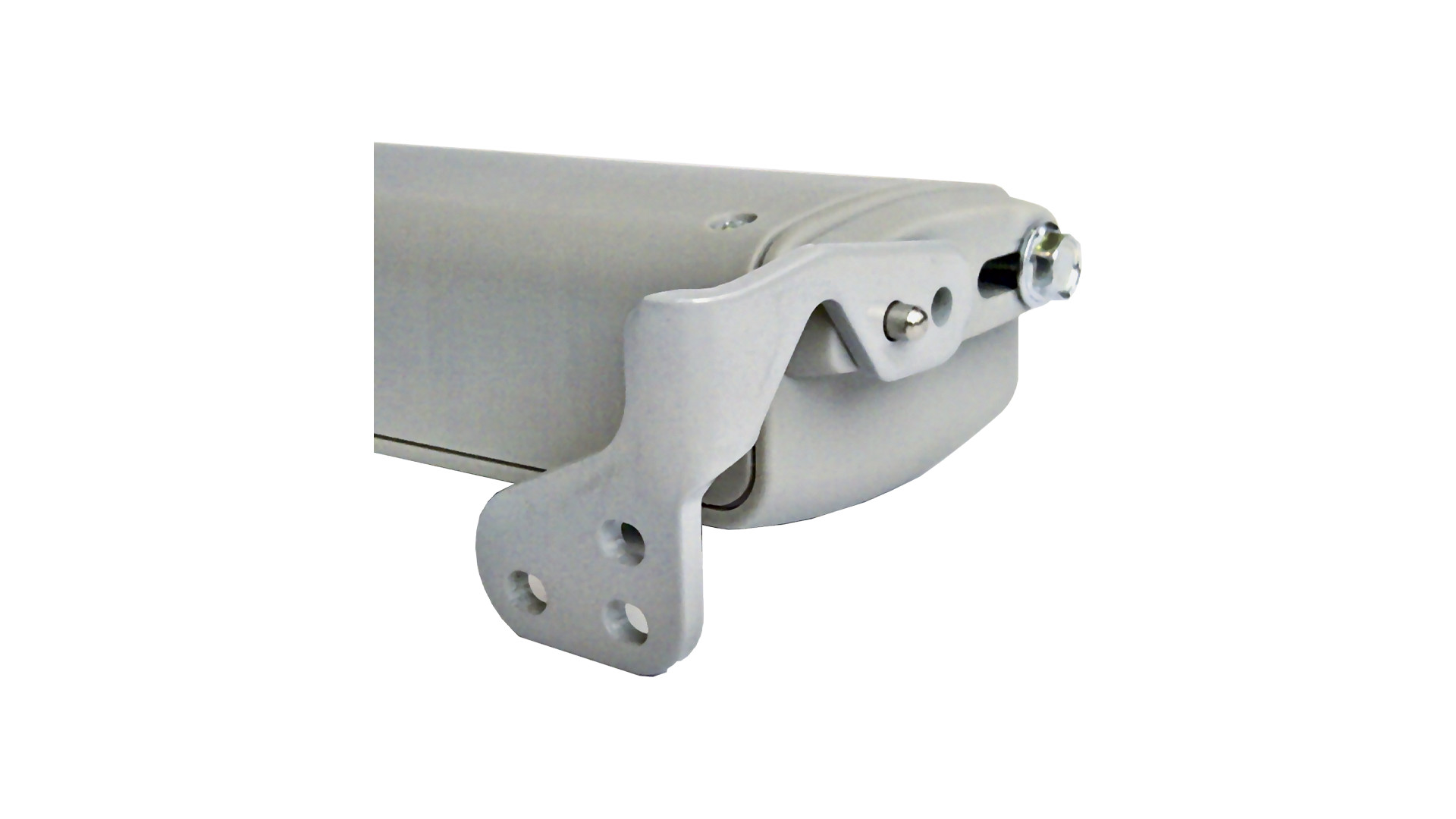

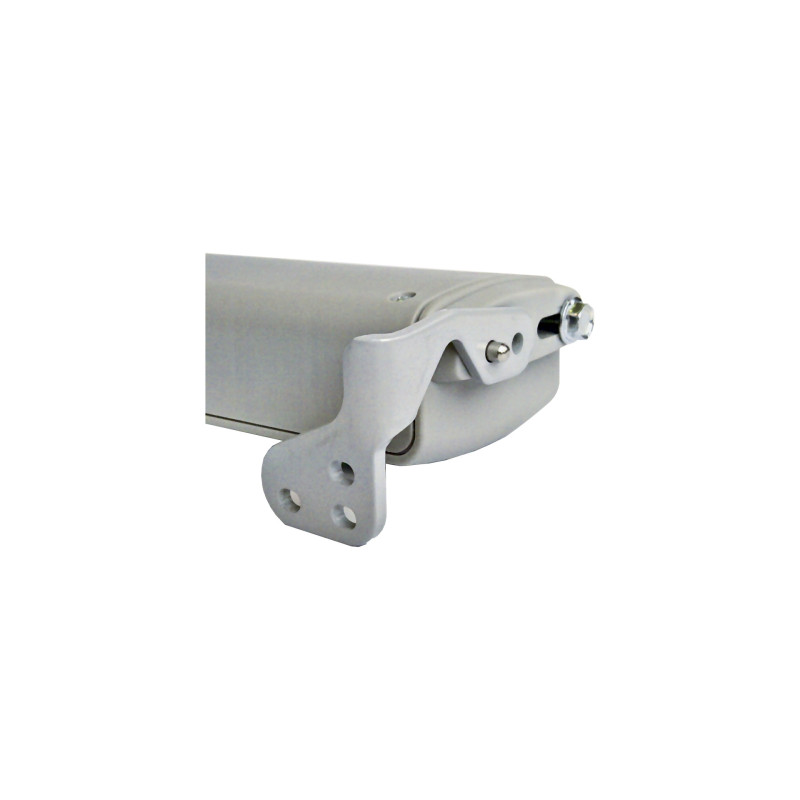

- Swivel brackets for mounting.
- Spacer for chain connector (use on windows with strong overlap).

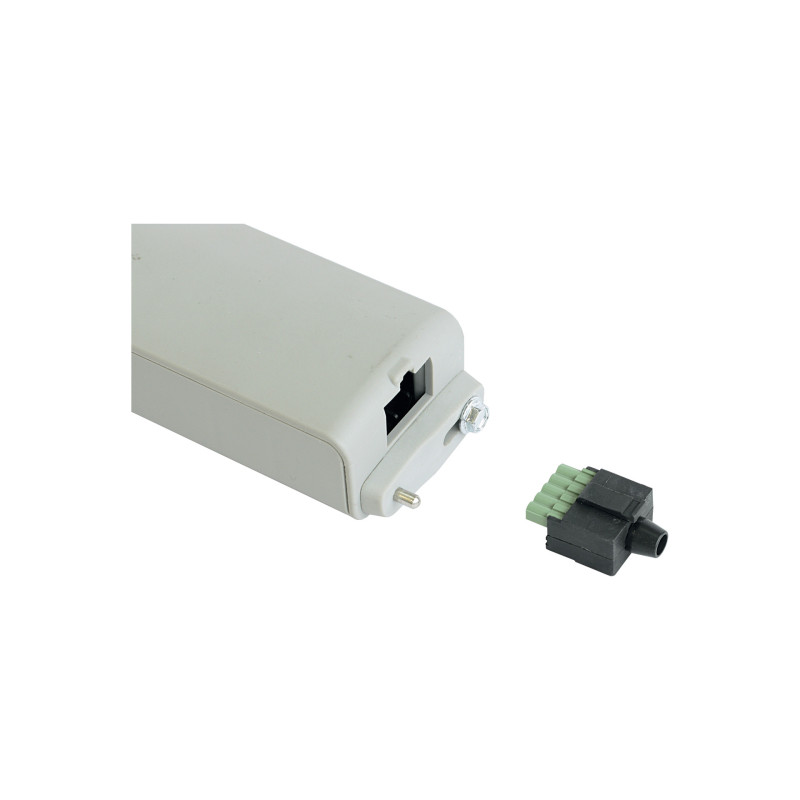

- Removable electrical connector.
Warnings and installation STILE UCS Ultraflex
- The actuator is intended for indoor use only.
- Do not install on windows accessible to people less than 2.5 m from the ground without safety systems.
- Do not install two STILE actuators on the same window frame.
- The hopper windows must be without stop compasses.
Recommended use STILE UCS Ultraflex
- Vasistas windows (interior casement).
- Protruding windows (opening outwards).
- Roof windows.
