Wired tubular motor kit for Somfy MR 100 10 Nm electric roller shutter
Features Somfy MR 100 tubular wire motor with mechanical limit switch
This Somfy ready-to-install kit is used to motorize an electric roller shutter wound on an octagonal section tube.
- Wired motor type for electric roller shutter;
- The lifting force is 10N;
- Equipped with push-button limit switch: just adjust it to lock the shutter at the desired height.

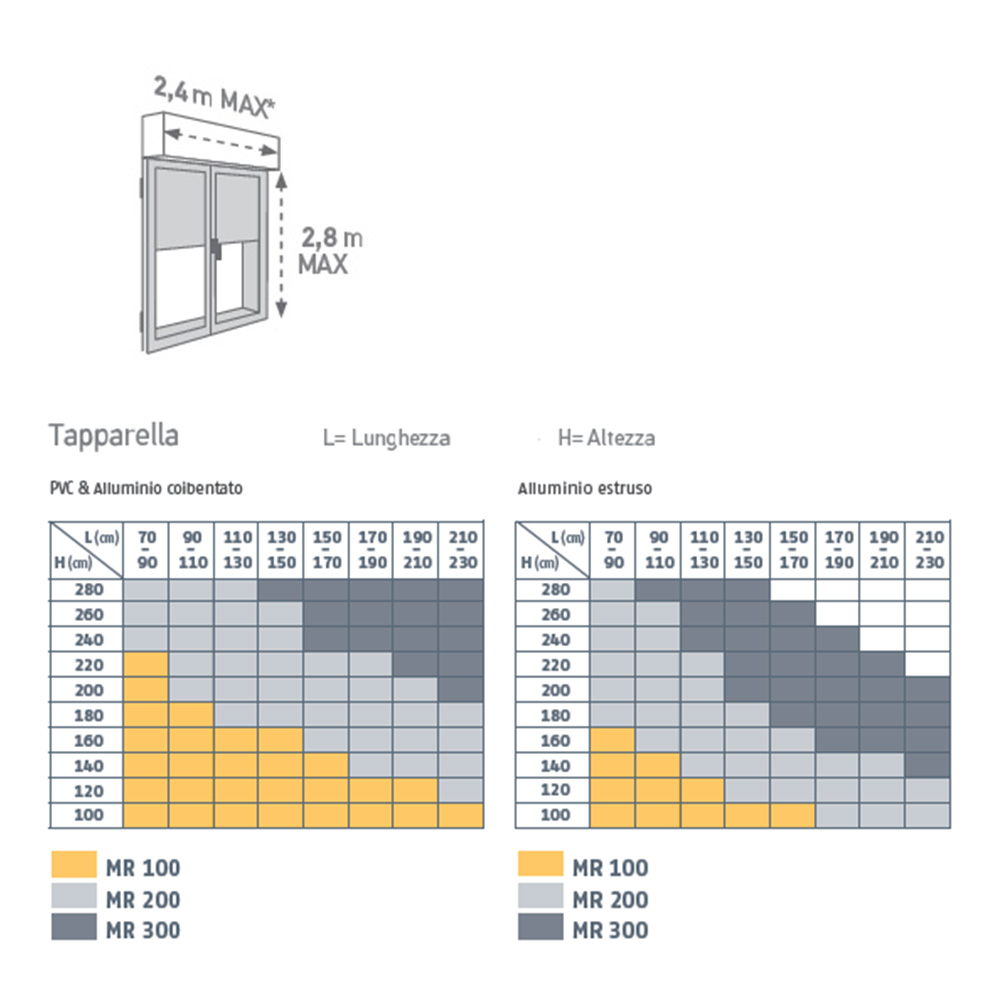

Surfaces of the shutters on which to apply the wire tubular motor kit
Read below the surface and material of the roller shutter that you can automate with this Somfy motor kit.
- PVC plastic : 4 m² of maximum area;
- Insulated aluminum : 5 m² of maximum area;
- Extruded aluminum : 1.66 m² of maximum area.
Why buy a Somfy roller shutter motor kit?
Here are the 2 main advantages of this tubular motor kit for electric roller shutters.
- Easy installation - you just need to fix, connect and program;
- In the kit there is everything you need : the components are made to be transported, installed and stored easily.
Contents: What is included in the installation kit?

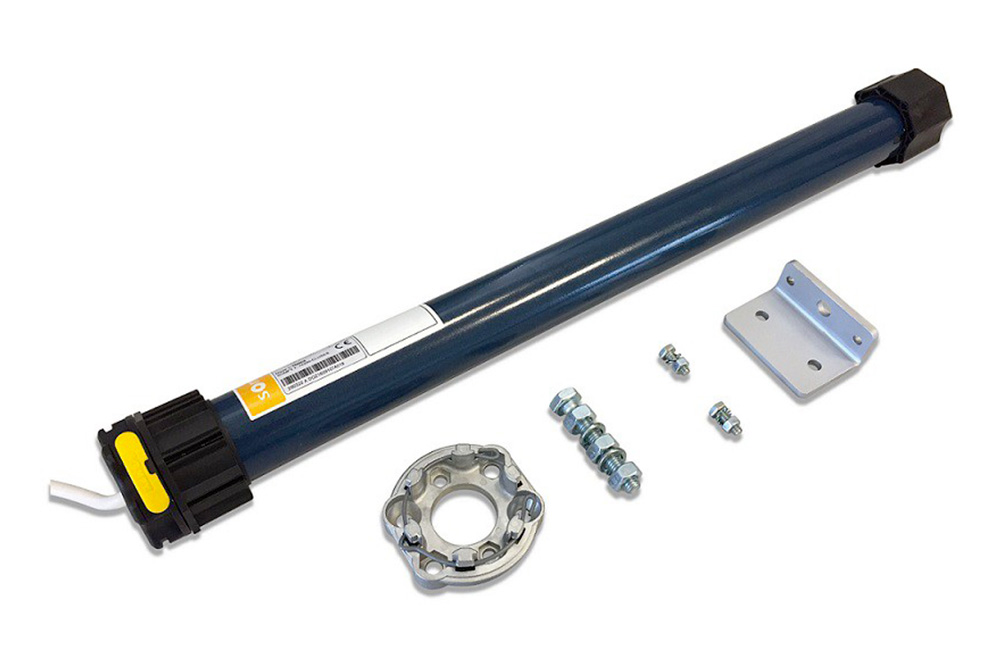

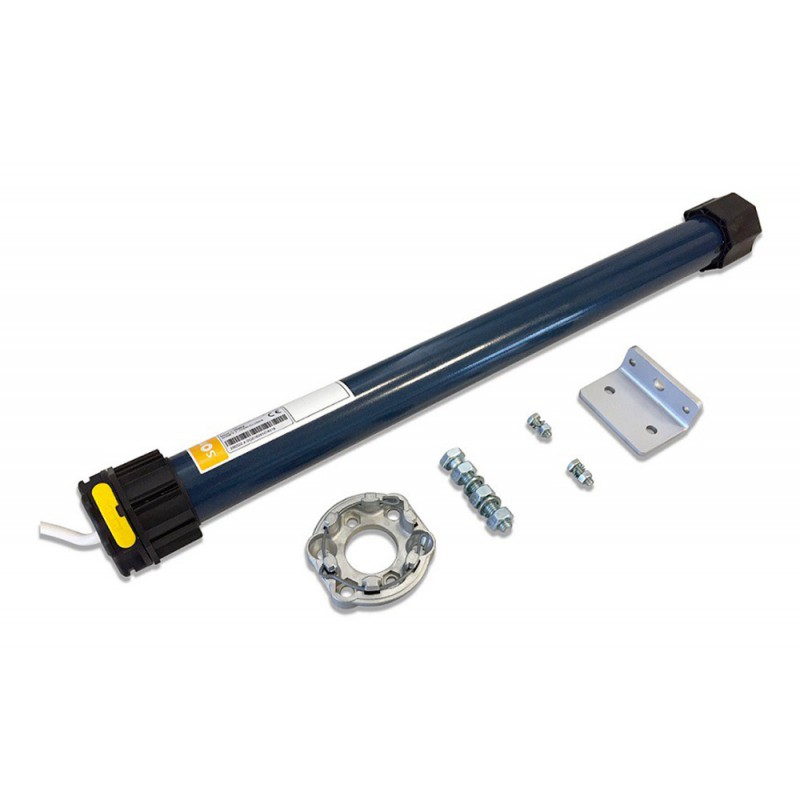

The kit is ready to install and includes the necessary motor and accessories:
- Wired tubular motor - motor for roller shutters type LT50 10 / 17G1 MR
- Pre-assembled octagonal roller adapters - crown and wheel;
- Support for operator in zamak;
- "L" team for support;
- Screws, washers and nuts for installing the roller shutter motor.
ATTENTION: the control device is not included . This accessory allows you to choose the up and down of the rolling shutter for each motor.
Which motors can you replace with this Somfy electric roller shutter kit?
The MR 100 motor can replace the following Somfy roller shutter motors:
- LT 50 JET 10/12
- LT 50 WAXES 8/12
- LT 50 ARIANE 6/17
- LT 50 WAX 8/17
- LT 50 JET 10/17
Compatible: Box Tunnel, roller shutter integrated into the wall
Specific technical characteristics of the roller shutter motor
This electric roller shutter motor has the following technical features.
- Power supply : 230 V - 50 Mz;
- Torque : 10 Nm - 17 Rpm;
- Power : 120W;
- Degree of protection : IP 44;
- Limit switch: push button.
