Electric roller shutter motorization Somfy MR 200 - 20 Nm kit
Features MR 200 Somfy kit with motor to automate the rolling shutters
Somfy MR 200 wire tubular motor kit for 20 Nm electric roller shutters , complete with motorization: installation accessories included .
This ready-to-install roller shutter motor kit is used to automate an electric roller shutter wound on an octagonal section tube.
- Wired motor type for electric roller shutters;
- The lifting force is 20N;
- Equipped with push-button limit switch: just adjust it to stop the shutter at the height you want.

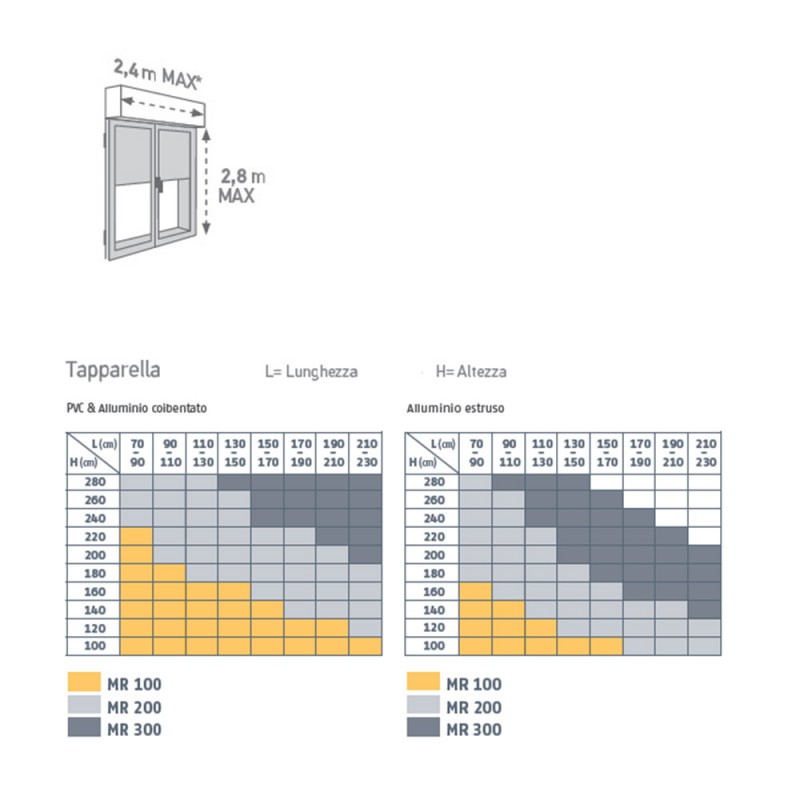

Surfaces of the roller shutters on which to mount the Motorization Kit for Electric Shutter
Read below the surface and material of the shutter to be automated.
- PVC plastic : 7 m² of maximum area
- Insulated aluminum : 8.75 m² of maximum area
- Extruded aluminum : 2.9 m² of maximum area
Advantages: why buy a roller shutter motor kit?
Here are the 2 main advantages of Somfy motorization kits for electric roller shutters:
- Easy installation - you just need to fix, connect and program;
- In the kit there is everything you need : the components are made to be transported, installed and stored easily.
Contents: What is included in the installation kit?

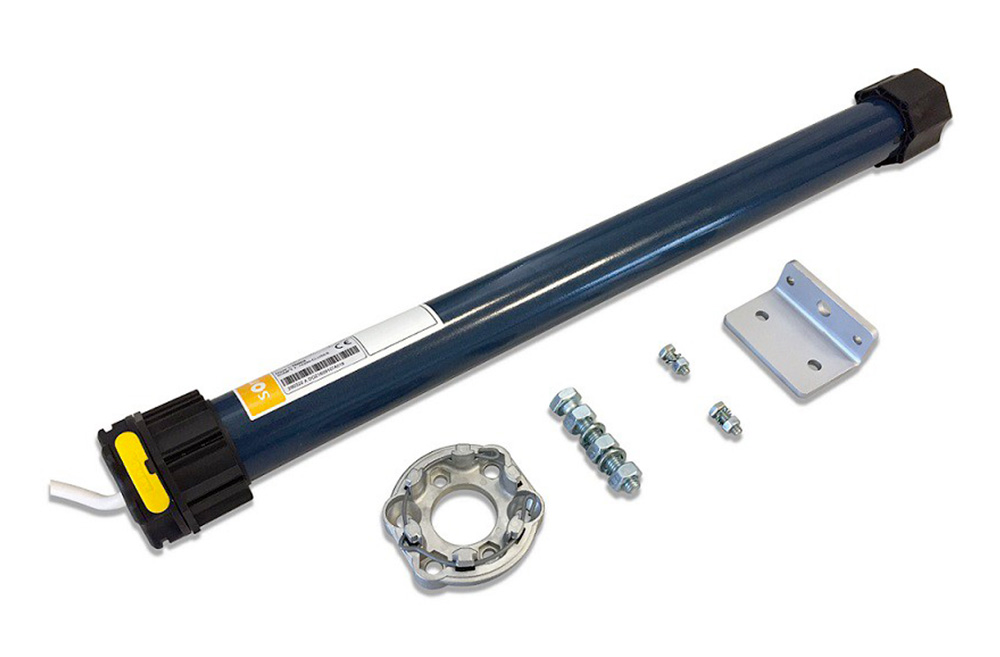

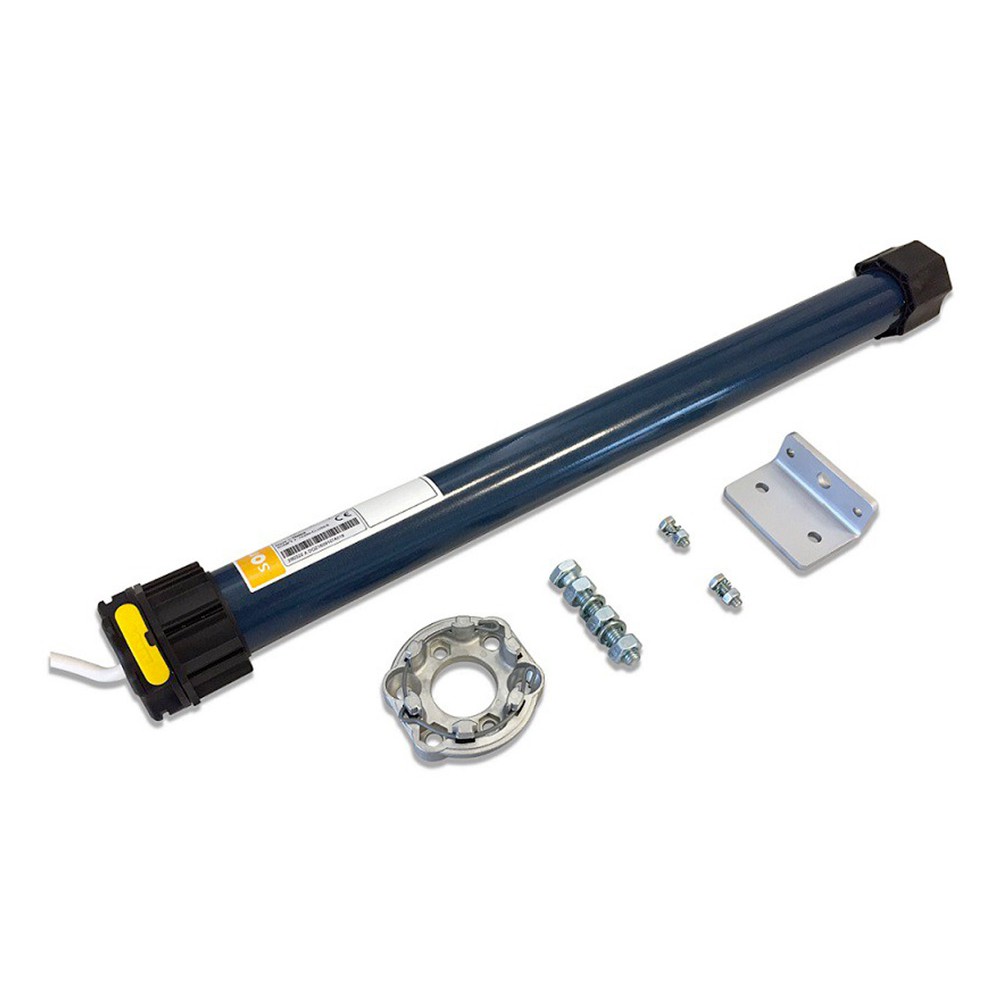

The ready-to-install kit includes roller shutter motor and necessary accessories:
- Wired tubular motor - motor for electric roller shutter LT50 20 / 17G1 MR;
- Pre-assembled octagonal roller adapters - crown and wheel;
- Support for operator in zamak;
- "L" team for support;
- Screws, washers and nuts for installing the roller shutter motor.
ATTENTION: the control device is not included . This accessory allows you to choose the up and down of the rolling shutter for each motor.
Which motors can you replace with this roller shutter motor kit?
The MR 100 motor can replace the following Somfy roller shutter motors:
- LT 50 ATLAS 15/12;
- LT 50 METEORA 20/12;
- LT 50 ATLAS 15/17;
- LT 50 METEORA 20/17;
- LT 50 GEMINI 25/17.
Compatible: Box Tunnel, roller shutter integrated into the wall.
Technical features Somfy MR 200 Kit
This Somfy MR 200 motorization kit for electric shutters is characterized by the following features:
- Power supply : 230 V - 50 Mz;
- Torque : 20 Nm - 17 Rpm;
- Power : 160W;
- Degree of protection : IP 44;
- Limit switch: push button.
Somfy: online store of motors for electric shutters
Somfy helps you transform your home into a smart home. Somfy products are in fact intelligent and use the latest technologies to:
- improve the internal home environment;
- save time and energy when returning from daily work;
- increase energy and environmental savings.
