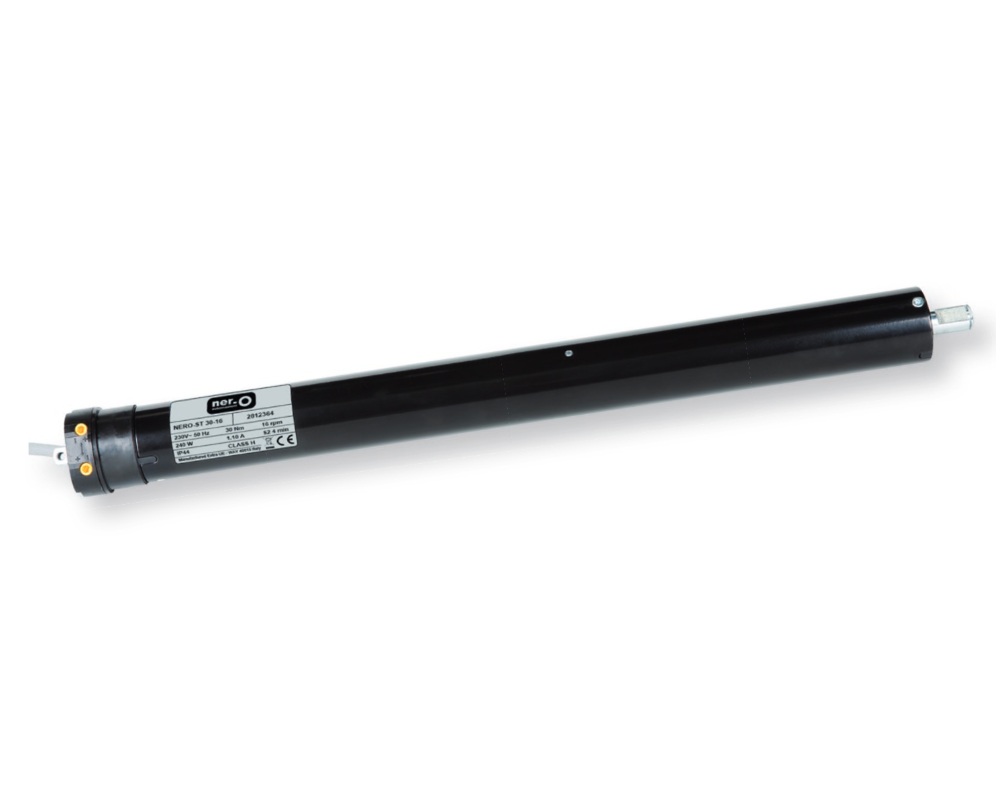

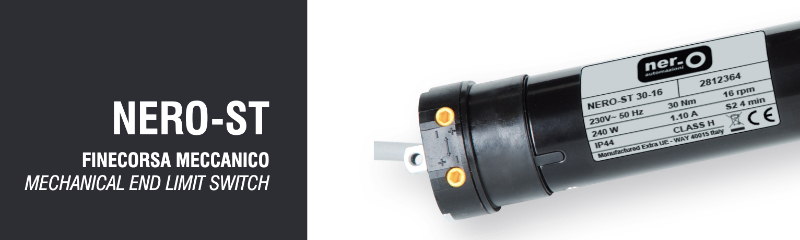

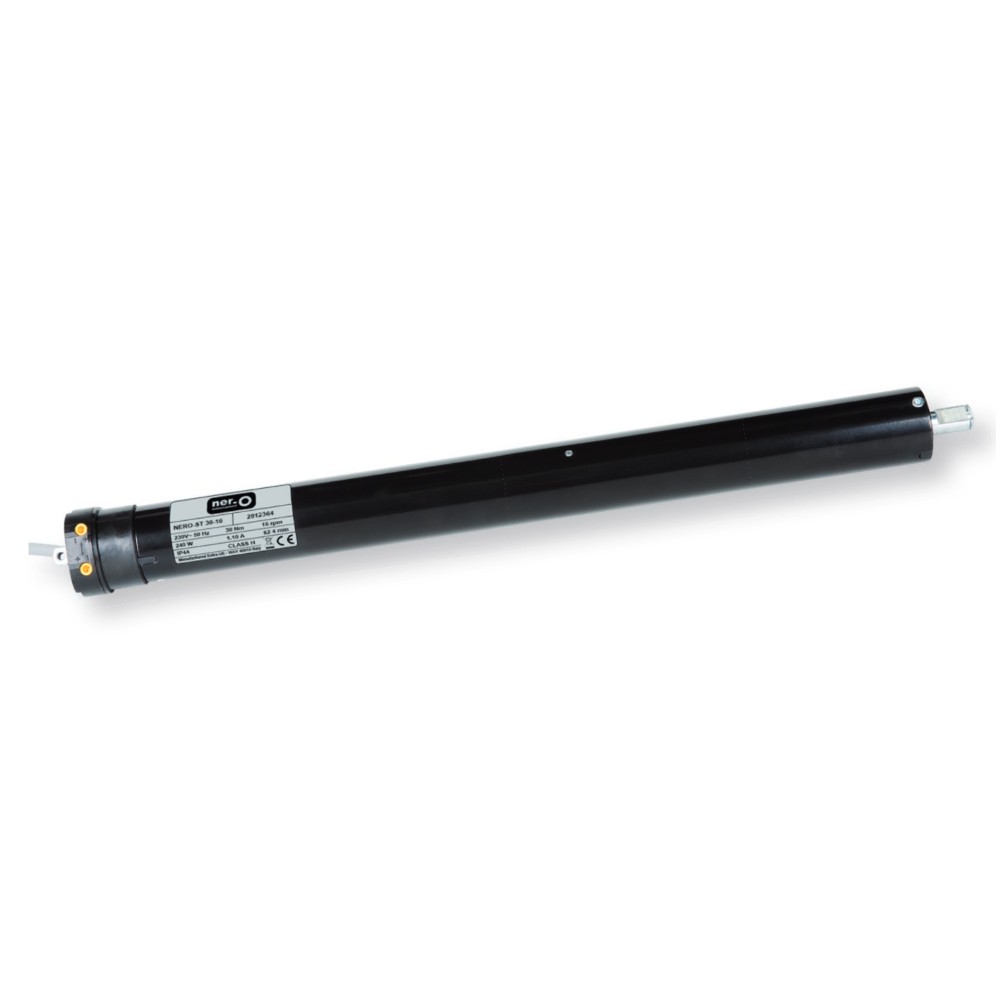

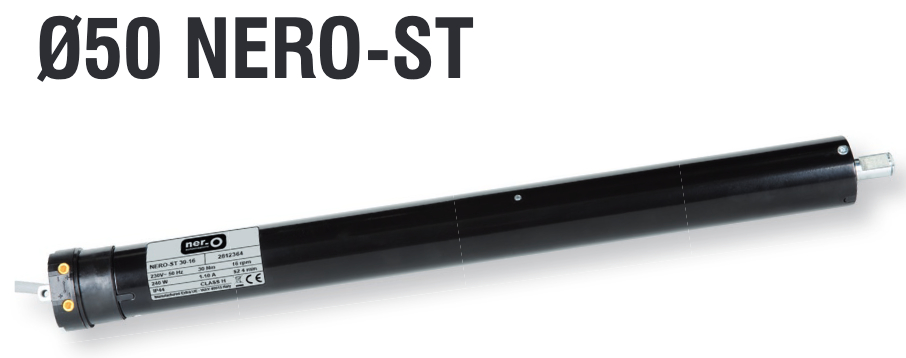

Tubular Motor Ø50 NERO-ST for Rolling Shutters with Mechanical Limit Switch
The
Ø50 NERO-ST mechanical tubular motor is suitable for use on rolling shutters and awnings.
Simple to install and inexpensive, this
tubular motor for rolling shutters has all the advantages of Somfy motors, but at a lower price.
You can choose between three different versions of the Nero tubular motor:

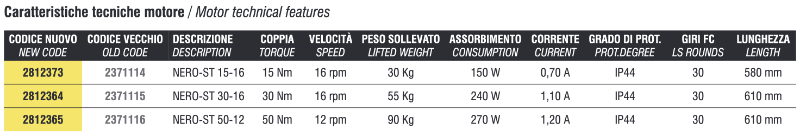

- Code: 2812373 - NERO-ST 15-16 - Torque 15 Nm - Speed 16 rpm - Raised weight 30 Kg - Absorption 150 W - Current 0.70 A - Protection degree IP44 - Rpm HR 30 - Length 580 mm;
- Code: 2812364 - NERO-ST 30-16 - Torque 30 Nm - Speed 16 rpm - Raised weight 55 Kg - Absorption 240 W - Current 1.10 A - Protection degree IP44 - Rpm FC 30 - Length 610 mm;
- Code: 2812365 - NERO-ST 50-12 - Torque 50 Nm - Speed 12 rpm - Raised weight 90 Kg - Absorption 270 W - Current - 1.20 A - Protection degree IP44 - FC 30 rpm - Length 610 mm.
NERO-ST is the cheapest tubular motor with Somfy quality
The Nero roller shutter motor
is part of the Somfy family and is suitable for roller shutters with different weights (select the variant you want).
Ø50 rolling shutter motor with mechanical limit switch suitable for applications on vertical screens, side arm drop awnings, rolling shutters and arm awnings.
Technical characteristics tubular motor Ø50 NERO-ST
- Ø50 Tubular motor with mechanical limit switch;
- Square pin integrated in the motor head;
- 2 limit switches;
- Limit switch adjustment via Allen key;
- Button operation;
- Can be connected in parallel via QMC4;
- Compatible with the MY HIGGINS home automation system via external RTW receiver;
- Compatible with RTW radio control range via external RTW receiver.

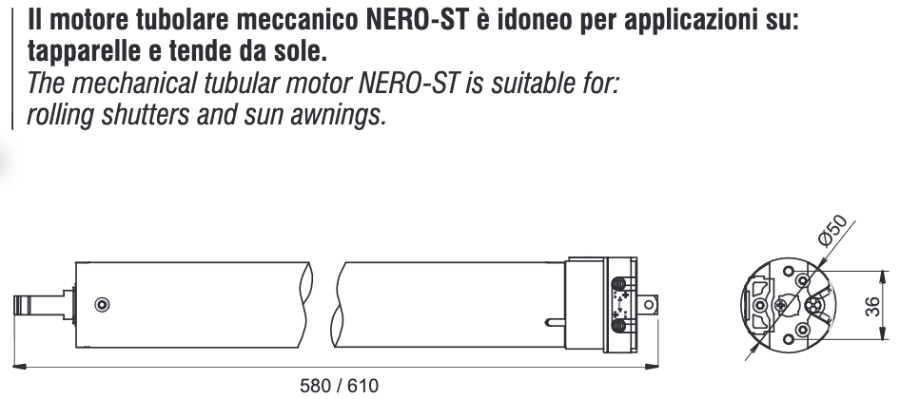

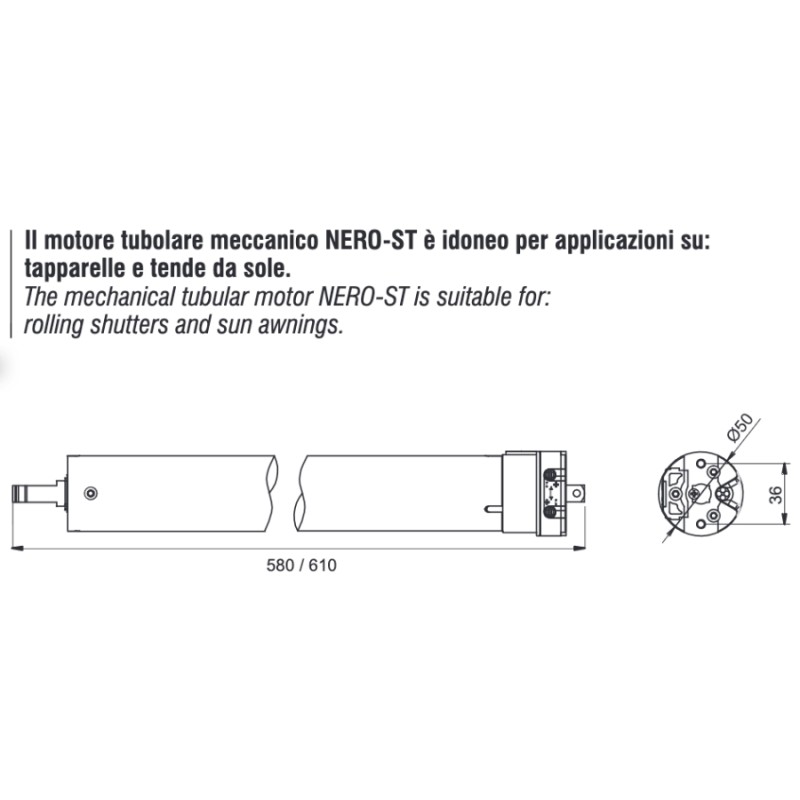

Codes and Sizes - Tubular Motor Ø50 NERO-ST
