C20 Topp Chain Actuator 230V 50Hz 1 Push Point Black Grey or White

Topp
Brands: Topp
Code: C20 230V
-44%
€ 73,48 € 131,22
Prices excluding VAT
Electric actuator Topp C20 230V with double link articulated chain, contained in a suitable casing, complete with support and fitting accessories for top and bottom hung windows.
You have chosen:
Are you looking for an actuator from the Topp catalog that is not on our site? Contact us and ask for a quote.
Availability: available in stock

- +

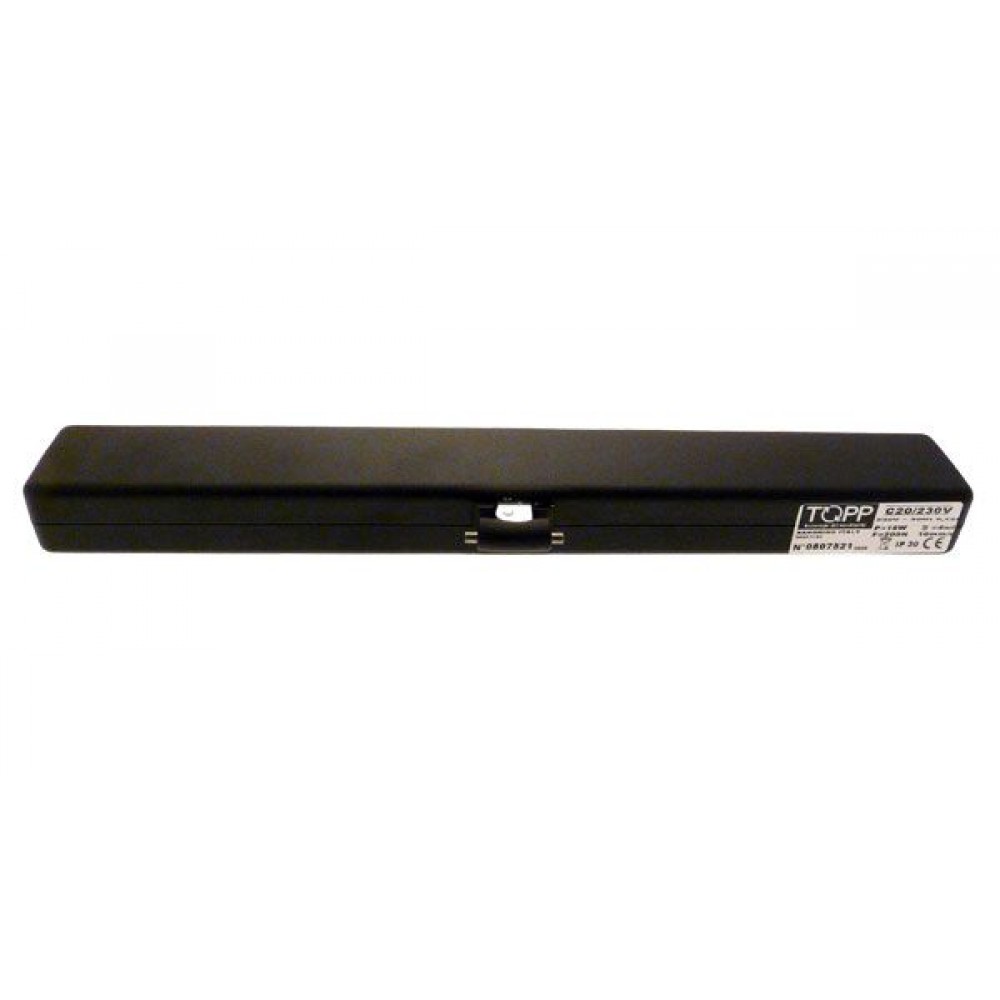

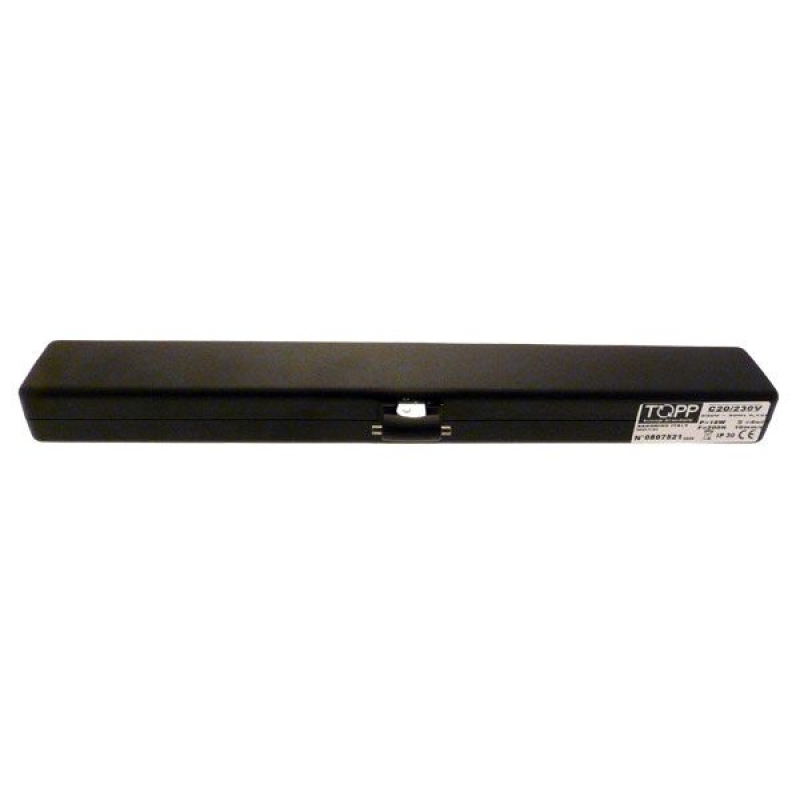

C20 Topp Chain Actuator - 230V 50Hz Topp 1 Push Point - Black Grey or White

C20 Topp actuator with double link articulated chain with very high resistance

Electric actuator Topp, model C20 230V with double link articulated chain, contained in a suitable casing, complete with support and fitting accessories for top and bottom hung windows.

  • Operation at 230V 50Hz;
  • Maximum applicable load 300N;
  • Rapid hooking system for the adjustment to the frame;
  • Stroke adjustable at 240 or 360 mm by an external selector;
  • CE marked device.


C20 Topp actuator technical characteristics

  • Power supply voltage: 230V 50Hz;
  • Max recommended load in thrust: 300N;
  • Max recommended load in traction: 200N;
  • Stroke: 240 and 360mm;
  • Absorbed current: 0,12A;
  • Idle translation speed: 8mm/s;
  • Duration of the idle stroke: 46s;
  • Double electrical insulation: yes;
  • Service type: S2 of 4min;
  • Operating temperature: - 5 / + 50 °C;
  • Protection degree of electric devices: IP30;
  • Stroke end regulation in closing: not necessary;
  • Parallel connection of two or more C20: yes;
  • Stroke end: electronic in opening, by amperometric absorption in closing;
  • Dimensions: 362x48x34 mm;
  • Weight: 0,970Kg.

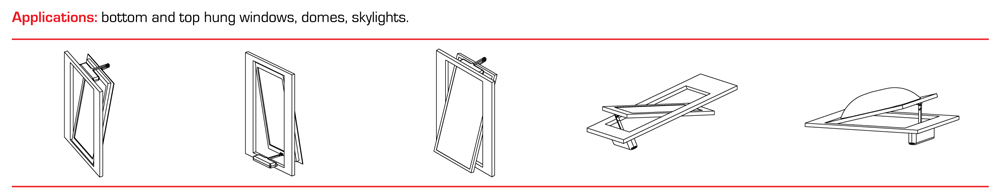

Applications: bottom and top hung windows, domes, skylights.

Topp

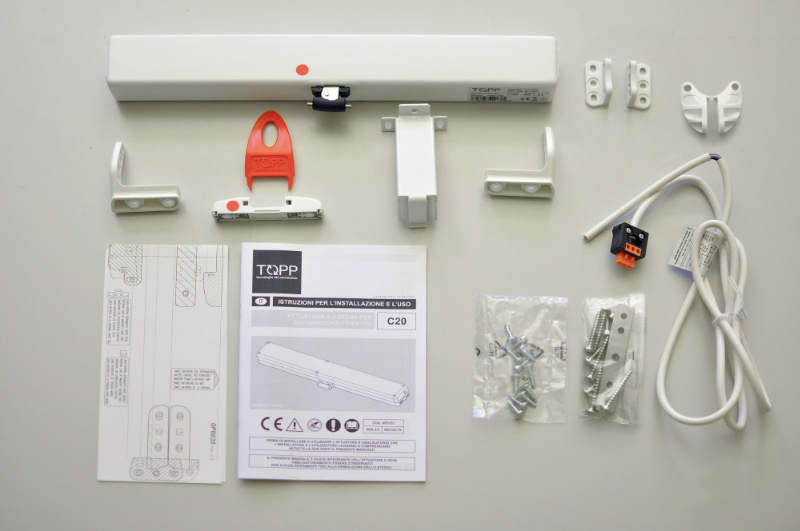

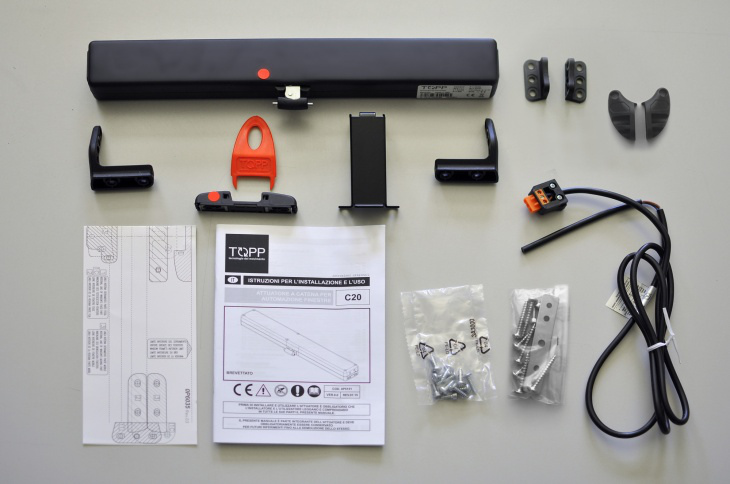

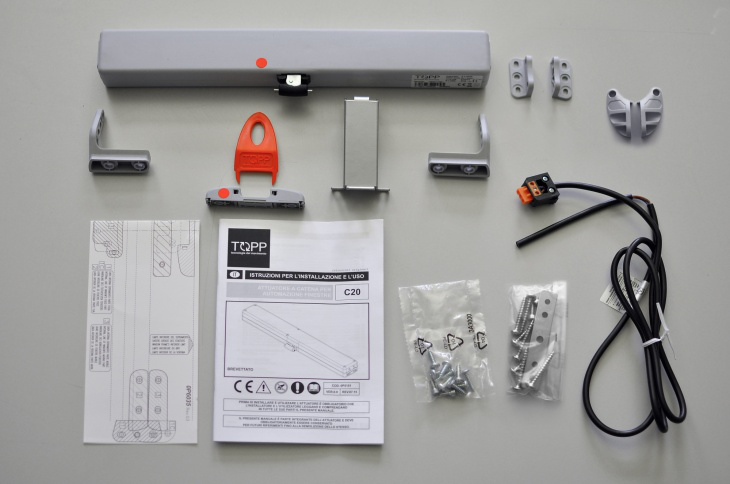

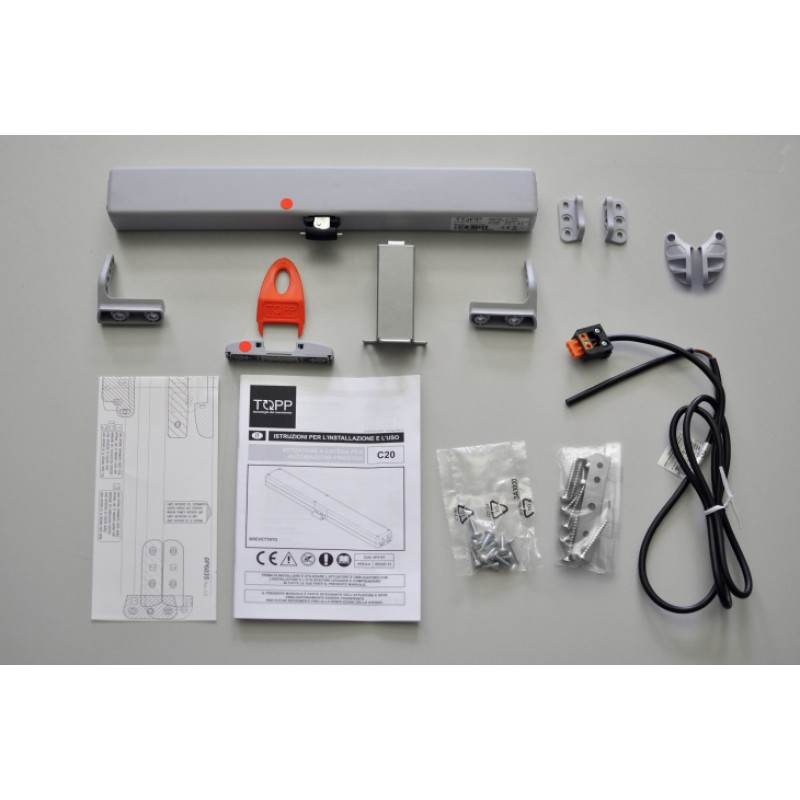

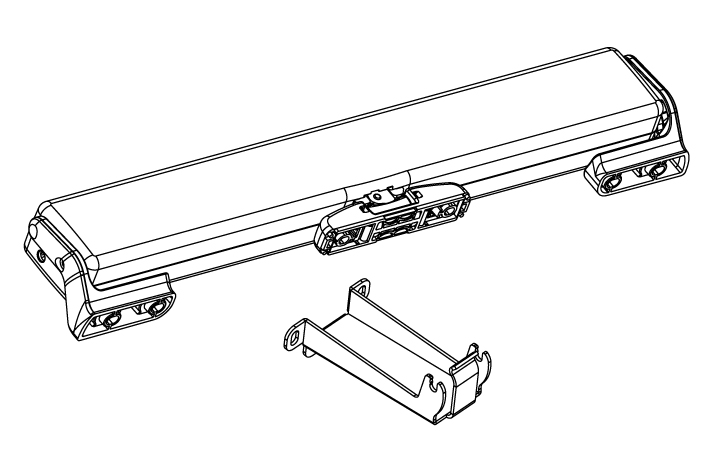

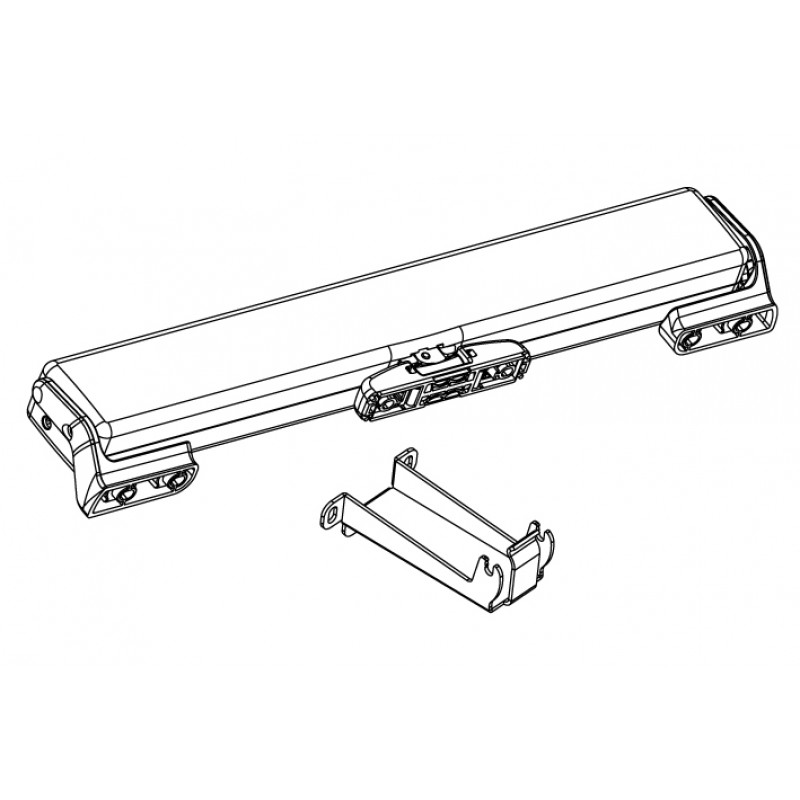

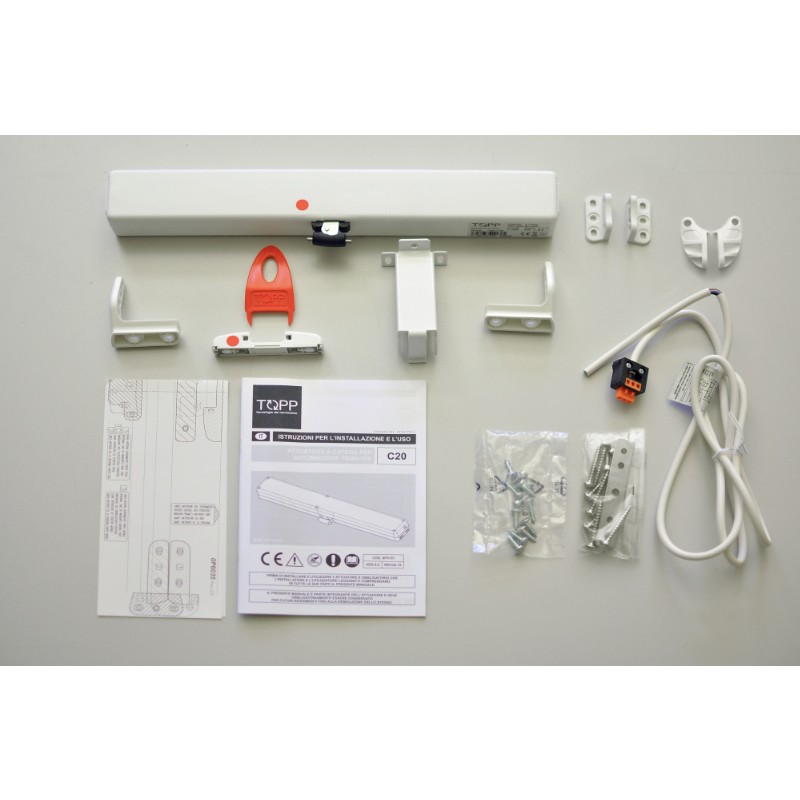

What is included? Chain actuator, frontal swivel brackets set for top/bottom hung windows, upper bracket for bottom hung windows, ARS rapid hooking device to the frame, spare parts.


Why choose C20 Topp?

  1. Double link chain with very high resistance on top loads;
  2. High Stroke, together with a reduced size of the actuator, to allow applications that require minimum size (international patent on the chain path);
  3. End of stroke during closing action with current absorption, to avoid adjustments during closing action and avoid possible positioning errors of the actuator;
  4. Fast hooking and unhooking system to the window (international patent).

C20 Topp
