Kit 2 Chain Actuators C20 Tandem 230V 50Hz Standard 2 Push Points Stroke 360mm Topp

Topp
Brands: Topp
Code: C20 Tandem 230V
-20%
€ 246,28 € 307,85
Prices excluding VAT
You have chosen:
Are you looking for an actuator from the Topp catalog that is not on our site? Contact us and ask for a quote.

- +

Kit 2 chain actuators C20 Tandem 230V 50Hz standard kit 2 push points stroke 360mm Topp

C20 Tandem standard kit 2 push points Black Grey White

Electric actuator Topp, model C20 Tandem 230V with double link articulated chain, contained in a suitable casing, complete with support and fitting accessories for top and bottom hung windows.
Kit Tandem version standard 2 push points - Stroke 360 mm.
The price is for kit of 2 actuators.

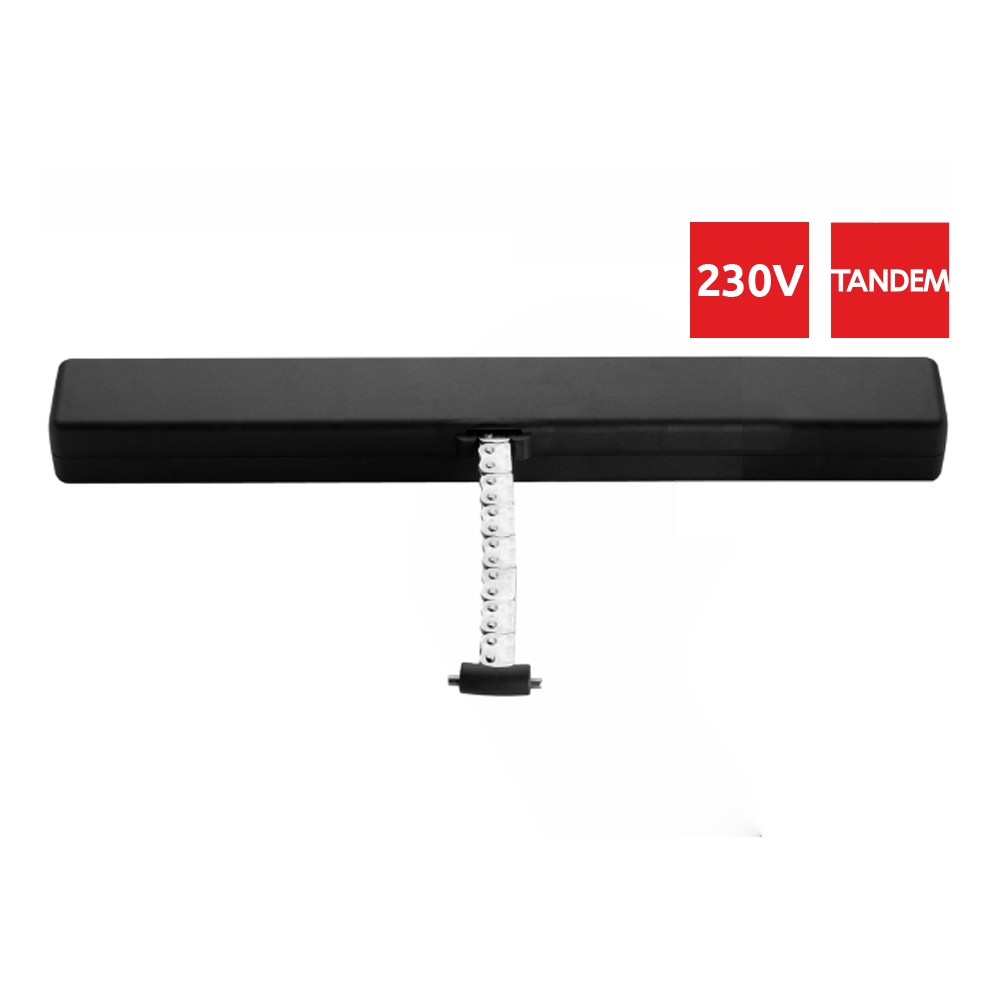

Chain actuator TOPP C20 Tandem 230V



Description of the actuator

  • Operation at 230V 50Hz;
  • Maximum applicable load 300N;

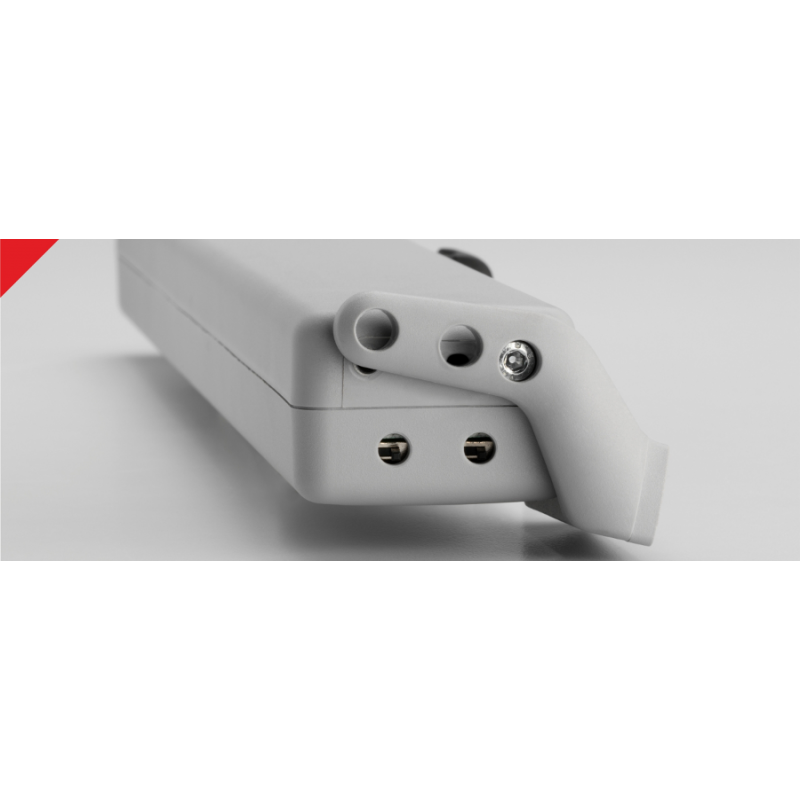

  • Rapid hooking system for the adjustment to the frame;
  • Stroke adjustable at 240 or 360 mm by an external selector;
  • Min. inter axis between the 2 actuators: 1000mm;
  • CE marked device.


C20 Tandem 230V for more push points

Choose the version of your Topp actuator:
  • 3A79901 - Black;
  • 3A79903 - Grey;
  • 3A79902 - White.


Why choose C20 Tandem Topp?

  • Kit Tandem version standard 2 push points - Stroke 360 mm;
  • Double link chain;

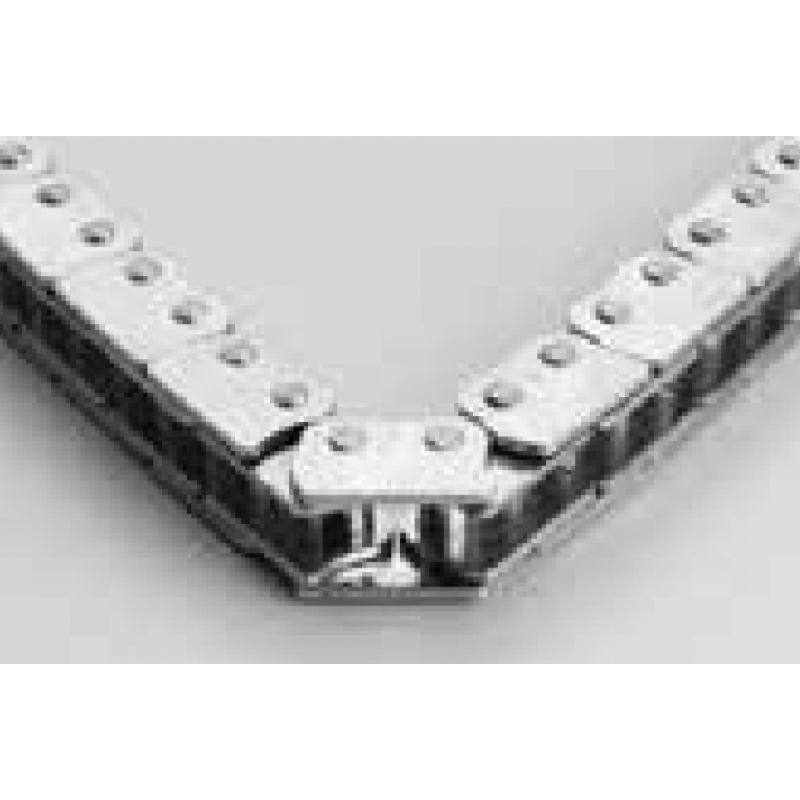

Actuator Topp C20 Tandem Double link chain

Double link chain with very high resistance on top loads.

  • High stroke;

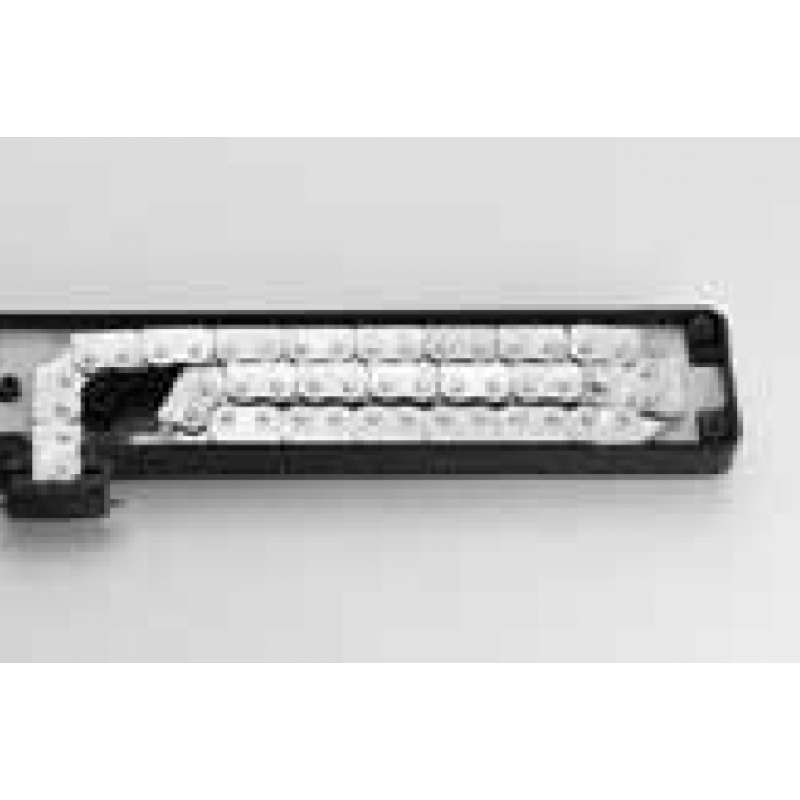

Actuator Topp C20 Tandem High stroke

High stroke, together with a slim and attractive housing, to allow applications that require minimum size (International patent on the chain path).

  • Stroke end by amperometric absorption;

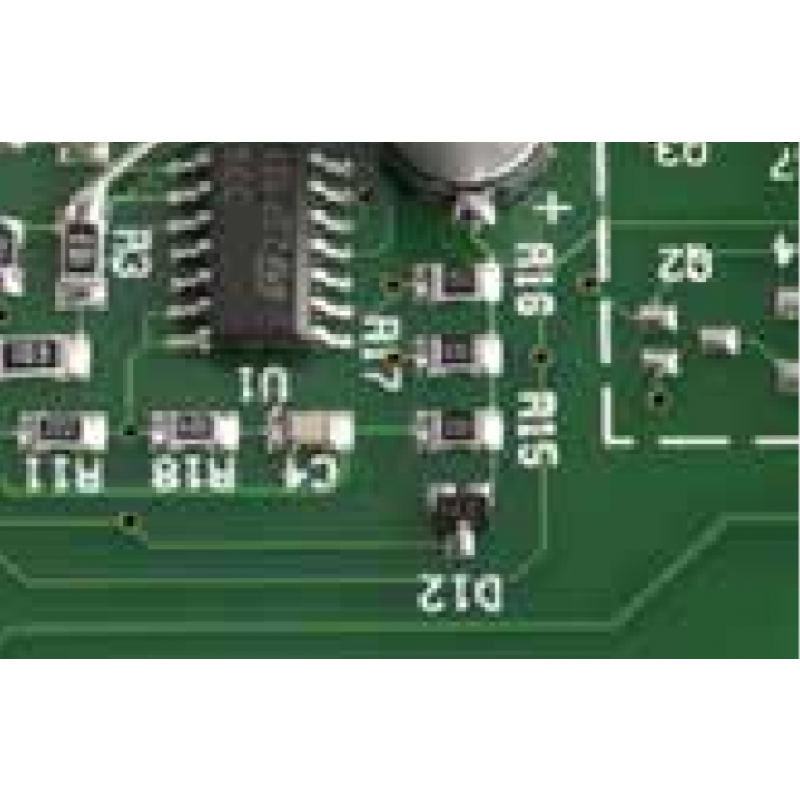

Actuator Topp C20 Tandem Stroke end amperometric absorption

Stroke end by amperometric absorption in closing to avoid chain adjustments in closing and any possible installation mistake.


Technical characteristics of the actuator

  • Power supply voltage: 230V 50Hz;
  • Max recommended load in thrust: 300N;
  • Max recommended load in traction: 200N;
  • Stroke: 240 and 360mm;
  • Absorbed current: 0,12A;
  • Idle translation speed: 8mm/s;
  • Duration of the idle stroke: 46s;
  • Double electrical insulation: yes;
  • Service type: S2 of 4min;
  • Operating temperature: - 5 / + 50 °C;
  • Protection degree of electric devices: IP30;
  • Stroke end regulation in closing: not necessary;
  • Parallel connection of two or more C20: yes;
  • Stroke end: electronic in opening, by amperometric absorption in closing;
  • Dimensions: 362x48x34 mm;
  • Weight: 0,970Kg.

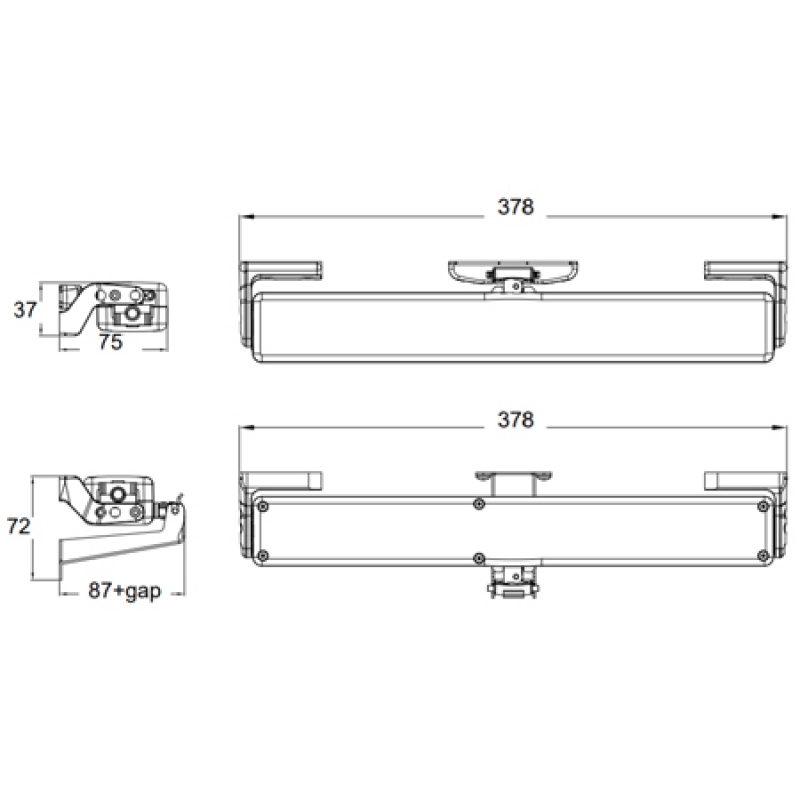

Dimension of the actuator

Dimensions are in millimetres.

Dimension of the actuator C20 Tandem Topp


Applications of the actuator

Top-hung windows, bottom-hung windows, skylights, roof windows, cupolas.

Applications Topp price promotion online shop


What is included?

Kit 2 chain actuators, brackets set for top/bottom hung windows.
Chain actuators and brackets are blacks, gray or white (depending on the chosen color).
