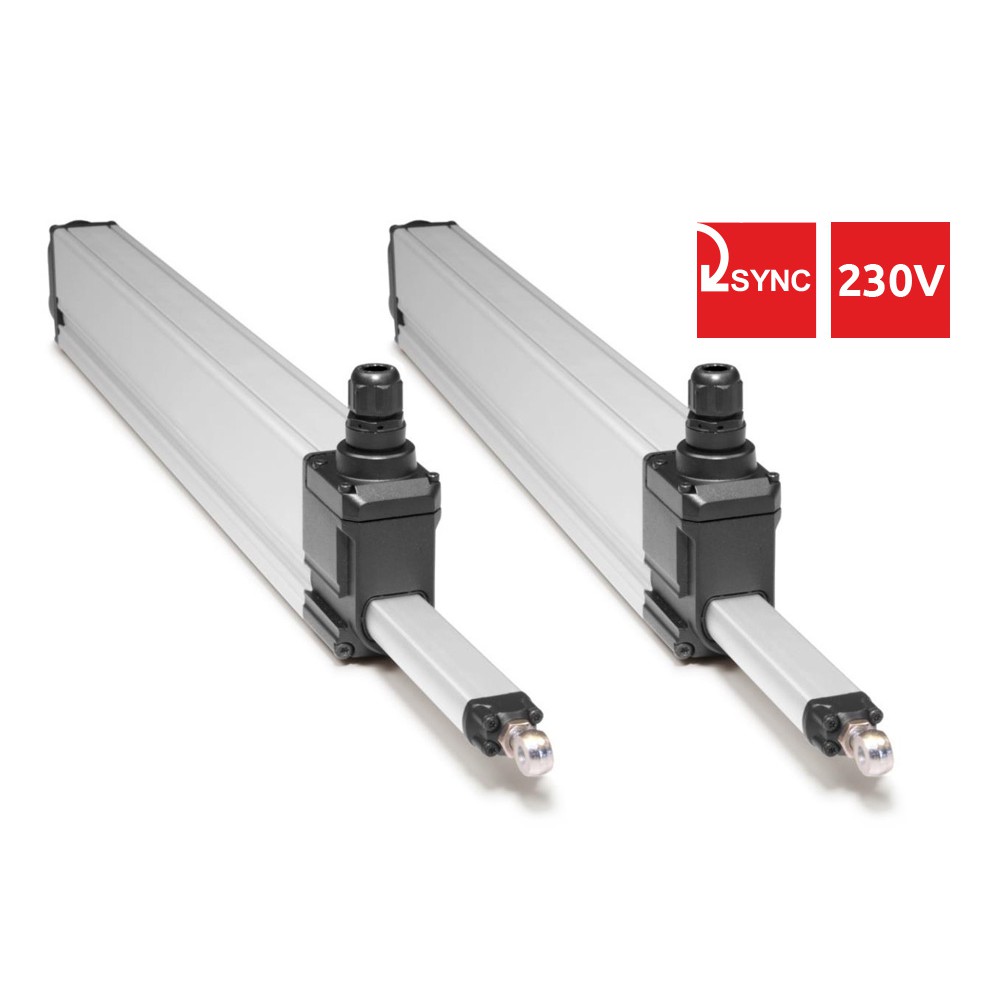

S80 Syncro Topp 800N 230V - Couple of actuators to open top-hung windows
2 push points and includes: 2 actuators for windows - Pushing force 800N - Max. stroke 1000mm - For outdoor installation
S80 Syncro Topp is the new 2-point rod actuators system, consisting of 2 electric motors for top-hung windows. The motors are connected together to make a single movement. The movement is of the self-aligning type with a rigid stem, with support and accessories for top-hung windows or slats, plates, sunshade blades. This item replaces the SL60 and T80 Topp actuators.
Main features of S80 Topp 24V actuator::
- Maximum applicable thrust load 800N;
- Connectable with another actuator, even on the same window, with stroke synchronization (SYNCRO);
- Stainless steel endless screw;
- Grade of protection IP68 for strokes 200 and 400mm (for outdoor installations);
- Grade of protection IP65 for strokes 600, 800 and 1000mm (for outdoor installations);
- CE marked.
Stroke S80 Syncro Topp (mm)
You can choose from the following variants:
- Stroke 200mm;
- Stroke 200mm (plates);
- Stroke 400mm;
- Stroke 400 (plates);
- Stroke 600mm;
- Stroke 800mm;
- Stroke 1000mm.
S80 Syncro Topp: what is included in the package?
This item is ready for installation and includes:
- 2 230V S80 rod actuators (with the stroke of your choice);
- 2 brackets for actuator support;
- 2 brackets for attachment to the window frame;
- Assembly hardware.

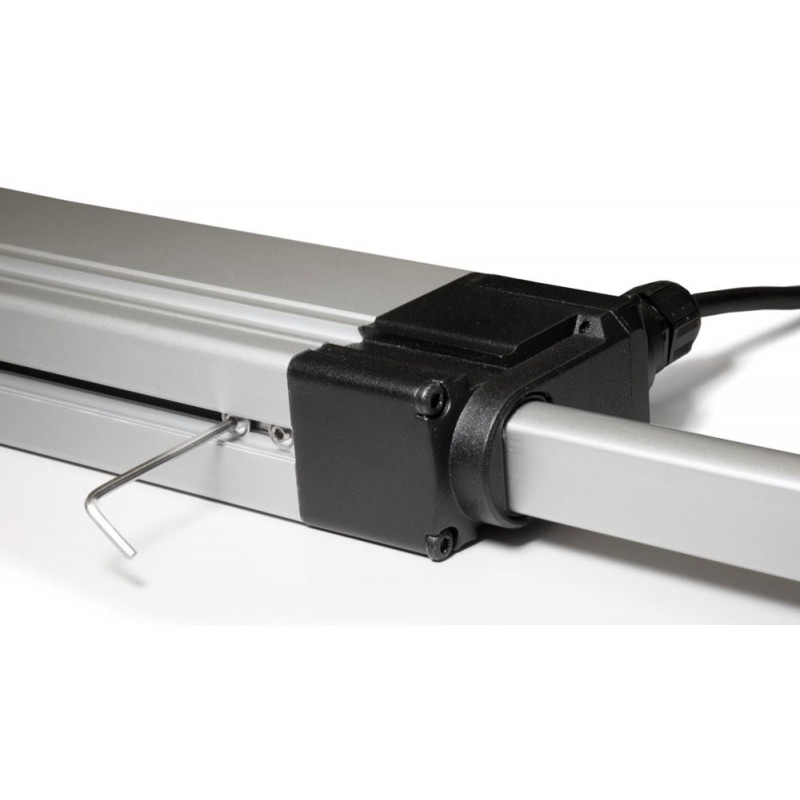

Actuator stroke S80 Syncro Topp adjustable in millimeters!
How can the S80 Syncro Topp window actuator be mounted?
You can use this electric motor to open:
- Top-hung windows;
- Domes;
- Plates;
- Sun blades.

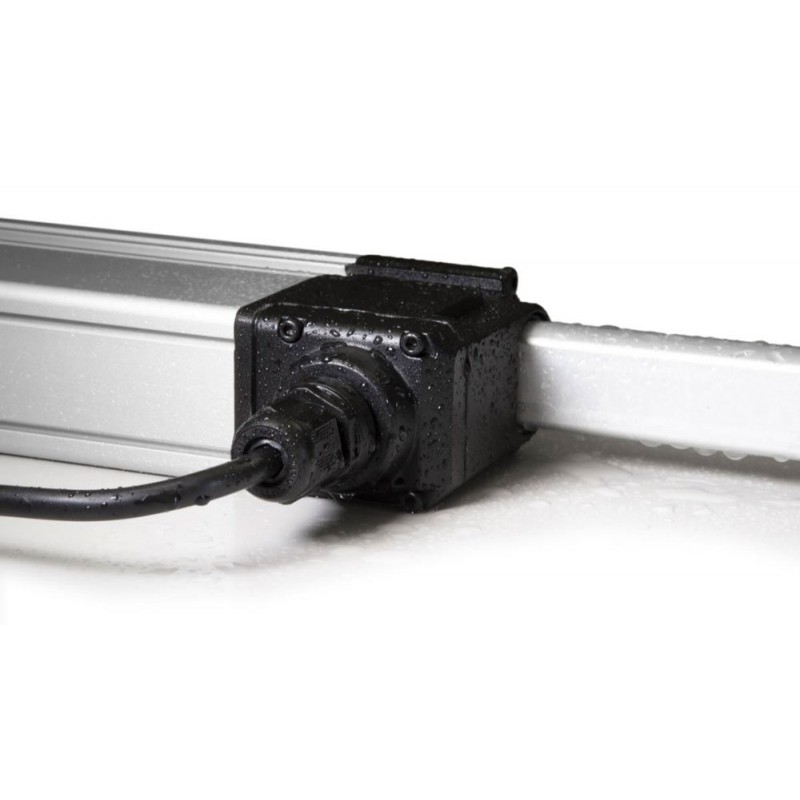

Water resistance: window motor designed for outdoor use
Grade of protection for water IP68 and IP65 (depending on the selected stroke).
Technical characteristics S80 Topp 230V motor for windows:
- Dimensions: 364-1224 x 76 x 43 mm;
- Stroke of your choice: 200, 200 (plates), 400, 400 (plates), 600, 800 and 1000 mm;
- Adjustable stroke: you can adjust it millimetrically;
- Grade of protection: IP68 strokes 200-400; IP65 strokes 600-1000;
- Max. Thrust force: 800N;
- Max. Traction force: 800N;
- Absorption: 0.2A at 230V;
- Tilting bracket: included in the package;
- Insulation class: II;
- Synchronization 2 S80 on the same window: available;
- Brackets for plates and sun blades application: available.
S80 Topp 230V: available in 24V version too
You can find it on Windowo.
Go to the S80 TOPP 24V actuator.
