Euro 1 Mingardi Electric Linear Actuator with Rigid Stem

Mingardi
Brands: Mingardi
Code: EURO 1
-30%
€ 160,97 € 229,95
Prices excluding VAT
Are you looking for an actuator from the Mingardi catalog that is not on our site? Contact us and ask for a quote.

- +

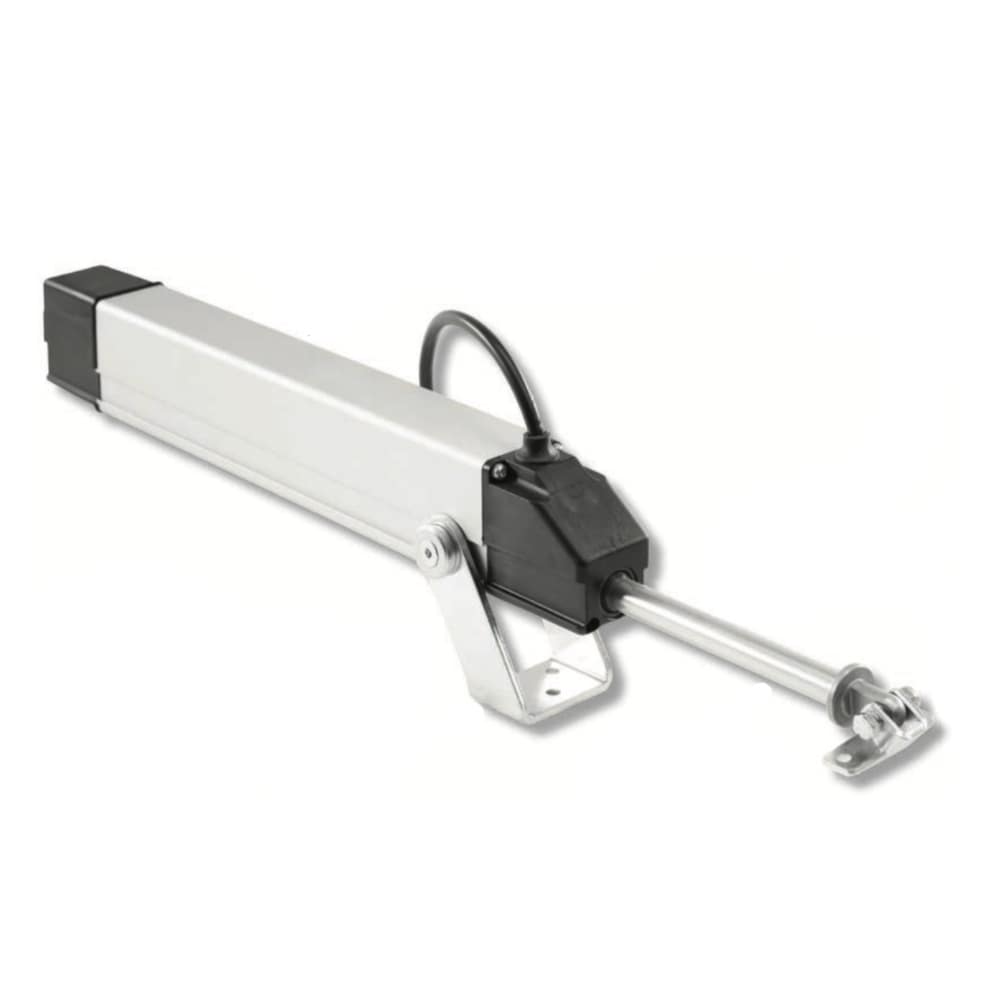

Euro 1 Mingardi Electric Linear Actuator with Rigid Stem

Rigid rod actuator Euro 1 Mingardi for top hung and pivot windows, skylights, domes and sunscreen systems.

  • Operation with 230V AC 50Hz or 24V DC power supply.
  • Compliant with the relevant European Directives;
  • Equipped with electronic limit switch system in opening and closing with overload protection;
  • Can be connected in parallel. Stroke adjustable from the outside through a register;
  • Available colors: silver anodized;
  • Complete with fixing accessories.

Euro 1 Mingardi Attuatore Elettrico Lineare a Stelo Rigido


Features Euro 1 Mingardi rod actuator:

  • Force: Thrust - Traction: 450N or 1000N;
  • Voltage: 230V AC 50Hz or 24V DC;
  • Adjustable stroke: Yes;
  • Opening and closing limit switches: Electronic;
  • Degree of protection (for internal use): IP55;
  • Operating temperature: -10 ° C + 40 ° C;
  • Cable: 230V AC 50Hz Black PVC L. 1200 mm - 24V DC Black Rubber L. 1200 m;
  • Certifications: CE.

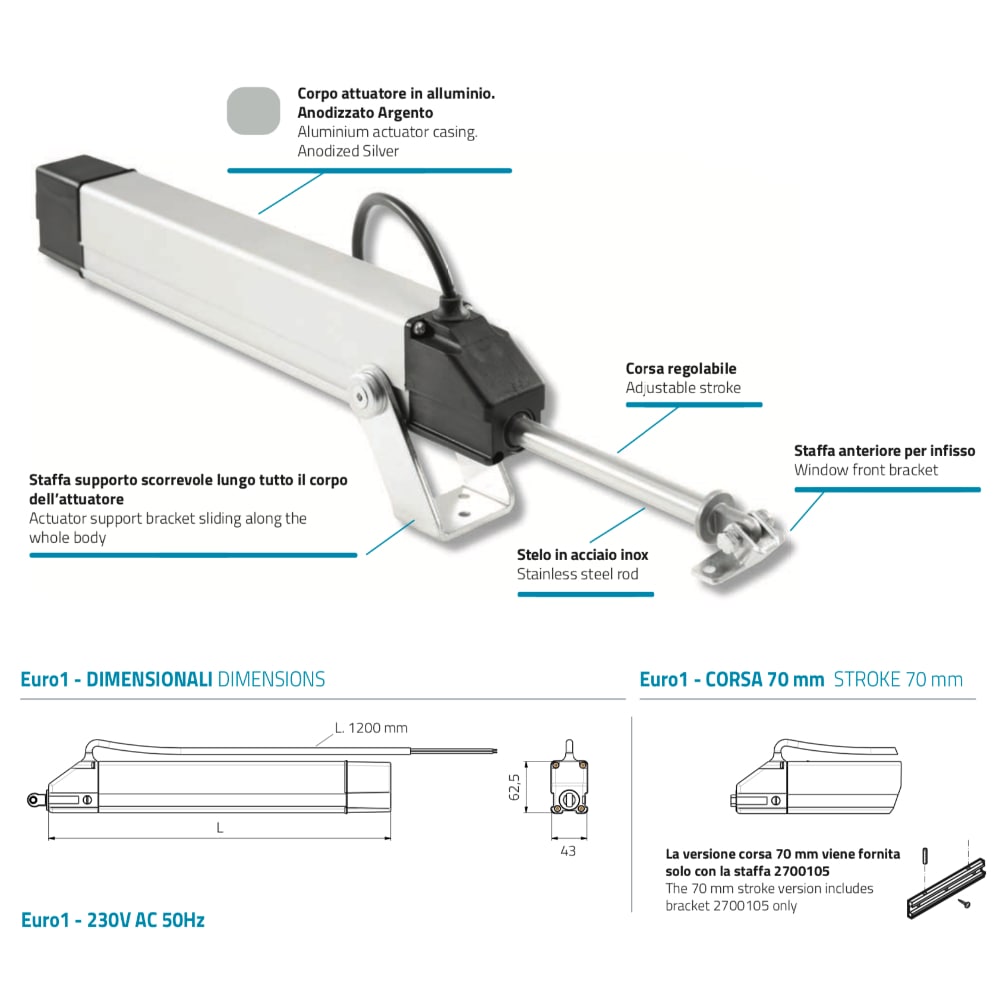

Euro 1 Mingardi travel lengths:

  • Stroke 70mm, L = 375mm;
  • Stroke 200mm, L = 375mm;
  • Stroke 300mm, L = 415 mm;
  • Stroke 500mm, L = 615 mm.

Euro 1 Mingardi Attuatore Elettrico Lineare a Stelo Rigido

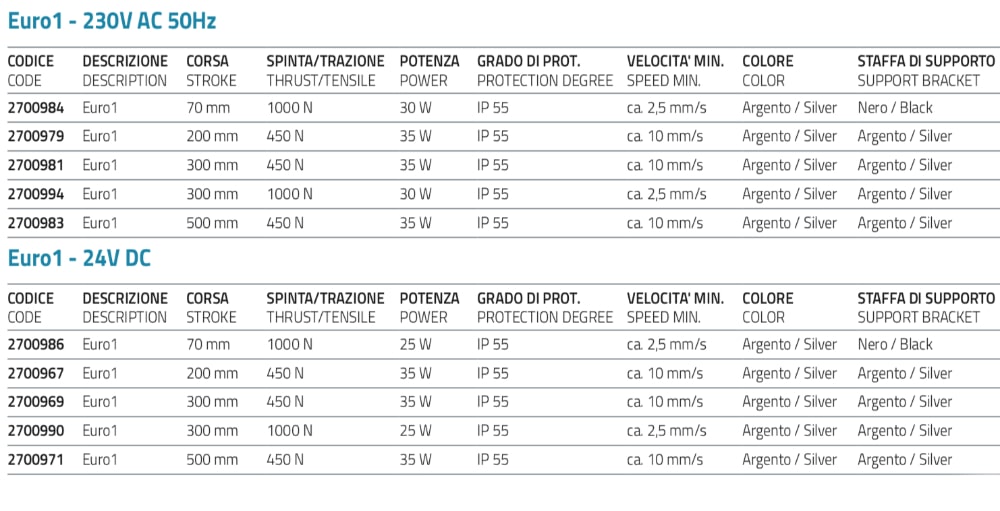

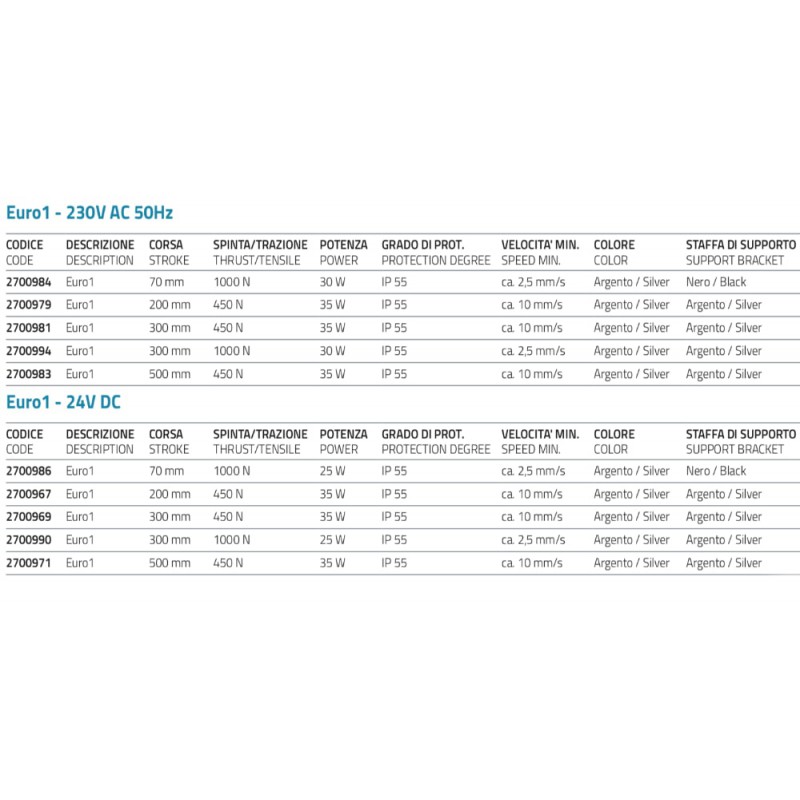

The performance values shown in the tables are average values verified under standard use conditions.
