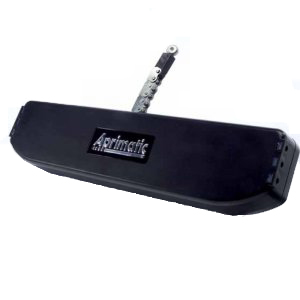

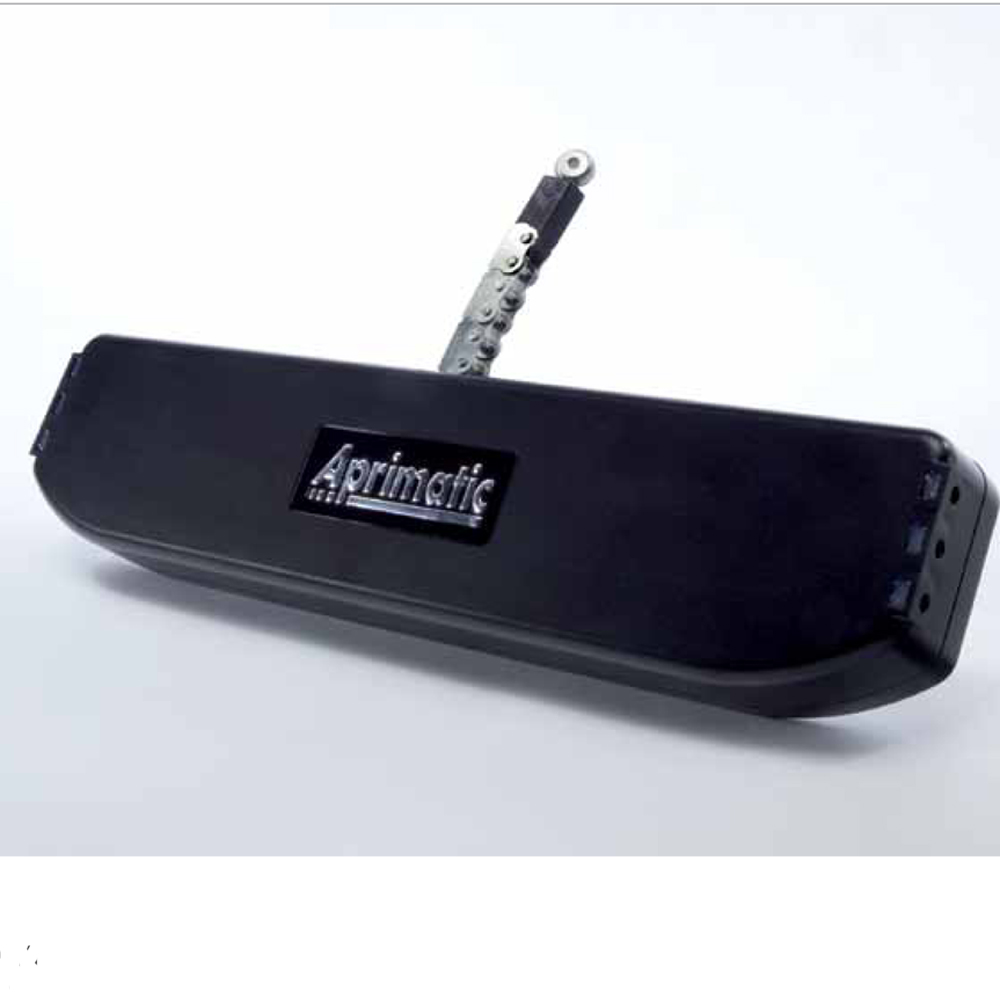

Aprimatic 02M 24V Chain Motor for Windows Vasistas and Projecting

Aprimatic
Brands: Aprimatic
Code: 02M 24V
-60%
€ 77,28 € 193,20
Prices excluding VAT
Aprimatic 02M 24V is an electromechanical motor for doors and windows with double-link chain, ideal for bottom-hung, top-hung and dome windows.
You have chosen:
Are you looking for a product of Aprimatic catalog not present on our site? Contact us and ask for a quote.

- +

Aprimatic 02M 24V - Chain Motor for Windows - Vasistas or Projecting Opening

Aprimatic 02M 24V is an electromechanical motor for doors and windows with double link chain, ideal for bottom-hung, top-hung and dome windows.

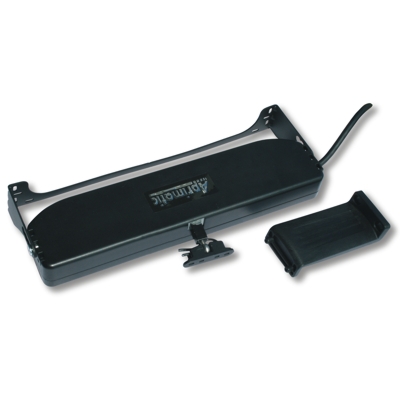

02M 24V Aprimatic is complete with fixing accessories for bottom hung and hung windows.


TECHNICAL DATA 02M 24V chain motor for windows:

  • POWER SUPPLY: 24 Vdc;
  • POWER CONSUMPTION: 50W;
  • ABSORBED CURRENT: 2 A;
  • PUSH FORCE: 350 N (stroke 150mm), 250 N (stroke 250mm), 100 N (stroke 380mm);
  • TRACTION FORCE: 350 N;
  • ADJUSTABLE STROKE: 150mm, 250mm, 380mm, special stroke (between 0 and 380mm);
  • TRANSLATION SPEED: 24mm/s;
  • OPERATING TEMPERATURE: -5° +55°C;
  • FRONT ADJUSTMENT: max. 10mm;
  • PARALLEL CONNECTION (max 1 operator per window): YES;
  • THERMAL PROTECTION: 100°C;
  • DIMENSIONS: (LxHxP) 340x40x80mm;
  • LIMITS OF USE: non-intensive (continuous operation max. 4min);
  • PROTECTION DEGREE: IP54.


With 02M Aprimatic, you open your windows by tilting or protruding

  • 02M is a flexible, powerful and reliable product with features that make it unique in the panorama of actuators for doors and windows.
  • Thanks to the thrust force and the double link chain , it is able to push and pull heavy frames.
  • With the highest degree of protection in its category (IP54), it guarantees good operation even for applications most exposed to atmospheric agents.
  • The special coupling device allows you to easily adjust the position of the actuator on the frame.
  • A specially designed software allows the closing point to be restored autonomously after 50 manoeuvres, eliminating the risk of loss of thermal and acoustic insulation of the frame.
  • The small size and compact shape make this product easy to integrate with the thickness and design of any type of window or door.
