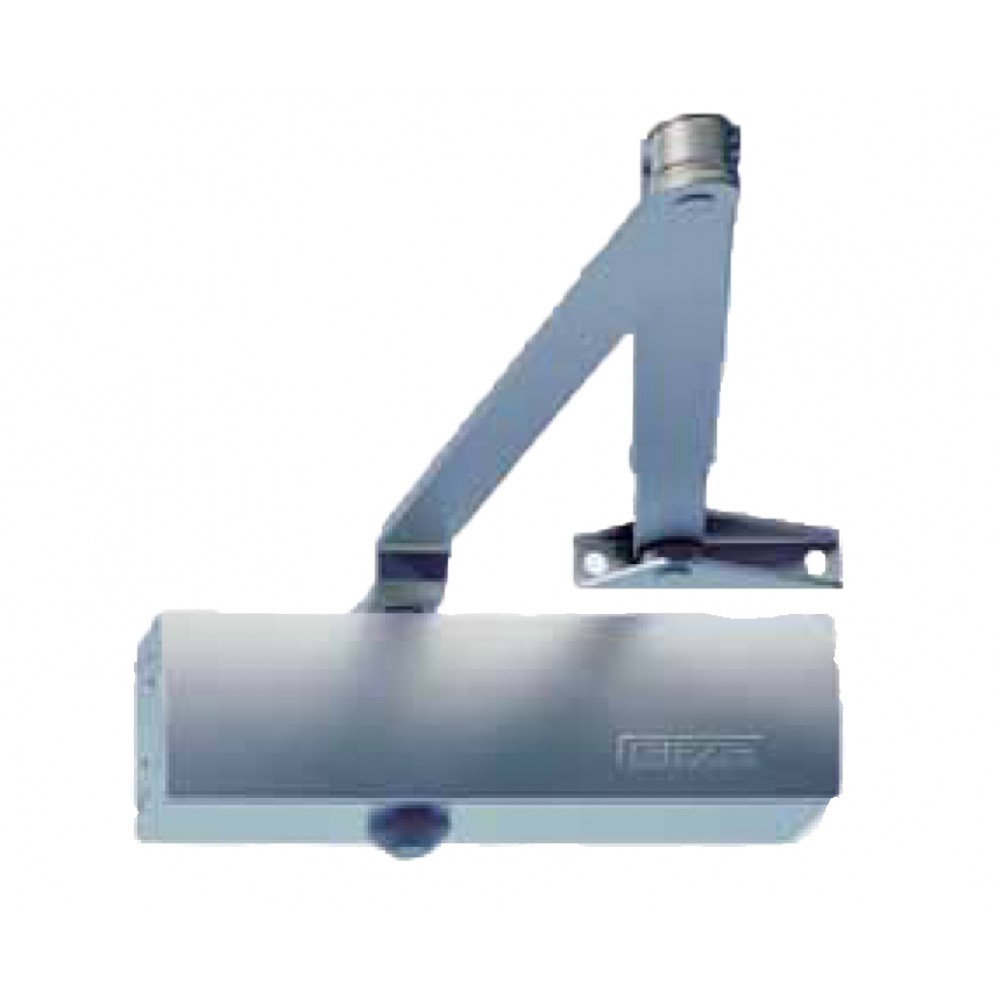

Plane closers Geze TS 1500 V Without Without Arm Force Quit 3-4

Geze
Brands: Geze
Code: TS 1500 V SENZA FERMO
valutazione media:
$ 70,57
VAT excluded
You have chosen:

- +

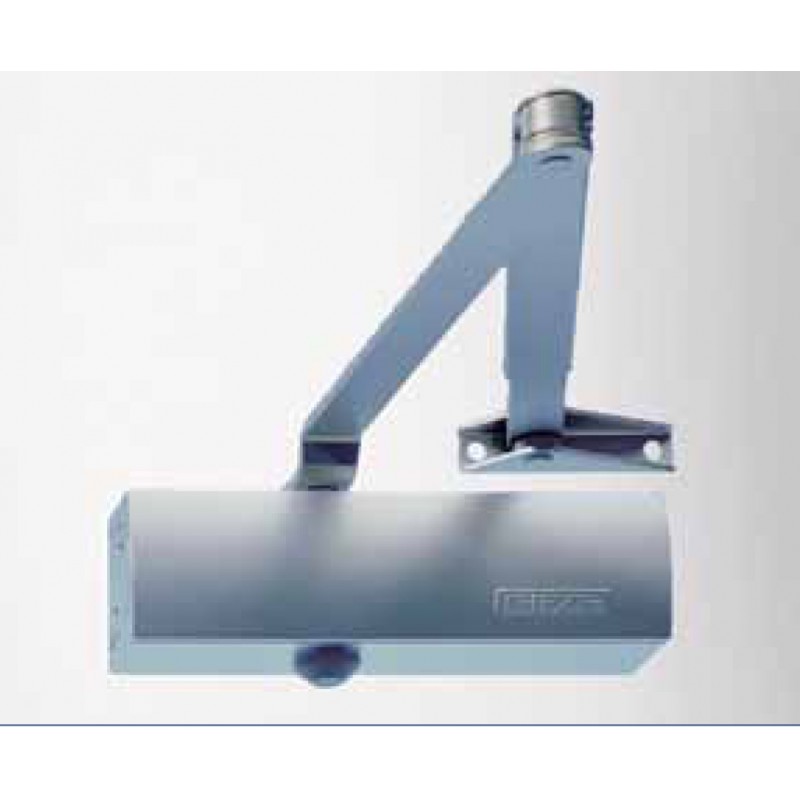

Geze TS 1500; Plane closers with arm V Without Stationary, Closing Force 3-4 (EN1154)

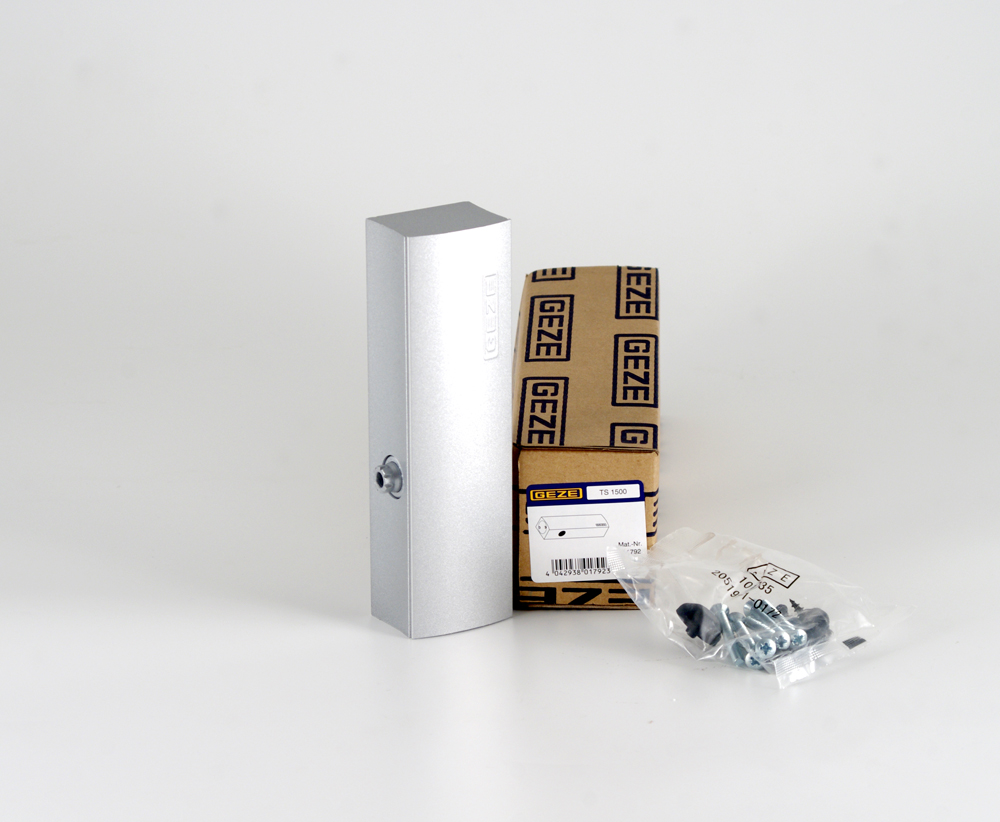

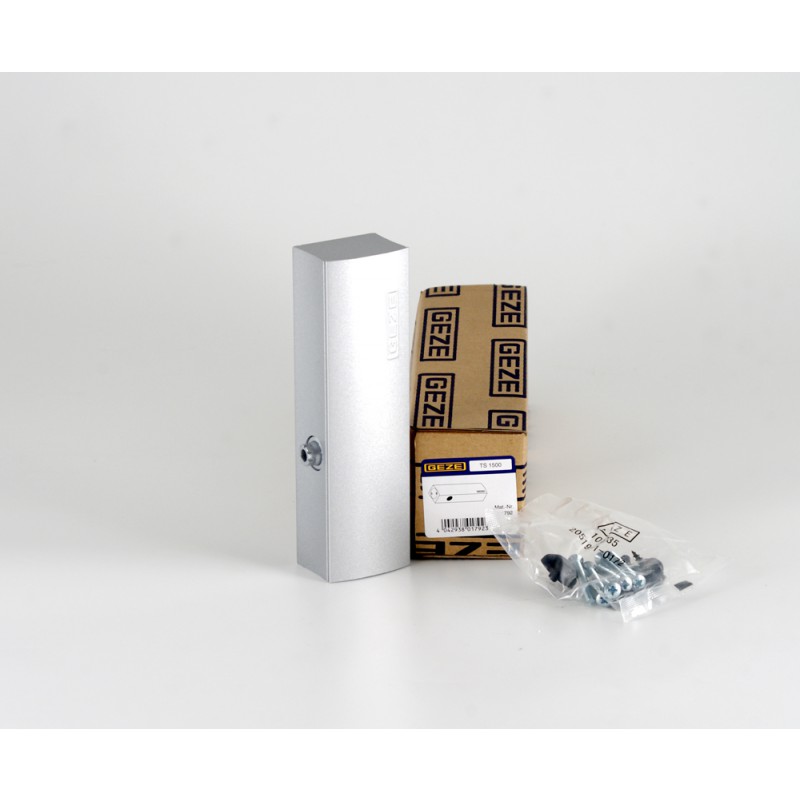

GEZE TS 1500, with arm V-retainer with adjustable power, complete with hardware and installation template (mounting plate not included).

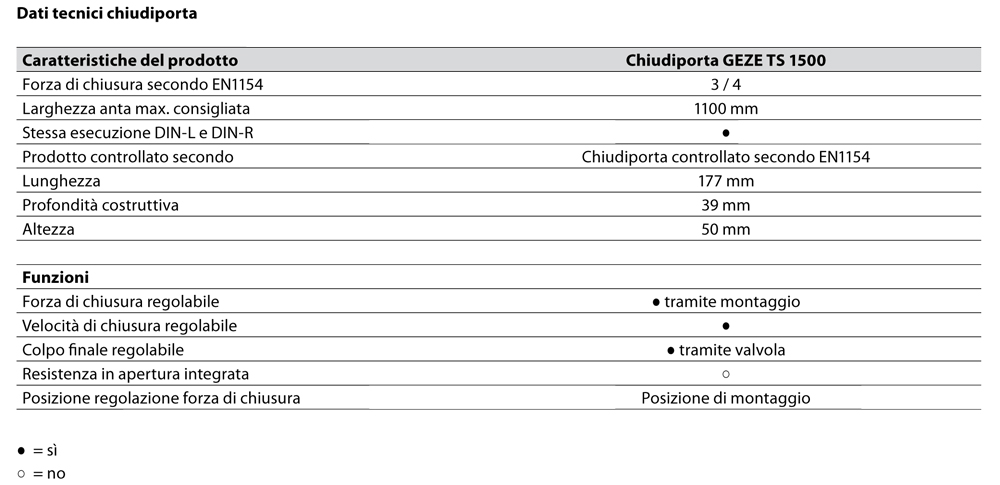

TECHNICAL DESCRIPTION:
Adjustable closing force in two sizes achieved by simply reversing the jumper arm:
- Closing force "reduced" (force 3 seconds EN1154) for leaf widths up to 950mm;
- Closing force "great" (force 4 seconds EN1154) for leaf widths up to 1100mm.
Closing speed and hydraulic latching adjustable.


GEZE closers shop online

FIELD OF USE:
  • For single leaf door, with widths up to 1100mm;
  • For doors with opening on the right and left without any modification;

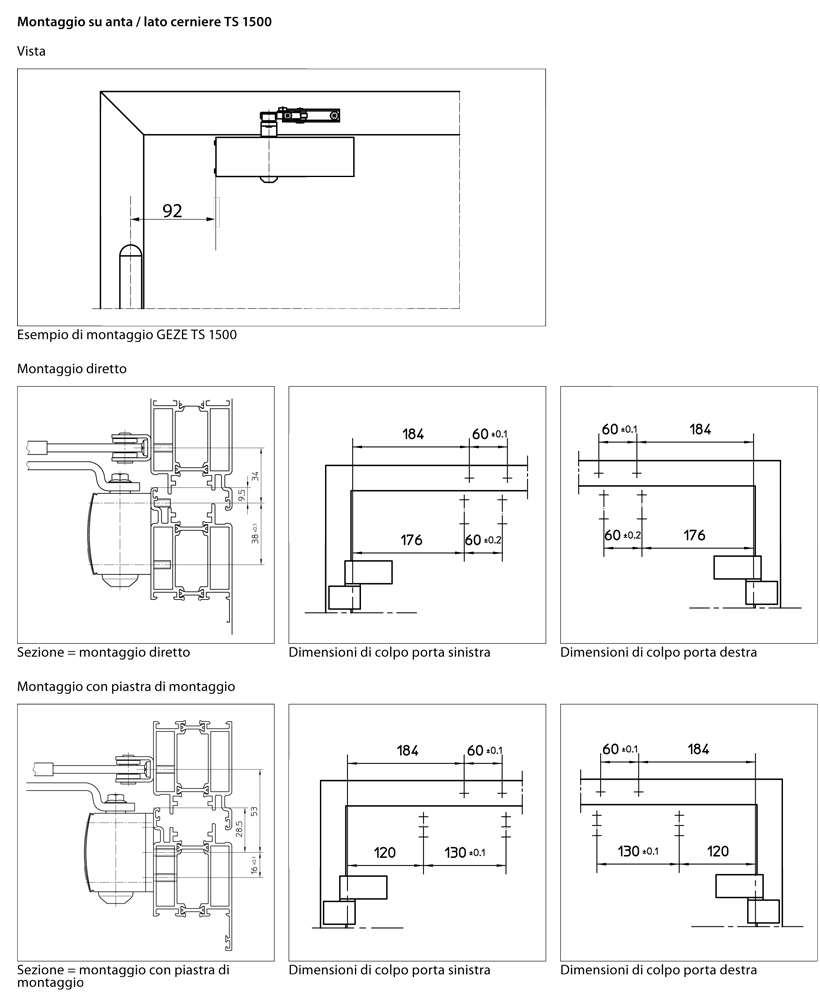

  • Possibility of traditional assembly, on the wing, or the reverse.

GEZE closers

NOTE: For adjustment of the opening angle between 70 ° and 150 ° is recommended buying the version with brake (available in "Closer Aircraft"): "Geze TS 1500 closers with Air Arm Vee Still, Strength Closing 3-4 ".

GEZE

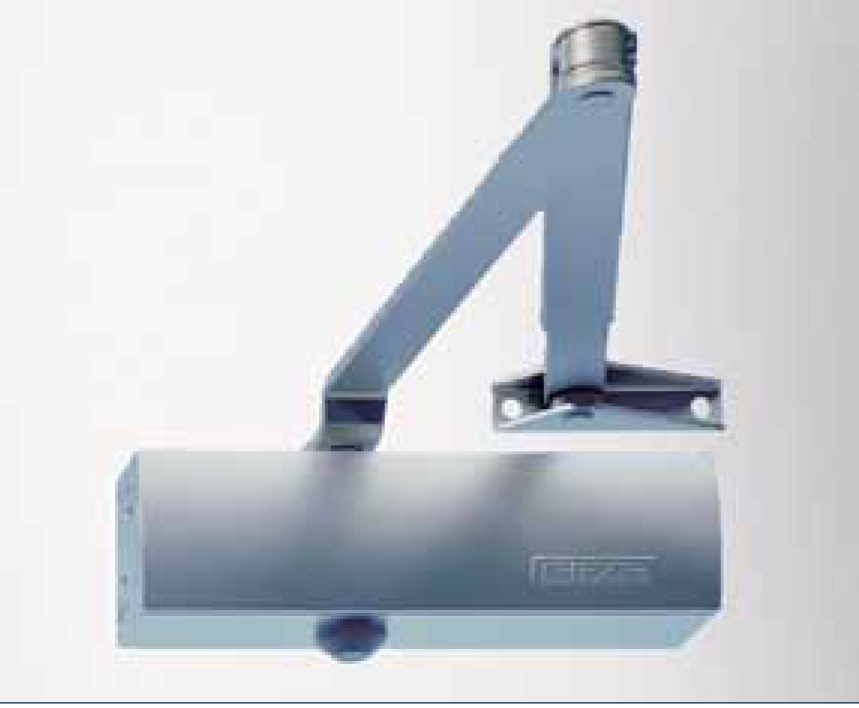

GENERAL INFORMATION ON AIR GEZE DOOR CLOSER WITH ARM (taken from the catalog Geze):
GEZE closers
