Chain actuator C30S Sync 230V 50Hz for the synchronous operation of more actuators on the same window frame Topp
C30S Sync synchronised for more push points Black Grey White

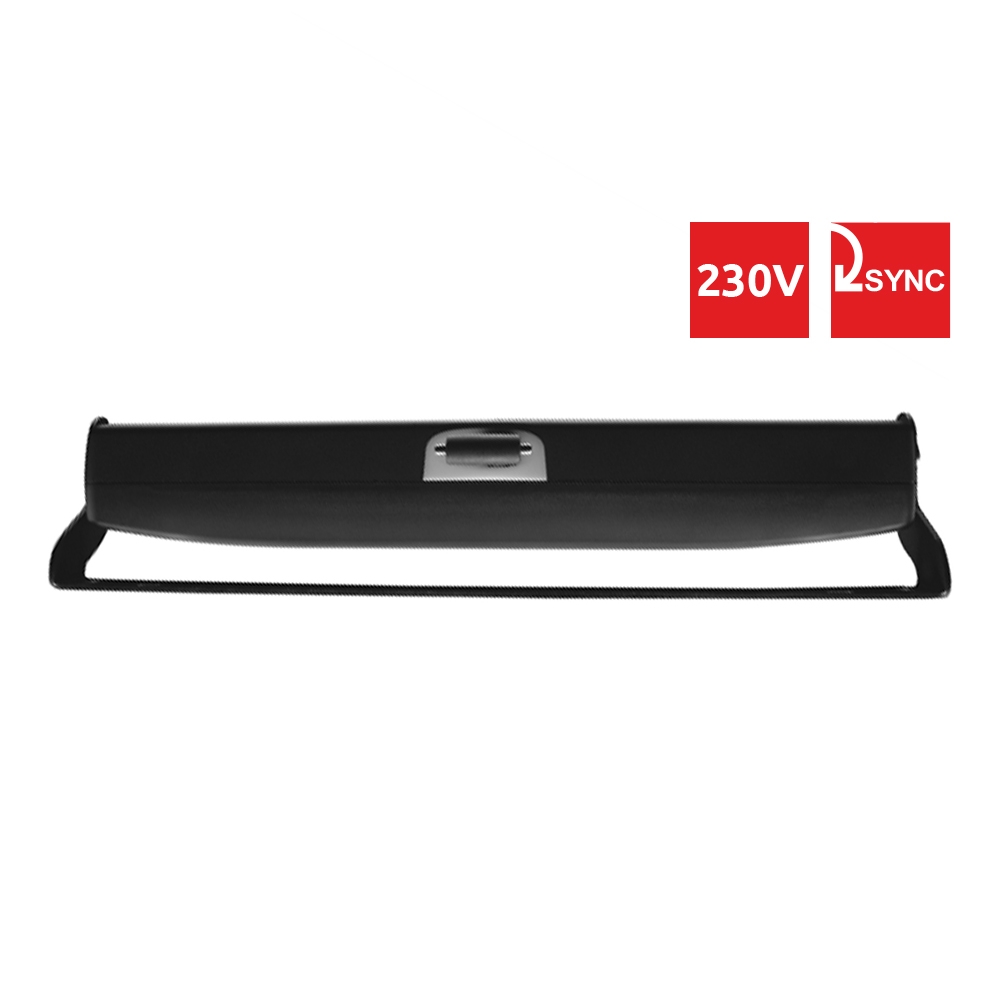

Electric actuator Topp, model C30S Sync 230V with double link articulated chain, contained in a suitable casing, complete with support and fitting accessories for top and bottom hung windows.
“S” version for the synchronous operation of more actuators on the same window is available.
The price is for single actuator.
Description of the actuator
- Operation at 230V 50Hz;
- Maximum applicable load 300N;
- Rapid hooking system for the adjustment to the frame;
- Stroke adjustable at 200 or 380 mm by an external selector;
- Electronics with acoustic device that warns of any incorrect installations;
- CE marked device.
C30S Sync 230V for more push points
Choose the version of your Topp actuator:
- 3A42#000005537 - Black;
- 3A42#000005562 - Grey;
- 3A42#000005561 - White.
Why choose C30S Sync Topp?
- C30S Sync is ideal to be synchronised and to function on more push points on the same window frame;

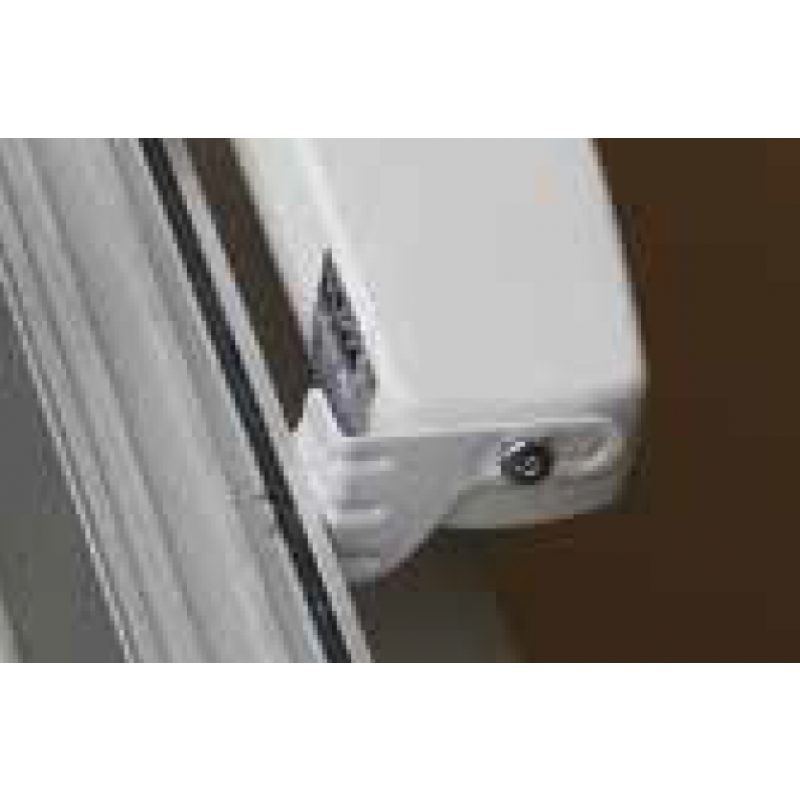

- Telescopic chain end providing a rapid adjusting;

Telescopic chain end providing a rapid adjusting from 0 to 15mm, even with chain completely retracted into the actuator housing, that allows easy application on windows with overlap.

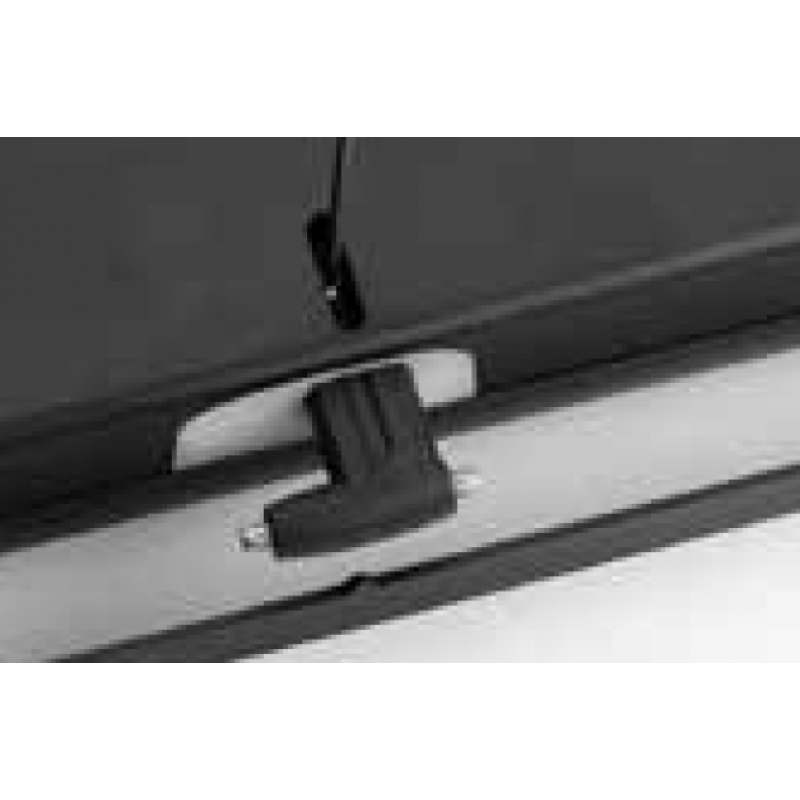

Easy fixing system, fit for windows of any type and size.

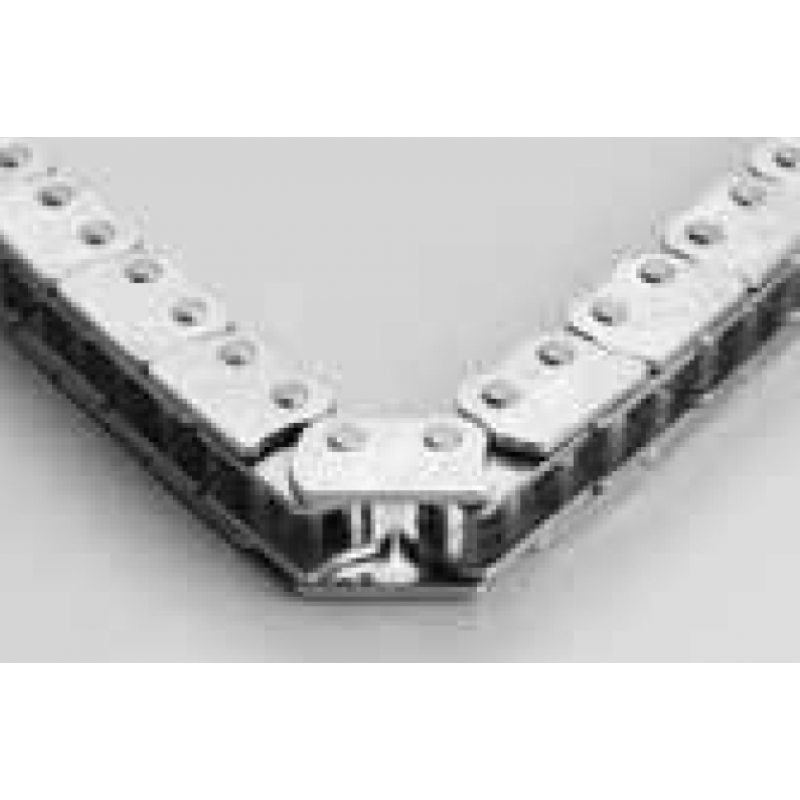

Double link chain with very high resistance on top loads.
Technical characteristics of the actuator
- Power supply voltage: 230V 50Hz;
- Max recommended load in thrust: 300N;
- Max recommended load in traction: 300N;
- Strokes: 200 and 380mm;
- Absorbed current: 0,26A;
- Idle translation speed: 27mm/s;
- Duration of the idle stroke: 14s;
- Double electrical insulation: yes;
- Service type: S2 of 4min;
- Operating temperature: - 5 / + 50 °C;
- Protection degree of electric devices: IP30;
- Adjustment of the window frame connection: 15mm;
- Adjustment of pins for the swivel brackets: 15mm;
- Parallel connection of two or more C30: yes;
- Chain position control: yes;
- Stroke end: encoder;
- Electronics with acoustic device to warn the user of wrong installation (buzzer): yes;
- Dimensions: 337,2x80x49mm;
- Weight: 1,1kg.

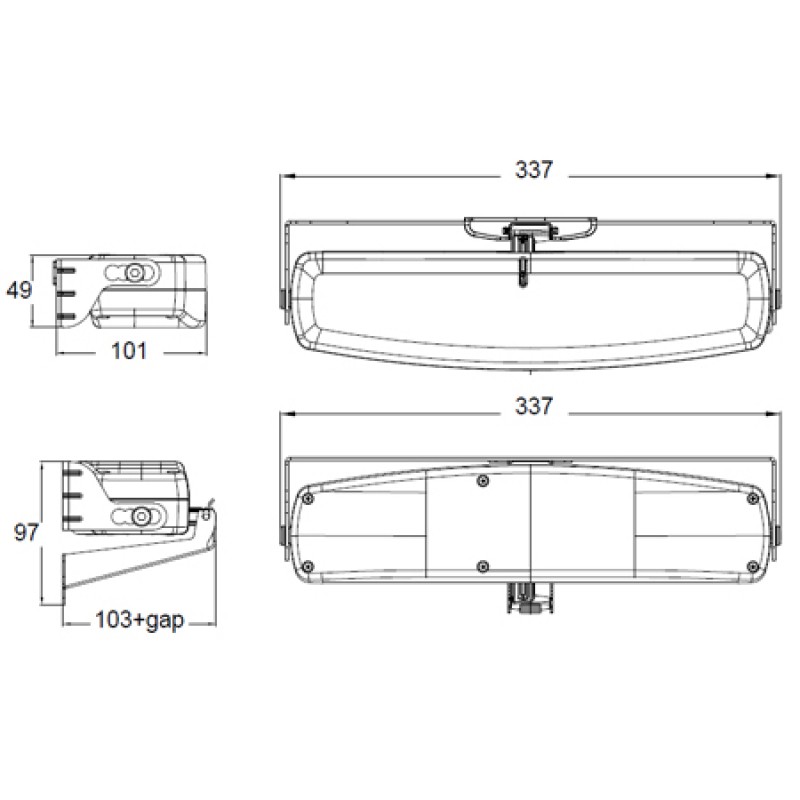

Dimension of the actuator
Dimensions are in millimetres.
Applications of the actuator
Top-hung windows, bottom-hung windows, skylights, roof windows, cupolas.
What is included?

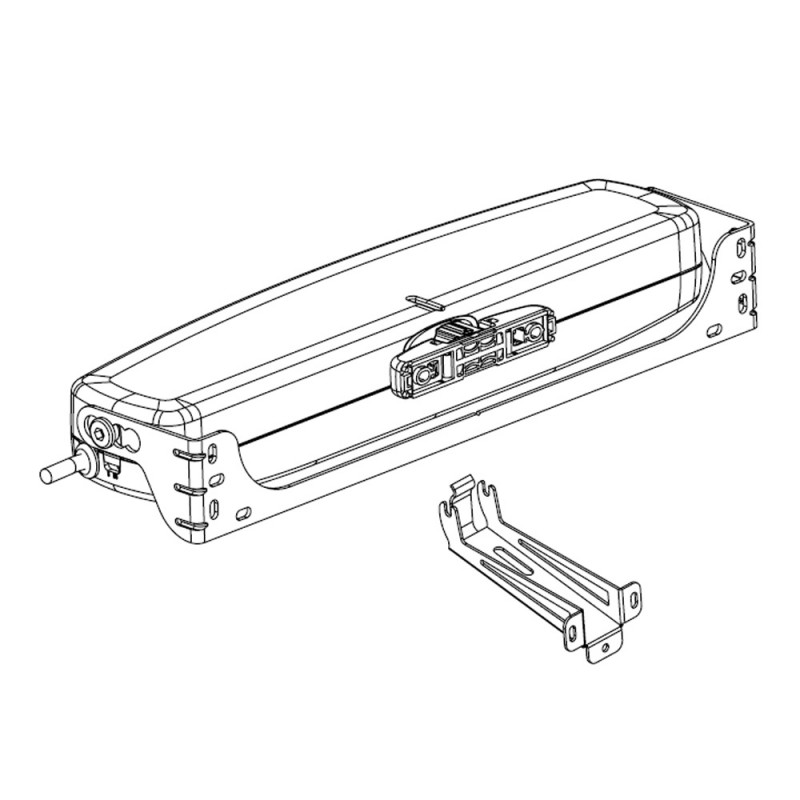

Chain actuator, brackets set for top/bottom hung windows.
Actuator and brackets are blacks, gray or white (depending on the chosen color).
