Pneumatic Actuator WAY Mingardi G1 Stroke 180-350-550-750-1000mm Ø40mm

Mingardi
Brands: Mingardi
Code: G1 WAY
-30%
€ 127,95 € 182,79
Prices excluding VAT
Are you looking for an actuator from the Mingardi catalog that is not on our site? Contact us and ask for a quote.

- +

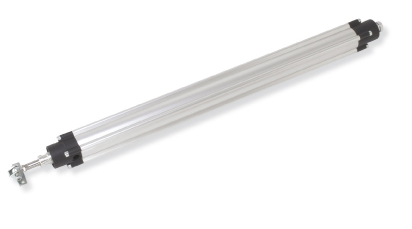

Pneumatic Actuator WAY Mingardi G1 Stroke 180-350-550-750-1000mm Ø40mm
Pneumatic actuator for: top hinged windows, domes.


MINGARDI pneumatic safety actuator suitable for being used for smoke evacuators in compliance with the UNI 9494 standards.
It has a plaincoloured aluminium body and is provided with automatic lockings in the furthermost position to keep the frames opened or closed even when internal pressure is absent.
Prepared in advance for direct installation of the thermal valve.

Characteristics:
  • Suitable for smoke evacuation;
  • High thrust force;
  • Easy maintenance;
  • Wide range of accessories;
  • Protection degree: IP 66;
  • Max thrust force: 2000 N;
  • Colour: White Anodisation EV1;
  • Locking hold load: 5000 N ± 10%;
  • Operating temperature 1 cycle: - 30°C + 300°C.

Cylinder front bracket (code: 2700442) sold separately.
Front bracket for window frame (code: 2700064) sold separately.
Rotating joint (code: 2700438) sold separately.
Fixed joint (code: 2700704) sold separately.

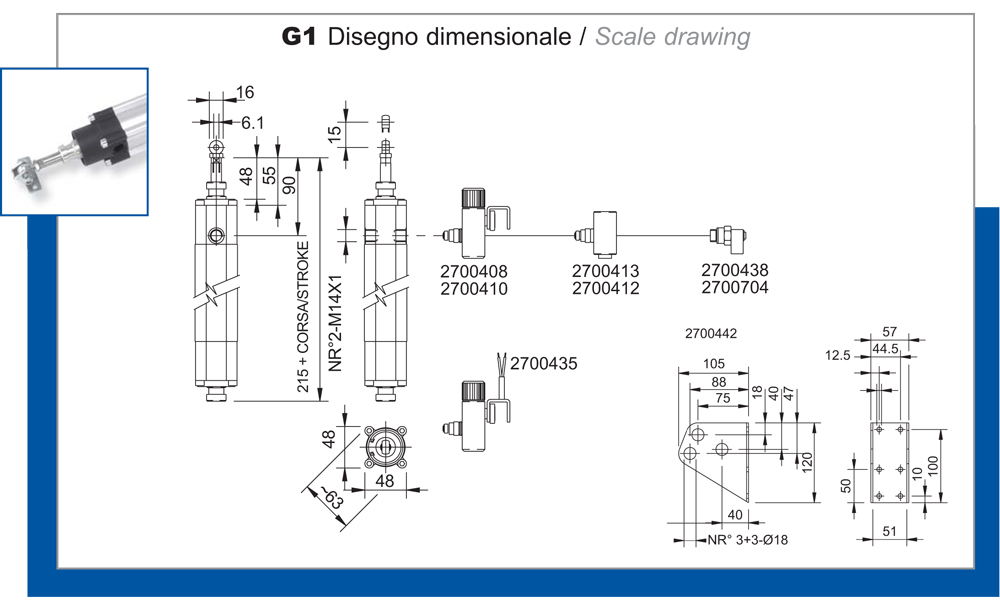

Technical Features:
 DESCRIPTION  THRUST  FORCE
 TENSILE  FORCE 1 MPA
 STROKE  CYLINDER
 DIAMETER
 ROD
 DIAMETER
 WEIGHT
 G1 - Ø 40 mm  1250 N / 1120 N  180mm  350mm
 550mm
 750mm
 1000mm
 Ø 40 mm  Ø 12 mm  1,33 Kg
 1,74 Kg
 2,23 Kg
 2,73 Kg
 3,41 Kg

pneumatic actuator Way Mingardi
