Chain Actuator Micro XL RWA Mingardi 24V Stroke 420-600-835mm

Mingardi
Brands: Mingardi
Code: Micro XL RWA WAY 24V
-30%
€ 233,81 € 334,01
Prices excluding VAT
You have chosen:
Are you looking for an actuator from the Mingardi catalog that is not on our site? Contact us and ask for a quote.

Unavailable

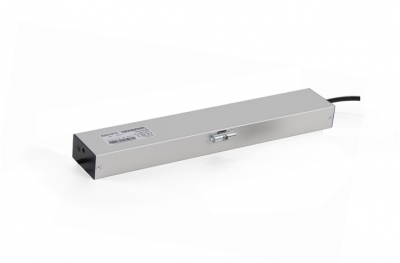

Chain Actuator Micro XL RWA Mingardi 24V - Stroke 420-600-835mm

Chain actuator for: top hinged windows, bottom hinged windows

  • MINGARDI linear electric actuator with articulated chain movement contained inside the casing.
  • Operation with 24V DC power supply Compliant with Directive 2004/108 EMC.
  • Tested according to the specifications of the European Standard EN 12101 - 2.
  • Equipped with an electronic limit switch system. Can be connected in parallel.
  • Available colours: silver anodized (A) - black anodized (N) - RAL 9016 (B).

Characteristics of the chain actuator - Model Micro XL Mingardi:

  • Maximum power;
  • Strokes up to 835 mm;
  • Tested according to the specifications of the European Standard EN 12101 - 2;
  • Silicone cable;
  • Degree of protection: IP 22;
  • Closing-opening limit switch: Electronic.

Colour: Silver anodized (A) - Black anodized (N) - RAL 9016 (B)

ATTENTION:
  • The universal kit for applications on top-hung windows (art.2700090) must be purchased separately on the website.
  • The universal kit for applications on bottom-hung windows (art.2700091) must be purchased separately on the website.
  • The tilting bracket for pallet applications (art.2700095) must be purchased separately.
TECHNICAL DATA
DESCRIPTION VOLTAGE PUSH
TRACTION
RACE ABSORPTION
MAX
MINIMUM SPEED
MicroXL 24V 200N /400N 420mm 600mm
835mm
50W approx. 17mm/s

THE PERFORMANCE VALUES SHOWN IN THE TABLE ARE AVERAGE CERTIFIED VALUES UNDER STANDARD USE CONDITIONS.

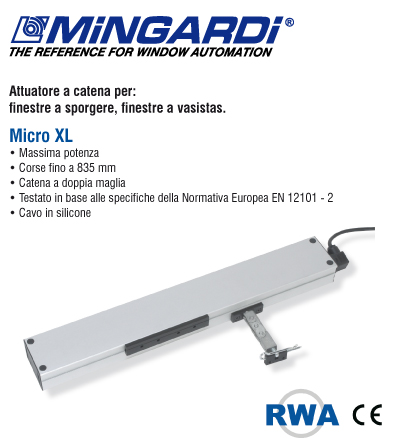

Attuatore a Catena Micro XL RWA - Mingardi 24V

Micro XL disegno Way Mingardi
