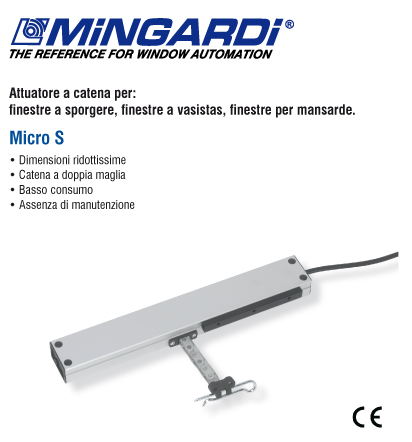

Micro S Mingardi - Chain Actuator for Windows - 230V - Stroke 200-250mm - 200N
Chain actuator for: top-hung windows, bottom-hung windows, mansard windows.
- MINGARDI linear electric actuator with articulated chain movement contained inside the casing.
- Operation with 230V~ 50Hz power supply Compliant with 2006/95 LVD – 2004/108 EMC Directives.
- Equipped with an electronic limit switch system.
- Can be connected in parallel.
- Available colours: silver anodized (A) - black anodized (N) - RAL 9016 (B).
Micro S Mingardi chain actuator features:
- Very small dimensions;
- Double link chain;
- Low consumption;
- Absence of maintenance;
- Degree of protection: IP 20;
- Closing-opening limit switch: Electronic-Absorption.
Colour: Silver anodized (A) - Black anodized (N) - RAL 9016 (B).
ATTENTION:
The universal kit for bottom-hung applications (art.2700094) must be purchased separately on the website.
The universal kit for protruding applications (art.2700093) must be purchased separately on the website.
The universal kit for applications on mansard windows (art.2700096) must be purchased separately on the website.
The universal kit for pallet applications (art.2700080) must be purchased separately on the site.

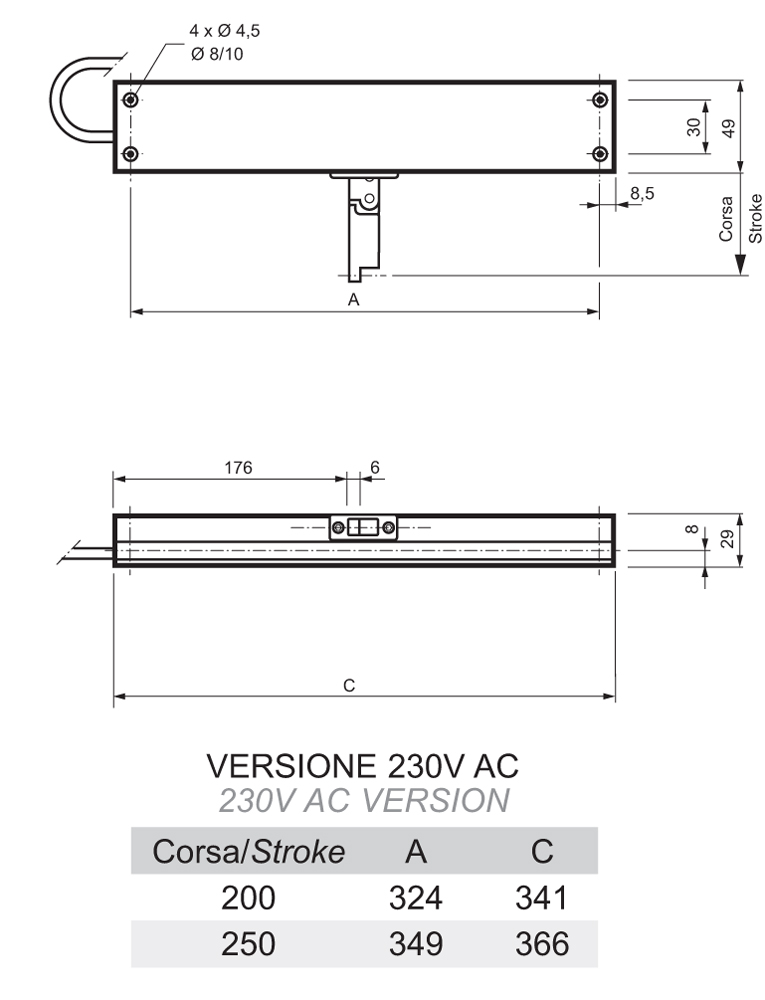

Technical data*
| Description |
Voltage |
push
Traction |
Race |
Power
Absorbed |
Speed
min. |
| Micro S |
230V~ / 50Hz |
200 No |
200mm
250mm
(optional) |
30W |
approx. 10mm/s |
THE PERFORMANCE VALUES SHOWN IN THE TABLE ARE VERIFIED AT AN OPERATING TEMPERATURE OF -10°C/+40C° WITH A MAXIMUM RELATIVE HUMIDITY OF 60%.
