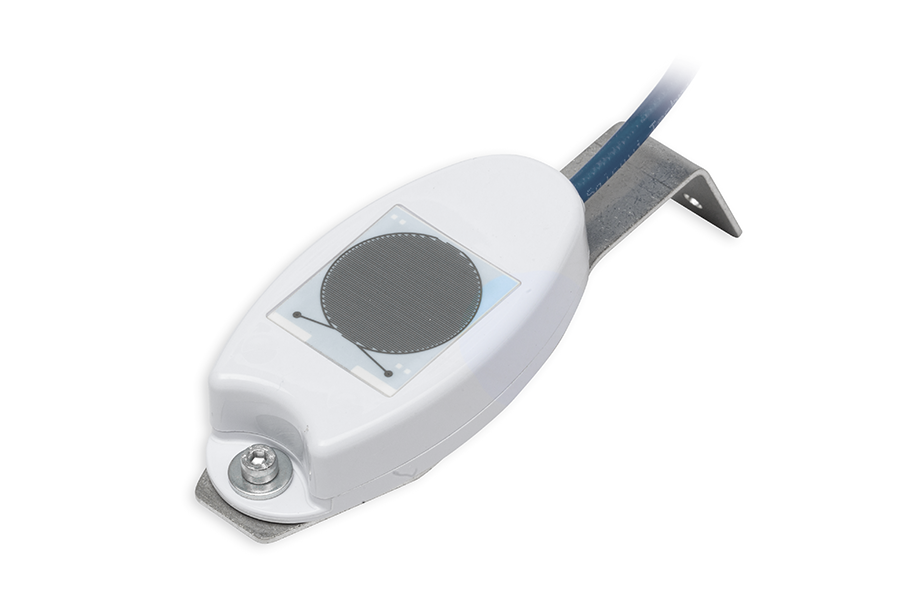

Heated Rain Sensor NRS1 – NRS1/R Nekos
Heated rain detector: device to be connected to Nekos actuators
The
rain detector is the device to be placed in the open where it can interact with the actuators when continuous rain occurs.
The Nekos rain sensor can be connected:
- directly by wire to Kato ADV Radio – NRS1;
- directly via radio to Kato ADV Radio – NRS1R;
- directly via wire to the K Series control units and to all the equipment where signal processing is envisaged or where a clean contact signal (voltage-free) is required.
The detector is insensitive to the formation of dew or humidity, after a precipitation it dries up very quickly and does not allow the formation of ice. The power cable is 5 m long, built to withstand the external environment with a highly weather-resistant, fire-retardant and UV-resistant PVC sheath.
MODEL: rain sensor NRS1 – NRS1/R Nekos
- Supply voltage: 12V ÷ 24V═ (DC);
- Maximum absorbed current: 20 mA – (120 mA with heater active);
- Sensor type: Capacitive;
- Heater intervention: < +4 °C;
- Contact Type: SPDT;
- Contact rating: 0.5A / 125VAC – 1A / 24VDC;
- Radio transmission frequency: 433.92 MHz;
- Operating temperature: -20 ÷ +65 °C;
- Power cord length: 5m;
- Power cable type – number of wires: UV protected LiY2Y PVC – 5 wires;
- Degree of protection of electrical devices: IP65;
- Overall dimensions: 45 x 93 h=19 mm;
- Weight: 52 g (excluding cable).
