Fischer DuoPower L Dowel Increased Length Bi-material

Fischer
Brands: Fischer
Code: DUOPOWER L
-30%
€ 5,18 € 7,40
Prices excluding VAT
Prices for large quantities = contact us and request a quote.

- +

Fischer DuoPower L Anchor with Greater Anchor Depth

Fischer DuoPower L : discover the extended length, universal and bi-material anchor, perfect for fixing medium and light loads on masonry, concrete and plasterboard.

The greater anchoring depths of the DuoPower L allow the fastening to be particularly suitable for fastening in hollow construction materials, cellular concrete and for penetrating high plaster thicknesses.

ATTENTION: the number of plugs in the package changes according to the chosen item.
Check the table within this tab to find out more.


Fischer DuoPower L dowels with or without screw

Discover the DuoPower L anchor in the version with or without screw : just select the variant you prefer.

You can choose between different variants of Fischer DuoPower L:
  • Fischer DuoPower L : bi-material dowel with increased length;
  • Fischer DuoPower SL : bi-material anchor with increased length with TSP chipboard screw with pozidrive recess;
  • Fischer DuoPower SL with TE screw : bi-material anchor with increased length with TE wood screw.

Here are the photos of the different versions.

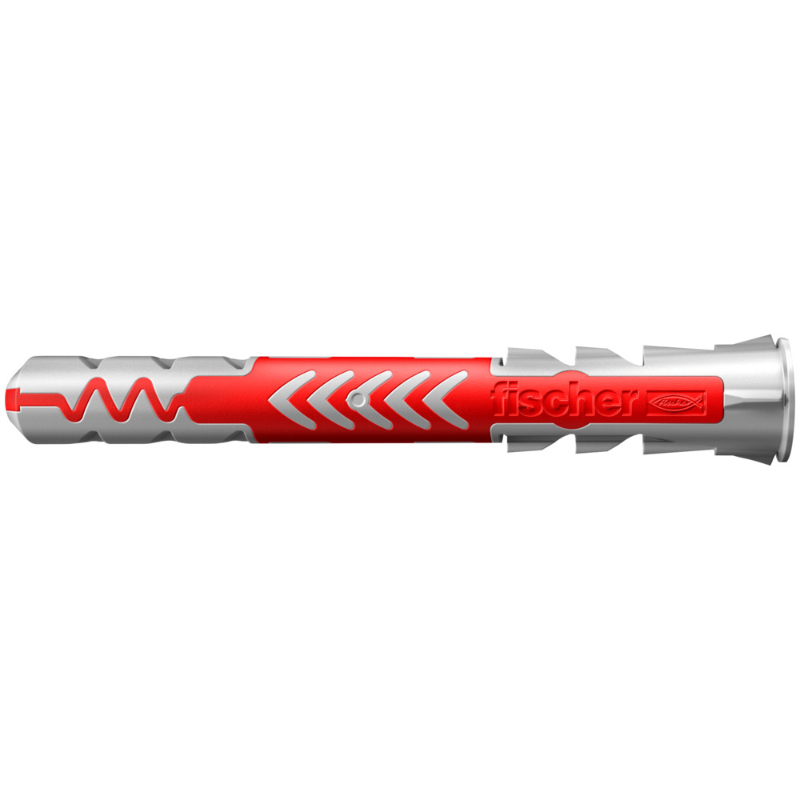

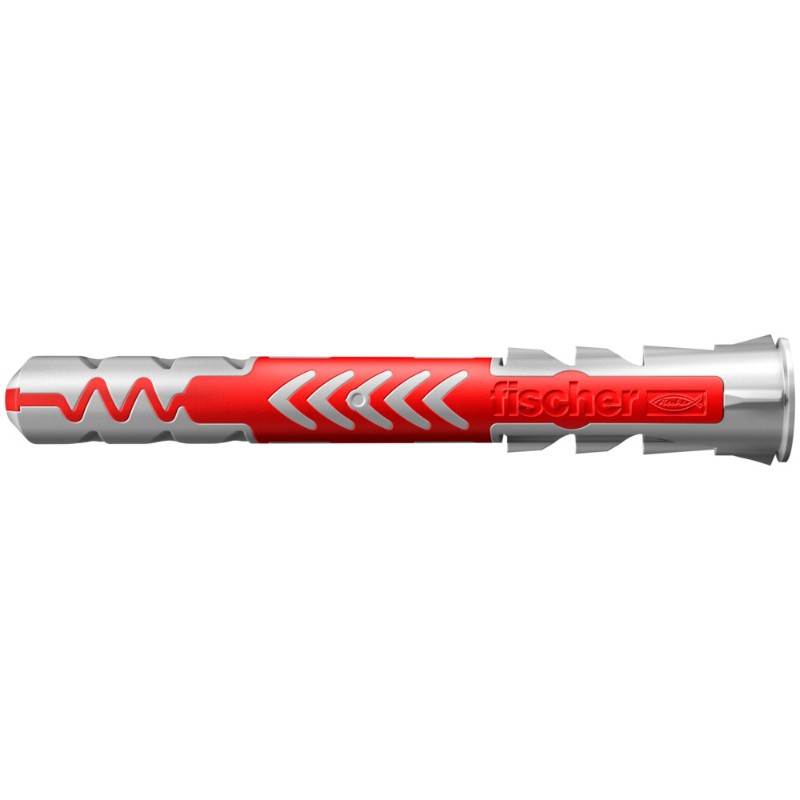

Fischer DuoPower L: bi-material dowel with increased length.
Fischer DuoPower L Dowel Increased Length Bi-material

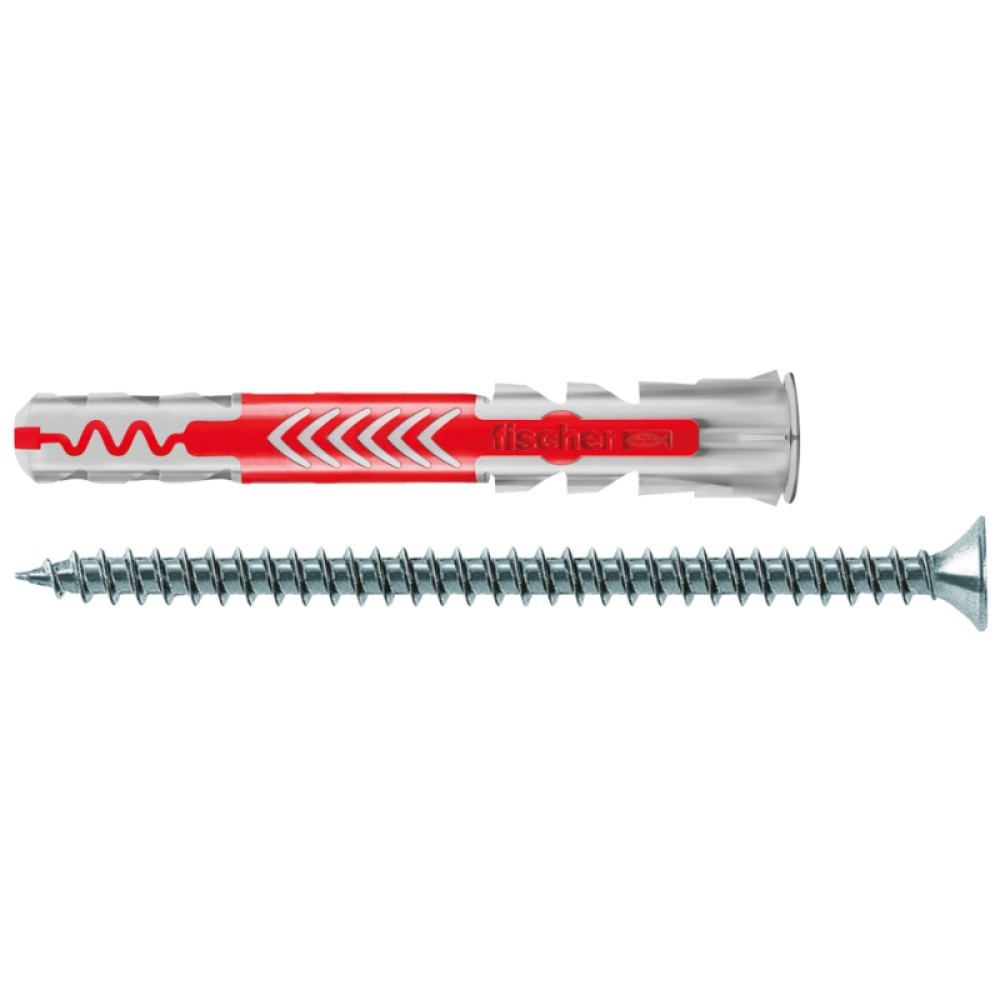

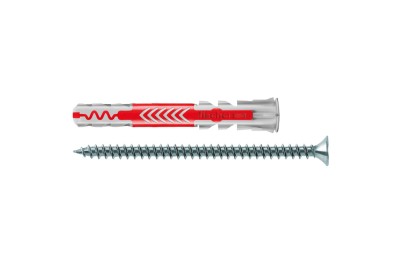

Fischer DuoPower SL: bi-material dowel with increased length with TSP chipboard screw with pozidrive recess.
Fischer DuoPower L Tassello Lunghezza Maggiorata Bi-materiale

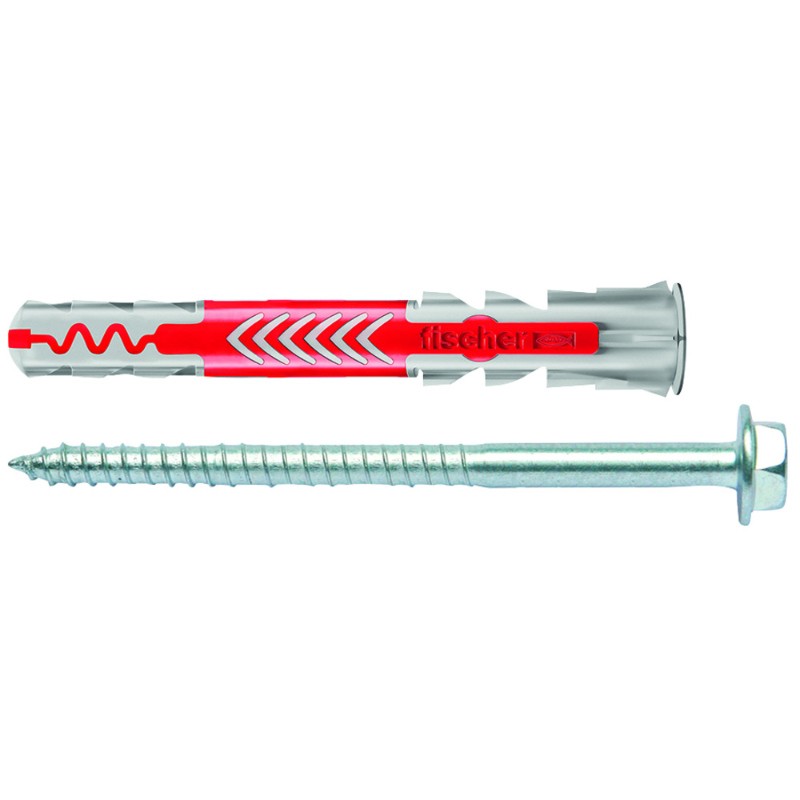

Fischer DuoPower SL with TE screw: bi-material anchor with increased length with TE wood screw
Fischer DuoPower L Tassello Lunghezza Maggiorata Bi-materiale


Why do we recommend Fischer DuoPower dowels?

  • Fischer DuoPower is made of two components for a better progressivity of expansion and a greater load capacity.
  • The combination of rigid and elastic components allows to obtain a perfect insertion of the screw and a better tightening torque.
  • Safe installation on main materials, including sheets and plasterboard.

Product Art. Pieces Screw Diameter
tip
Depth
minimum hole
Length
gusset
DUOPOWER 6x50 L 538240 100 No 6 mm 60 mm 50 mm
DUOPOWER 8x65 L 538241 50 No 8 mm 75 mm 65 mm
DUOPOWER 10x80 L 538242 25 No 10 mm 100 mm 80 mm
DUOPOWER 6x50 SL 538245 50 Yup 6 mm 75 mm 50 mm
DUOPOWER 8x65 SL 538246 25 Yup 8 mm 85 mm 65 mm
DUOPOWER 10x80 S 538247 10 Yup 10 mm 112 mm 80 mm


What are the advantages of Fischer DuoPower anchors?

  • Two components for higher load values and intelligent operation (expansion, folding, knotting) depending on the support material;
  • The best possible feedback in tightening. It is possible to perceive with certainty when the fixing is installed perfectly;
  • The reduced length of the fastening ensures a quick installation without deep drilling;
  • The thin collar of the fastener prevents slippage in the hole;
  • Closely spaced anti-rotation fins prevent rotation in the hole during installation.

fissaggio Fischer DuoPower Tasselli

fissaggio Fischer DuoPower Tasselli


On which materials can Fischer DuoPower be applied?

You can install the Fischer DuoPower expansion anchor on the main building materials:
  • Concrete;
  • Solid brick in brick;
  • Solid calcium silicate brick;
  • Solid block in lightened concrete;
  • Semi-solid brick (vertically perforated) in clay;
  • Semi-solid brick (vertically perforated) in calcium silicate;
  • Lightweight concrete hollow block;
  • Autoclaved aerated concrete (cellular concrete);
  • Drywall;
  • Plasterboard sheets and gypsum fiber panels;
  • Hollow floors in concrete and brick or similar;
  • Natural stone;
  • Chipboard;
  • Full plasterboard;

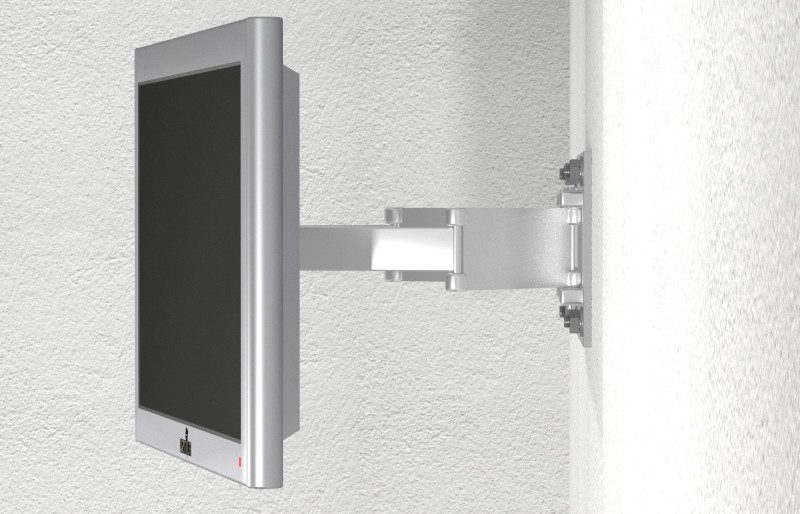

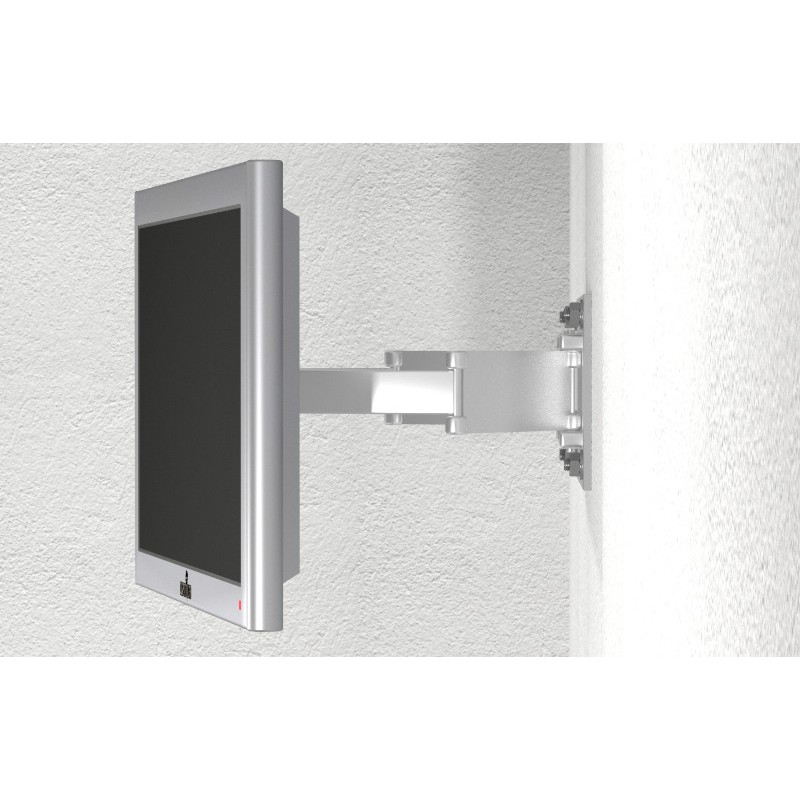

  • TV shelves;
  • Lighting;

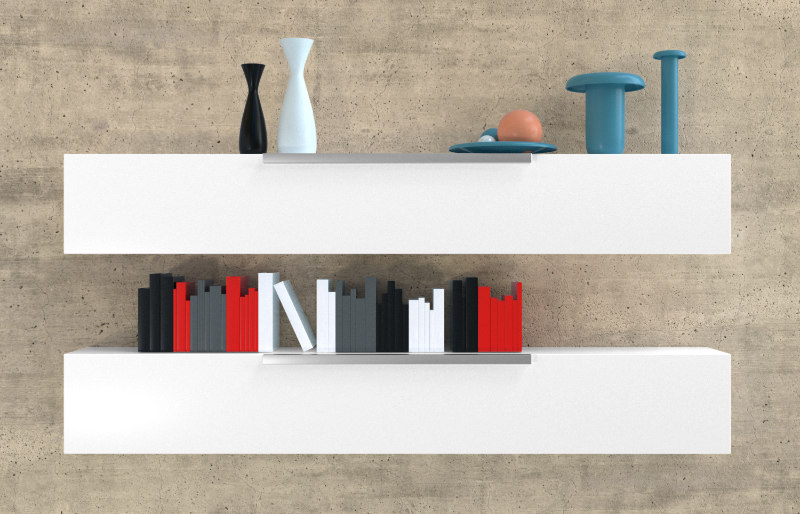

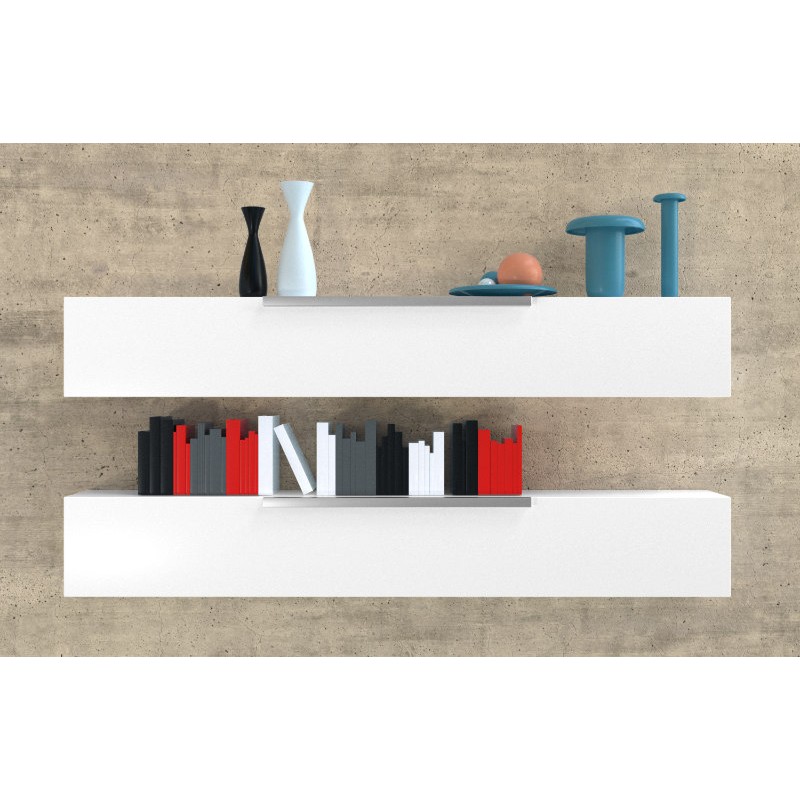

  • Shelves;
  • Mirror cabinets;
  • Letterboxes;
  • Paintings;
  • Roller blinds;
  • Curtain rails;
  • Fixings for washbasins;
  • Plumbing and heating fittings;
  • Bathroom accessories;
  • Hanging furniture;
  • Extractor hood.

Fischer DuoPower Tassello Universale Bi-materiale con Vite o Senza

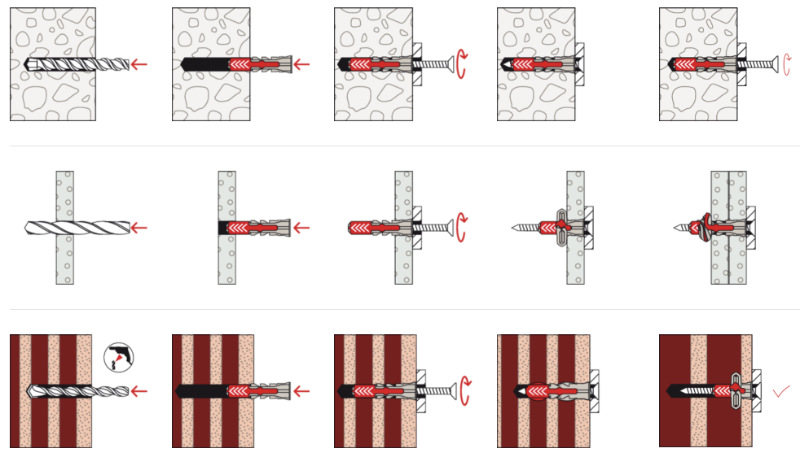

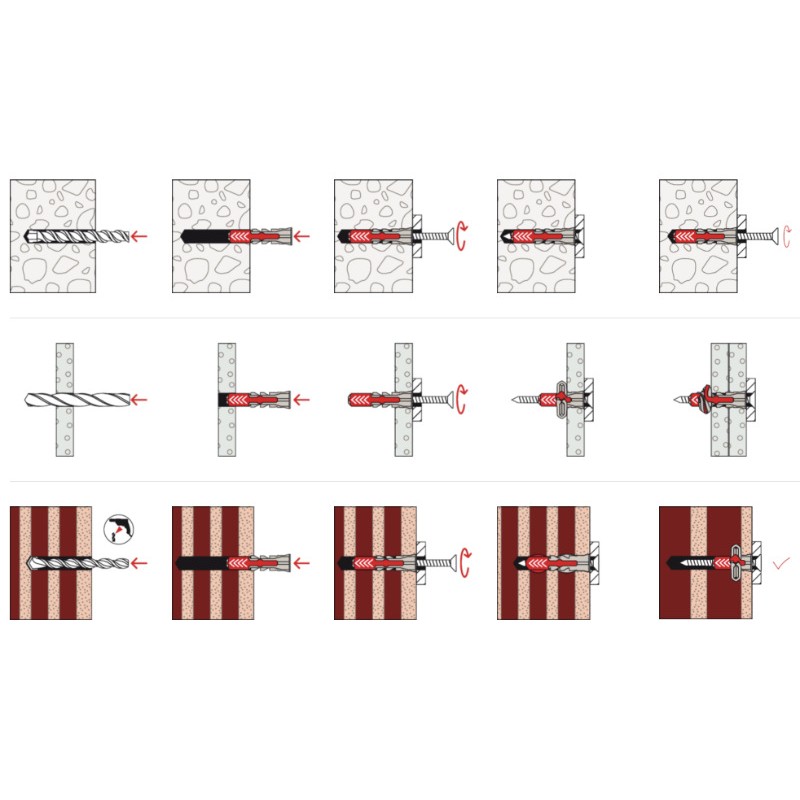

How is the Fischer DuoPower dowel mounted?

  • The DuoPower is suitable for pass-through and non-pass-through installation;
  • The coupling of two different materials and its multiple functional abilities (expanding, folding and knotting) extend the range of applications to further materials with high loads;
  • The required length of the screw is given by the length of the anchor + the thickness of the object to be fixed;
  • Suitable for wood and chipboard screws as well as for screws with double thread;
  • In the case of fixing on panels, the non-threaded part of the screw must not be longer than the object to be fixed;
  • The distance from the edge must be at least once the length of the fastening.
Please accept marketing cookies to view this content.
Fischer DuoPower
