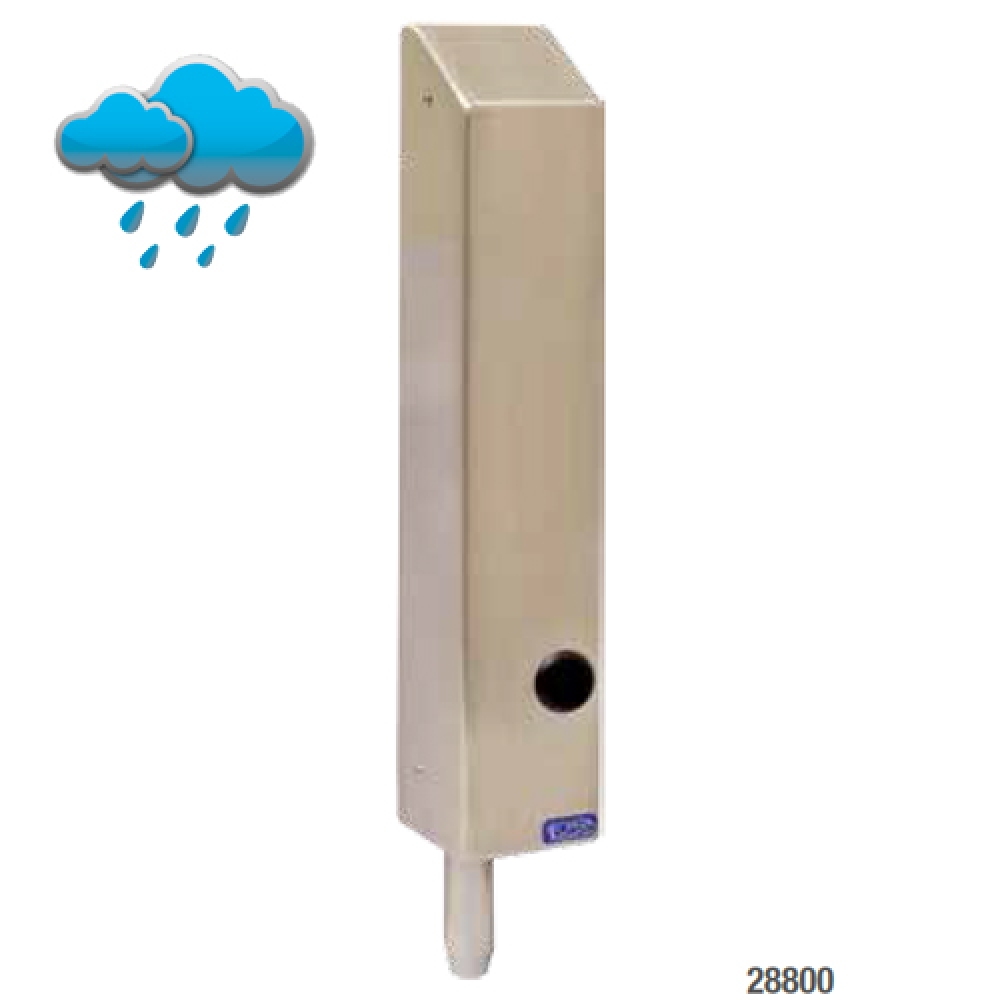

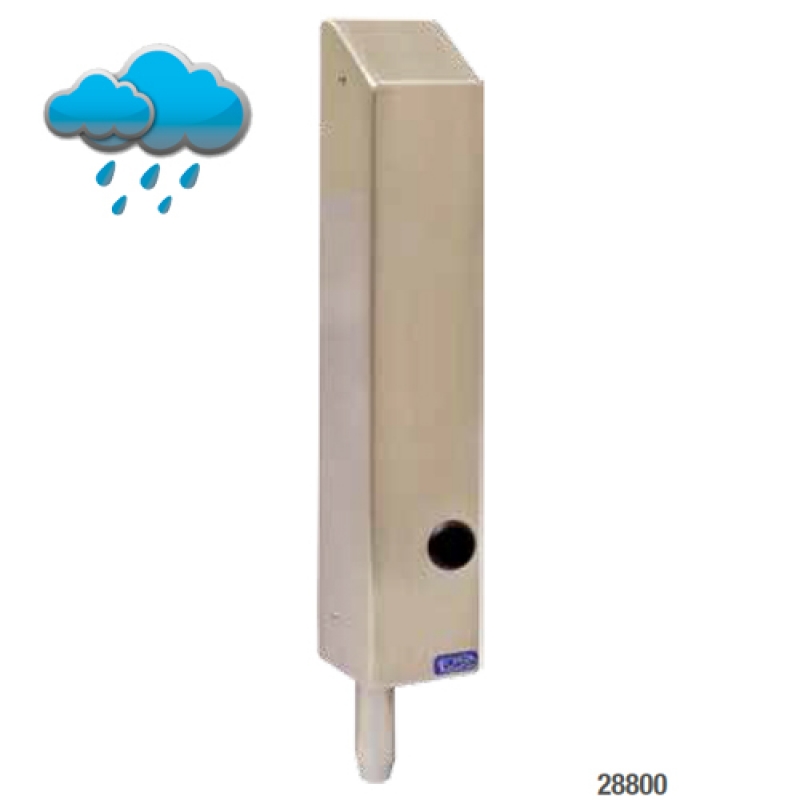

High Security Stainless Steel Solenoid Lock for Automatic Gates 28800 Gate Lock Series Opera
Use
High security solenoid lock for automatic gates.
Available variants:
- Carter in stainless steel with fixing plate;
- Carter in black painted steel without fixing plate.
Optional variants:
- Standard version without optional
- Solenoid lock for horizontal operation
- Solenoid lock with anti-tamper protection and microswitch
- Version with internal self-heating
Characteristics
Version: for surface fixing.
Lock body in stainless steel, aluminium and anti-corrosion treated steel.
Casing cover in stainless steel (version with carter in stainless steel).
Casing cover in black painted steel (version with carter in black painted steel).
Flat fixing plate in stainless steel to be welded (version with carter in stainless steel).
Dimensions of the body (mm): 335 x 60 x 55.
Mechanical opening with European type cylinder (through bolt hole from both sides) - Provided without cylinder.
Rubber weather protection of the cylinder hole.
Deadbolt in steel diameter (mm) 20 x extension 60 (stroke 50).
Bolt “total reaction” burglar device in closed position.
C. / N.O. / N.C. output contact.
Operating voltage: 24 Vdc.
Absorbed current 5 A peak, 750/900 mA in standby.
Internal self-heating – when temperature drops under 5°C , coil warms-up to avoid freezing. (standard in version with carter in stainless steel).
Fail locked version - Deadbolt closed without power.
On request (contact us if you want these variants):
- Solenoid lock for horizontal operation
Lenght of the double cylinder without under plate
Lenght of the couble cylinder without under plate and tamper defender item code 02250
Lenght of the half cylinder with under plate
Lenght of the couble cylinder with under plate and tamper defender item code 02250
Lenght of the half cylinder
Example of use
Gate Lock Series Opera
Security solenoid locks for garages and automatic gates.
Anti cutting hardened steel revolving bolt with mechanical block in closing position.
Manual activation with European cylinder.
Entirely in stainless steel, resistant to weather conditions exposure.
Activation through gate remote control.
