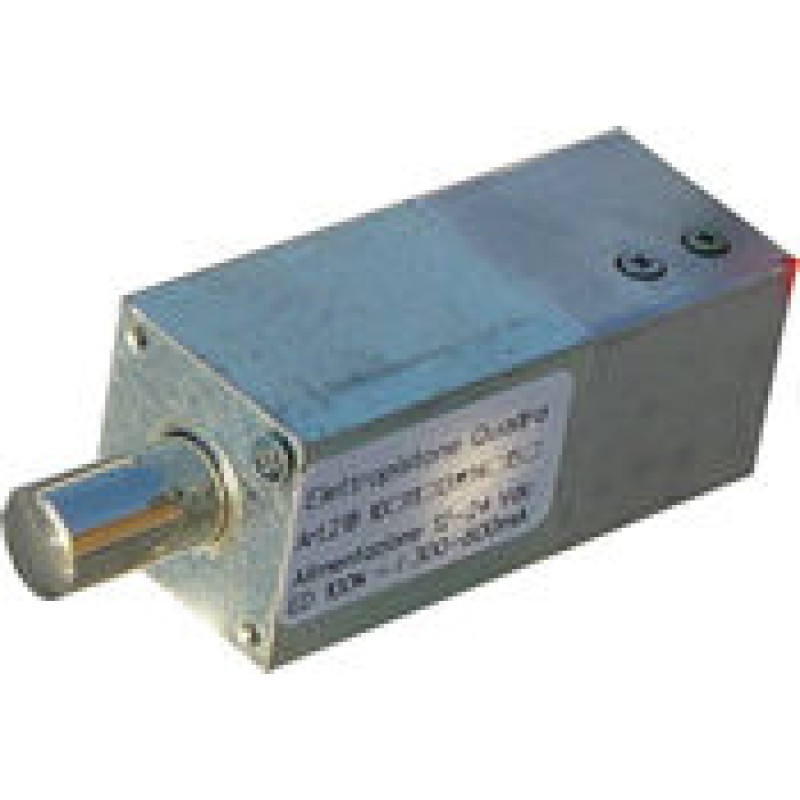

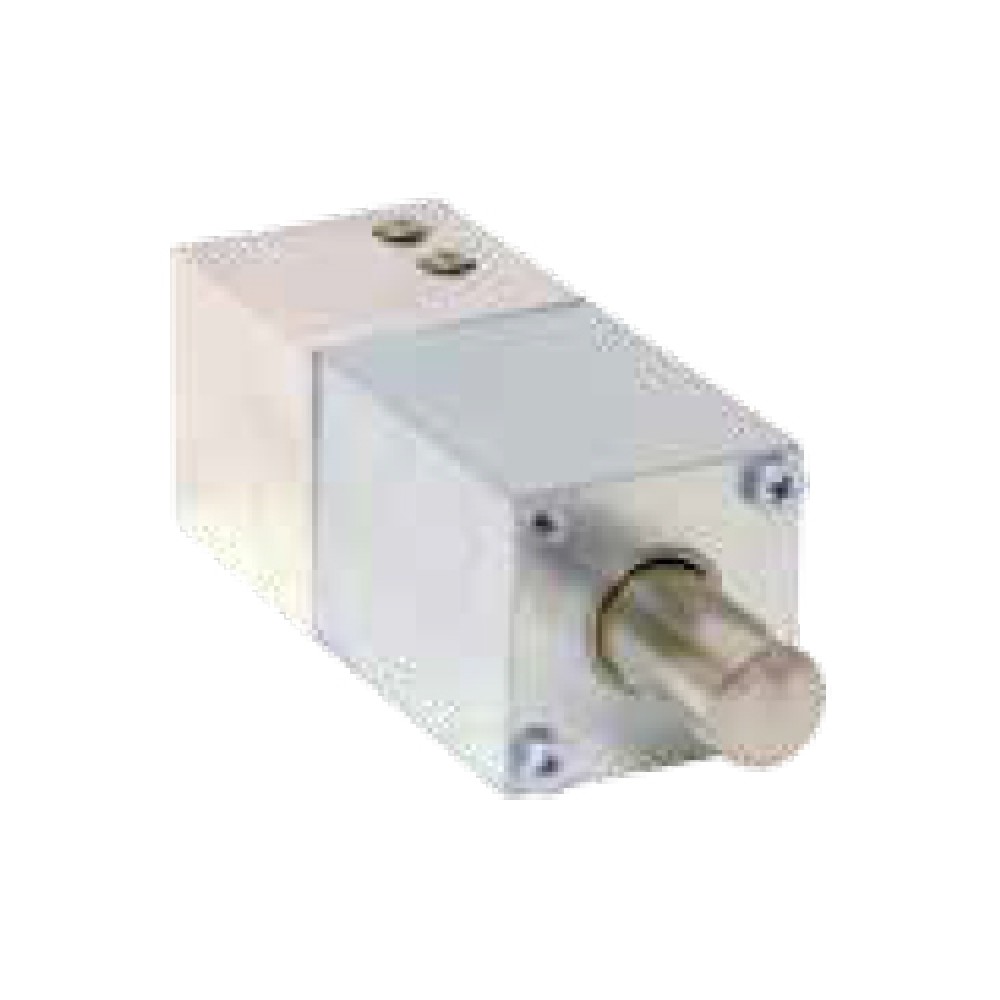

Safety solenoid lock with microswitch - 21813 Opera - Quadra Series
Safety solenoid lock with microswitch , code 21813 Opera, Seie Quadra.
The safety solenoid lock with microswitch, code 21813 Opera is an advanced device designed to
guarantee door safety and access control .
This solenoid lock is particularly useful in environments where safety is of the utmost importance, such as public, commercial and residential buildings.
Characteristics Electropiston - 21813 Opera
- Closed in case of power failure.
- Deadbolt diameter mm. 12, extension mm. 21 (18mm travel).
- Power supply: 12 Vdc/900 mA or 24 Vdc/450 mA - ED 100%.
- Operation: horizontal (vertical on request).
- C./NO/NC microswitch for deadbolt position.
IMPORTANT
The Quadra Micro series electric locks, due to the high operating temperatures, are not suitable for mounting on wooden or PVC doors.
Products from the Quadra Opera Series
- Horizontal safety electrobolts.
- Applicable on doors and shutters.
- Micro version for application on shop windows and windows.
- Manual operation with European cylinder.
- Easy to install.
Opera electric pistons produced in Italy
Opera srl, specialized in the design and production of electric handles, was created in 1997 in Modena, Emilia Romagna, land of food and motors. The entire management of the company comes from the Corni Serrature experience which has been present in the city of Modena for over a century.
The company is characterized by continuous expansion in world markets but with strong roots in Italy.
