Micro Solenoid Lock With Internal Electric 20612 Quadra Series Opera

Opera
Brands: Opera
Code: 20612
-20%
€ 240,00 € 300,00
Prices excluding VAT
Are you looking for an Opera product not present on our site?
Download the Opera catalog and find the code.
Then contact us and ask for a quote.

- +

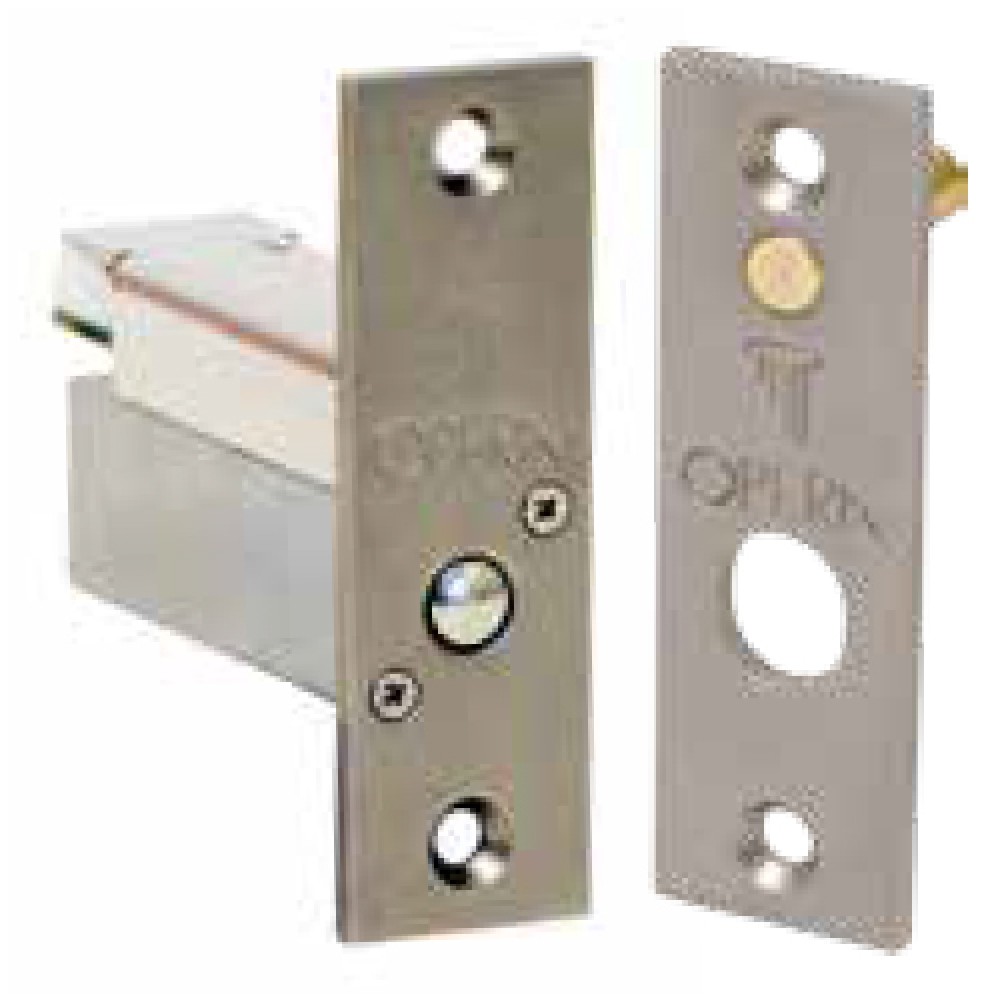

Micro Solenoid Lock With Internal Electric Fail Safe Open Without Power 20612 Quadra Series Opera

Use
Micro solenoid lock with internal electric fail safe open without power.

Characteristics
Fail safe.

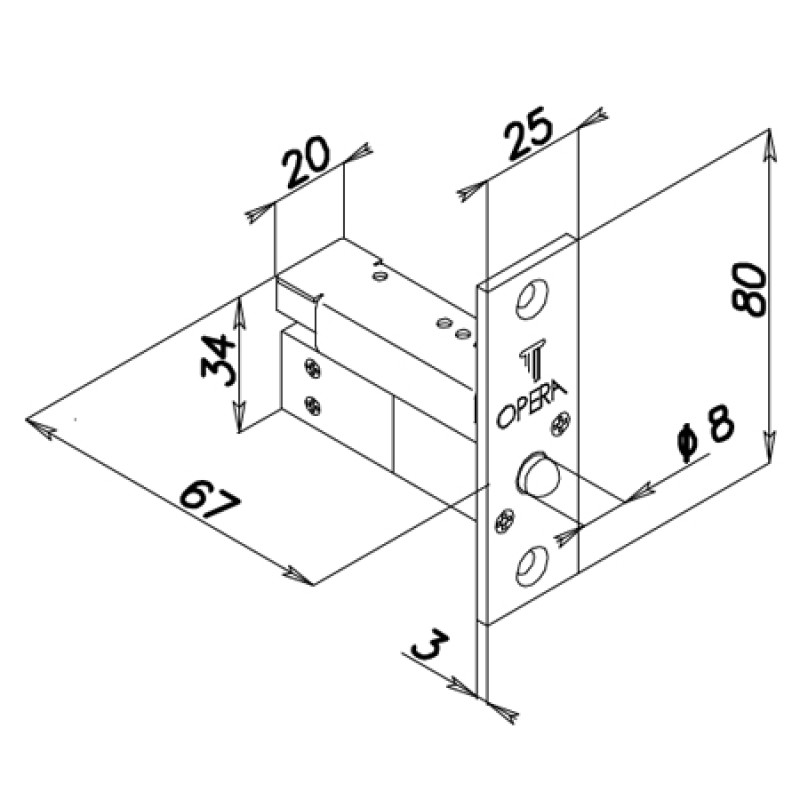

Front plate and striking plate in stainless steel mm 80 x 25 x 4.
Striking plate with adjustable magnet for door status position.
Bolt dimensions: diameter 8mm, extension 8.
Operating voltage: 12Vdc - 400 mA peak, 270 mA for maintenance 24Vdc - 300 mA peak, 150 mA for maintenance.
Internal microprocessor control electronic.
Rapid plug-in connector.
Bolt position free voltage contact C. / N.O. / N.C.
Push buttons for monitoring and adjustment of reclosing times from 0-5 sec. to approach of door and from 0-60 sec. if the door is not opened.
Mode of operation: horizontal (vertical on request).

Micro Solenoid Lock With Internal Electric Fail Safe Open Without Power 20612 Quadra Series Opera

IMPORTANT
The Quadra Micro series solenoid lock, due to the high operating temperatures, are not suitable for mounting on wood or PVC doors.

Quadra Series Opera
Horizontal security solenoid locks.
Application on doors and rolling shutters.
Micro version for cabinets and windows application.
Manual activation with European cylinder.
Easy installation.

Quadra Series Opera

Opera Operating Access
Opera is an independent company. The production premises are based in Modena - Italy, town with an old tradition in lock manufacturing. The company was set up in 1997 and it is specialised in the manufacturing of electronic locks and doors accessories. From a company that manufactured products, Opera has evolved into a company that offers solutions aimed at improving the security and safety of individuals and their belongings. Today with more than 20 people and advanced production means, Opera is at the top of the European ranking of locks manufacturers.

opera operating access

Made in Italy
We believe in the quality of Italian companies and of our suppliers who are 90% from within Italy. Our high quality products are produced respecting environment and all relevant European standards. We are proud to work and to live in Modena, little city in the North of Italy that is an UNESCO heritage italian site since 1997.

made in italy
