Sky650 Nekos 24V Rack Actuator 600N

Nekos
Brands: Nekos
Code: Sky650 Nekos 24V
-15%
€ 131,55 € 154,76
Prices excluding VAT
Alternative product: Skyro650 Nekos 230V
Are you looking for an actuator from the Nekos catalog that is not on our site? Contact us and ask for a quote.

Unavailable

Sky650 Nekos - Rack Actuator 600N 24V - Stroke 180-230-350-550-750-1000mm

On the Roof of the World: Nekos Sky650 Rack Actuator

Sky650 Nekos is a 600N rack-and-pinion actuator with 24V power supply for applications on domes, skylights, sunshade blades, protruding bay windows.

  • Nekos has made modifications and evolutions in the linear rack actuator family.
  • Sky650 Nekos improves its performance, reliability and possibilities of use.
  • 600N in traction and thrust controlled and managed by a microprocessor are a guarantee of reliability and durability over time.
  • The application is versatile and modular, without particular and expensive accessories; the addition of the new electronics and the latest generation mechanical set-up further contribute to making this actuator one of a kind.

The variety of rack strokes between 180 and 1000 mm offer wide fields of application. The actuator is fixed by means of a vice system along the entire length of the stem with an oscillating support which allows the actuator to follow the opening radius of the window.

Available strokes: 180, 230 mm for slats and sunshade blades, 350, 550, 750, 1000 mm for application on windows.

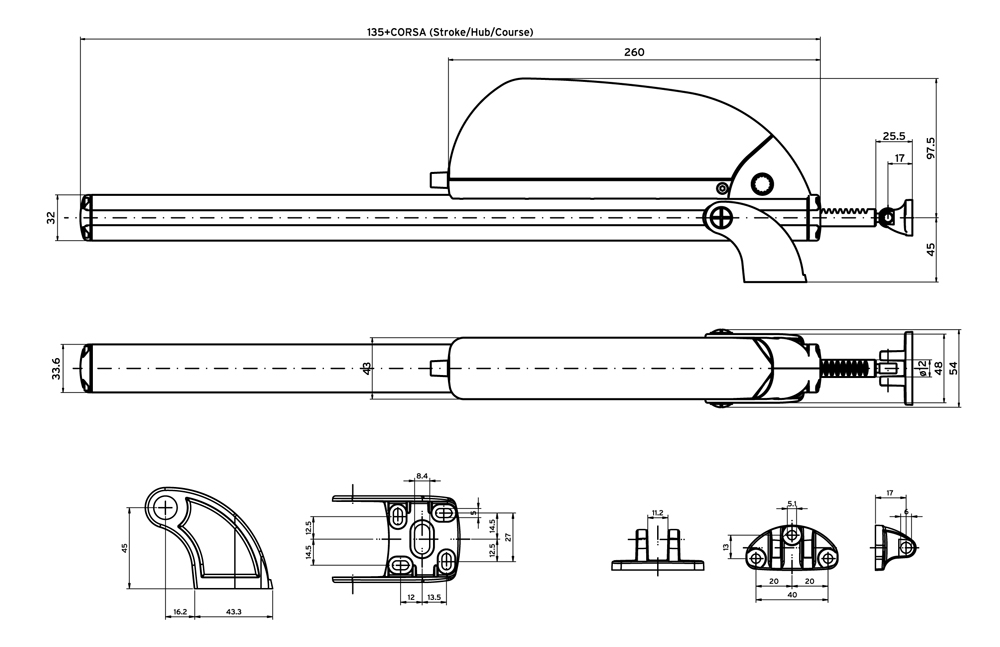

sky650 nekos rack actuator


Sky650 Nekos actuator technical specification:

  • Linear rack actuator suitable for moving domes, hinged windows, transom windows and dormer windows.
  • Push and pull power of 600 N. One or more push points with up to four motorized actuators.
  • Working at 24V.
  • Supplied complete with universal tilting bracket, which can be fixed along the entire length of the rod by means of two sliding vices.
  • Limit switch with power absorption in opening and closing and as electronic overload protection.
  • Can be connected in parallel. Compliant with Directives 2004/108 CE (EMC Directive) and 2006/95 CE (BT Directive).

The connection bar and the stem (in the various sizes) are accessories that must be purchased separately.


Standard colors:

  • Anodized Silver for the metal parts in extruded aluminium, Galvanized for the die-cast parts and Gray (approximately RAL7035) for the gearmotor casing.
  • White power cable.


Nekos SKY650 24V motor technical data:

  • Model: SKY650 24V;
  • Push and pull force: 600 N;
  • Available strokes: 180, 230, 350, 550, 750, 1000 mm (*);
  • Supply voltage: 24V═(dc);
  • Current draw at rated load: 1,600 A;
  • Power consumption at nominal load: ~ 38 W;
  • No-load travel speed: 9.5 mm/s;
  • Duration of the idle stroke: Depending on the stroke;
  • Double electrical insulation: Low voltage;
  • Service type: S2 of 3 min;
  • Operating temperature: -5 +65 ºC;
  • Degree of protection of electrical devices: IP55;
  • Adjustment of the attachment to the frame: Self-determination of the position;
  • Parallel connection of two or more motors: Yes;
  • Tandem or battery connection: Yes;
  • Limit switch in opening and closing: Absorption of power;
  • Overload protection in opening and closing: By power absorption;
  • Dimensions: 115x42x(Stroke+135) mm;
  • Appliance weight: Various according to construction.

(*) Strokes can be reduced with technical intervention on the internal limit switch.

Sky650 Nekos Actuator

Check that the appliance has the same type of electrical power supply as that available for connection, checking the data shown on the label applied to the actuator.

  • Nekos products are built in a workmanlike manner in terms of safety, in compliance with the provisions of current laws.
  • Correctly assembled, installed and used in compliance with these instructions, they do not constitute a danger to the safety of people, animals or property.
  • The products that fall within the field of application of the EEC directives comply with the essential requirements contained therein.
  • CE marked, they can be placed on the market and put into service in the European Union without further formalities.

For further information on this product (use, safety, cleaning, guarantee, certificate of conformity and much more) we recommend reading the Instructions (PDF downloadable in "Documents").
