Automation Kit for Swing Gates with Mechanical Limit Switch Aprimatic R251 FM

Aprimatic
Brands: Aprimatic
Code: 41070/800
€ 545,56
Prices excluding VAT
Are you looking for a product of Aprimatic catalog not present on our site? Contact us and ask for a quote.

- +

Automation kit for swing gates Aprimatic model R251 FM

Discover Aprimatic R251 FM, the kit for swing gates for residential use. With electromechanical arm actuator, with mechanical limit switches.

Kit automazione cancelli a battente Aprimatic modello Kit R251 FM
  • Fully self-learning programming : with the possibility of changing the parameters through a simple and intuitive menu.
  • Adjustable and pre-drilled rear bracket : the arms are equipped with mechanical limit switches that allow you to adjust the desired stroke.
  • Guaranteed continuity of service : in the event of a black-out, by two optional emergency batteries.
  • FM model equipped with mechanical limit switches : easily adjustable (it is however necessary to provide a stop on the ground).

Aprimatic R251 FM Kit: main features

  • Motor power 24 Vdc
  • Maximum gate weight 300 kg
  • Swing gate automation kit
  • Mechanical limit switch

Swing gate automation kit: technical characteristics

  • Mains power supply : 230 Vac - 50Hz
  • Motor power supply : 24Vcc
  • Maximum thrust force : 2500N
  • Maximum leaf width without electro- welding: 1.8m
  • Maximum leaf width with electro- welding: 3m
  • Maximum leaf weight : 300kg (for 3m leaf) - 500kg (for 1.8m leaf)

Dimensions of the kit for automatic gate Kit R251 FM

The maximum stroke is reduced by 16 mm with one limit switch and by 32 mm with two limit switches.

dimensions of automation kit for swing gates Aprimatic R251 FM

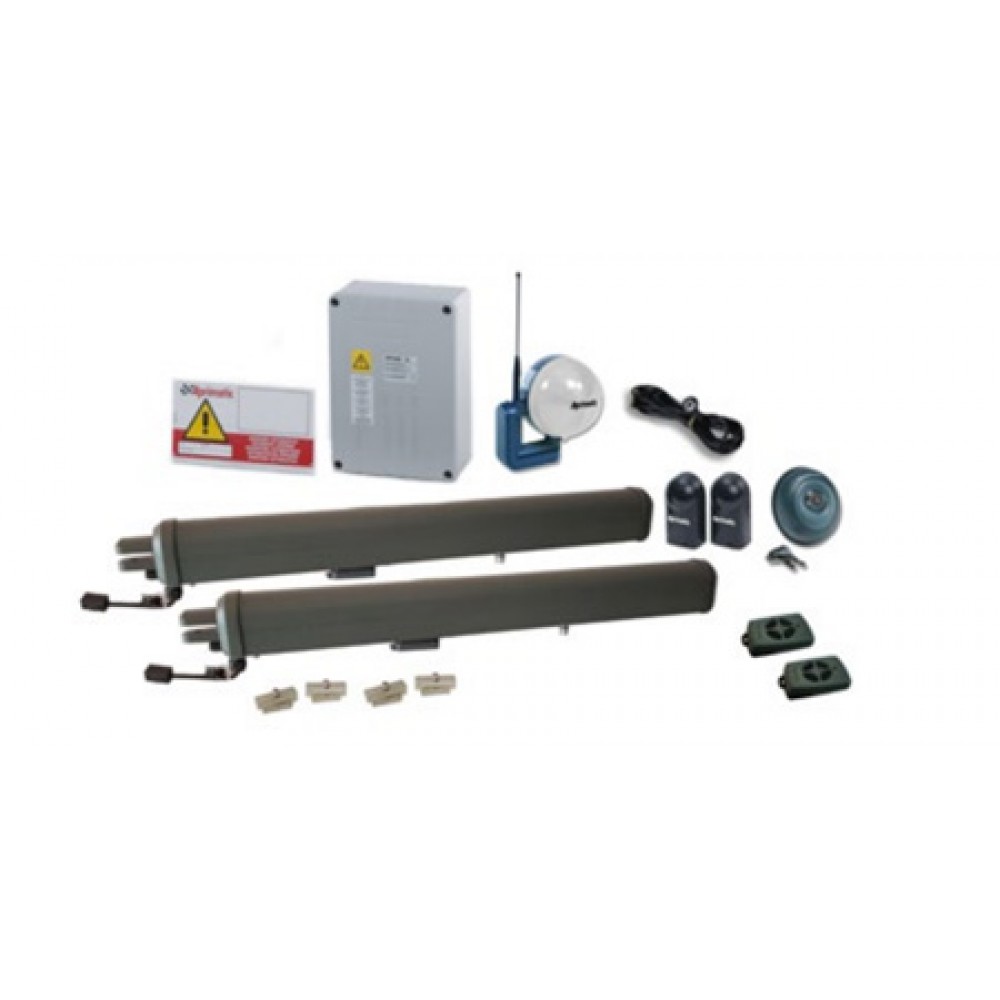

Gate automation kit: what is included?

This gate automation kit includes:
  • 2 R251 FM mechanical limit switches actuators (code 41070/001)
  • 1 Dedicated electronic control unit RSK24-SMT (without receiver) (code 41600/010)
  • 1 Superheterodyne receiver "SE-E" 433.92MHz (code 41923/011)
  • 1 TM4L - 433.92 MHz four -channel transmitter (code 41905/024)
  • 1 433.92 MHz antenna KIT for ET2N-ET20N (code 41929/003)
  • 1 ET2N-W 24V flashing light (code 41840/010)
  • 1 Pair of ER48 photocells (12V-24V) (code 41812/010)
  • 1 PC12E wall key button (code 41830/007)
  • Aprimatic warning sign

What is the difference between a swing gate and a sliding gate?

The main difference is that:
  • Automatic swing gates : they are used in homes and condominiums, because they are lighter and smaller;
  • Automatic sliding gates : they are used in companies, they are larger and heavier.
Therefore? It means that this automation kit for sliding gates is ideal for the residential environment.

Aprimatic automatisms for swing gates for sale online on Windowo

Aprimatic is the Italian company specialized in the production of motors and automation kits for automatic gates. In addition to this, the Emilian company produces motors for roller shutters, shutters, windows and garage doors. If you are looking for automatic gate systems, rely on Aprimatic's Made in Italy quality. On Windowo you will find the best at discounted prices.
