Actuator for Swing Gate Aprimatic R251 FM

Aprimatic
Brands: Aprimatic
Code: R251 FM
€ 156,74
Prices excluding VAT
Are you looking for a product of Aprimatic catalog not present on our site? Contact us and ask for a quote.

- +

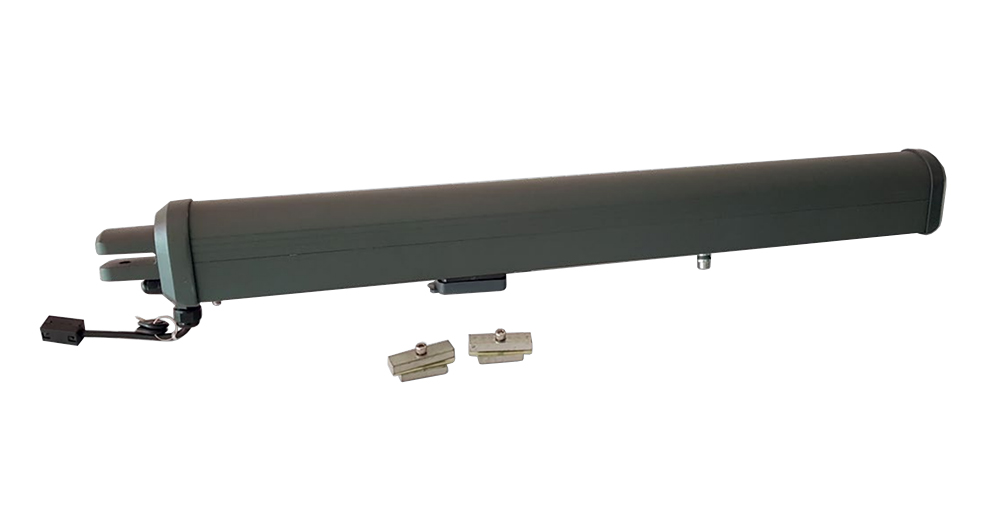

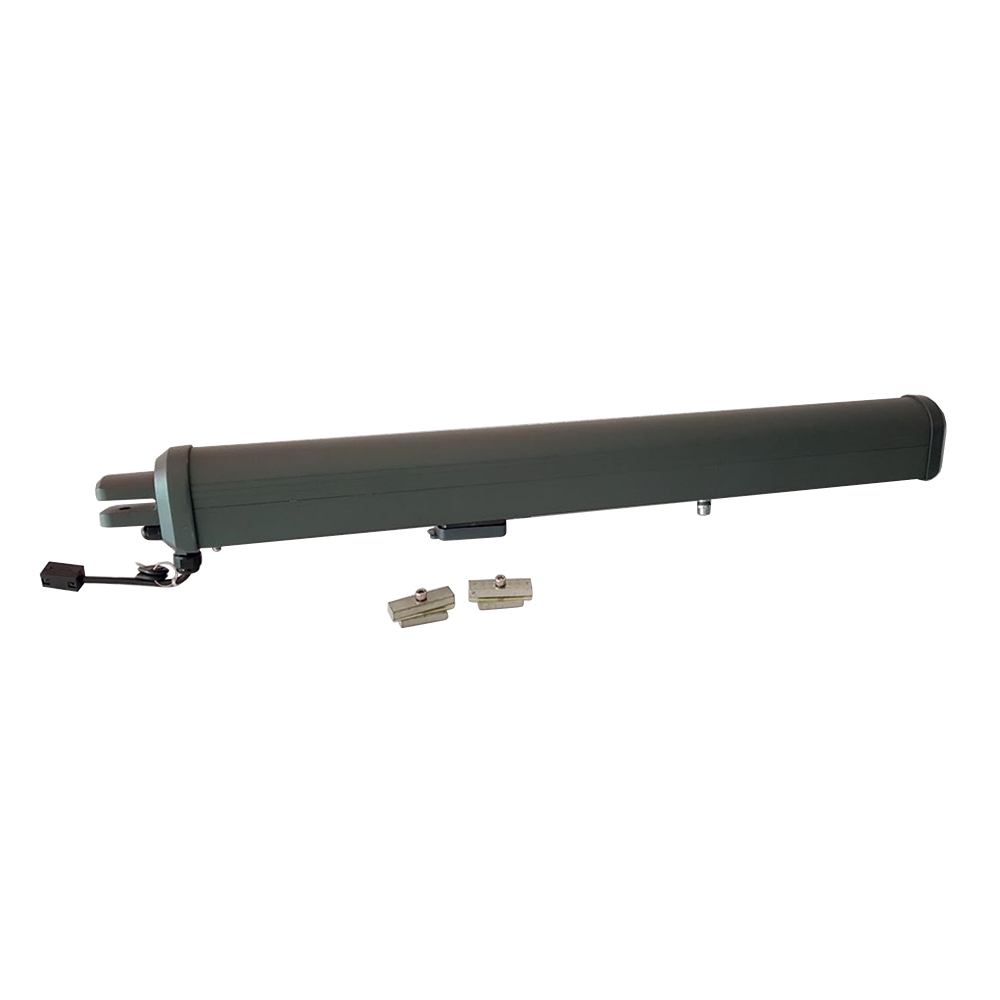

Aprimatic R251 FM swing gate operator

Aprimatic branded electromechanical actuator R251 FM, low voltage, for swing gates.
Gate motor with swing movement, ideal for residential use .

Attuatore per cancello a battente Aprimatic modello R251 FM

Electric actuator for swing gate Aprimatic R251 FM: technical data

  • Mains power supply: 230Vac - 50Hz
  • Actuator power supply : 24Vcc
  • Maximum leaf width without electro-welding : 1.8m
  • Maximum leaf width without electro-welding : 3m
  • Maximum leaf weight : 300kg (for 3m leaf) - 500kg (for 1.8m leaf)
  • Maximum number of cycles : 50 cycles / day
  • Degree of protection : IP44
  • Power consumption : 48 W
  • Current consumption : 2 A
  • Maximum thrust force : 2500 N
  • Rod stroke : 400 mm
  • Linear speed : 16 mm / s
  • Operating temperature : -20 ° + 50 ° C
  • Anti-crushing safety : Electronic

Read the features of the Aprimatic swing gate actuator model R251 FM

24V electromechanical arm with electronic limit switch adjustment (via internal microswitches). Suitable for systems where it is not possible to use a ground stop. The adjustment of the electronic limit switches is possible only with the use of the BA24 control unit and the limit switch optional card.

Completely self-learning programming with the possibility to vary the parameters through simple adjustment of Dip Switch and trimmer on the card.

Adjustable and pre-drilled rear bracket . The arms are equipped with mechanical limit switches that allow you to adjust the desired stroke. For leaves longer than 1.8 meters, the use of an electric lock is recommended.

Continuity of service guaranteed , in case of black-out, by two optional emergency batteries.

How to mount a swing gate actuator?

The ideal installation of the R251 FE Aprimatic swing gate actuator (with 1.8m leaf) involves the use of other accessories such as:
  • R251 FE actuator - Go to the product sheet by clicking here
  • AP350 left actuator
  • AP350 right actuator
  • BA230 electronic control unit with integrated 433.92 Mhz radio receiver
  • TM4L - 433.92 MHz four-channel transmitter
  • ET2N-W 24V flashing light
  • Pair of ER48 photocells (12V-24V)
  • ANT433 - 433.92 MHz antenna with 4.5 m coaxial cable ref. to mass
  • PC12E - Wall-mounted key button

Aprimatic: the best automatisms for swing gates

Aprimatic is the Italian company specialized in the production of motors and automation kits for automatic gates. In addition to this, the Emilian company produces motors for roller shutters, shutters, windows and garage doors. If you are looking for automatic gate systems, rely on Aprimatic's Made in Italy quality. On Windowo you will find the best at discounted prices.
