Choose the Aprimatic Kit Twenty 270 SF swing gate motor
Kit for swing gates, with hydraulic operator without hydraulic lock, with electronically adjustable slowdown system in closing.
- Simple and linear design for an aesthetic compatible with all types of gates.
- Electronically adjustable hydraulic slowdown system in closing, allows a gentle approach of the gate leaves which avoids noise and mechanical stress on the structure.
- Emergency release for valid anti-intrusion protection. It is protected inside the upper hood and does not alter the pleasant aesthetic line of the actuator.
- The rear flange , with articulated movement aluminum fork, guarantees extreme sturdiness and flexibility in mounting on the pillar.
- The front attachment is uniball type ball joint . A 20 mm thread is useful during the installation phase to recover any tolerances determined by the fixing.
Read the technical data of this swing gate motor
Mains power supply : 230 V - 50 Hz
Thrust force : 5500N
Maximum leaf width with electric lock : 3 m
Maximum number of cycles : 800 cycles / day
Dimensions of the actuator

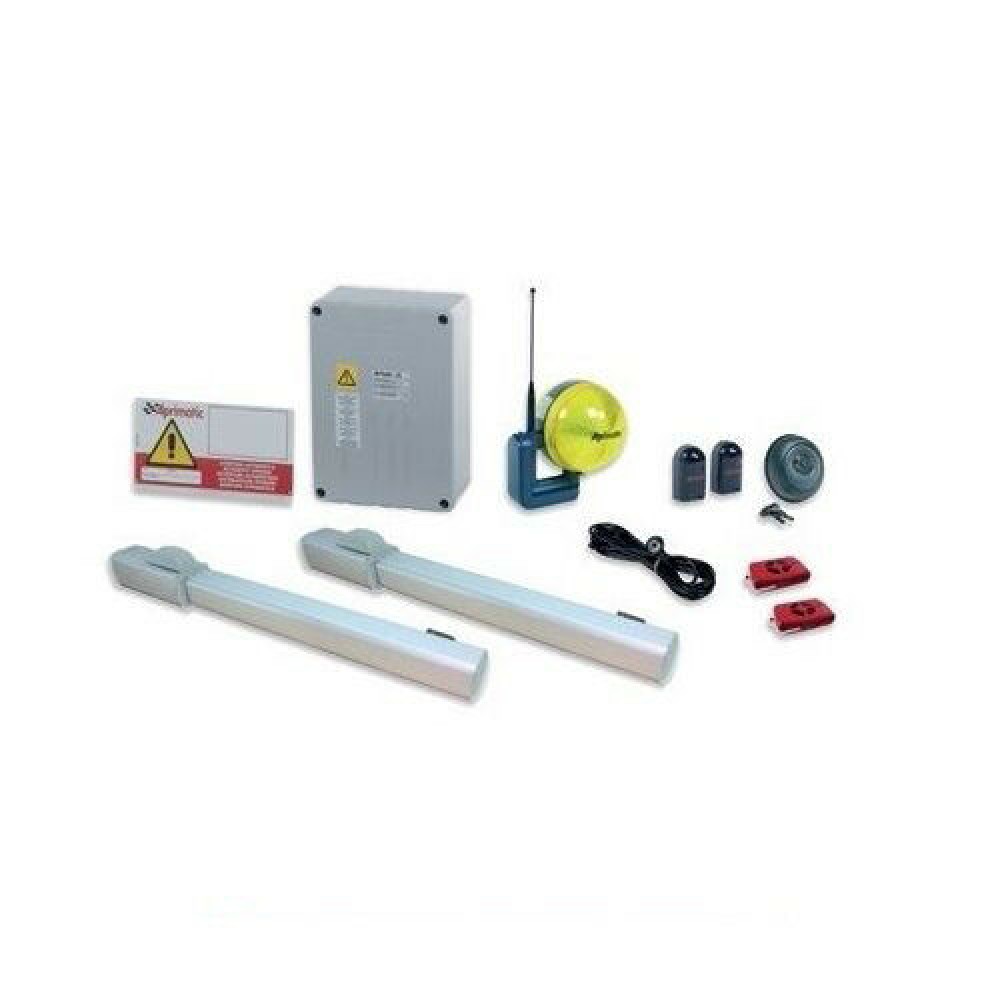

What is included in the swing gate electric motor kit?
- 2 TWENTY 270 SF 2 actuators with release key () cod. 41012/003). Requires an electric lock;
- 1 BA230 electronic control unit with integrated 433.92 MHz superheterodyne radio receiver (code 41628/001);
- 2 TM4L four-channel transmitters - 433.92 MHz (code 41905/024);
- 1 433.92 MHz antenna kit for ET2N-ET20N (code 41929/003);
- 1 ET2N-W 24V flashing light (code 41840/010);
- 1 Pair of ER48 photocells 1 (12V-24V) (code 41812/010);
- 1 PC12E wall key pushbutton (code 41830/007);
- Aprimatic warning sign .
Aprimatic: the best motors for swing gates
Choose only the motors for gates from Aprimatic , the Italian company specialized in the sector of opening automatic gates. On Windowo you can find the kits but also the single and spare accessories to transform your swing or sliding gate into a fantastic automatic gate.
