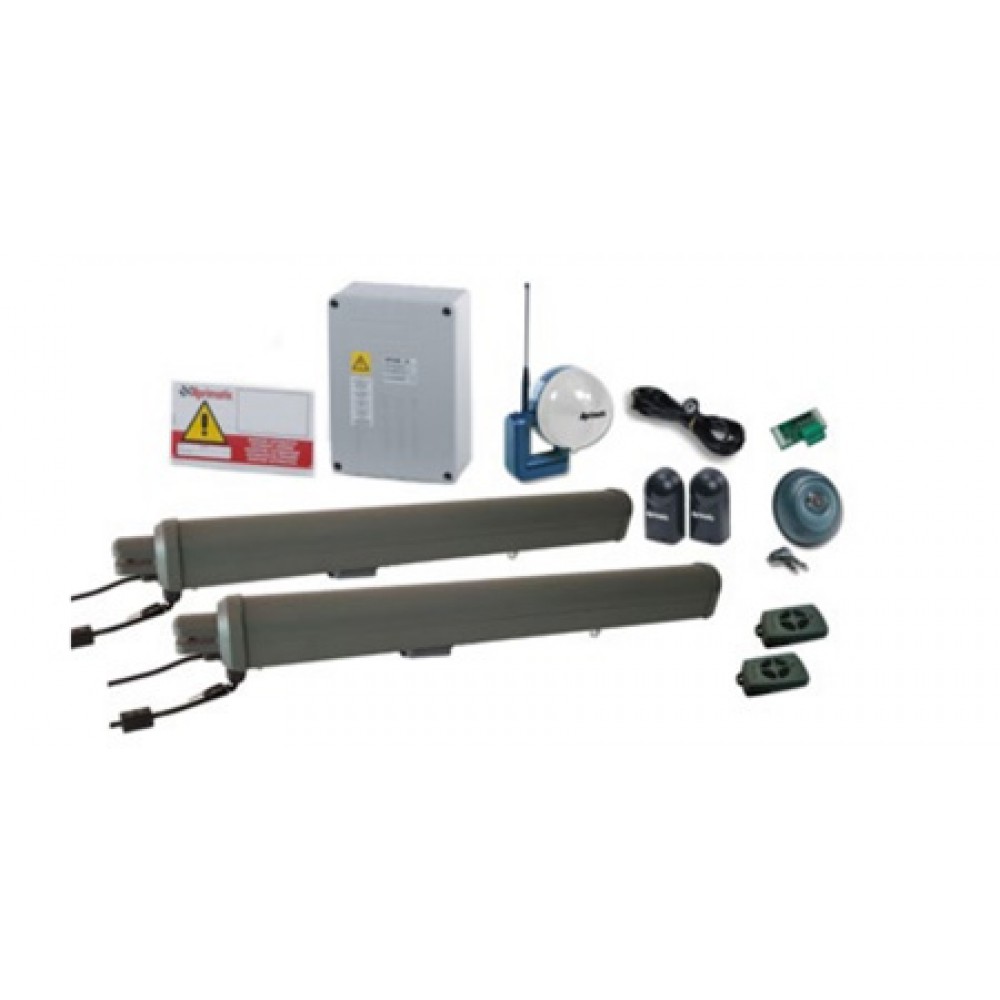

Aprimatic Automatic Gates Kit with Electronic Limit Switch R251 FE

Aprimatic
Brands: Aprimatic
Code: 41070/802
€ 606,32
Prices excluding VAT
Are you looking for a product of Aprimatic catalog not present on our site? Contact us and ask for a quote.

- +

Automatic gates Aprimatic Kit R251 FE for sale online

Kit for swing gates, for residential use, with electromechanical arm actuator, with electronic limit switches.

kit per cancelli automatici Aprimatic modello Kit R251 FM
  • Fully self-learning programming : with the possibility of changing the parameters through a simple and intuitive menu.
  • Adjustable and pre-drilled rear bracket : the arms are equipped with mechanical limit switches that allow you to adjust the desired stroke.
  • Guaranteed continuity of service : in the event of a black-out, by two optional emergency batteries.
  • The "FE" model is equipped with electronic limit switches : (by means of internal microswitches), suitable for systems where it is not possible to use a floor stop. The adjustment of the electronic limit switches is possible only with the use of the BA24 control unit and the limit switch optional card.

R251 FE kit for gate opening: main features

  • Motor power 24 Vdc
  • Maximum gate weight 300 kg
  • Swing gate automation kit
  • Electronic limit switch

Aprimatic automatic gate kit: here are the technical data

  • Mains power supply : 230 Vac - 50Hz
  • Motor power supply : 24Vcc
  • Maximum thrust force : 2500N
  • Maximum leaf width without electro- welding: 1.8m
  • Maximum leaf width with electro- welding: 3m
  • Maximum leaf weight : 300kg (for 3m leaf) - 500kg (for 1.8m leaf)

Dimensions of the kit for automatic gates Kit R251 FE

dimensions kit for aprimatic automatic gates Kit R251 FE

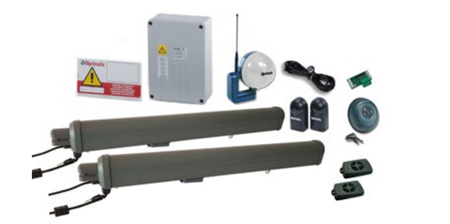

What is included in this automatic gate kit?

This automatic gate kit includes:
  • 2 R251 FE electronic limit switches actuators (code 41070/002)
  • 1 Electronic control unit BA24, with integrated radio 433.92Mhz (code 41629/001)
  • 1 Optional card for limit switch management (code 41629/050)
  • 1 TM4L - 433.92 MHz four -channel transmitter (code 41905/024)
  • 1 433.92 MHz antenna KIT for ET2N-ET20N (code 41929/003)
  • 1 ET2N-W 24V flashing light (code 41840/010)
  • 1 Pair of ER48 photocells (12V-24V) (code 41812/010)
  • 1 PC12E wall key button (code 41830/007)
  • Aprimatic warning sign

Swing gate or sliding gate?

The main difference is this:
  • Automatic swing gates are used in residential areas, because they are lighter and smaller;
  • Automatic sliding gates are for companies, larger and heavier.
So this Aprimatic automatic gate kit is ideal for homes and condominiums.

Accessories for automatic gates in the Windowo online shop

Aprimatic is the Italian company specialized in the production of motors and automatic gate kits. In addition to this, the Emilian company produces motors for roller shutters, shutters, windows and garage doors. If you are looking for automatic gate systems, rely on Aprimatic's Made in Italy quality. On Windowo you will find the best at discounted prices.
