C15 24V Topp Chain Actuator - 1 Push Point - Black Gray or White Color
C15 Topp actuator with double link chain and adjustable stroke

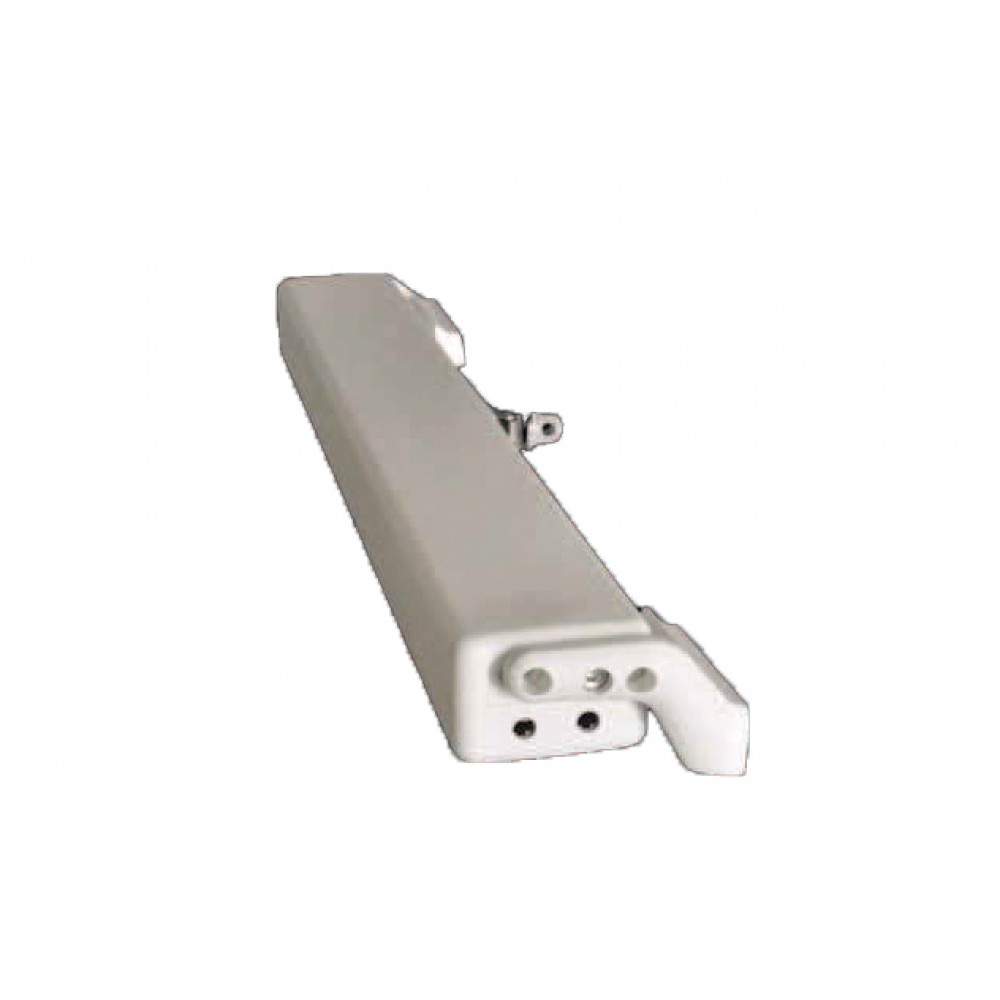

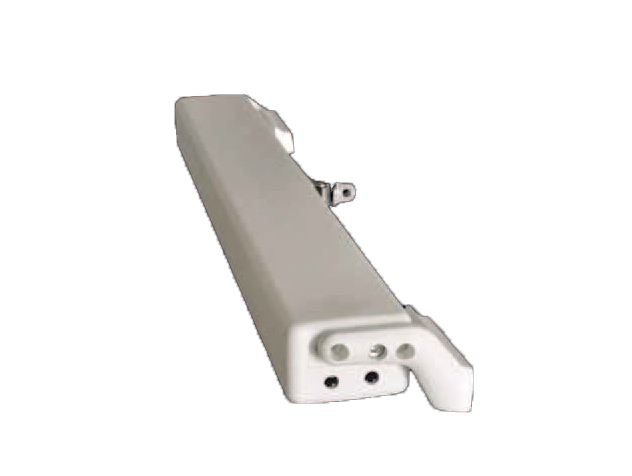

Topp electric actuator model C15 24V with double-link articulated chain, contained in a special casing, complete with support and accessories for top-hung or bottom-hung opening.
- Operation C15 Topp at 24V dc
- Maximum applicable load 300N.
- Stroke adjustable from the outside by means of a selection switch with stops at 130mm (tilt and turn ventilation) - 15mm (micro ventilation).
- Electronic limit switch in closing with current absorption.
- CE marked device.
Technical characteristics C15 24V Topp
- Supply voltage: min 21V - max 28V;
- Maximum applicable thrust load: 300N;
- Maximum applicable load in traction: 200N;
- Strokes (selectable at any time): 130 and 15mm;
- Absorption: 0.43A;
- No-load translation speed: 7.5mm/s;
- Type of service: S2 of 4min;
- Operating temperature: - 5 / + 50 °C;
- Degree of protection for electrical devices: IP30;
- Adjustment of the attachment to the frame: not necessary;
- Parallel connection of 2 or more actuators: yes;
- Limit switch: electronic in opening, amperometric absorption in closing;
- Dimensions: 362x48x34mm;
- Weight: 0.940Kg.
Applications: bottom-hung windows, top-hung windows, cupolas, dormer windows, roof windows.

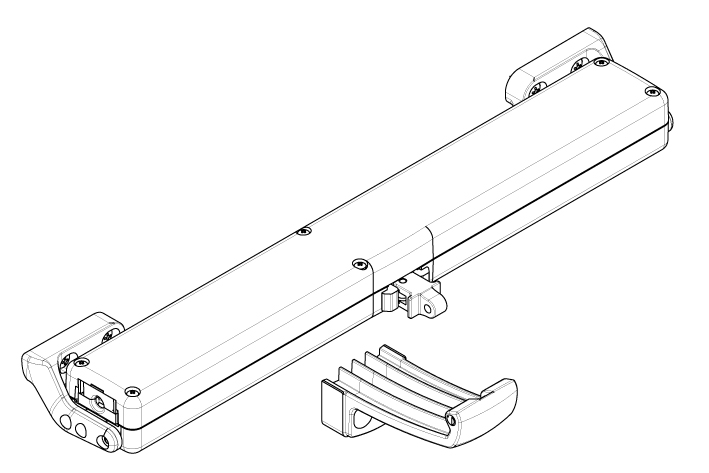

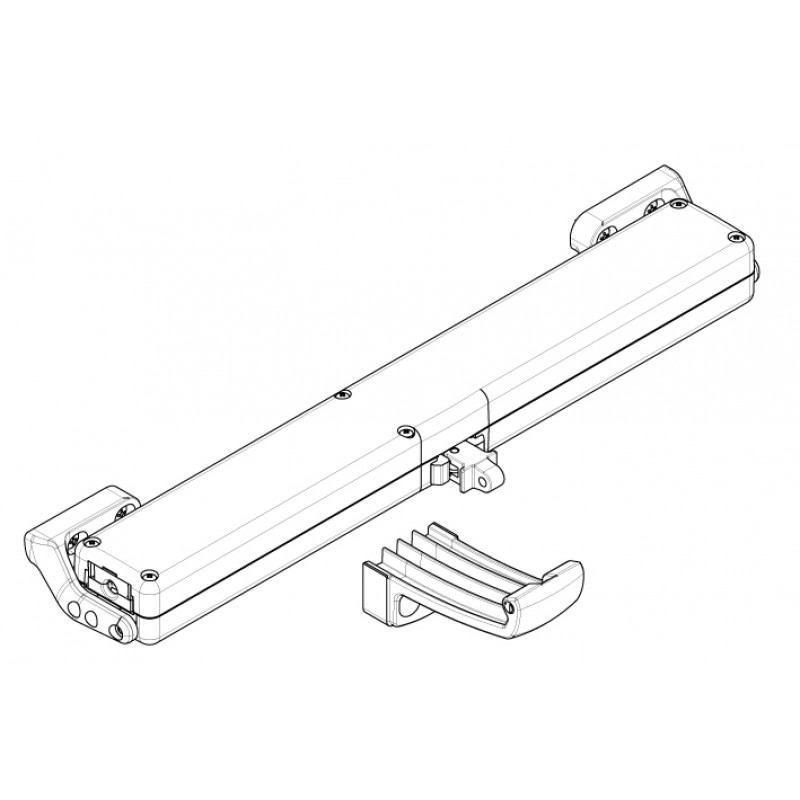

Included in the package: chain actuator, pair of tilting front mounting brackets, bottom hung bracket, connection to the window frame and small parts.
Actuator and brackets are black, gray or white (depending on the color chosen).
Topp C15 24V standard - 1 push point
| Code |
Description |
| 3A90005 |
C15 24V Chain Actuator - Black |
| 3A90007 |
C15 24V Chain Actuator - Grey |
| 3A90006 |
Chain actuator C15 24V - White |
