Chain Actuator C40 24V Topp for Window Opening

Topp
Brands: Topp
Code: C40 24V
-20%
€ 132,22 € 165,28
Prices excluding VAT

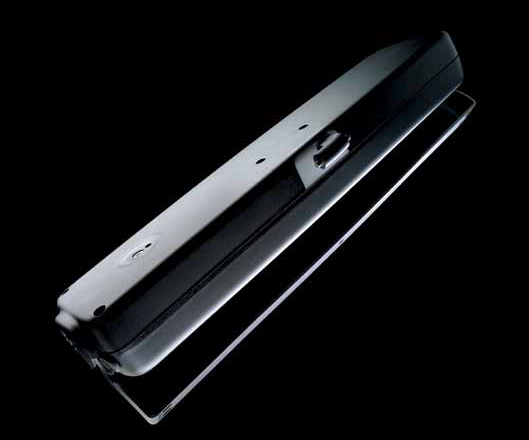

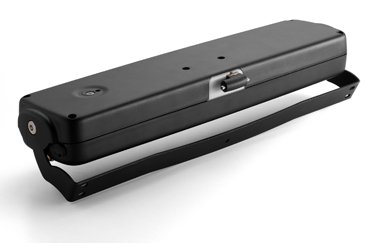

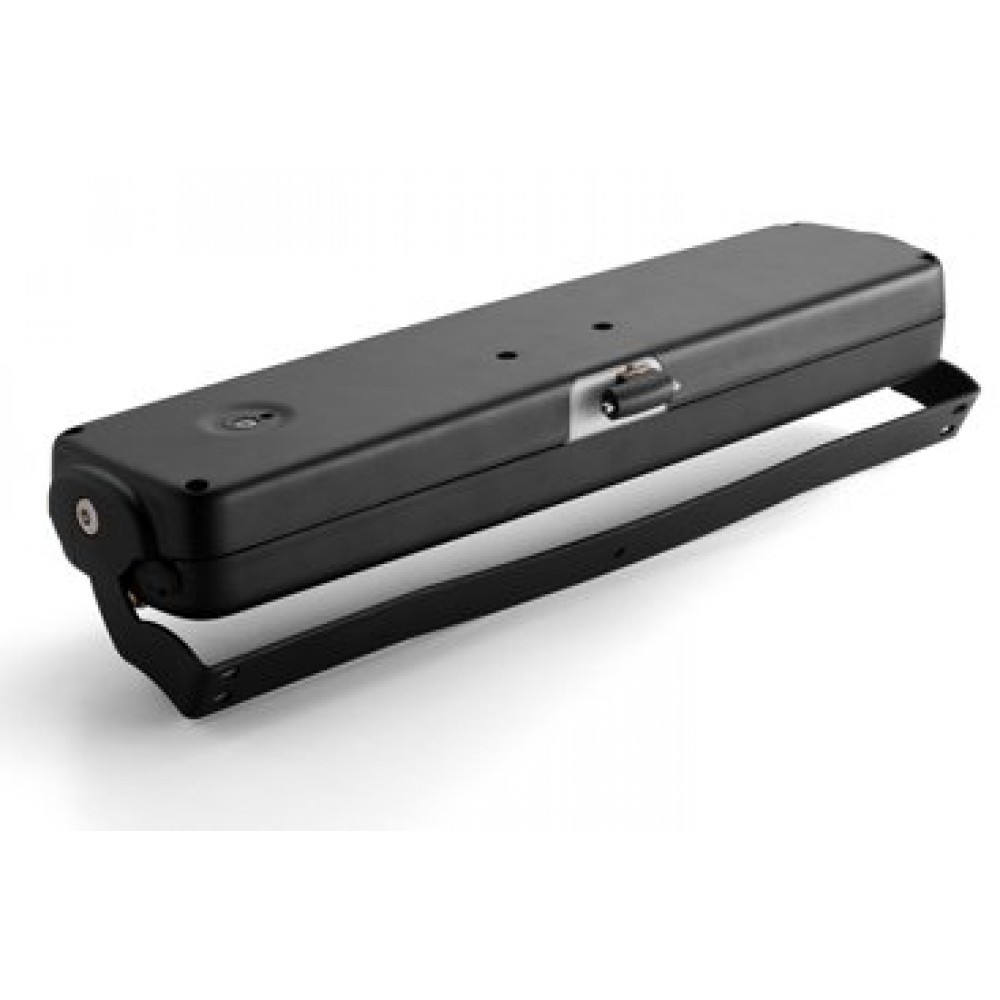

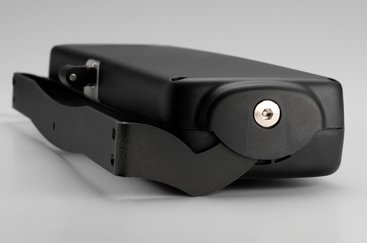

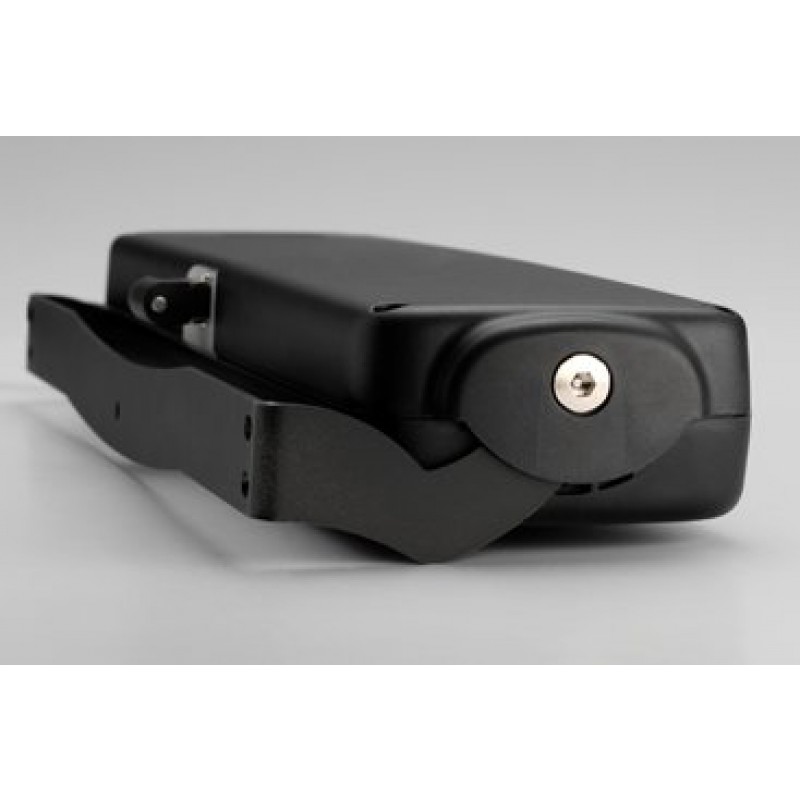

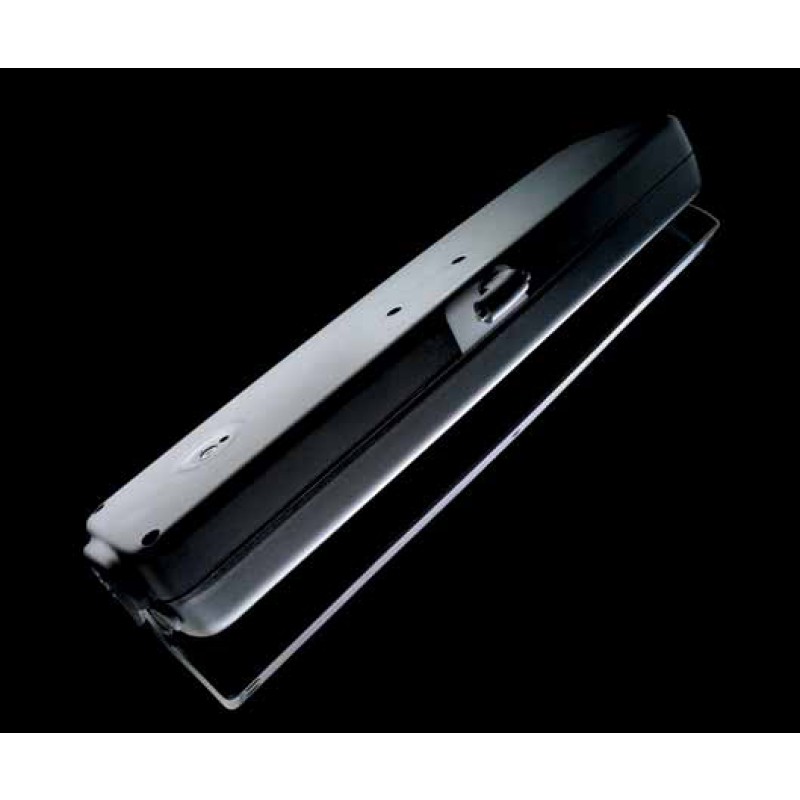

Topp electric actuator model C40 24V with double-link articulated chain, contained in a special casing, complete with support and accessories for top-hung or bottom-hung opening.
You have chosen:
Are you looking for an actuator from the Topp catalog that is not on our site? Contact us and ask for a quote.

- +

C40 24V Topp Chain Actuator - 1 Push Point - Black Gray or White

C40 Topp motor for opening bottom-hung windows and protruding with a maximum load of 400N

Topp electric actuator model C40 24V with double-link articulated chain, contained in a special casing, complete with support and accessories for top-hung or bottom-hung opening.

  • 24V DC operation
  • Maximum applicable load 400N.
  • Quick coupling attachment to the frame.
  • Max stroke of 500mm with stroke adjustment in 7 positions (100, 150, 200, 250, 300, 400, 500mm) by means of a special adjusting knob.
  • Electronic limit switch in closing with current absorption.
  • Safety device for reduction of traction force in the last 10cm of the stroke.
  • Degree of protection for electrical devices IP55.
  • CE marked device.


Technical characteristics C40 24V Topp

  • Supply voltage: 24V dc;
  • Maximum applicable thrust load: 400N;
  • Maximum applicable load in traction: 400N;
  • Strokes: 100, 150, 200, 250, 300, 400, 500mm;
  • Absorption: 1.1A;
  • No-load translation speed: 10.5mm/s;
  • Duration of idle run: 48s;
  • Type of service: S2 of 8min;
  • Operating temperature: - 5 / + 50 °C;
  • Degree of protection for electrical devices: IP55;
  • Adjustment of the attachment to the frame: not necessary;
  • Chain position control: yes;
  • Limit switch: electronic in opening, absorption in closing;
  • Electronics with buzzer for user signal incorrect assembly: yes;
  • Dimensions: 387.6x95x50mm;
  • Weight: 1.9Kg.

Applications: bottom-hung windows, top-hung windows, cupolas, dormer windows, roof windows.

Topp C15

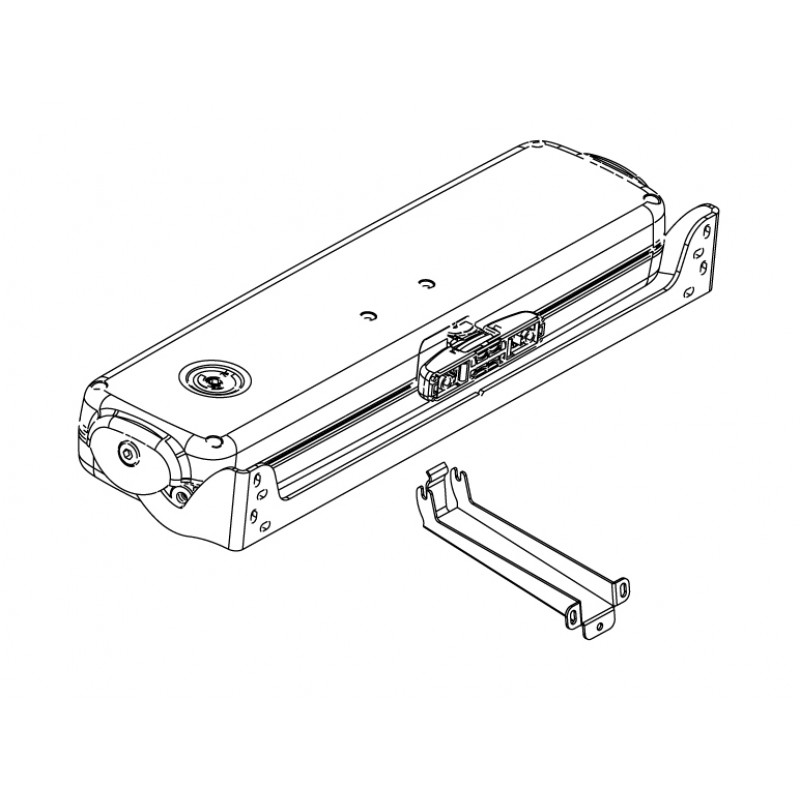

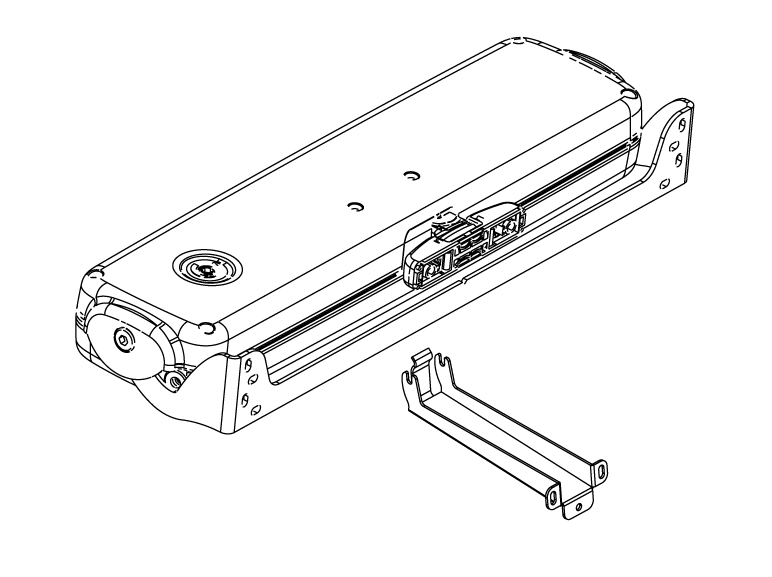

Included in the package: chain actuator (small parts included), tilting front mounting bracket, bottom hung bracket, ARS quick connection to the window.
Actuator and brackets are black, gray or white (depending on the color chosen).


Why choose the C40 Topp window motor?

  1. Double link chain with very high resistance to peak loads;
  2. Possibility of adjusting the stroke in 7 positions of 100 or 500 mm;
  3. Quick hooking and unhooking system of the chain to the window (international patent);
  4. Limit switch in closing with current absorption to avoid adjustments in closing and remedy any positioning errors of the actuator;
  5. High degree of protection IP55.

C40 24V standard 1 push point
Code Description
3A2#000000176 C40 24V Chain Actuator - Black
3A2#000000173 C40 24V Chain Actuator - Grey
3A2#000000172 Chain actuator C40 24V - White

Attuatore a Catena C40 24V Topp Apertura Finestre Vasistas e Sporgere



For more than 20 years Topp Technologies of Movement

Topp offers a wide range of simple and functional systems for the automation of doors and windows. The innumerable international patents, indispensable tools for protecting Topp solutions, give life to the product known throughout the world as " Made in Italy ".

For Topp, innovating is a tradition. The three-dimensional design and the aid of laser sintering systems for prototyping make it possible to accelerate the study and industrialization process of the products and have led to the registration of over 50 international patents.
