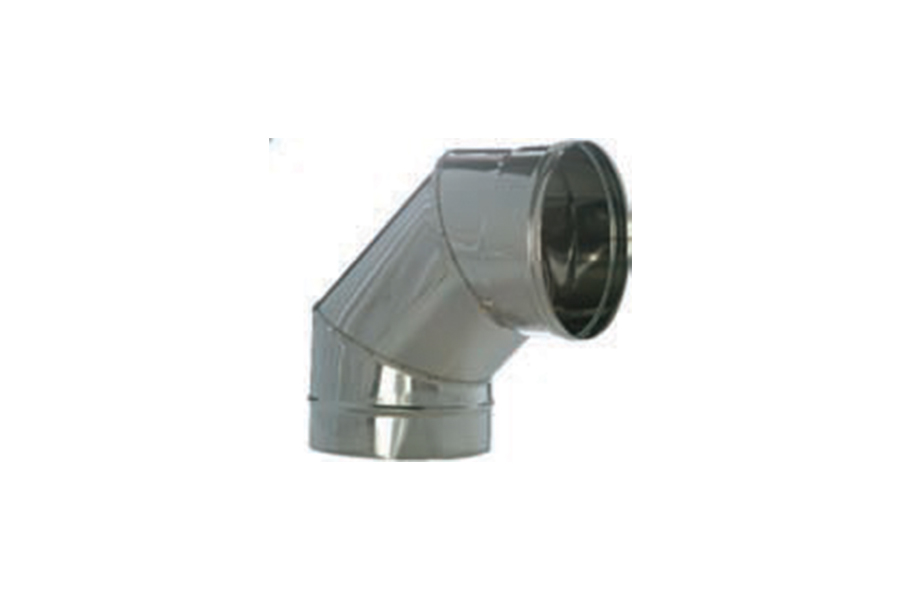

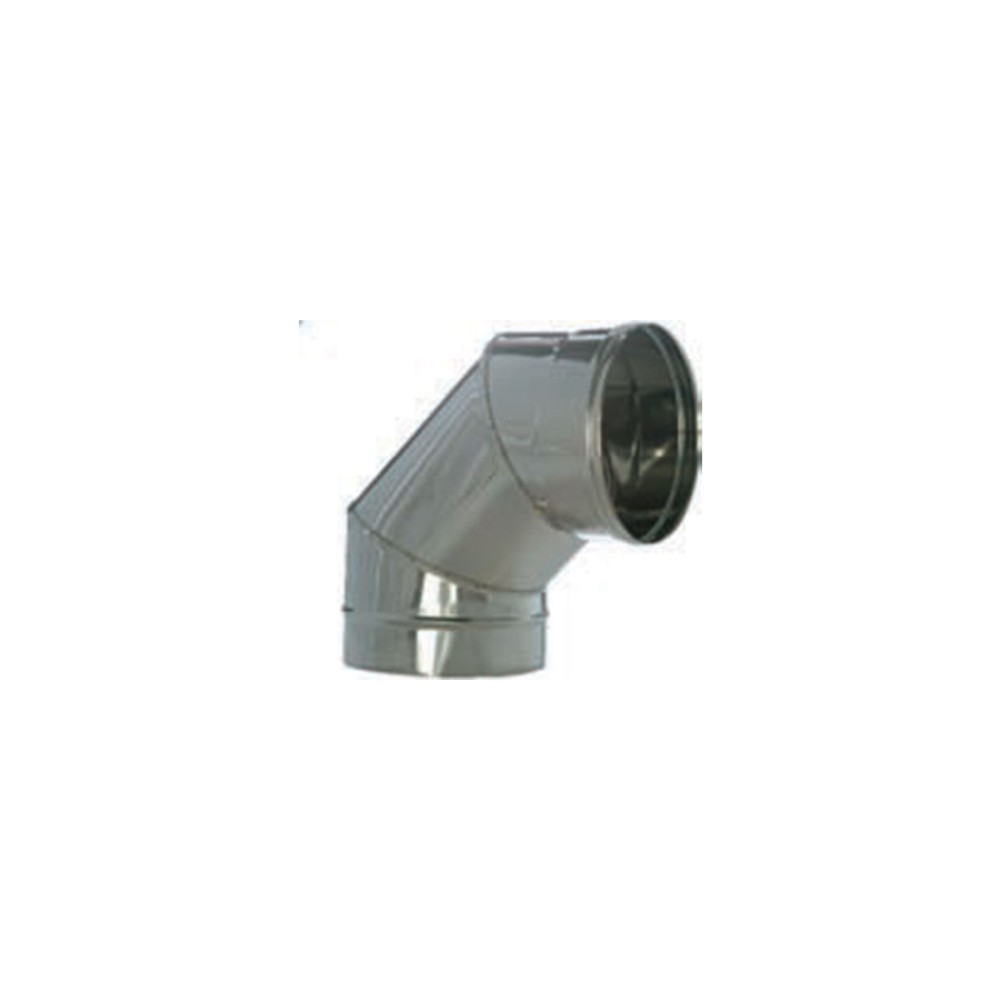

Pipe for Extractor Hood - 90° Curvilinear Channel - Stainless Steel 304
Pipe for extractor hood , equipped with a
90° curved channel shape and made of AISI 304 stainless steel.
Hood pipe with a 90 degree bend for the extraction of kitchen fumes.
90° Curvilinear Circular Canal
- Entirely made of AISI 304 stainless steel;
- 90° Elbow Bend;
- Available with diameters from 80 to 500 mm;
- Can also be used without gaskets or connection clamps;
- Upon request, it can be made in AISI 316 stainless steel or in copper;
- Built in compliance with CE standards;
- Made in Italy.
Smoke channels in stainless steel
- Temperature class: T600;
- Pressure: Positive;
- Condensate resistance class: can be used wet;
- Corrosion resistance class: usable with liquid fuels (CNG and LPG);
- Material: 304 Stainless Steel;
- Thickness: 0.5mm;
- Fire resistance of unburnt products: YES;
- Distance from combustible materials: 600mm.
