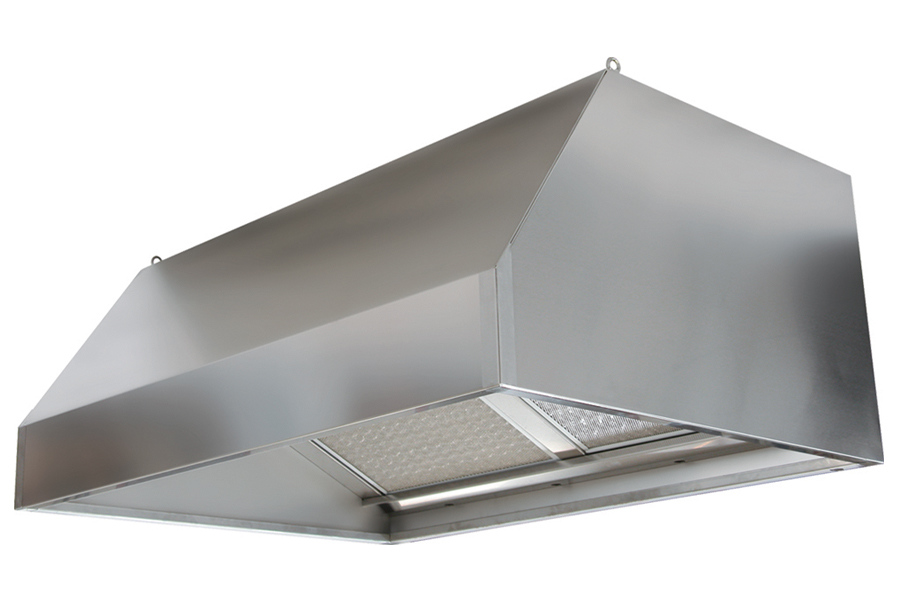

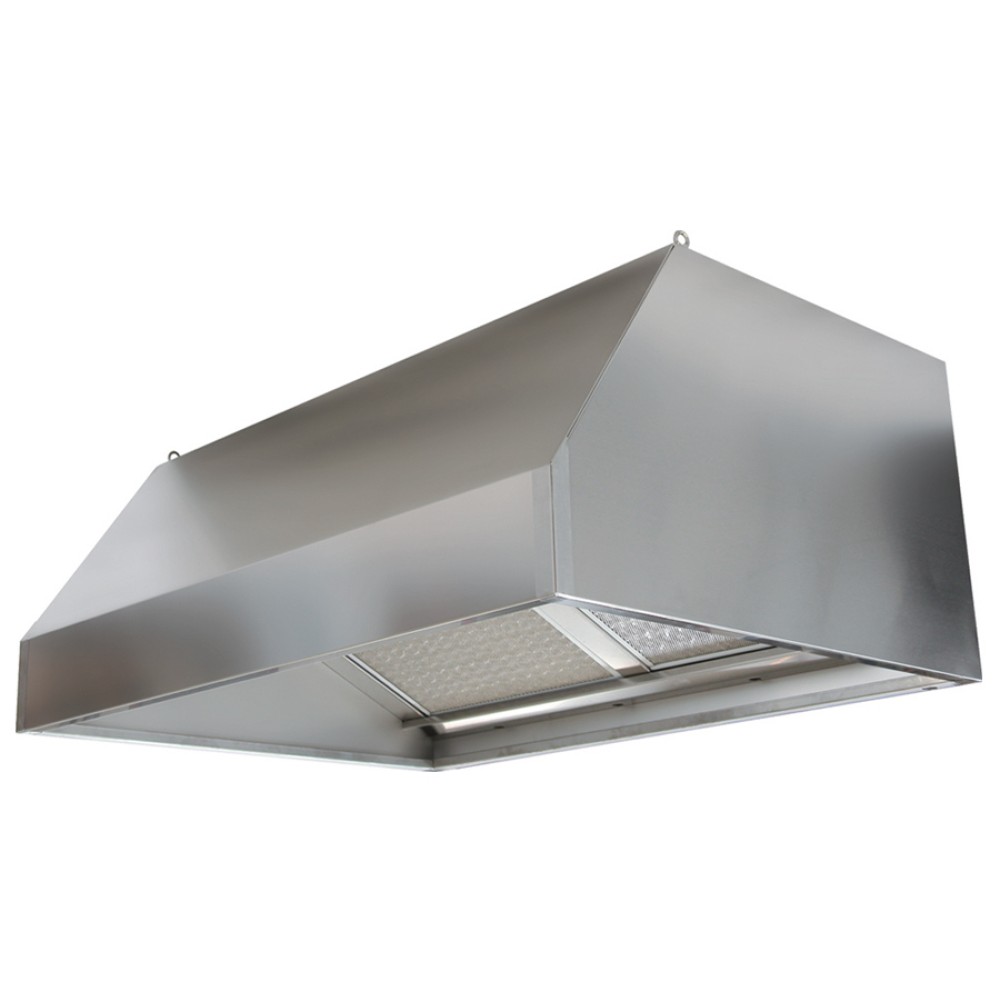

Hood with activated carbon and LED lights in stainless steel

The hood with activated carbon and LED lights is equipped with a LED Strips lighting system and activated carbon filters that can purify the air very effectively. In fact, activated carbon has a very particular power: that of retaining dirt and impurities. Thus the air is reintroduced into the sanitized and refreshed environment.

The activated carbon hoods with LED lights in the self-suction wall-mounted and Mini Snack models are hoods from the respective series to which an additional filtering septum has been added consisting of a class G2 synthetic material filter and a filter containing activated vegetable carbon type " CARBOFIL AGC” in the AG version, in addition to the stainless steel filter with microstriated mesh.

The self-extracting hoods with activated carbon set up in this way give good results in reducing fumes and odors (about 70%) where for various reasons it is not possible to evacuate the fumes produced by the hobs in the traditional way. The absorption capacity of substances in the gaseous state by activated vegetable carbon is determined by the temperature, by the relative humidity of the air and by the speed of passage of the latter.

In order to optimize this equipment, it is advisable that the conditions of use do not exceed temperatures of 50-60° C with a relative humidity of 70-75%. The efficiency of the activated carbons is measured with a benzene index system of 21g/100g, CCL index > 35%.

However, it will always be good practice to channel the hood to prevent the untreated part of the air from being introduced into the work environment .

Hood with activated carbon and LED lights in stainless steel - construction features:

• The particular profile makes it ideal for cooking blocks with a depth of 60-70-90 cm, positioned against the wall;
• Construction in AISI 430, Scotch-Brite satin finish. Fully edged, even in the internal parts;
• Assembled by electro-welding;
• Perimeter condensate collection channel. Terminal block capacitor in IP 55 box;
• Special executions (execution in AISI 304, assembly by welding) on request.

Supplied with the hood with activated carbon and stainless steel LED lights:

• Triple filtering septum composed of Metal Mesh Filter + Acrylic Filter + Activated Carbon Filter;
• Centrifugal electric fan 220V single-phase 50/60Hz;
• 1/2 condensate drain;
• LED Strip lighting;
• Fixing bars;
• Certifications relating to Activated Carbon.

Notes on the hood with activated carbon and LED lights in stainless steel:

• Packaging included in the price ;
• Hanging kit and flange not included ;
• The hoods of intermediate lengths not marked have the same price as the hoods with lengths immediately greater (e.g.: CS711 = CS712);
• Also available in the Snack version upon request;
• Built in compliance with CE standards;
• Made in Italy.

Hood with activated carbon and LED lights in self-suction stainless steel (with electric fan)

Hood with activated carbon and LED lights with a depth of 700 mm

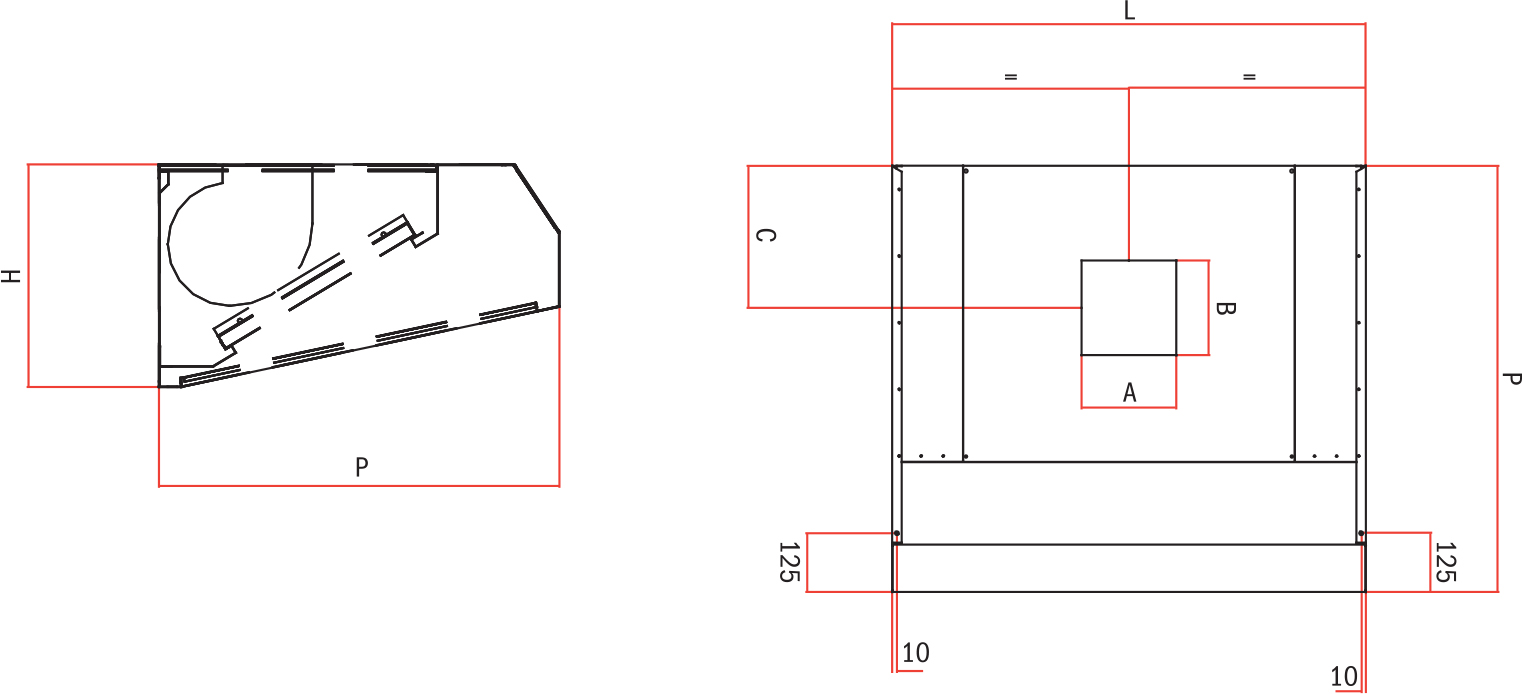

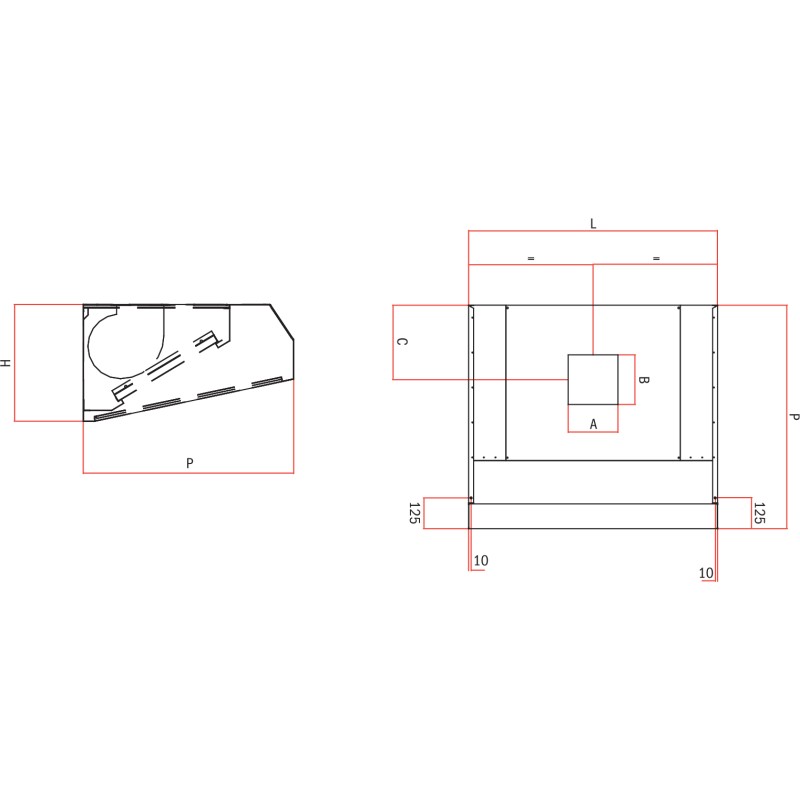

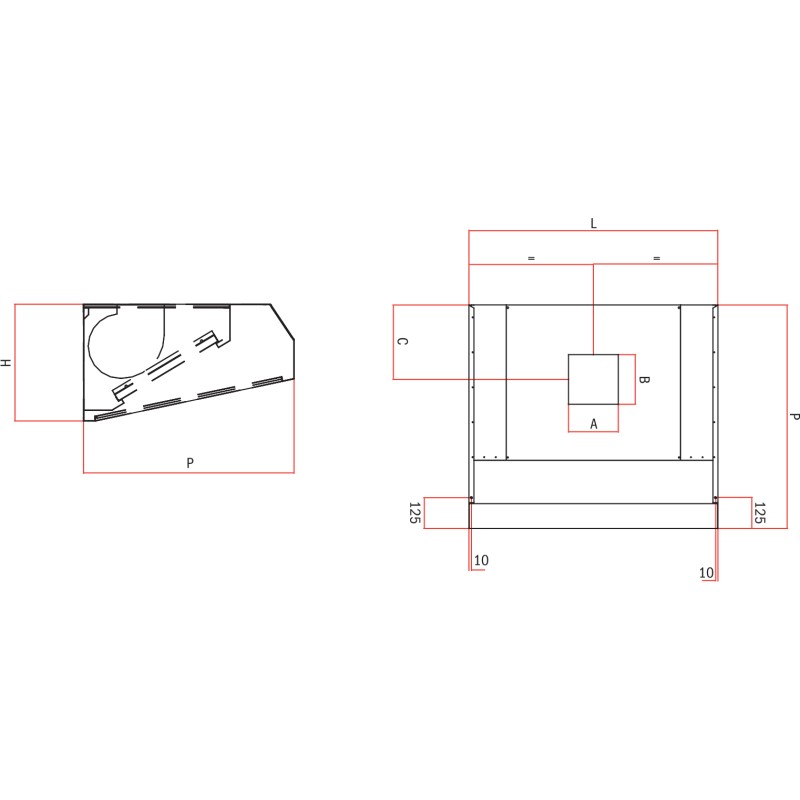

Template

Dimensions WxLxH

A x B

c

LED spotlights

Filter media and number of filters

Coal

Treated Air

Weight

Capacity*

Motor

Watts/Amps

(mm)

(mm)

(mm)

(20 watts each)

Inox Network

Synthetic

Coal

(kg)

(m 3 /h)

(kg)

(m 3 /h)

CCL 7/10

7000x1000x600

230x200

245

2

2a

2a

2a

3.8

600

34

900

7/7

145/1.8

CCL 7/12

7000x1200x600

230x200

245

2

2b

2b

2b

4.8

640

38

1100

7/7

145/1.8

CCL 7/14

7000x1400x600

300x270

215

3

3a

3a

3a

5.7

900

42

1250

8/9T

420/3.1

CCL 7/16

7000x1600x600

300x270

215

3

3a

3a

3a

5.7

900

46

1400

8/9T

420/3.1

CCL 7/18

7000x1800x600

300x270

215

3

3b

3b

3b

7.2

960

50

1600

8/9T

420/3.1

CCL 7/20

7000x2000x600

300x270

215

4

4a

4a

4a

7.6

1200

54

1800

8/9T

420/3.1

CCL 7/22

7000x2200x600

300x270

215

4

4a

4a

4a

7.6

1200

58

1950

8/9T

420/3.1

CCL 7/24

7000x2400x600

300x270

215

4

4b

4b

4b

9.6

1280

62

2200

8/9T

420/3.1

CCL 7/26

7000x2600x600

300x270

215

5

4b

4b

4b

9.6

1280

66

2300

8/9T

420/3.1

Hood with activated carbon and LED lights with a depth of 900 mm

Template

Dimensions WxLxH

A x B

c

LED spotlights

Filter media and number of filters

Coal

Treated Air

Weight

Capacity*

Motor

Watts/Amps

(mm)

(mm)

(mm)

(20 watts each)

Inox Mesh

Synthetic

Coal

(kg)

(m 3 /h)

(kg)

(m 3 /h)

CCL 9/10

900x1000x600

230x200

245

2

2c

2c

2c

4.8

640

36

1000

7/7

145/1.8

CCL 9/12

900x1200x600

300x270

245

2

2d

2d

2d

6

700

40

1150

8/9T

420/3.1

CCL 9/14

900x1400x600

300x270

215

3

3c

3c

3c

7.2

960

44

1400

8/9T

420/3.1

CCL 9/16

900x1600x600

300x270

215

3

3c

3c

3c

7.2

960

46

1550

8/9T

420/3.1

CCL 9/18

900x1800x600

300x270

215

3

3d

3d

3d

9

1050

50

1800

8/9T

420/3.1

CCL 9/20

900x2000x600

300x270

215

4

4c

4c

4c

9.6

1280

54

2000

8/9T

420/3.1

CCL 9/22

900x2200x600

300x270

215

4

4c

4c

4c

9.6

1280

58

2200

8/9T

420/3.1

CCL 9/24

900x2400x600

300x270

215

4

4d

4d

4d

12

1400

62

2400

8/9T

420/3.1

CCL 9/26

900x2600x600

300x270

215

5

4d

4d

4d

12

1400

66

2550

8/9T

420/3.1

Hood with activated carbon and LED lights with a depth of 1100 mm

Template

Dimensions WxLxH

A x B

c

LED spotlights

Filter media and number of filters

Coal

Treated Air

Weight

Capacity*

Motor

Watts/Amps

(mm)

(mm)

(mm)

(20 watts each)

Inox Network

Synthetic

Coal

(kg)

(m 3 /h)

(kg)

(m 3 /h)

CCL 11/12

1100x1200x600

300x270

215

2

2d

2d

2d

6

700

42

1450

8/9T

420/3.1

CCL 11/14

1100x1400x600

300x270

215

3

3c

3c

3c

7.2

960

46

1650

8/9T

420/3.1

CCL 11/16

1100x1600x600

300x270

215

3

3c

3c

3c

7.2

960

50

1900

8/9T

420/3.1

CCL 11/18

1100x1800x600

300x270

215

3

3d

3d

3d

9

1050

54

2100

8/9T

420/3.1

CCL 11/20

1100x2000x600

300x270

215

4

4c

4c

4c

9.6

1280

58

2400

8/9T

420/3.1

CCL 11/22

1100x2200x600

300x270

215

4

4c

4c

4c

9.6

1280

62

2600

8/9T

420/3.1

CCL 11/24

1100x2400x600

300x270

215

4

4d

4d

4d

12

1400

66

2850

8/9T

420/3.1

The electric fans installed on the hood are made up of single-phase, 230 Volt, 50 Hz motors.

Filter legend:

1. 400x400mm
2. 500x400mm
3. 400x500mm
4. 500x500mm

* : Average flow rate defined with passage speed under the hood of 0.30 m/s .
