Stainless Steel Hood - Mini Snack - Small Dimensions - For Bars and Home Kitchens
The

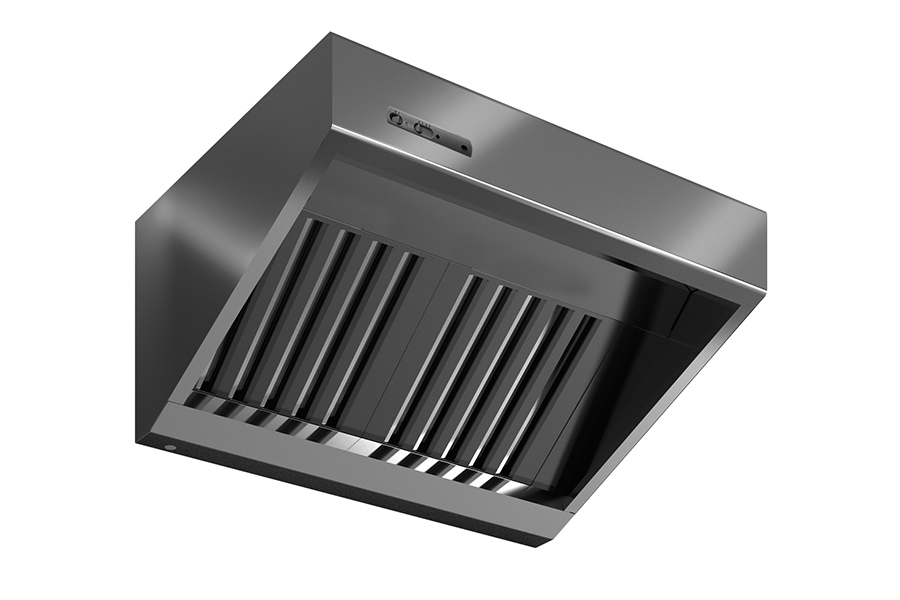

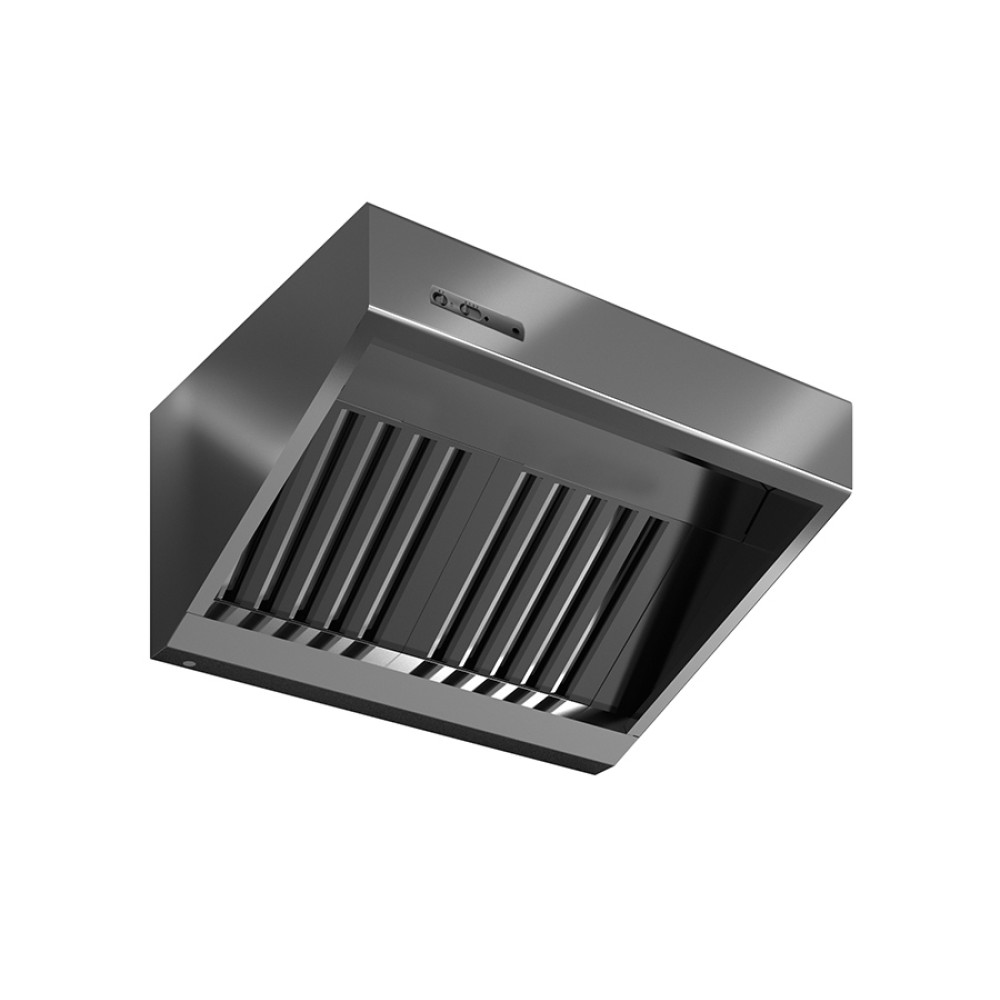

Mini Snack Hood is a small-sized Professional Self-Aspirating Hood , perfect for the home environment where you don't want to give up the performance of a professional kitchen, or for those kitchens where space makes it impossible to install bulky extraction systems.
You can choose the version of the Mini Snack stainless steel hood you want (select the variant you want).
Inox Mini Snack hood version of your choice:
- Without electric fan;

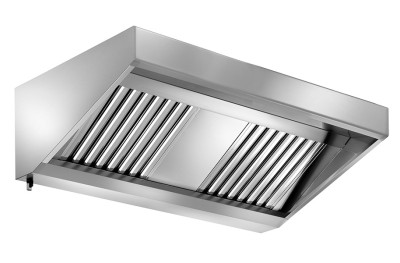

- With built-in electric fan;

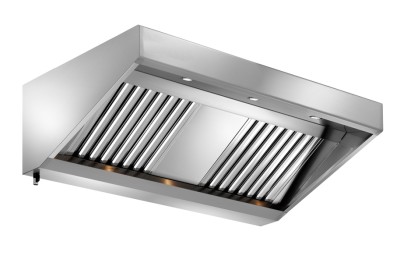

- Electric fan + Speed regulator + LED lighting.
For example, the

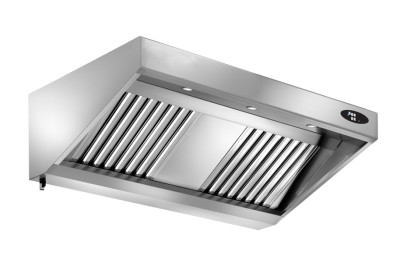

Mini Snack Full Optional model is complete with lights and speed regulator and satisfies all the comfort requirements typical of home cooking. All this without giving up the suction performance required of a reliable professional kitchen.
Mini Snack hood - Construction features
The particular profile of the Mini Snack hood makes it ideal for cooking blocks with a depth of 60 cm, positioned against the wall, especially in cases of low ceilings and particularly small spaces.
- AISI 430 construction , Scotch-Brite satin finish;
- Fully edged , even in the internal parts;
- Assembled by electro-welding;
- Special executions (execution in AISI 304, assembly by welding) on request.
Supplied with the Inox Mini Snack hood:
- Labyrinth grease filters in AISI 430 stainless steel;
- 1/2” condensate drain.
Notes on the Mini Snack hood:
- The Full Optional model is equipped with an electric fan, speed regulator and LED lights;
- Packing included;
- Hanging kit and flange not included.

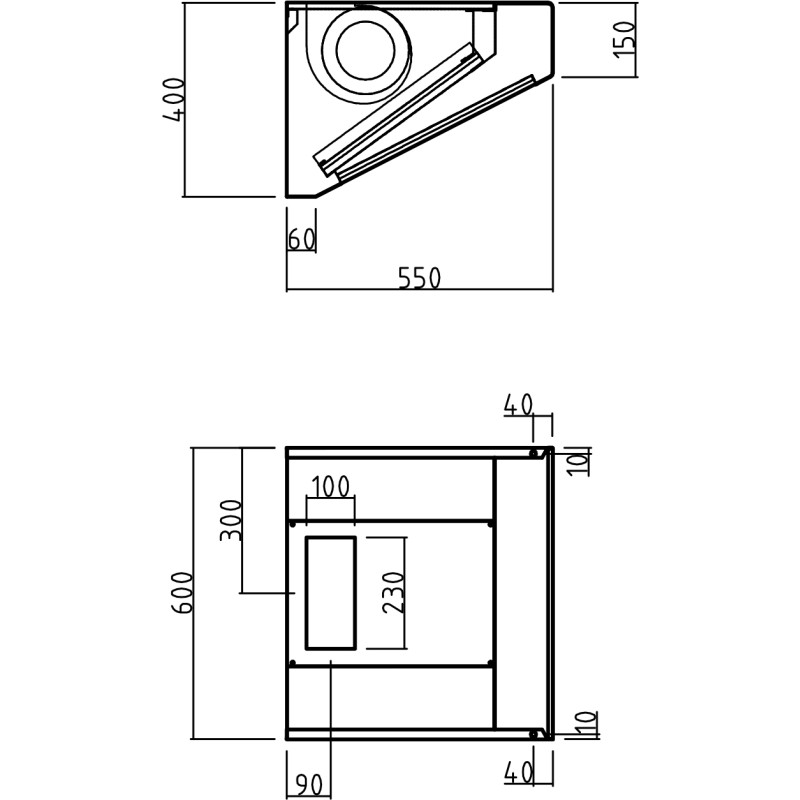

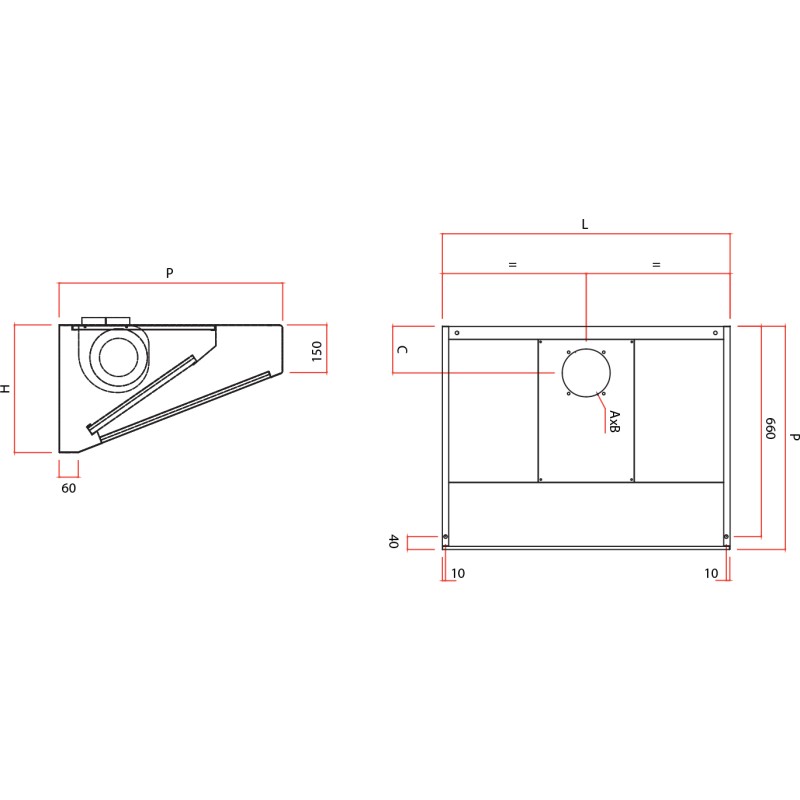

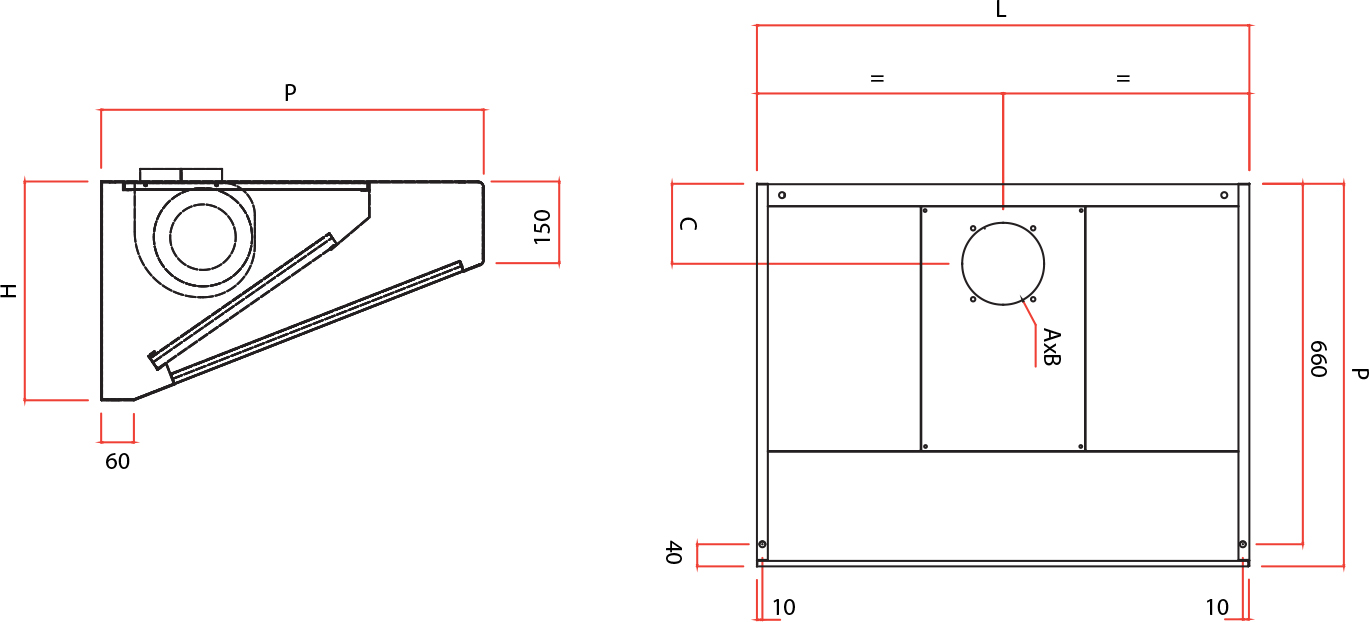

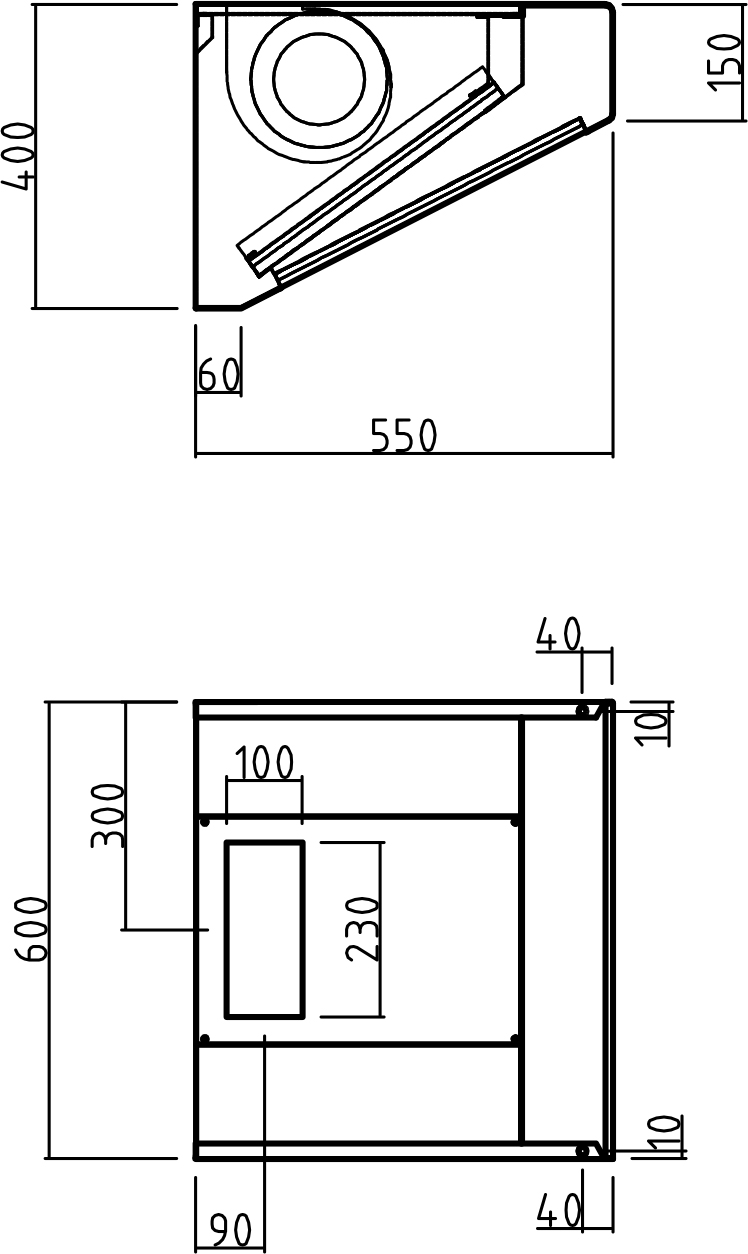

Mini Snack stainless steel hood
Dimensions
(DxWxH mm) |
Model |
AxB
(mm) |
N° Filters
(300x400mm) |
Weight
(kg) |
Scope
(m 3 /h) |
c
(mm) |
Watts/Amps |
Regulator |
LED spotlights |
| 550x600x400 |
Without electric fan |
150x150 |
2e |
20 |
360 |
150 |
|
No |
|
| 550x600x400 |
With electric fan |
210x100 |
2e |
28 |
360 |
90 |
380/1.7 |
No |
|
| |
|
|
|
|
|
|
|
|
|
| 700x900x400 |
Without electric fan |
150x150 |
2e |
24 |
|
150 |
|
No |
|
| 700x900x400 |
With electric fan |
210x100 |
2e |
31 |
800 |
90 |
380/1.7 |
No |
|
| 700x900x400 |
Full optional |
Ø150 |
2e |
35 |
800 |
150 |
300/1.38 |
Yes |
2 x 4 watts |
