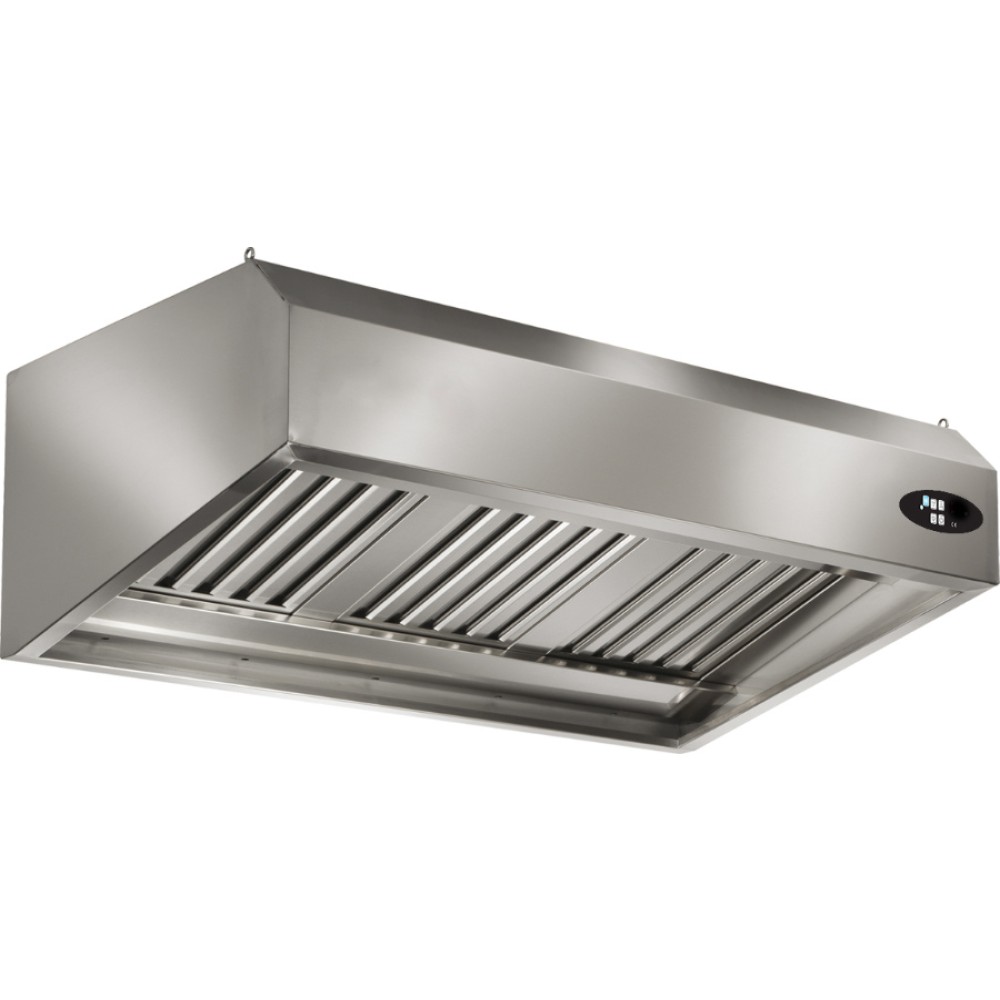

Wall Mounted Extractor Hood - Inox Pro - Best Model - Full Optional
The Inox Pro wall-mounted extractor hood is the best wall-mounted hood model in our range for your kitchen.
With an integrated electric fan, speed controller and LED lighting, this hood offers
a complete solution for fume extraction .
Made of high quality and resistant stainless steel, this hood is equipped with all the necessary options for an optimal cooking experience.
Buy the Inox Pro wall mounted extractor hood today for a top of the range cooking experience.
Discover the best wall mounted extractor hood
The best
wall-mounted extractor hoods of the Pro series are wall-mounted hoods complete as standard:
electric fan, speed regulator and integrated LED lighting , all pre-wired and ready for hanging and connection to the mains.
The particular profile makes it ideal for cooking blocks with a depth of 60-70 cm, positioned against the wall.
Wall-mounted extractor hoods made of AISI 430 steel, Scotch-Brite satin finish. Completely edged, even in the internal parts, including electric fan motor.
Each wall hood is assembled by electro-welding.
On request, special executions (execution in AISI 304, assembly by welding) and particular measures (contact us if you are interested).
Supplied - Wall-mounted extractor hood
- Labyrinth grease filters in AISI 430 stainless steel;
- Centrifugal electric fan 220V single-phase 50/60Hz;
- Condensate drain 1/2”;
- Integrated LED strip lighting.
Notes - Wall-mounted extractor hood
- Packing included;
- Hanging kit and flange not included;
- The hoods of unmarked intermediate lengths have the same price as the hoods with immediately greater lengths (e.g.: CS711 = CS712).
Stainless steel self-suction hood with all accessories included

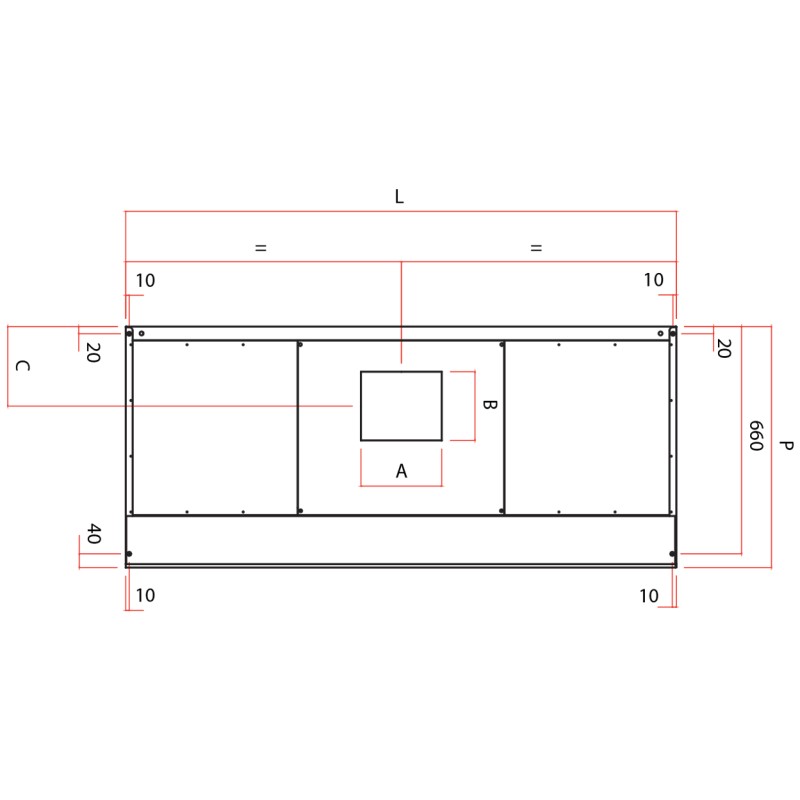

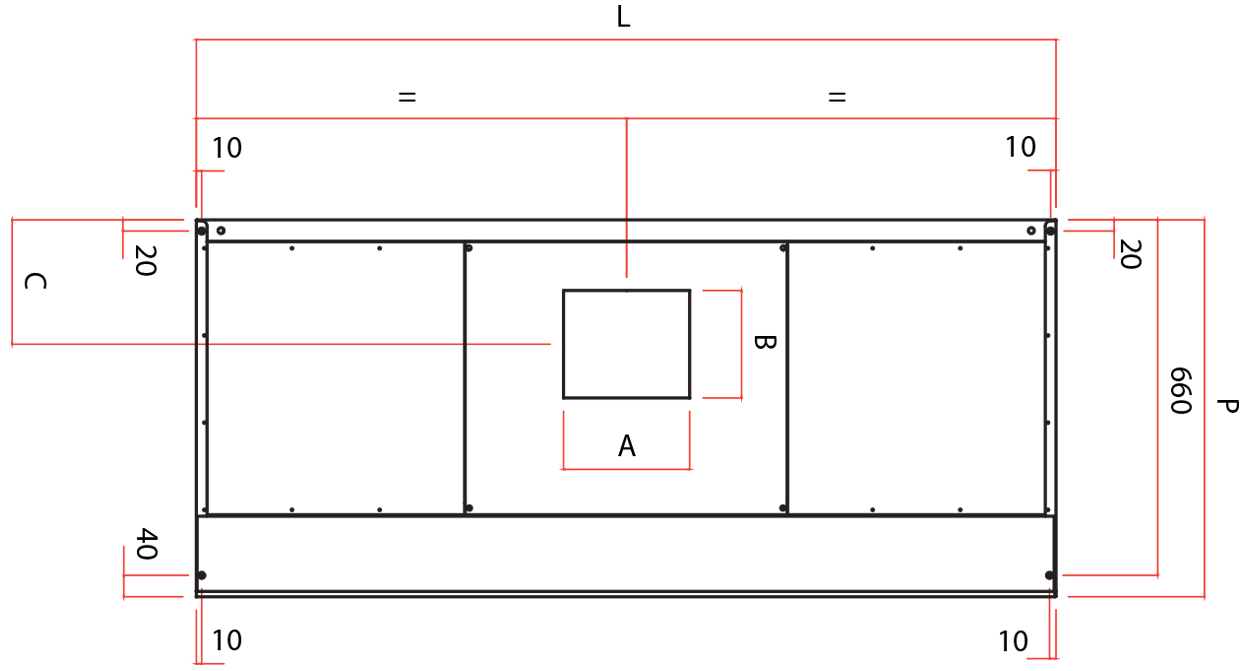

Wall-Mounted Extractor Hood - Inox Pro - Depth 700 mm
| Model |
Dimensions WxLxH
(mm) |
A x B
(mm) |
c
(mm) |
n° Filters |
Weight
(kg) |
Motor |
No. of LEDs
(4W each) |
| CPP 7/10 |
700x1000x550 |
230x200 |
245 |
2a |
40 |
7/7 |
2 |
| CPP 7/12 |
700x1200x550 |
230x200 |
245 |
2b |
42 |
7/7 |
2 |
| CPP 7/14 |
700x1400x550 |
230x200 |
245 |
2b |
47 |
7/7 |
3 |
| CPP 7/16 |
700x1600x550 |
230x200 |
245 |
3a |
51 |
7/7 |
3 |
| CPP 7/18 |
700x1800x550 |
230x200 |
245 |
3b |
54 |
7/7 |
3 |
| CPP 7/20 |
700x2000x550 |
300x260 |
215 |
4a |
59 |
9/9T |
4 |
| CPP 7/22 |
700x2200x550 |
300x260 |
215 |
4a |
62 |
9/9T |
4 |
| CPP 7/24 |
700x2400x550 |
300x260 |
215 |
4b |
65 |
9/9T |
4 |
| CPP 7/26 |
700x2600x550 |
300x260 |
215 |
4b |
68 |
9/9T |
4 |
| CPP 7/28 |
700x2800x550 |
300x260 |
215 |
5b |
72 |
8/9T |
5 |
| CPP 7/30 |
700x3000x550 |
300x260 |
215 |
5b |
75 |
8/9T |
5 |

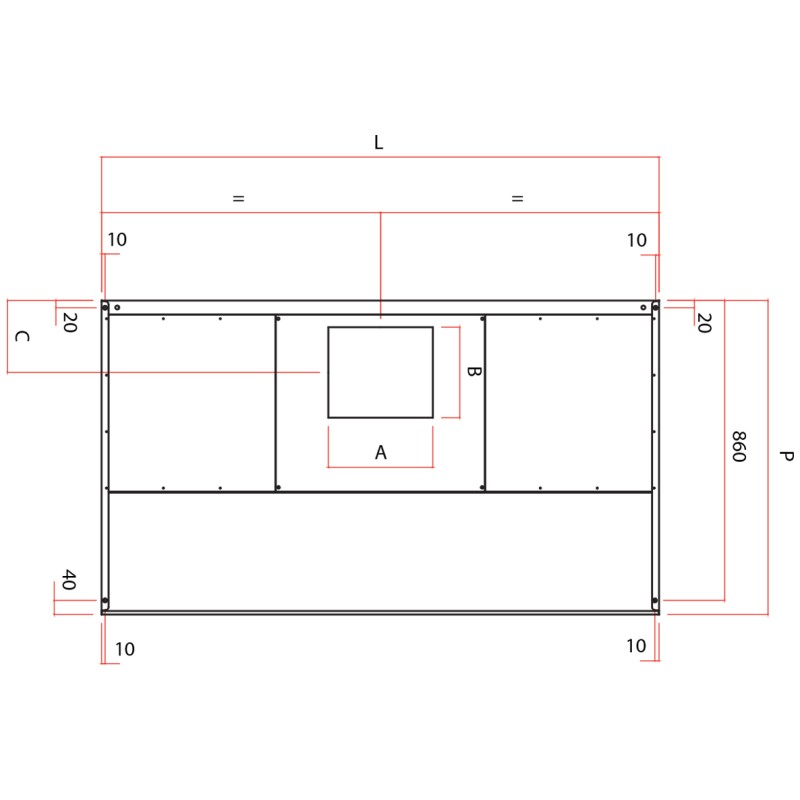

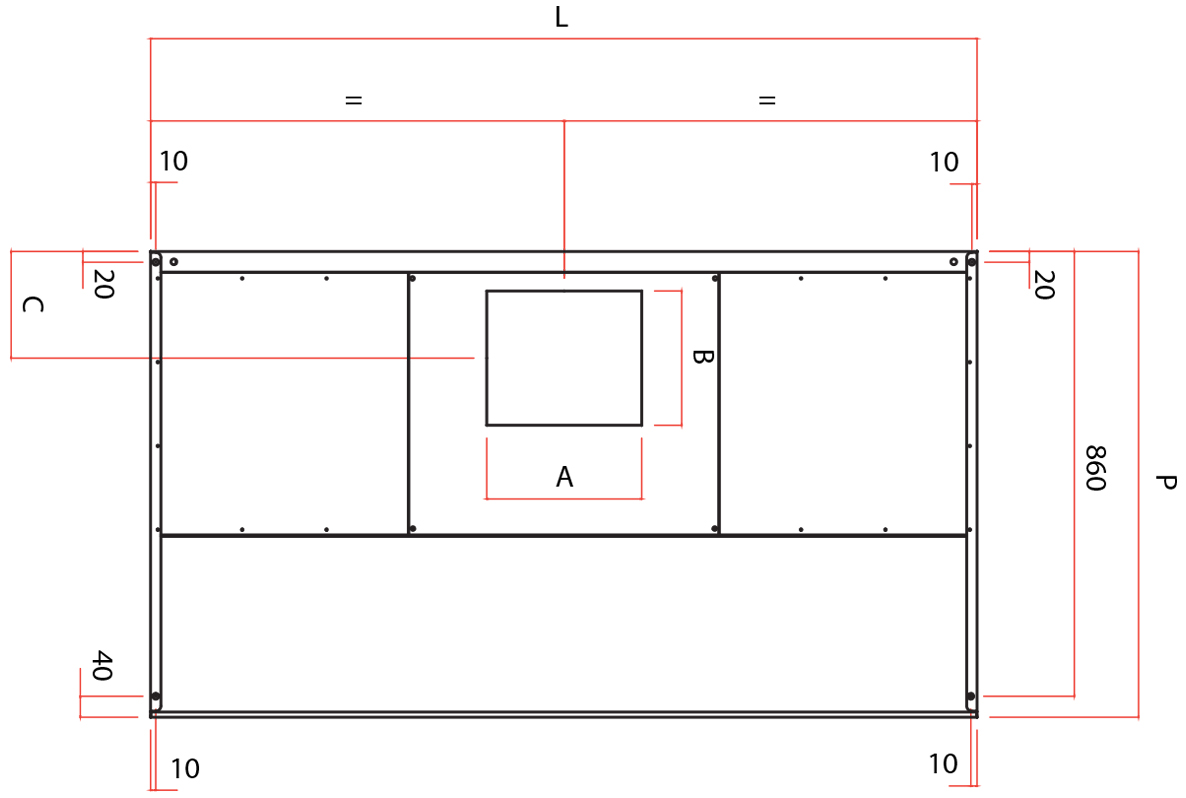

Wall-Mounted Extractor Hood - Inox Pro - Depth 900 mm
| Model |
Dimensions WxLxH
(mm) |
A x B
(mm) |
c
(mm) |
n° Filters |
Weight
(kg) |
Motor |
No. of LEDs
(4W each) |
| CPP 9/10 |
900x1000x550 |
230x200 |
245 |
2a |
42 |
7/7 |
2 |
| CPP 9/12 |
900x1200x550 |
230x200 |
245 |
2b |
46 |
7/7 |
2 |
| CPP 9/14 |
900x1400x550 |
230x200 |
245 |
2b |
51 |
7/7 |
2 |
| CPP 9/16 |
900x1600x550 |
300x260 |
215 |
3a |
55 |
9/9T |
3 |
| CPP 9/18 |
900x1800x550 |
300x260 |
215 |
3b |
58 |
9/9T |
3 |
| CPP 9/20 |
900x2000x550 |
300x260 |
215 |
4a |
63 |
9/9T |
4 |
| CPP 9/22 |
900x2200x550 |
300x260 |
215 |
4a |
67 |
9/9T |
4 |
| CPP 9/24 |
900x2400x550 |
300x260 |
215 |
4b |
70 |
8/9T |
4 |
| CPP 9/26 |
900x2600x550 |
300x260 |
215 |
4b |
77 |
8/9T |
4 |
| CPP 9/28 |
900x2800x550 |
300x260 |
215 |
5b |
82 |
8/9T |
5 |
| CPP 9/30 |
900x3000x550 |
300x260 |
215 |
5b |
86 |
8/9T |
5 |
Filter legend:
a: 400x400mm
b: 500x400mm
c: 400x500mm
d: 500x500mm
