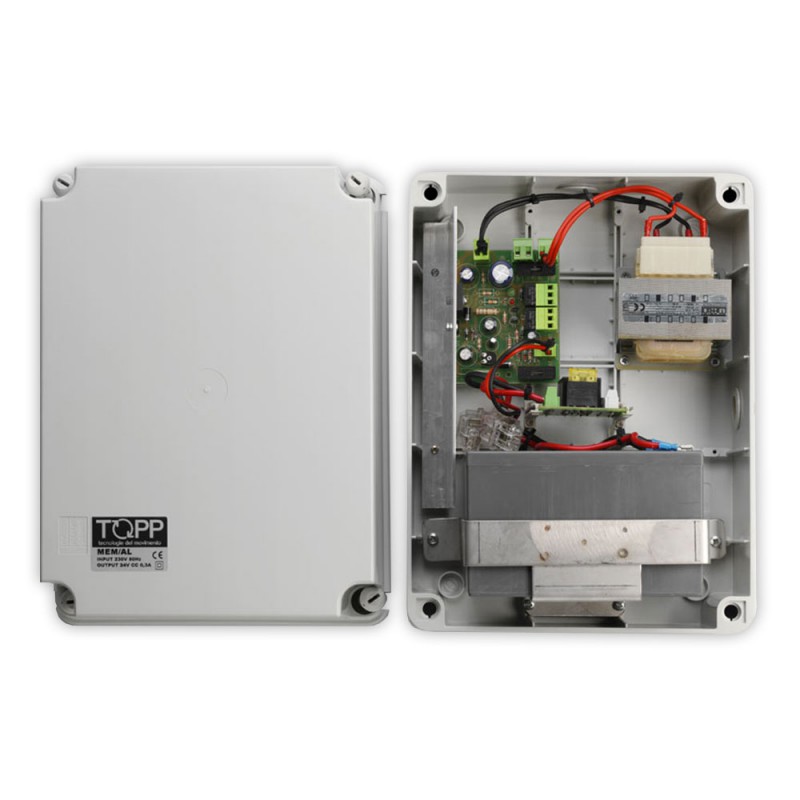

MEM/AL Expanding Module 24V Actuators for AC8 Unit Max 16A Topp
MEM/AL engines Expansion module 24V max 16A for connecting actuators.
MEM/AL - EXPANSION MODULE MOTORS WITH POWER
The module MEM/AL offers the possibility of increasing the number of motors connectable to the central AC8, ensuring an output from the additional 16 A. And 'provided with a local control input for the motors connected to it. Each MEM / AL module is to be assisted by a battery pack at 24V, powered buffer.
And 'possible to expand the system by connecting to the central AC8 MEM / AL module (Expansion Module Motors), which controls a maximum of 24V motors for a total of 16A. MEM / AL power the motors and leaves the control and management of the central AC8. On Windowo you can separately purchase the AC8 unit.
ATTENTION: This module can be used ONLY in conjunction with the AC8 control unit (sold separately on Windowo).
Technical features
Model: MEM / AL (the characteristics refer to operation with AC8, sold separately);
Supply voltage: 230 V ~ 50 Hz;
Output voltage: 24V;
Maximum coorente consumption: 0.30;
Output Current: 16A;
Service type: S1 - Continuous
Predispositions: wind sensor, rain and manual controls;
Operating temperature: - 5 + 50 ° C;
Dimensions: 234x315x190 mm;
C20 actuators can be connected: 30;
C20 tandem actuators can be connected: 15;
C30 actuators can be connected: 12;
Actuators connected C40: 12;
Actuators connected C60: 15;
Actuators connected ACK4: 10;
Actuators connected C130: 30;
Actuators connected C160: 15;
Actuators connected C240: 15;
Actuators connected SL60: 10.
Actuators connected T50: 10;
Actuators connected T80: 10;
