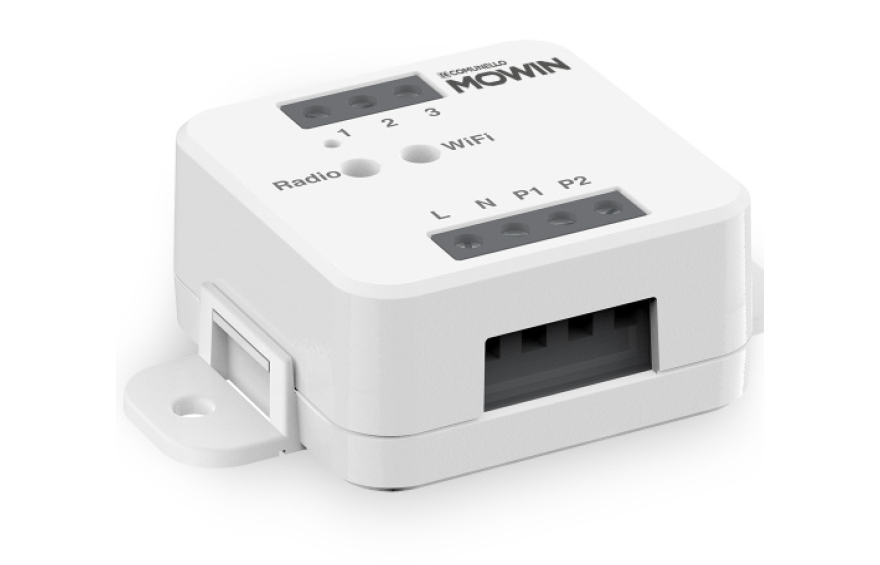

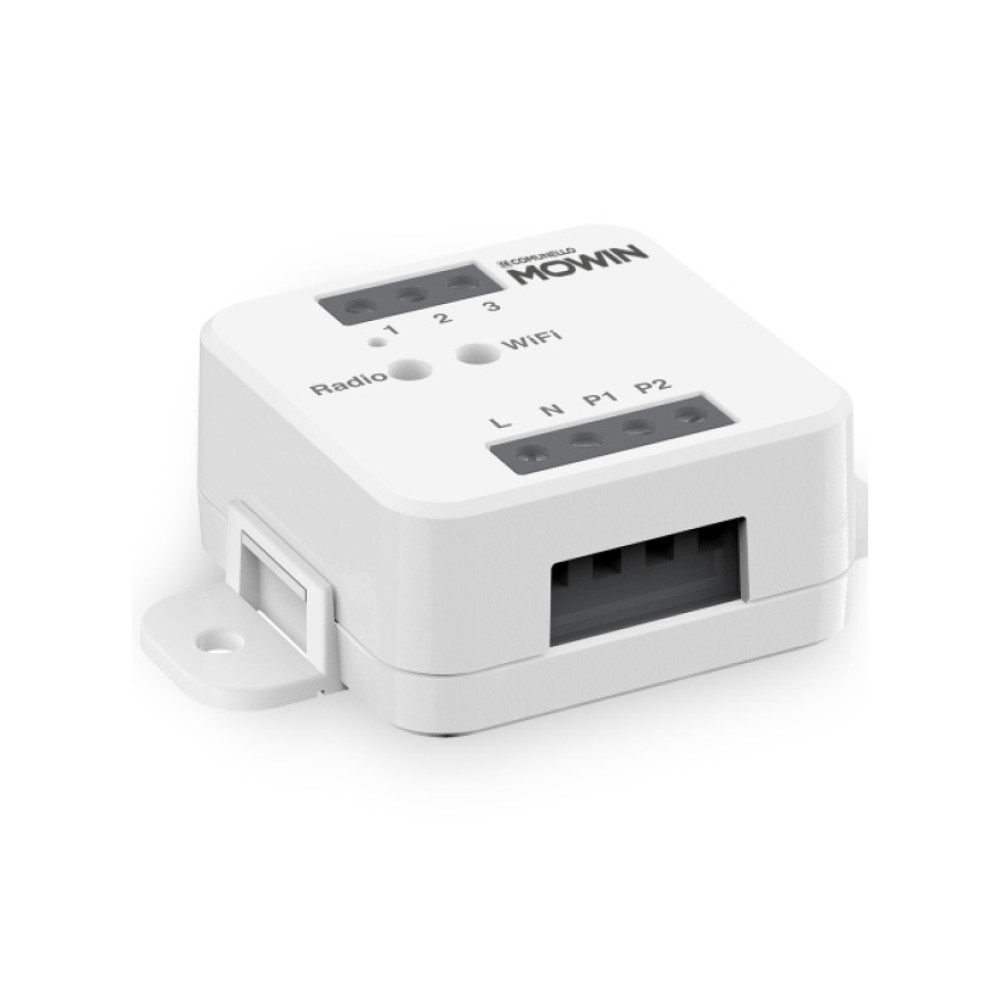

Comunello AF 820 Control Unit 110-240 V Wi-Fi for 230V Actuators
The
Comunello AF 820 actuator control unit is an advanced control unit for
230Vac actuators and motors , designed for those who want to combine traditional control and smart management in a single compact device. It is ideal for windows, doors, skylights, and similar automations, both in residential and professional settings.
The
110–240 VAC power supply and power output of up to 500W allow for the reliable management of 230 VAC actuators with integrated limit switches. The control unit ensures stable and safe operation while maintaining compact dimensions for easy installation even in limited spaces.
OneSMART app, built-in Wi-Fi and voice control
The AF 820's real strength is its built-in Wi-Fi module, which allows for remote control via the OneSMART app directly from your smartphone or tablet. In addition to app control, the control unit also supports voice control via Google Home and Amazon Alexa, allowing you to manage the automation with simple voice commands.
The control unit also integrates a 433.92 MHz radio receiver, compatible with Comunello remote controls, and also allows control via wired buttons. The two wired inputs can be configured for step-by-step (open / stop / close) or deadman mode, offering maximum flexibility of use based on the system's needs.
A complete solution, designed for those looking for a modern, connected control unit that is easy to integrate into new or existing automation systems.

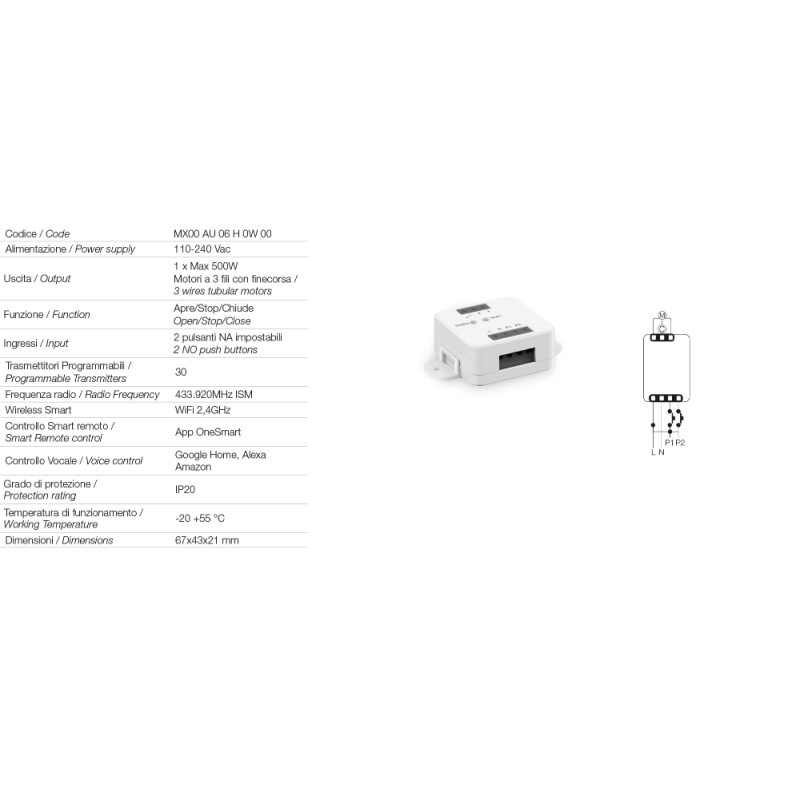

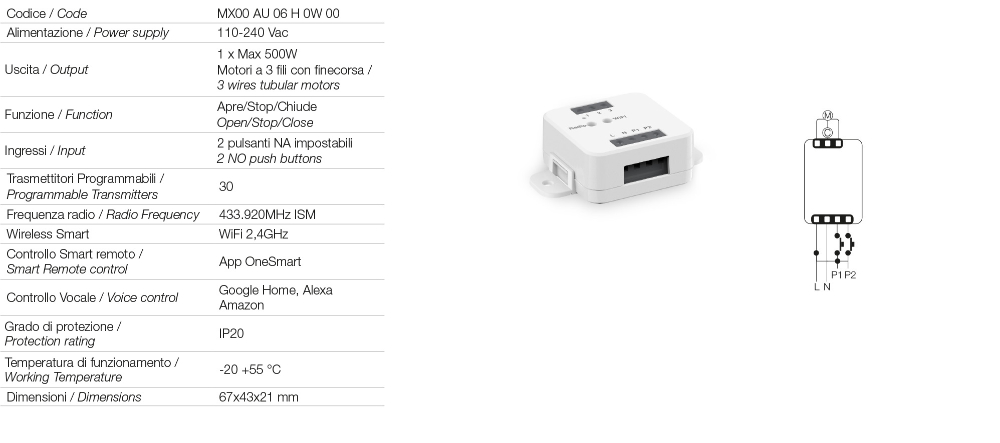

Main features of the Comunello AF 820
- Wi-Fi control unit for 230Vac actuators and motors with limit switches;
- universal power supply 110–240Vac;
- maximum power output 500W;
- control via OneSMART App;
- built-in 2.4 GHz Wi-Fi module;
- voice command compatible with Google Home and Amazon Alexa;
- integrated 433.92 MHz radio receiver with memory for up to 30 transmitters;
- control via radio control, wired buttons or app;
- 2 configurable wired inputs for step-by-step or deadman operation;
- open / stop / close functions;
- IP20 protection rating;
- compact size for installation in small spaces.
