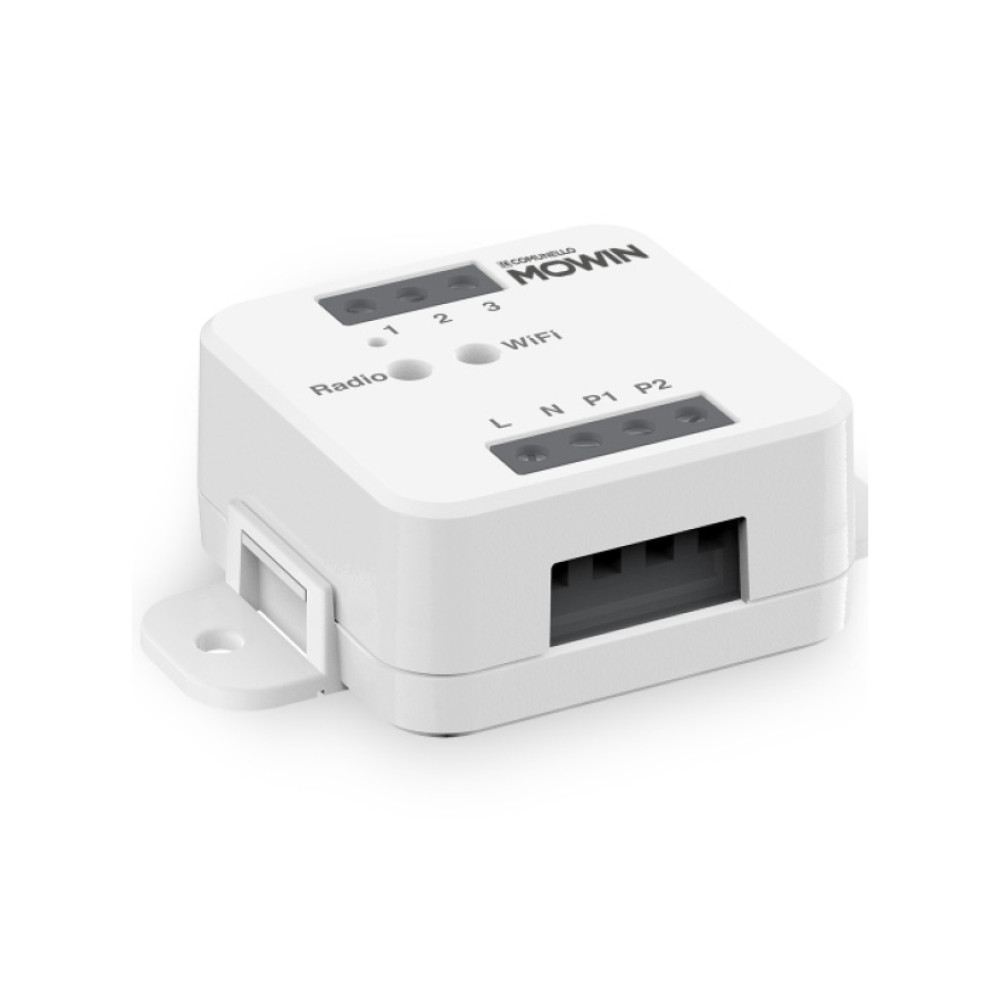

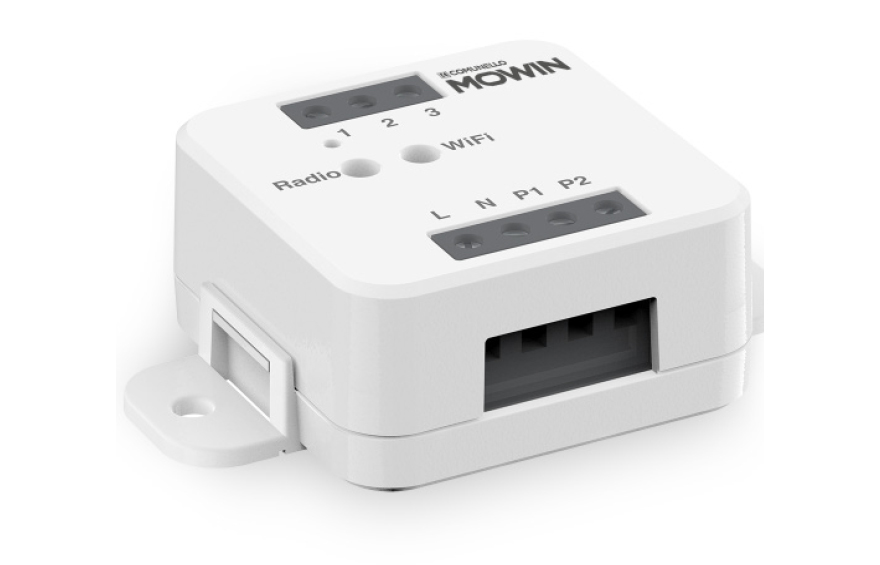

Comunello AF-800 control unit – Professional control for 230Vac actuators and motors
The
Comunello AF-800 control unit is a compact and reliable solution for
controlling 230Vac tubular actuators and motors , ideal for automating windows, doors, skylights and similar systems.
Designed for professional installations where reliability, simple wiring and control flexibility are required, in both residential and commercial settings.
The
110/240Vac power supply and power output up to 500W make it compatible with most 230Vac actuators with integrated limit switches, allowing safe and precise management of opening and closing movements.
Radio control and wired buttons, maximum flexibility of use
The AF-800 control unit
integrates a 433.92 MHz radio receiver , allowing the actuator to be controlled via
Comunello radio control without additional modules. Up to 30 transmitters can be memorized, making it suitable for systems with multiple control points or multiple users.
Alternatively, or in combination with the radio control, the control unit
can be managed via wired buttons , with inputs configurable for step-by-step (open/stop/close) or deadman mode, to adapt to different operational and safety needs. Adjustable operating times and various configuration options are also available, for precise integration into the existing system.

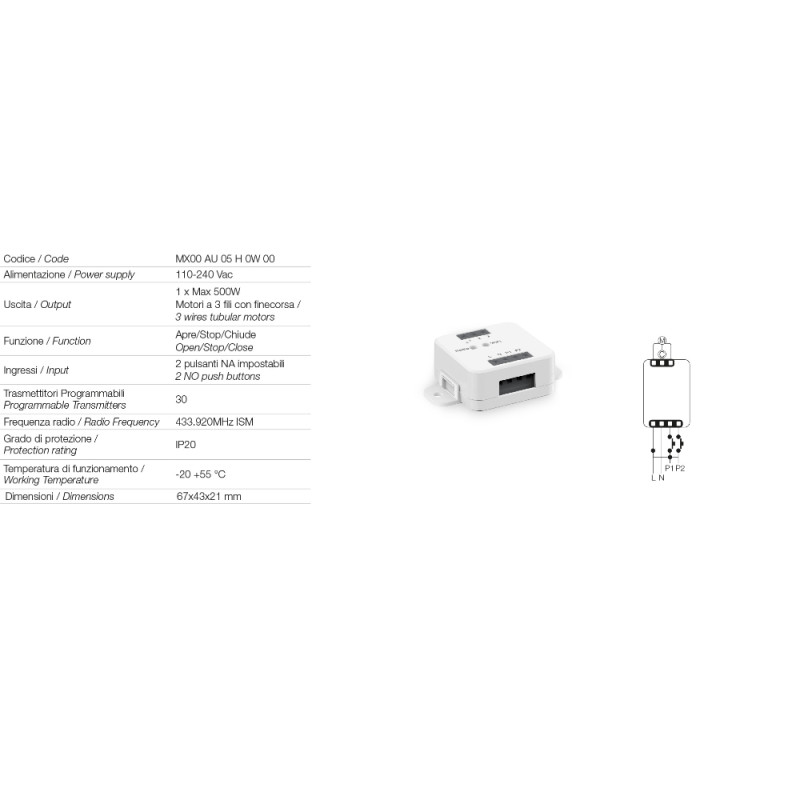

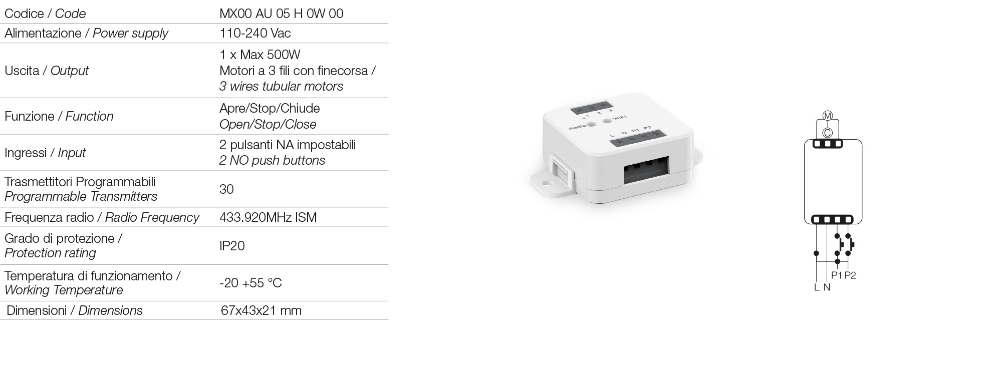

Features of the Comunello AF-800 control unit
- control unit for 230Vac actuators and motors with integrated limit switches;
- universal power supply 110/240Vac;
- maximum power output 500W;
- integrated 433.92 MHz radio receiver with memory for up to 30 radio controls;
- control via radio control or wired buttons;
- 2 configurable wired inputs for step-by-step or deadman operation;
- open / stop / close functions;
- regulation of maneuver times;
- IP20 protection rating;

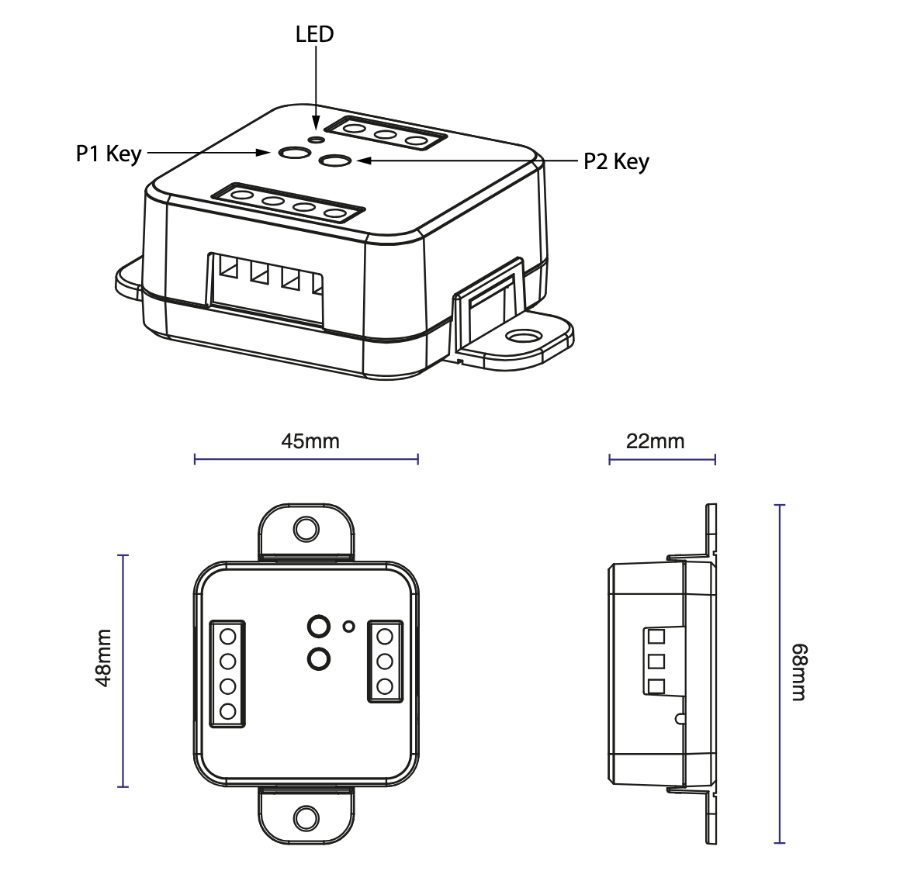

- compact size for installation in small spaces.
