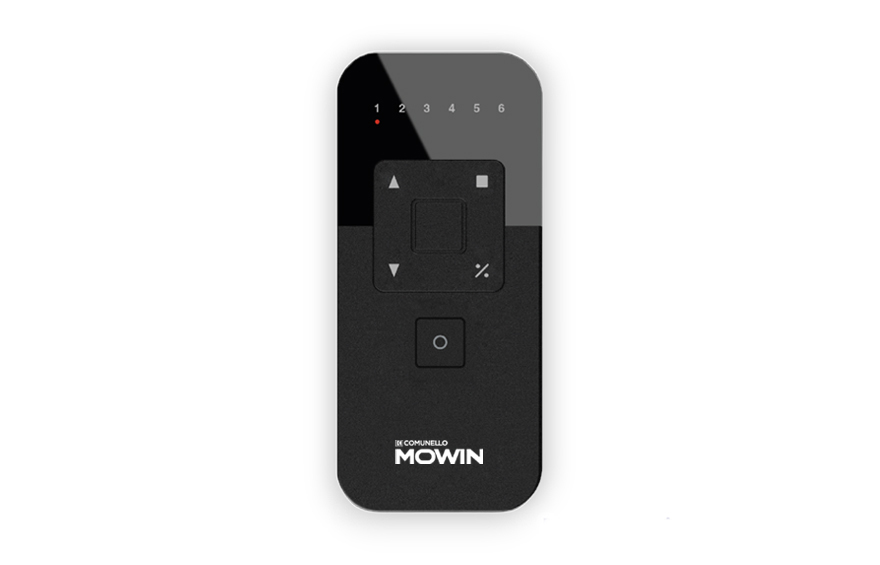

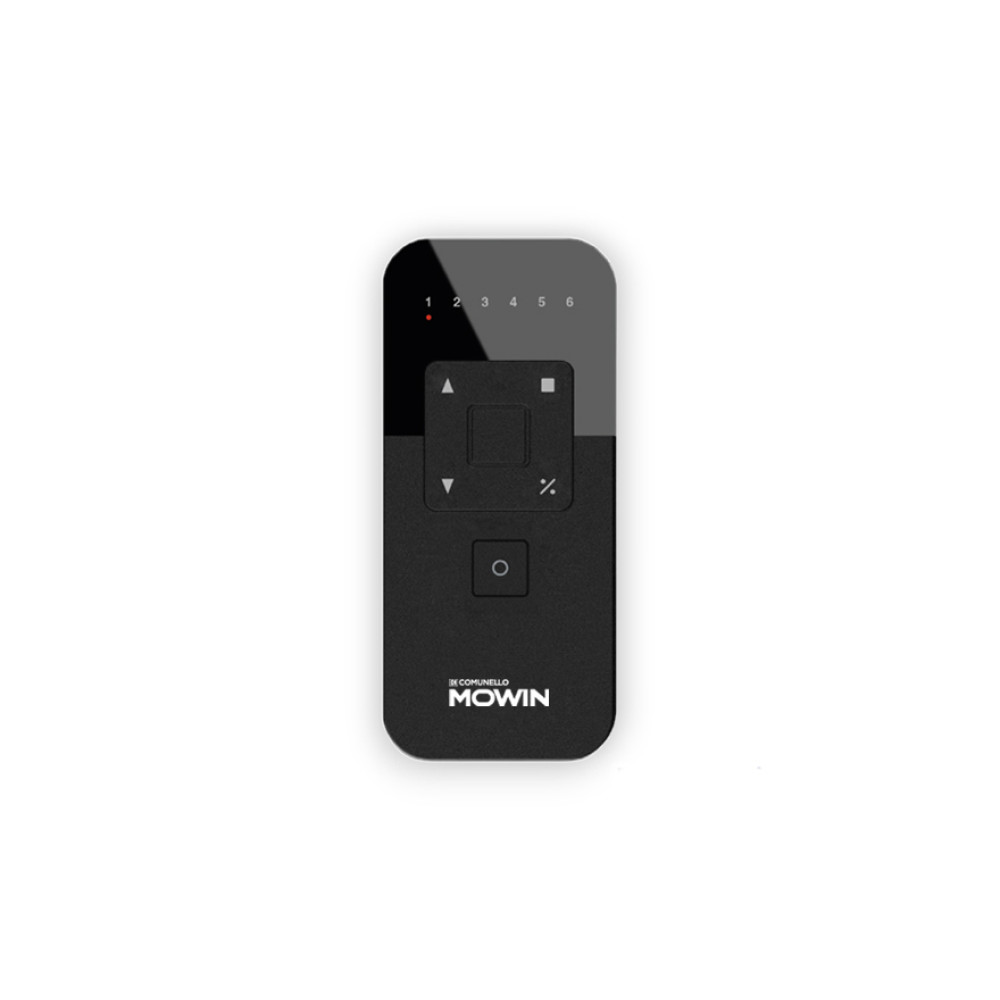

Comunello AF 890 Radio Control with 6 Channels for Electric Actuators
6-channel radio remote control designed for the control of
Comunello actuators and automation systems .
Secure transmission with
433.92 MHz rolling code technology and quick channel selection via dedicated button.

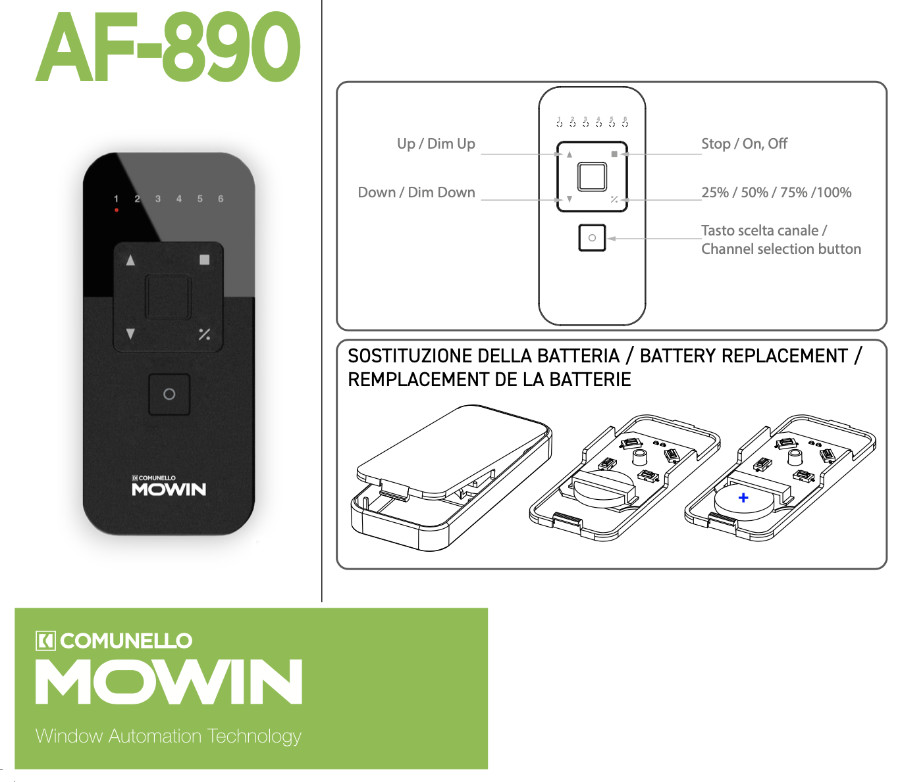

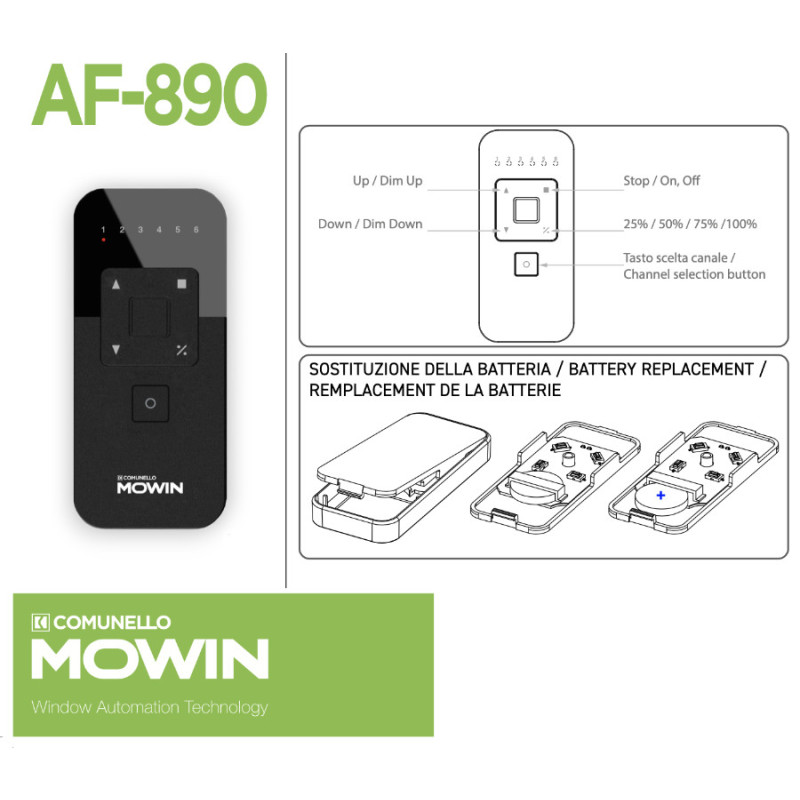

Command sequence:
open → stop → close → partial opening
Compact, intuitive design and complete with wall bracket for a tidy installation.
Technical features of the Comunello AF 890 radio control
- Power supply: CR2032 battery;
- radio frequency: 433.92 MHz;
- coding: rolling code;
- nominal range: up to 100 m;
- channels: 6;
- functions: open / stop / close / partial opening;
- channel selection via dedicated button;
- wall mount included.
Transmitter programming
Requirement: Access to the receiver programming buttons.
- activate the receiver on which you want to program the transmitter (see the receiver manual);
- use the “circle” button to select the channel to be associated;
- send a command, for example with the “square” key.
