Topp TF24R Control Unit and Power Supply 24V 4 Outputs

Topp
Brands: Topp
Code: 8C0054
-21%
€ 165,67 € 209,44
Prices excluding VAT

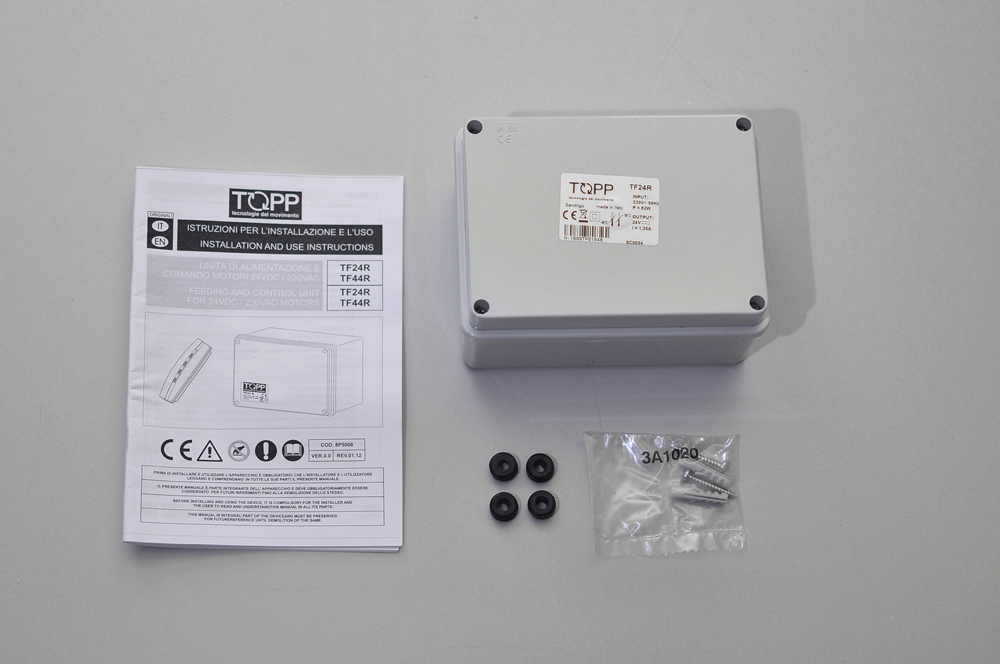

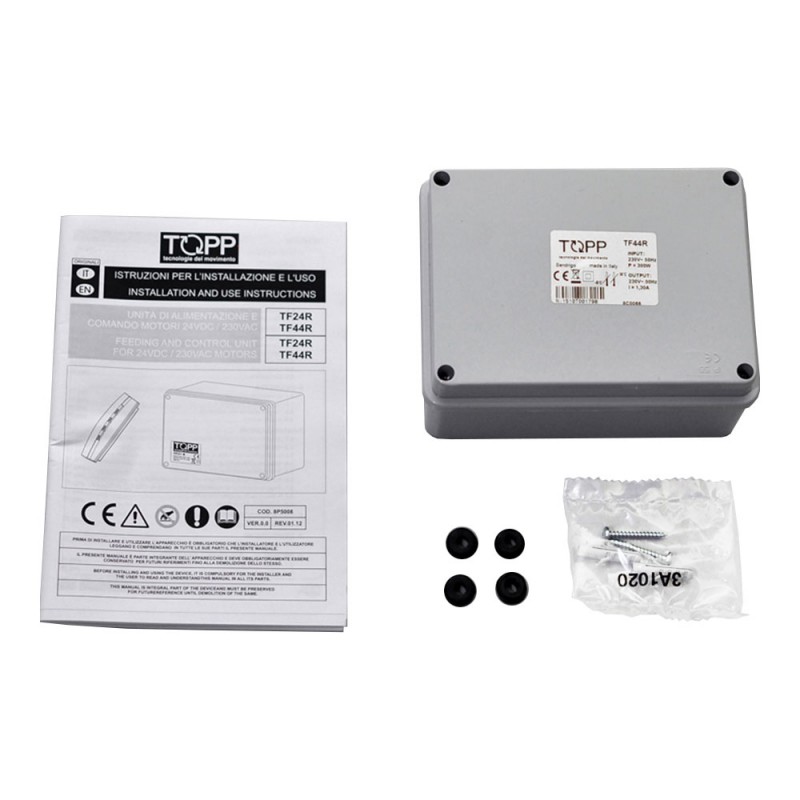

TF24R Topp control unit and power supply 24 V (4 outputs) with built-in 433 MHz receiver.
Are you looking for an actuator from the Topp catalog that is not on our site? Contact us and ask for a quote.

- +

TF24R Topp Control Unit and Power Supply 24V - 4 Outputs

TF24R Topp : 24 V power supply and control unit (4 outputs) with built-in 433 MHz receiver. Control unit that can be combined with the TR8 remote control (sold separately).

  • TF24R control unit (24V output voltage) suitable for powering and controlling low voltage TOPP motors.
  • Built-in 433.92 Mhz rolling-code radio receiver.
  • Wind sensor input RW and rain sensor RDC/12.
  • CE marked.

Centralina TF24R Unità di Comando e Alimentazione 24V 4 Uscite Topp


TF24R Topp control unit technical characteristics

  • Model: Topp TF24R;
  • Power supply voltage: 230V~50Hz;
  • Output voltage: 24 Vdc;
  • Max absorbed power: 62W;
  • Max Output Current: 1.35A;
  • Service type: S1 – Continuous;
  • Predispositions: wind, rain sensor and manual controls;
  • Operating temperature: - 5 + 50 °C;

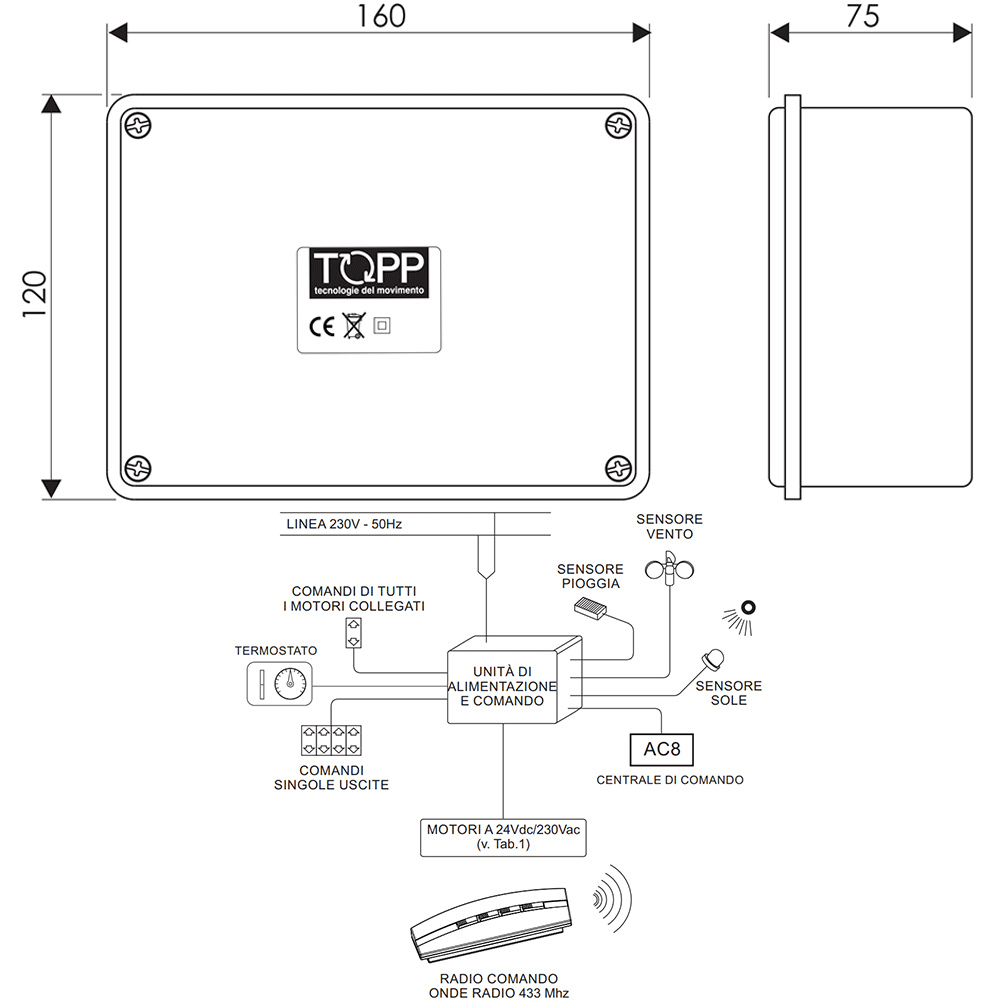

  • Overall dimensions: 160x120x75 mm;
  • Connectable C20 actuators: 4;
  • Connectable tandem C20 actuators: 2;
  • Connectable C30 actuators: 4;
  • Connectable C40 actuators: 4;
  • Connectable C130 actuators: 4;
  • Connectable C240 actuators: 2;
  • Connectable SL60 actuators: 4;
  • Connectable T50 actuators: 1;
  • Connectable T80 actuators: 1.
