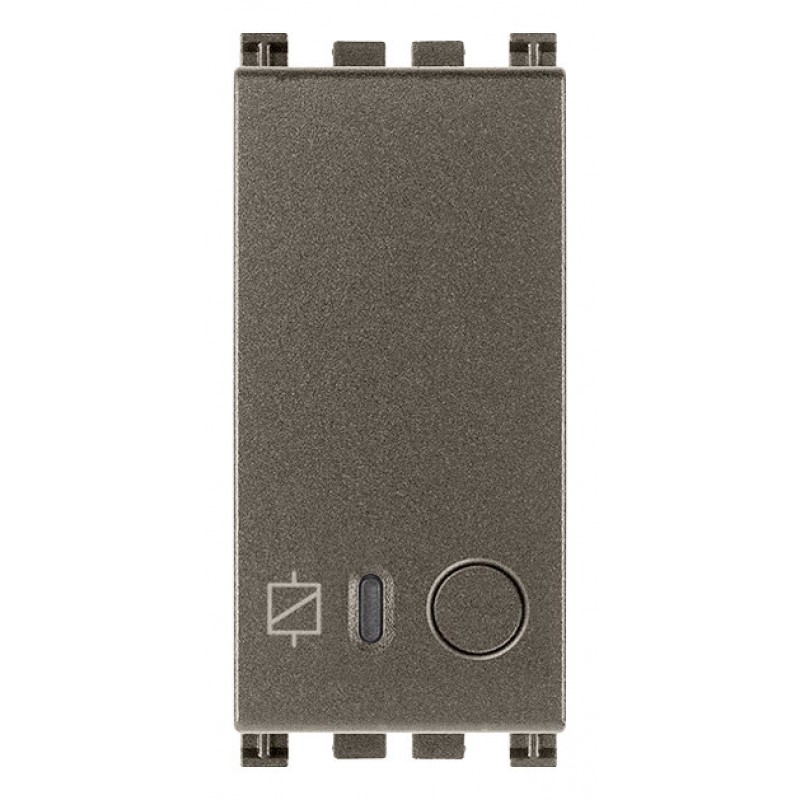

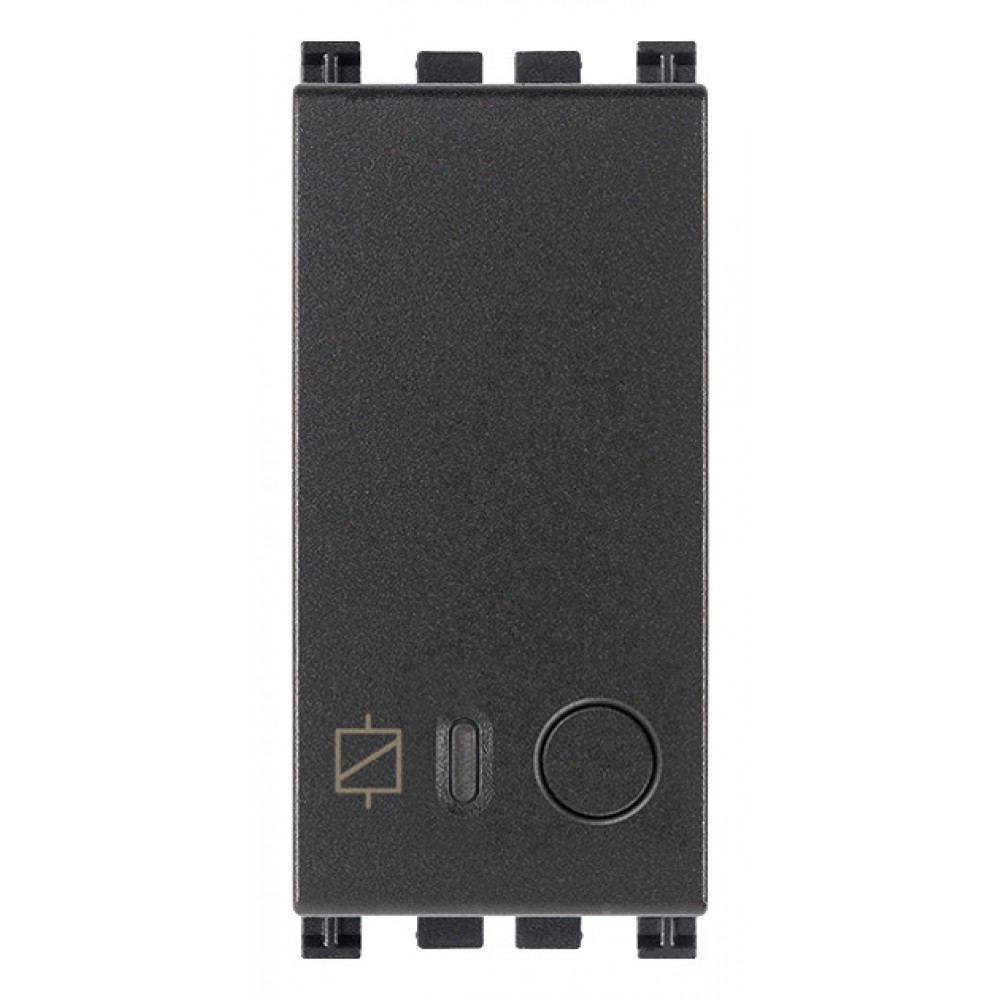

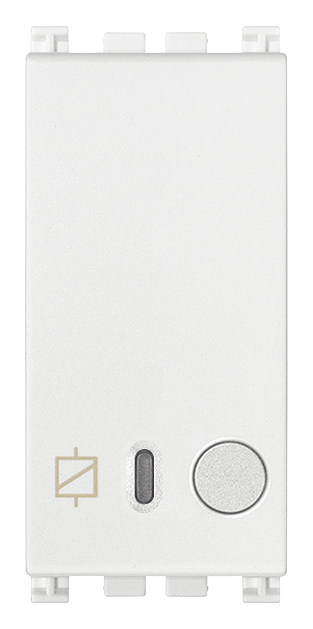

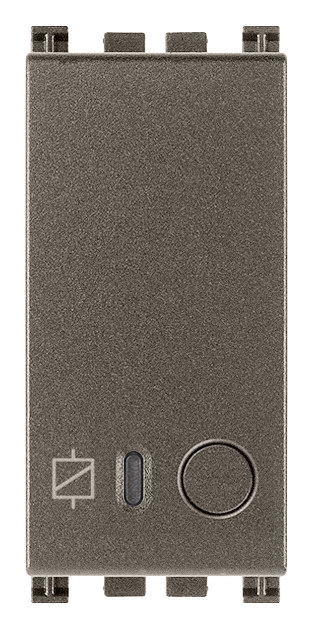

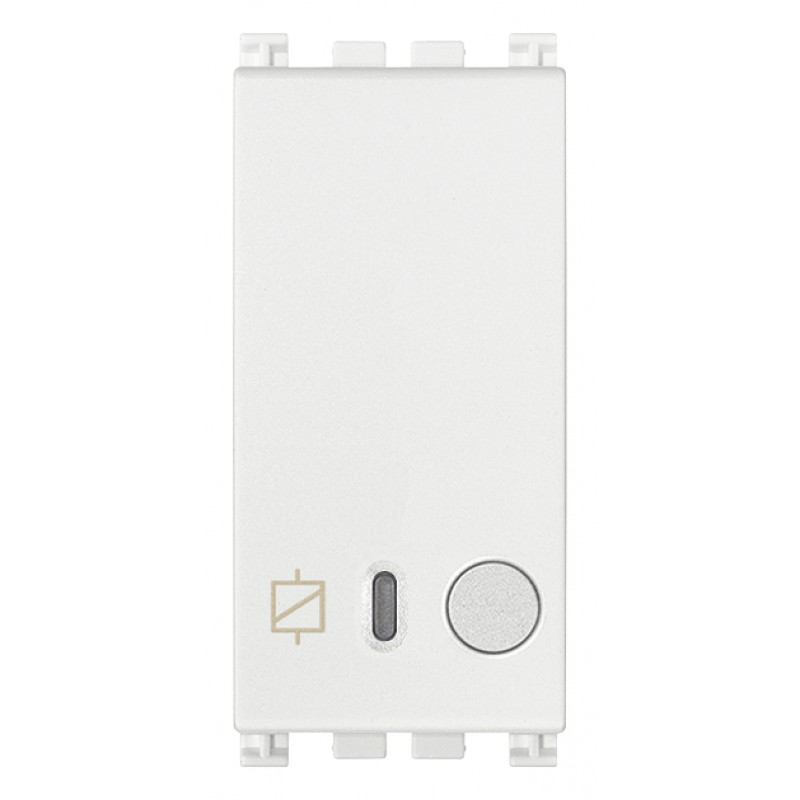

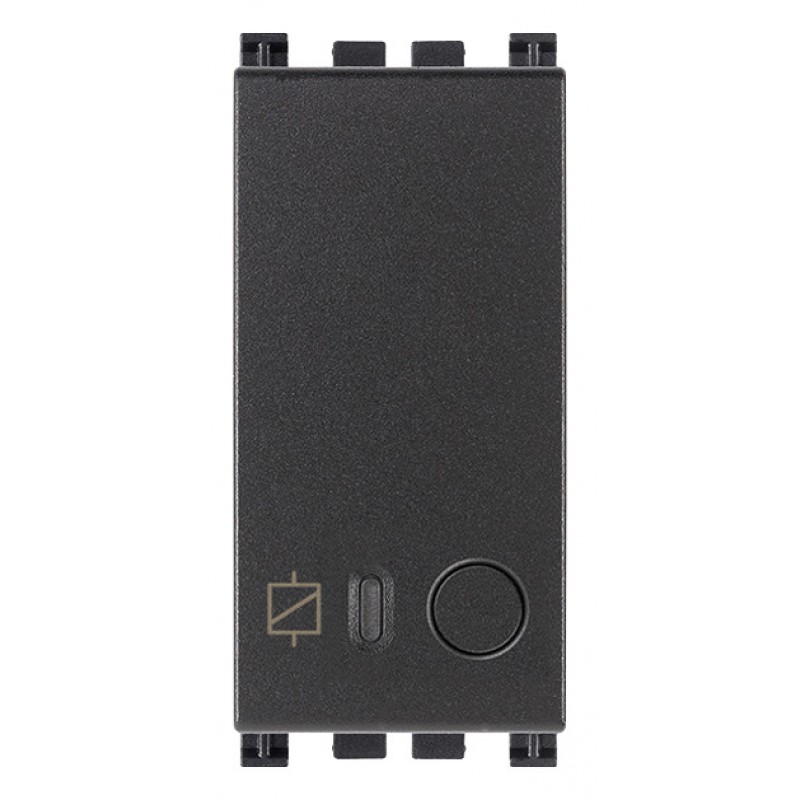

Connected Actuator IoT 16A 19593 Arké Vimar - Gray, white or metal
VIEW Wireless electronic control device with NO 16 A 100-240 V ~ 50/60 Hz relay output, local control with button or remote, double IoT technology on Bluetooth 5.0 standard for creating VIEW Wireless mesh system and on Zigbee 3.0 standard, instantaneous power and consumed energy measurement function and load disconnection threshold, RGB LED detection in the dark with intensity adjustment, 100-240 V 50/60 Hz power supply.
- Configuration from App View Wireless for Bluetooth technology system and Amazon App for Zigbee technology;
- Compatible with Alexa, Google Home and IFTTT, through the appropriate Zigbee gateway or hub.
The actuator is equipped with a relay output with current meter and a front button with which to reset the load and carry out the configuration / reset. Realizes the overcurrent protection function by disconnecting the load when the threshold value set by the View Wireless app is exceeded; the disconnection of the load is signaled by the red flashing of the LED on the front of the device.
The reactivation of the load, as well as from the front button, can also be performed from the App View. The App View also allows you to view the instantaneous power consumed.
Characteristics Actuator 19593 Arké Vimar
- Nominal supply voltage: 100-240 V ~, 50/60 Hz;
- Power dissipated: 0.85 W;
- Transmitted RF power: <100mW (20dBm);
- Frequency range: 2400-2483.5 MHz.
Clamps:
- 2 terminals (L and N) for line and neutral;
- 1 terminal (1) for the voltage relay output;
- 1 front button for load control and configuration / reset.
- If configured in the “Energy” application, it forcibly activates the output for the time set on the View app;
- RGB LED that signals the output status (settable from the App View Wireless) and the configuration status (blinking blue);
- In Bluetooth technology mode, up to 2 radio devices (art. 03925) can be associated with the device, allowing the control of the actuator or the activation of a scenario;
- Operating temperature: -10 ÷ +40 ° C (for indoors);
- Degree of protection: IP20;
- Configuration from App View Wireless for Bluetooth technology system and Amazon App for Zigbee technology;
- Can be controlled from App View.
Arké Vimar online sale prices and offers
Designed in the present for the future,
Arké is Vimar's solution to today's needs: a simple but current and long-lasting object that enters our everyday life in a concrete and intelligent way with
home automation that simplifies home management by optimizing consumption.
- Wide proportions : large surfaces to emphasize geometries and materials.
- Two forms: Arké Classic : rigorous and linear. Arké Round : soft and sinuous.
- Double-rounded keys : an ergonomic shape pleasant to the touch and barely perceptible to the eye that accompanies the command.
- Finishes and colors : materials selected to last over time, colors chosen in harmony with contemporary taste.
Arké Vimar series: devices for smart home
Connect your electrical system with wireless sockets and switches : the
Vimar View Wireless system allows you to manage room lighting, shutters or motorized blinds, control energy consumption and manage scenarios, with the utmost simplicity using classic switches, via app or directly with your voice.
You have the possibility to create a
connected system , suitable for any architectural context, thanks to the full aesthetic coordination of digital products and easy functional expandability. Simply replace the traditional switches in the existing system with the new Vimar digital devices and power them: diverters, actuators for rolling shutters and awnings, actuators for connected sockets, equipped with Bluetooth® and Zigbee® technology.
