Connected NFC/RFID Outer Switch IoT 19462 Arké Vimar

Vimar
Brands: Vimar
Code: 19462
-38%
€ 178,46 € 287,84
Prices excluding VAT
You have chosen:
Are you looking for a product from the Vimar catalog that is not on our site? Contact us and ask for a quote.

- +

Smart Card Reader NFC / RFID Connected IoT 19462 Arké Vimar

Hospitality Solutions - Connected Access Control

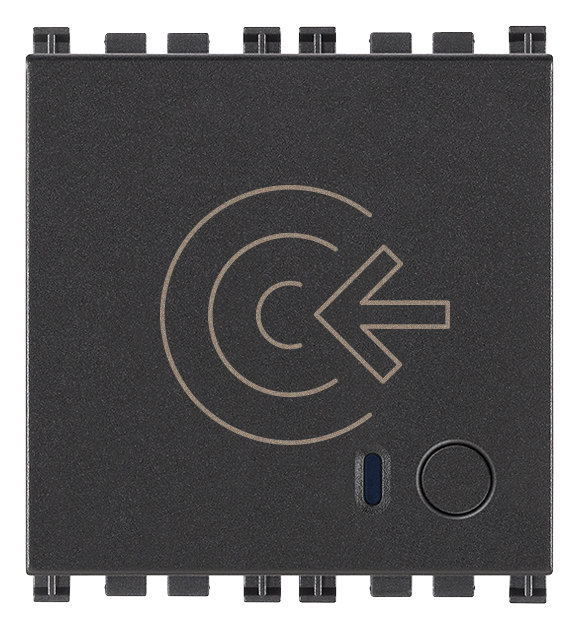

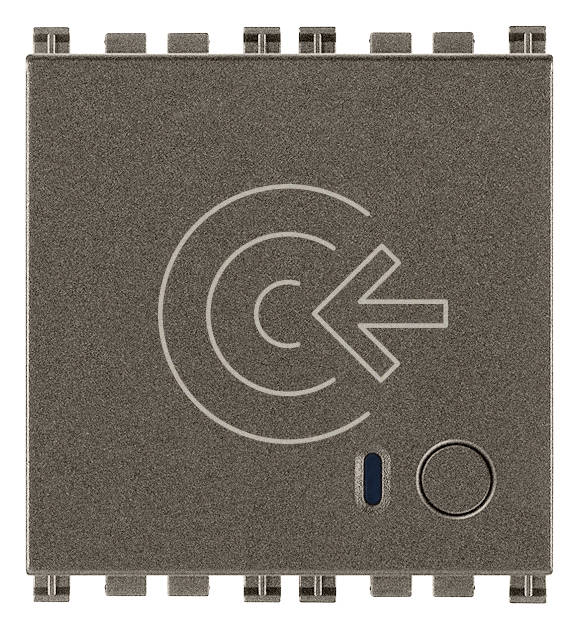

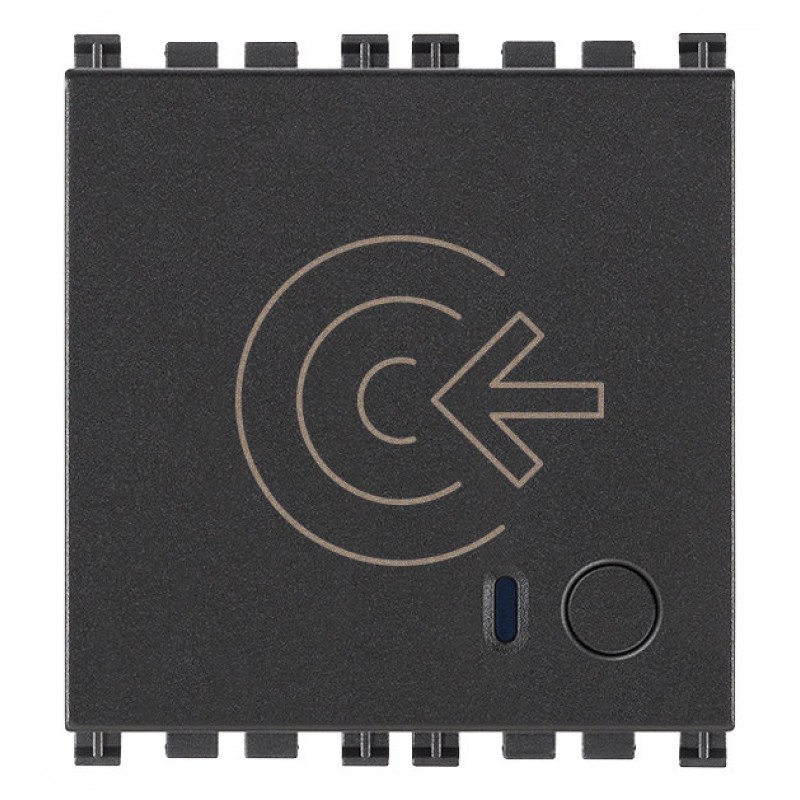

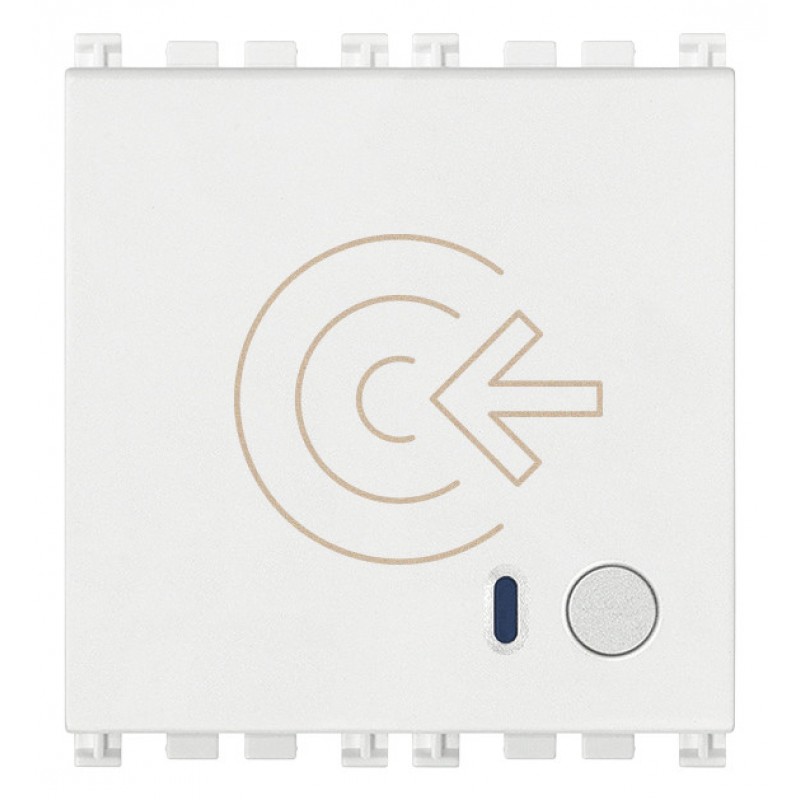

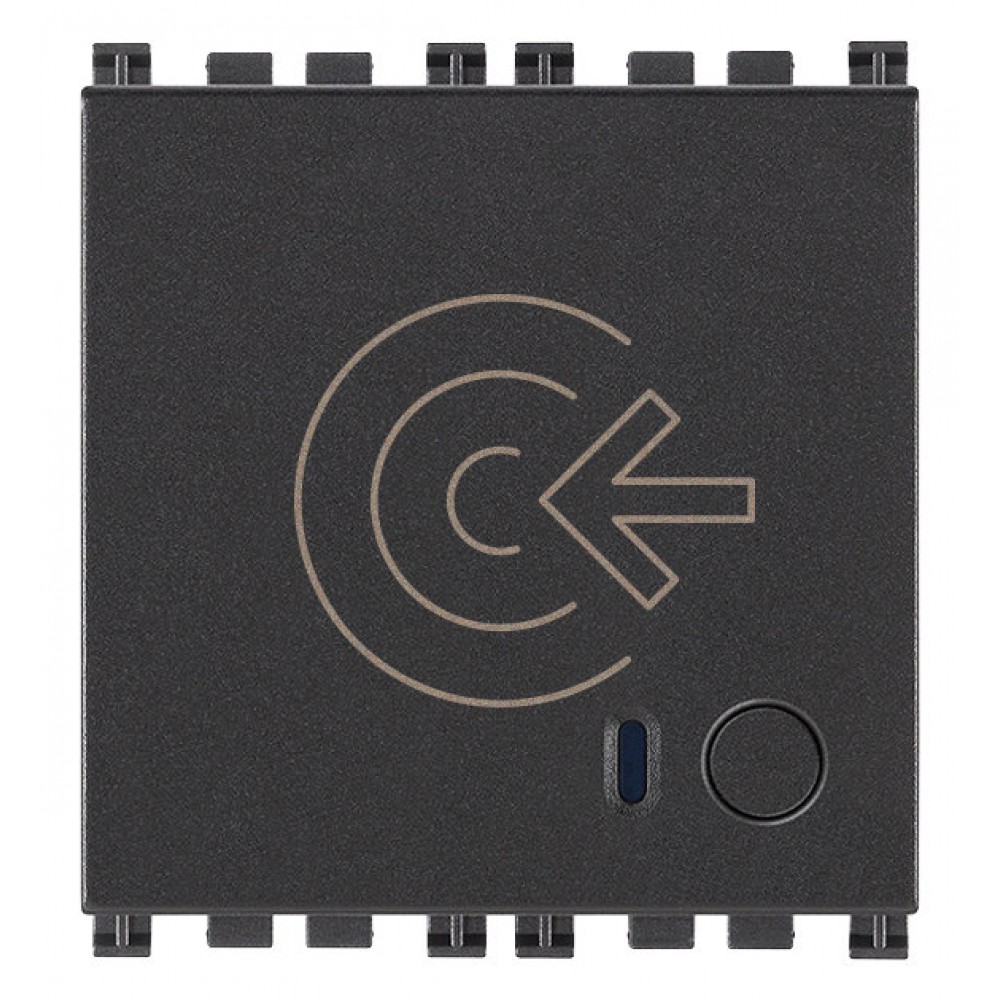

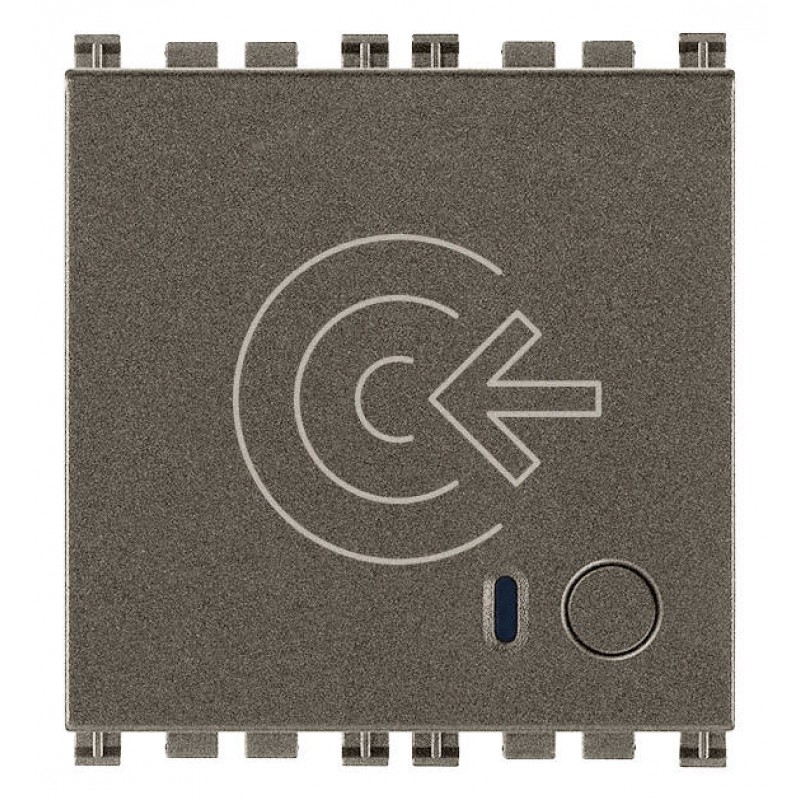

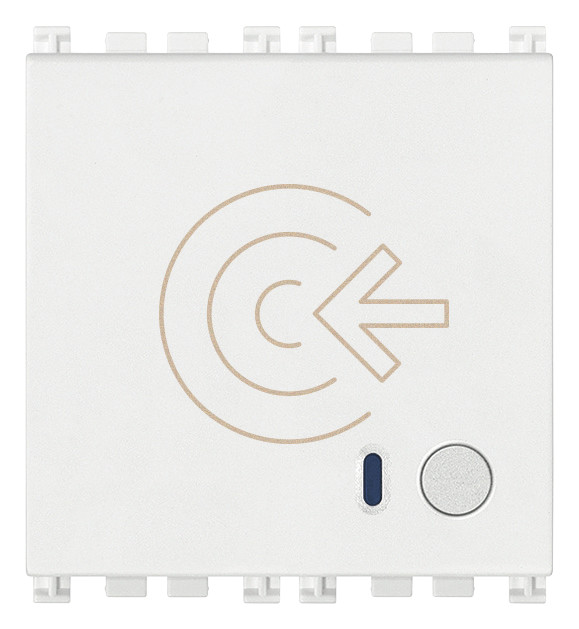

Outdoor NFC / RFID smart card reader , card configuration using App View Wireless standard Bluetooth technology, IoT technology based on Bluetooth technology 5.0 standard for creating View Wireless mesh system, 1 relay output NO 16 A 100-240 V ~ 50/60 Hz, 1 DND input, LED with dimming, power supply 100-240 V ~ 50/60 Hz, gray - 2 modules.

The Arké Vimar connected device must be installed outside and near an entrance (for example a hotel room, an office, etc.) and allows access only if the associated smart card is read and recognized.

Using a smartphone or tablet, the reader can be configured with Bluetooth technology using the View Wireless app and can be remotely supervised by installing the gateway 20597-19597-16497-14597. It is able to communicate with the pocket 20467-19467-14467 (associated in the configuration phase) to manage the users of the same room.

Smart Card Reader NFC / RFID Connected IoT 19462 Arké Vimar


Characteristics of the Connected Outside Door 19462 Arké Vimar reader

  • Power supply voltage: 100-240 V ~, 50/60 Hz;
  • Max power absorbed by the network: 1.1 W;
  • RFID technology @ 13.56 MHz, Mifare ISO14443A standard;
  • Frequency range: 13.553-13.567MHz;
  • Transmitted RF power: <60 dBμA / m.

Clamps:
  • L and N for power;
  • Relay output 16 A 240 V ~ C-NO (NO SELV);
  • Input for DND (Do Not Disturb) signaling via front LED (not isolated).
  • 1 configuration button;
  • RGB LED for device status signaling;
  • Operating temperature: -5 ° C - +45 ° C (indoor use);
  • Degree of protection: IP20;
  • Configuration from App View Wireless for Bluetooth technology system;
  • Frequency range: 2400-2483.5 MHz;
  • Transmitted RF power: <100mW (20dBm).


Technical data outside the door connected IoT 19462 Arké Vimar

  • Group: alarm, emergency call and signaling systems;
  • Class: access control system;
  • Stand-alone: Yes;
  • Networkable: No;
  • PC connection: No;
  • Interface Type: others;
  • Max number of people: 200;
  • Reading method: code;
  • Signal output: light signal;
  • Mounting Type: Recessed;
  • Operating voltage for AC 50 Hz: 230.00 - 230.01 v;
  • Operating voltage for AC 60 Hz: 230.00 - 230.01 v;
  • Operating voltage for DC: 0.00v;
  • Degree of protection (IP): IP20;
  • Execution: reader;
  • Material: plastic;
  • Power over Ethernet: others;

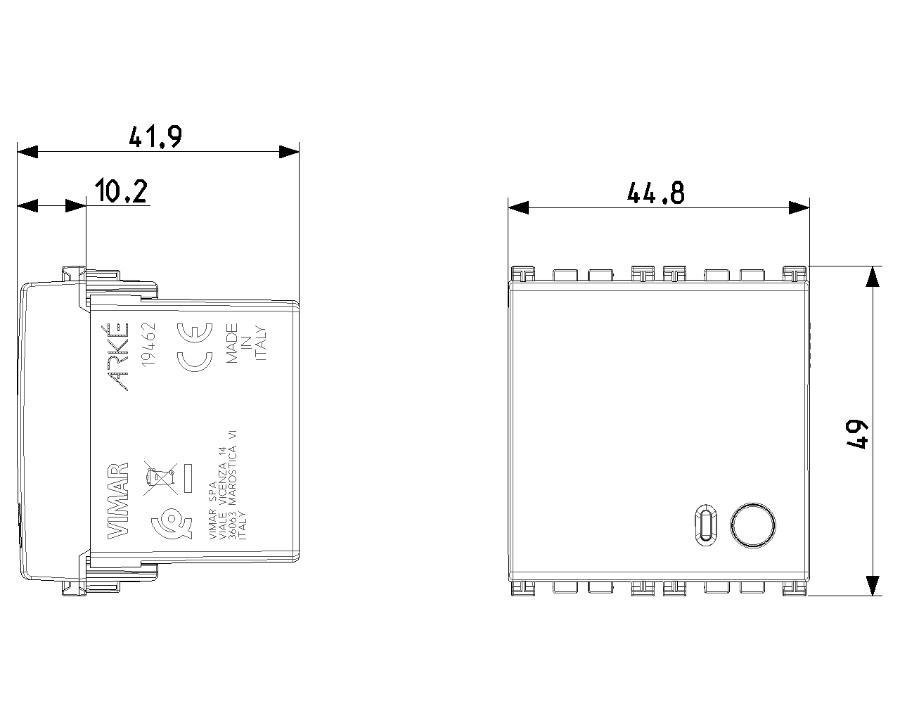

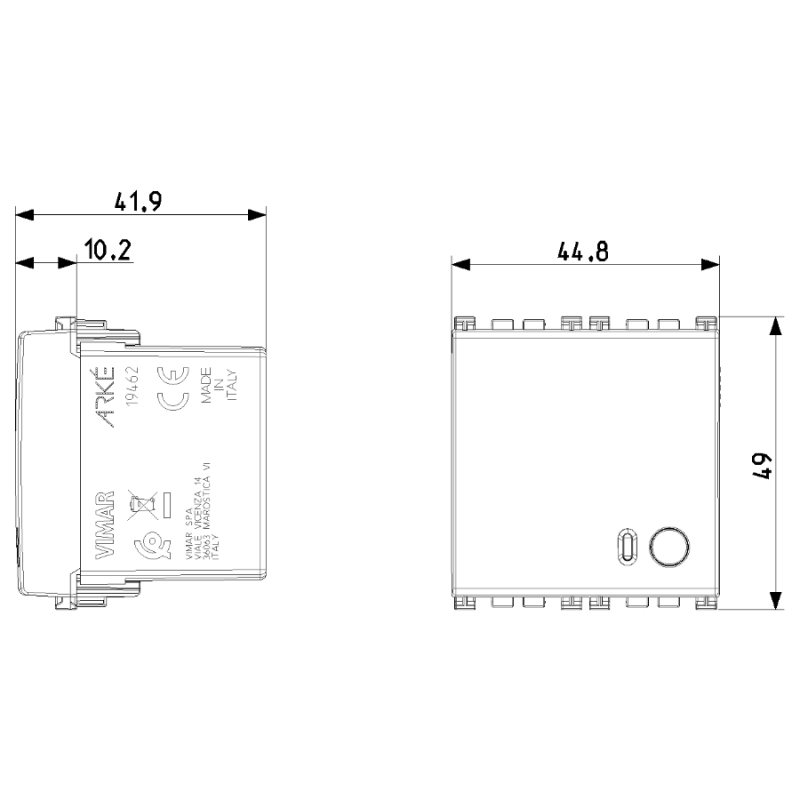

  • Width: 44.80 mm;
  • Height: 49.00 mm;
  • Depth: 41.90 mm.

serie civile arkè vimar tasti e interruttori


Discover the Arké Vimar series: online prices and offers

Designed in the present for the future, Arké is Vimar's solution to today's needs: a simple but current and long-lasting object that enters our everyday life in a concrete and intelligent way with home automation that simplifies home management by optimizing consumption.


Connected devices for home automation

Connect your electrical system with wireless sockets and switches : the Vimar View Wireless system allows you to manage room lighting, shutters or motorized blinds, control energy consumption and manage scenarios, with the utmost simplicity using classic switches, via app or directly with your voice.

You have the possibility to create a connected system , suitable for any architectural context, thanks to the full aesthetic coordination of digital products and easy functional expandability. Simply replace the traditional switches in the existing system with the new Vimar digital devices and power them: diverters, actuators for rolling shutters and awnings, actuators for connected sockets, equipped with Bluetooth® and Zigbee® technology.
