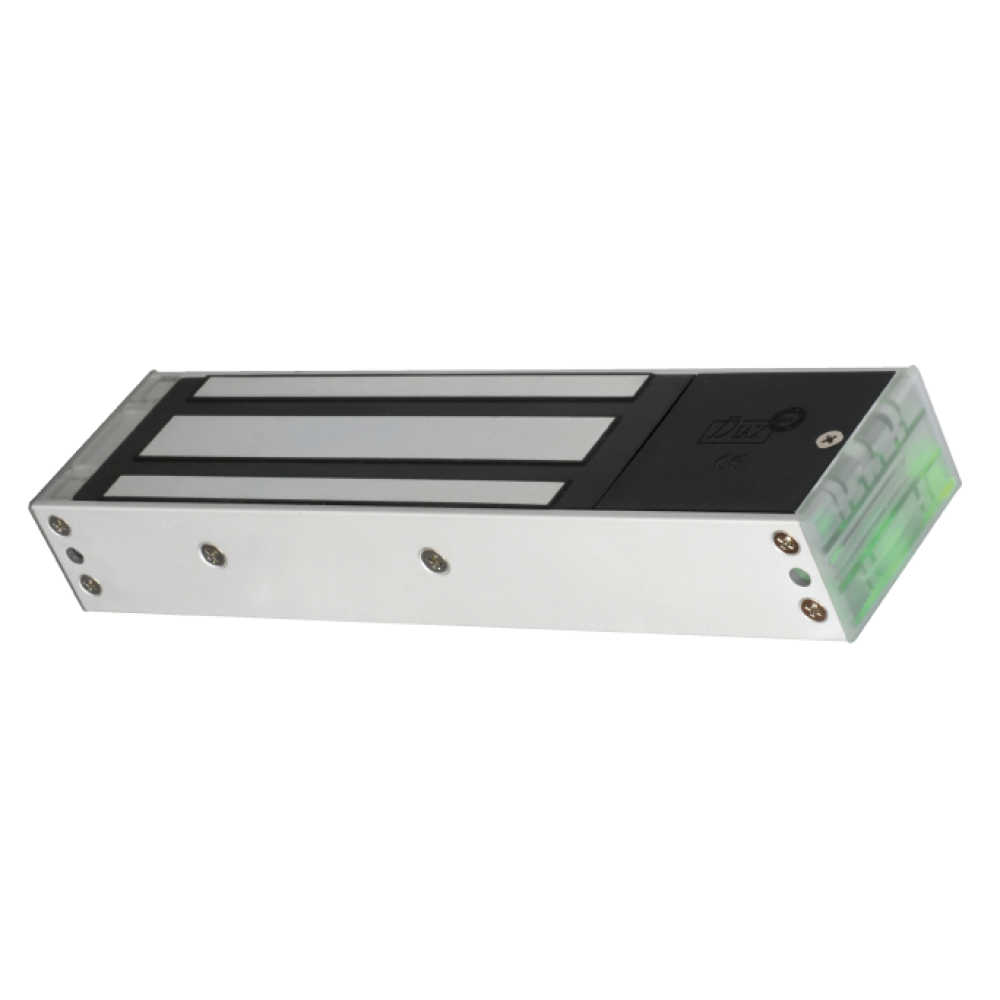

V5SR 500Kg Surface Mount Electromagnetic Lock 12/24V DC + Relay/Monitored NFS 61-937 CDVI
500-KG SURFACE MOUNT ELECTROMAGNETIC LOCK 12/24V DC + RELAY/MONITORED - NF S 61-937
Electromagnet to apply 500kg seal for fire doors and escape route.
Features
- NFS 61-937;
- Surface mount;
- Relay/Monitored: Relay + Lock status (According versions).;
- High resistance to corrosion;
- Safety rope;
- Delivered with its armature plate;
- No mechanical wear;
- Easy to install;
- Recommended for internal use;
- Maximum safety as soon as power fails, it opens;
- Holding Force: RANGE V5SR = 500 kg. Light and sound signaling;
- Release of residual magnetism;
- Includes Varistor (electronic protection against the hall effect);
- Dimension Magnetic Lock (W x W x D): RANGE V5SR = 266 x 67 x 41 mm;
- Counterplate size (W x W x D): RANGE V5SR =185 x 60 x 12 mm;
- Silent operation;
- Power supply: 12/24 V dc.
Absorption:
- 12 V dc = 550 mA;
- 24 V dc = 275 mA.
