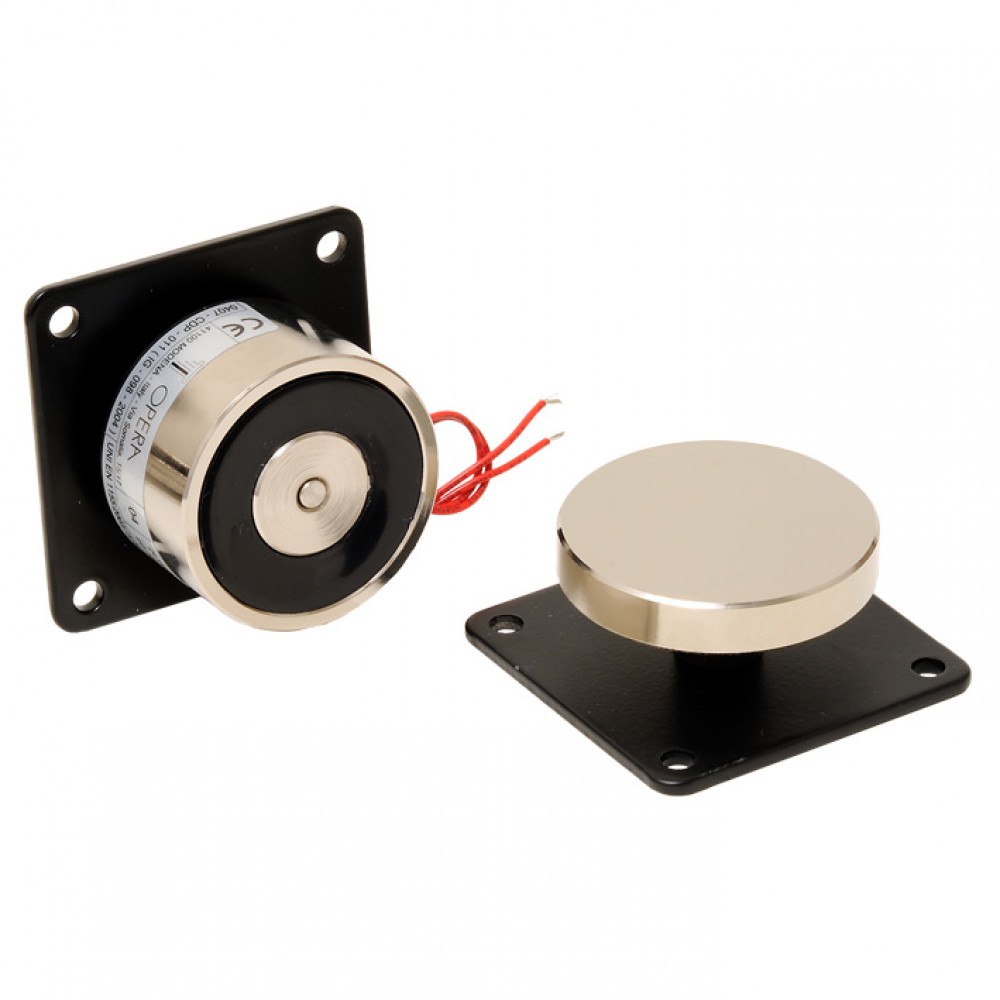

Holding Electromagnet 55 Kg - with Counterplate for Swing or Sliding Fire Doors - 01630I Opera
Use of holding electromagnet for fire doors
Holding electromagnet for swing or sliding fire doors with counterweights.
This electromagnetic holding device, with a force of 55 kg, is designed for use on single leaf or counterweight sliding fire doors. The electromagnet ensures a secure and reliable seal, keeping the doors in place during emergency situations and thus contributing to fire protection.
Version of the holding electromagnet of your choice
- Standard : as description below;
- Force reduced to 20 Kg : prevents the magnet from detaching from the wall after repeated misuse.
Technical characteristics of the electromagnet 01630I Opera
- Electromagnet body with fixing base
- Nickel plated electromagnet block
- Fixing base dimensions: mm. 65x65x3
- Electromagnet dimensions: diameter mm. 50 x height mm. 40
- Power supply: 24 Vdc - Absorbed current: 70 mA
- Traction force: > 55 Kg.
- Residual anti-magnetism spring on the electromagnet body
- Electromagnet complete with fixed counterplate art. 01800Z
Holding electromagnet on request
Contact us to add variants:
- 12 Vdc power supply
- 12 Vac power supply
- 24 Vac power supply
- Lifetime connector
- Status sensor
Discover the Opera Fire Control Series range
- Holding electromagnets for fire doors
- Regulators for sliding fire doors
- Hydraulic shock absorbers
- Single-zone fire alarm control panels
- Smoke and heat detectors
