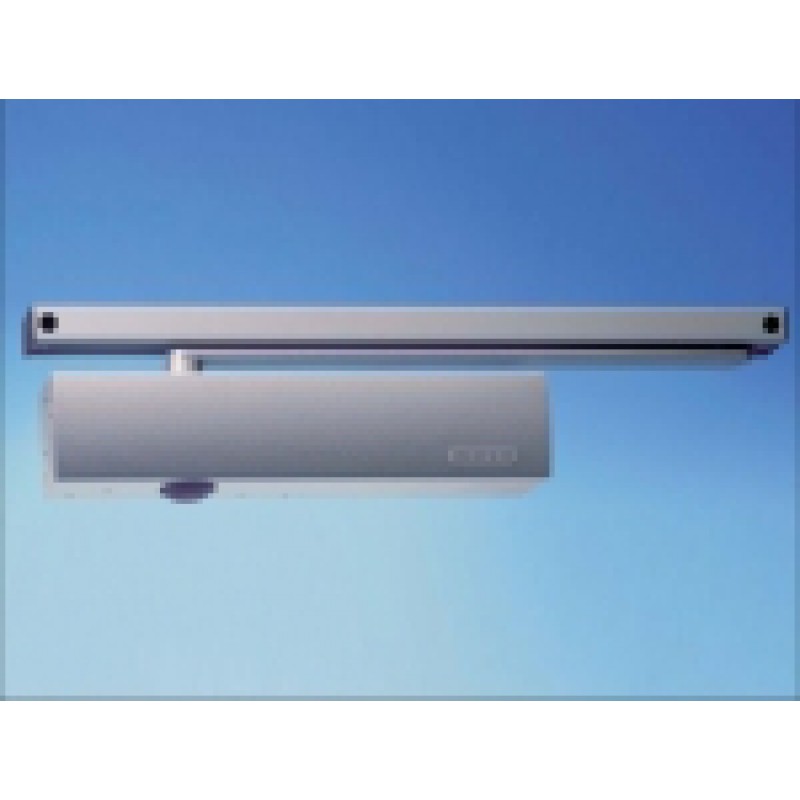

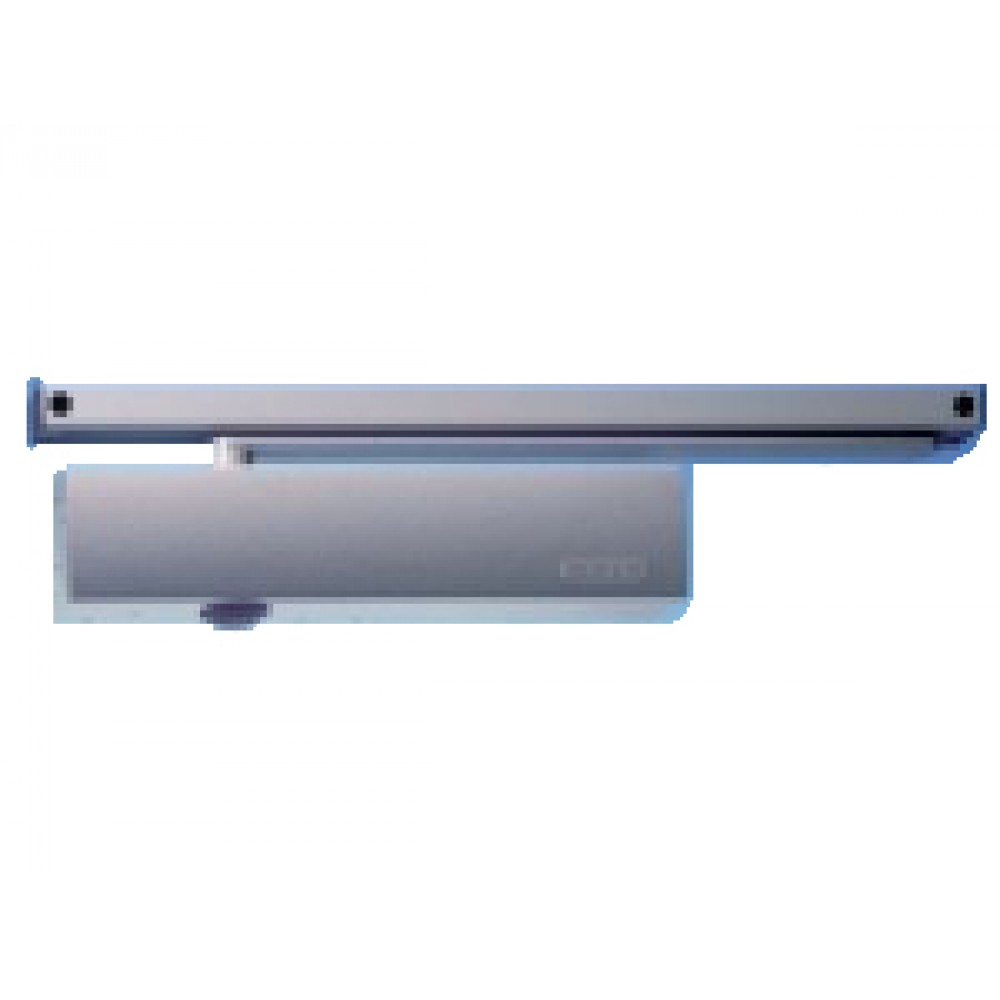

Geze TS 5000 - Overhead door closer for single-leaf doors with slide rail and lever
The
Geze TS 5000 is an
overhead door closer with a modern, streamlined design, designed for single-leaf right- and left-handed swing doors with a maximum width of 1400 mm. It is also approved for installation on fire and smoke doors.
The

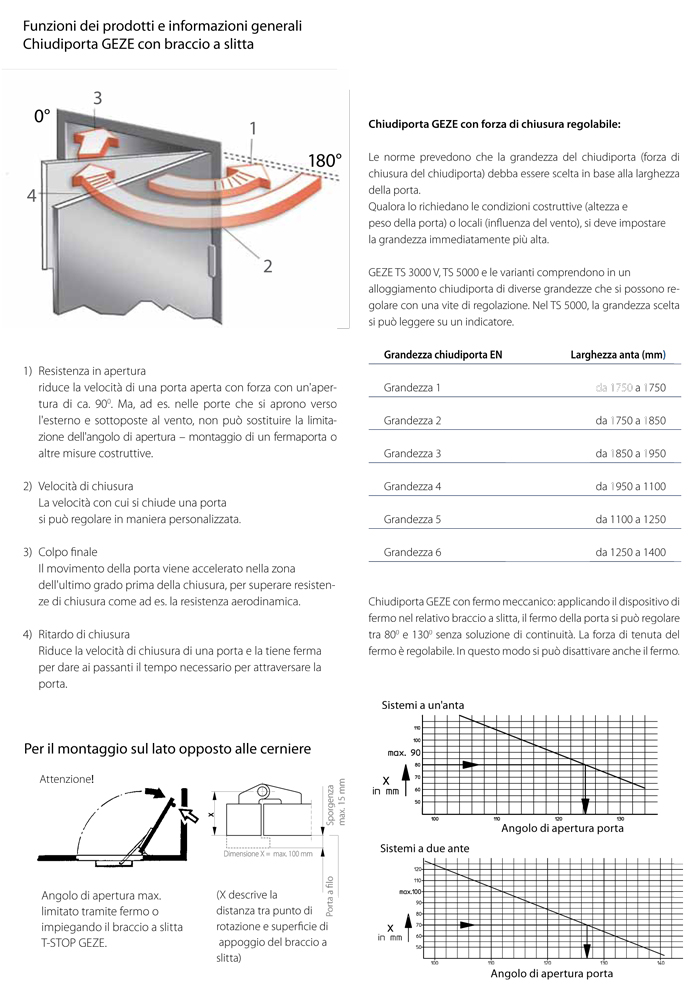

adjustable closing force EN 1154 size 2-6, the thermoregulated closing speed, the hydraulic latching action, and the backcheck can be easily adjusted from the front, even with the door closer already installed. The optical indicator allows you to quickly check the set closing force.
The

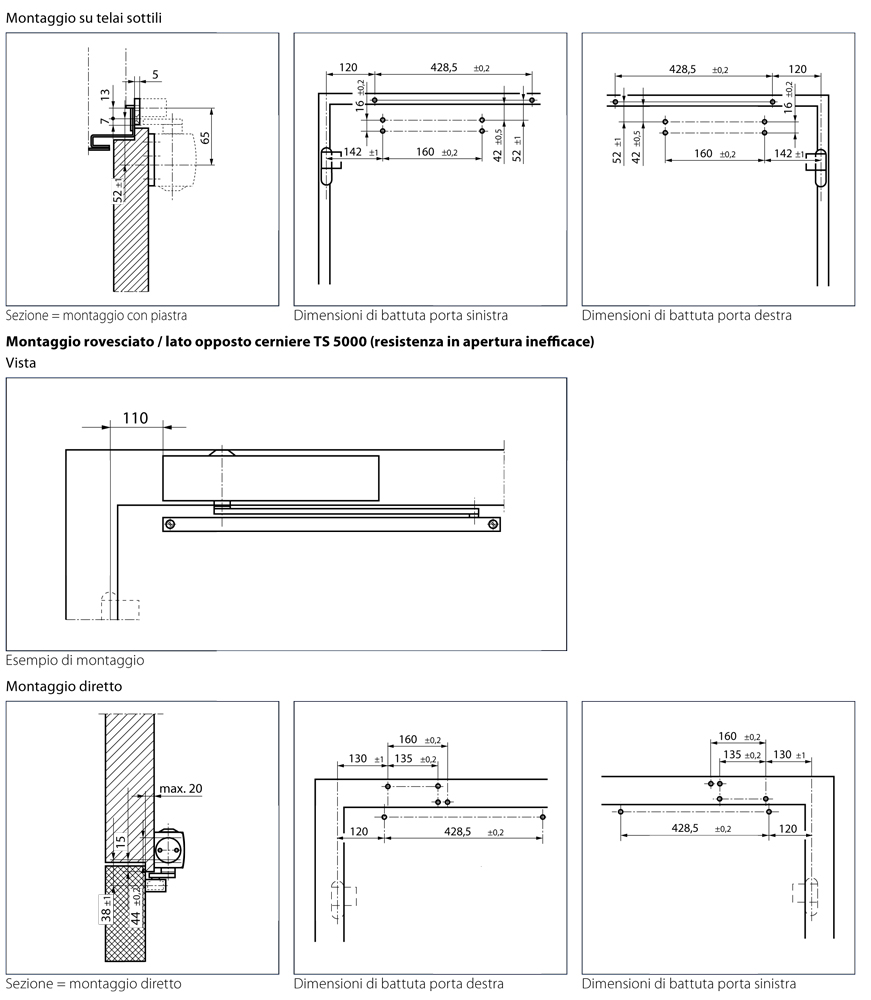

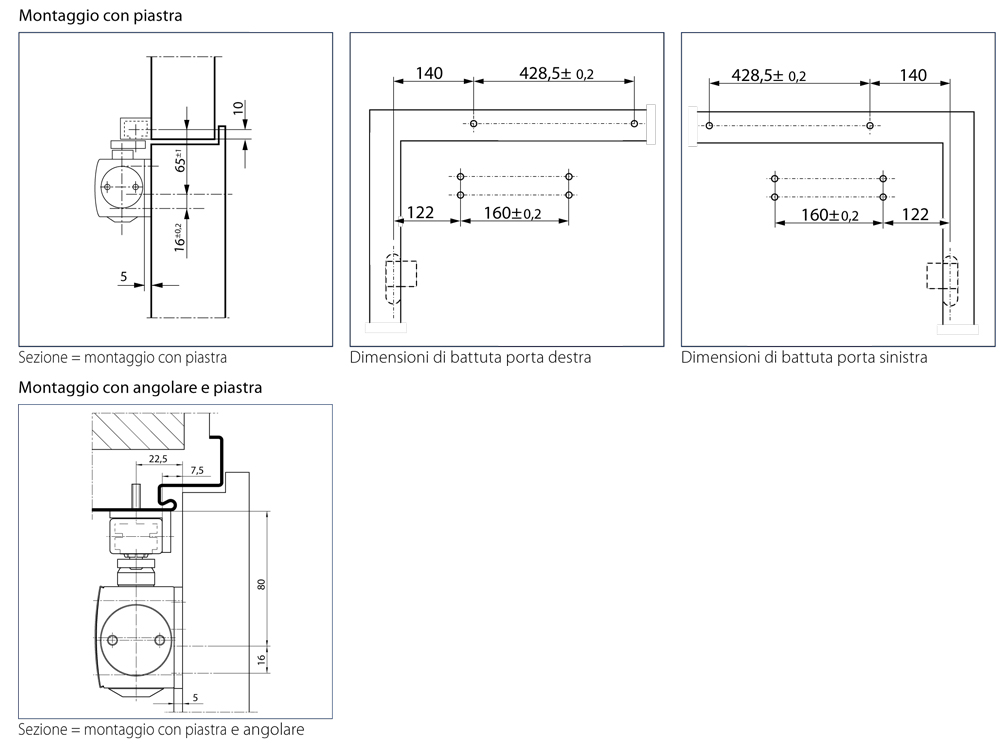

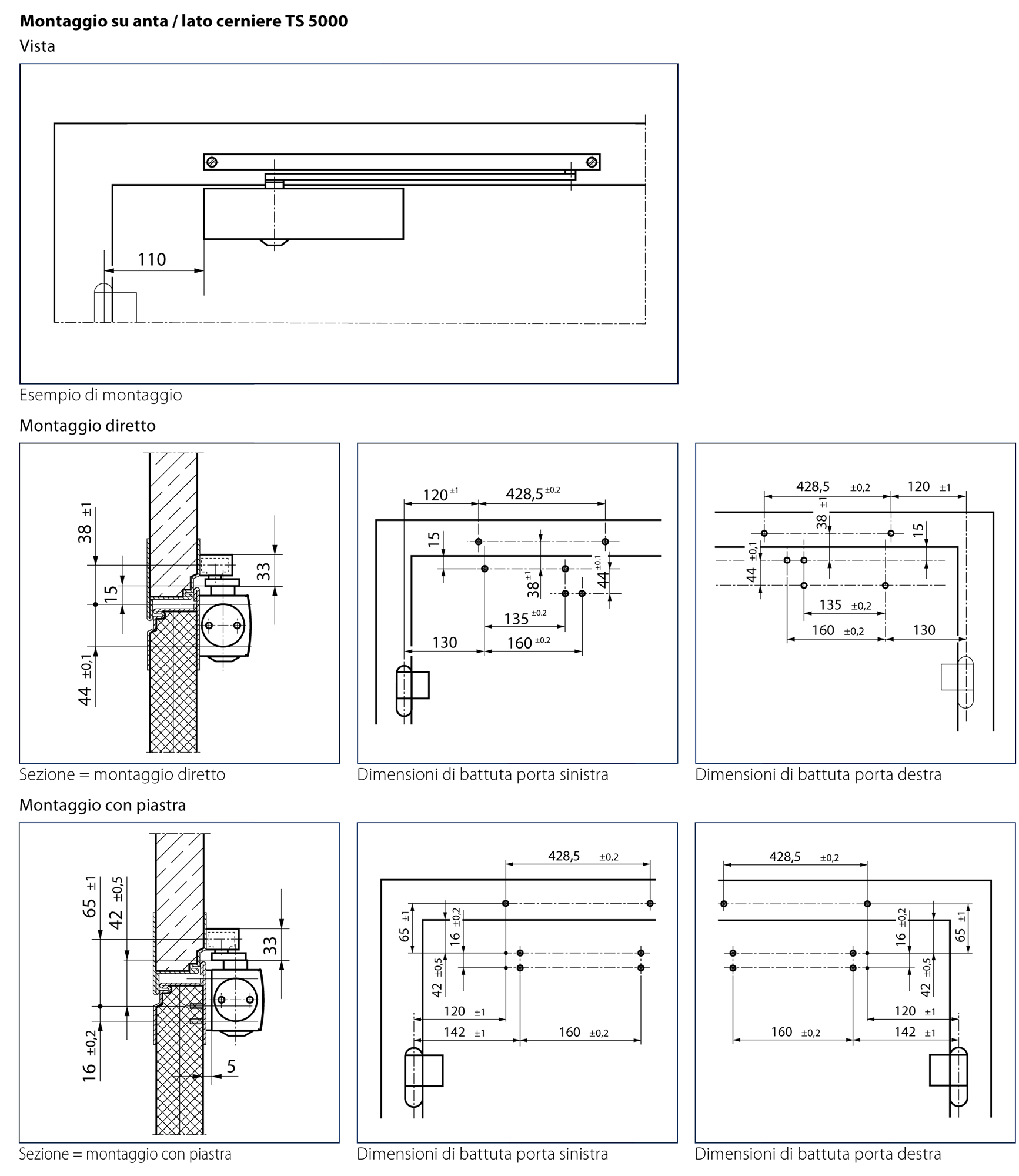

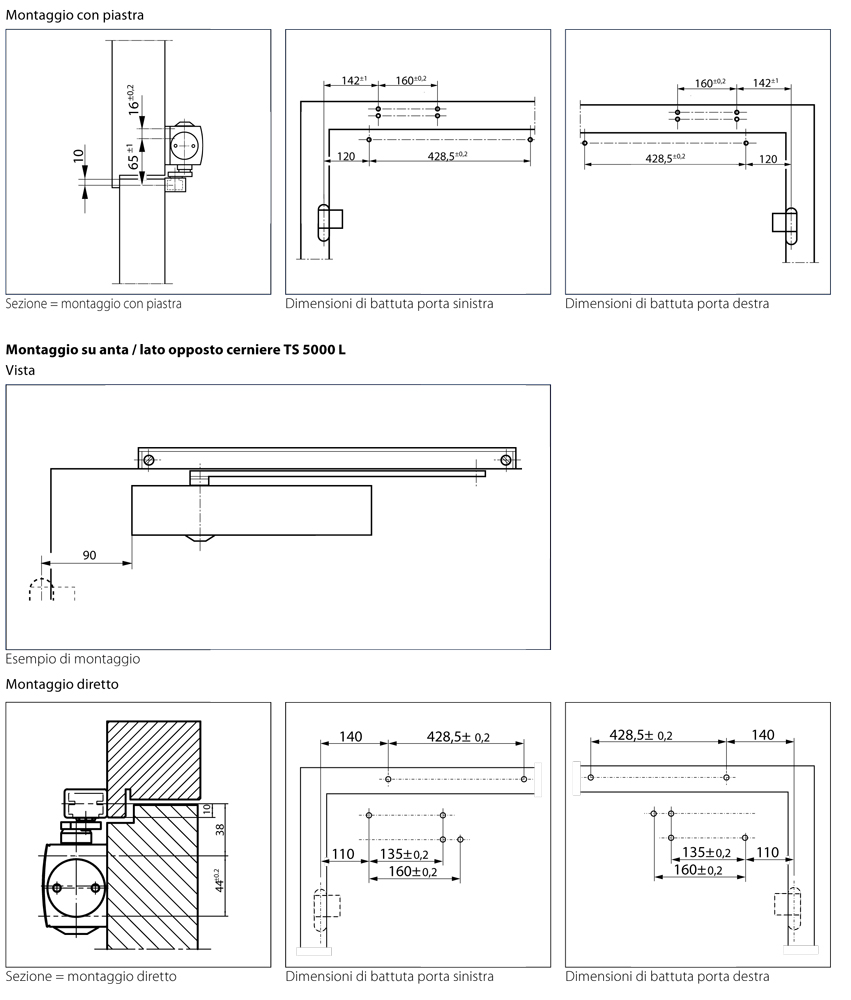

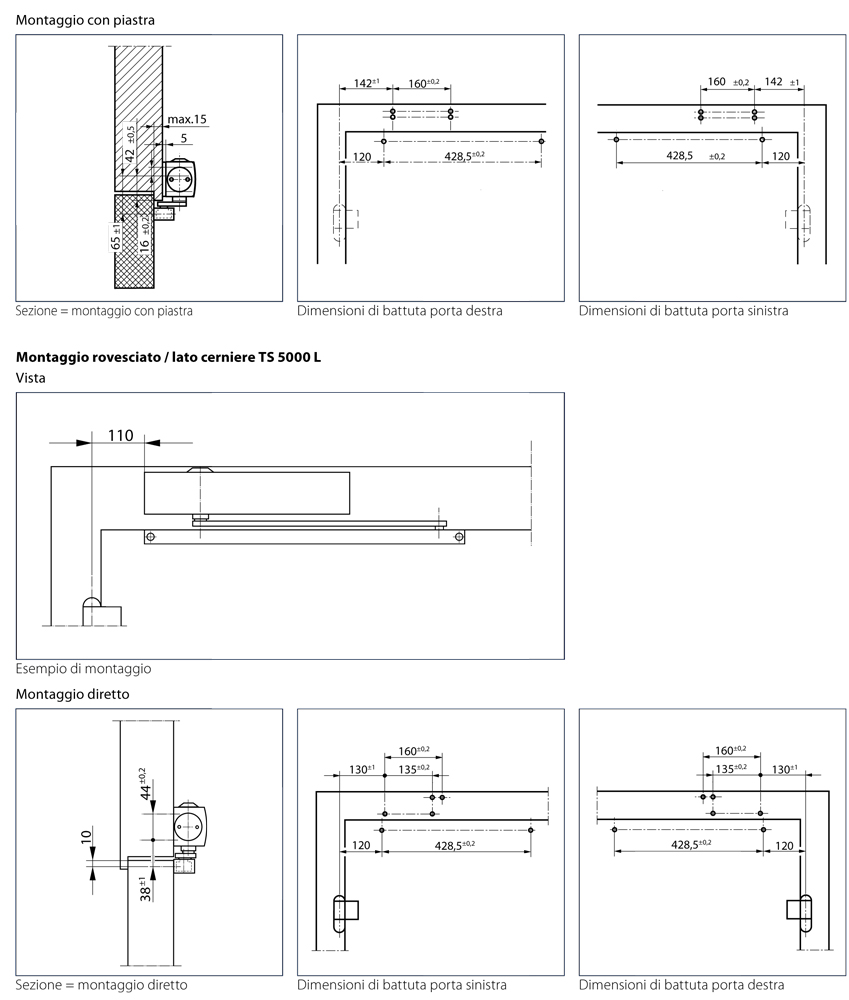

GEZE TS 5000 door closer with slide rail and lever is supplied complete with mounting material and rebate template (mounting plate not included).
TECHNICAL DESCRIPTION Geze TS 5000
- EN 1154 A door closer with sliding guide;
- Adjustable closing force 2-6;
- Optical measurement indicator;
- Adjustable opening damper, hydraulic limit stop and thermo-stabilized closing speed;
- All functions can be adjusted from the front.
FIELD OF USE Geze TS 5000
- For doors with rebate, door width up to 1400mm;
- For doors with right and left hinges that can be used without inversion;
- For fire and smoke doors (door leaf mounting with mounting plate).
| Product Features |
Geze TS 5000 door closer |
| Closing force according to EN 1154 |
2-6 |
| Maximum recommended door width |
1400mm |
| Same execution DIN-L and DIN-R |
Yes |
| Product controlled according to |
Tested to EN1154 standard |

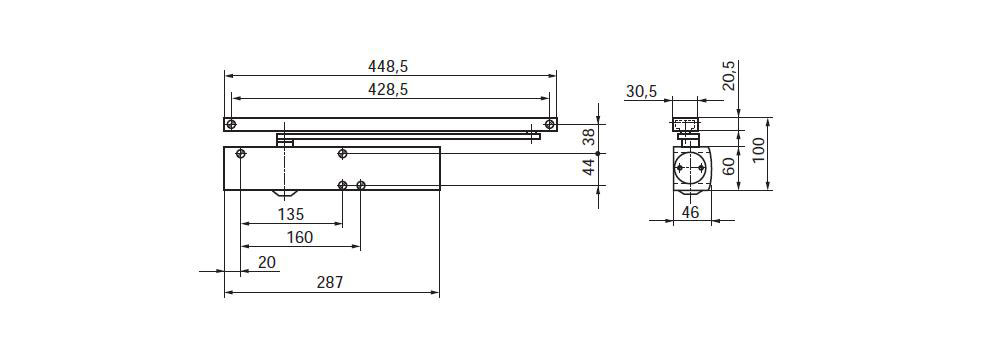

| Length |
287mm |
| Construction depth |
47mm |
| Height |
60mm |
| Functions |
Geze TS 5000 door closer |
| Adjustable closing force |
Yes, seamlessly |
| Adjustable closing speed |
Yes |
| Adjustable final blow |
Yes, via valve |
| Integrated opening resistance |
Yes, hydraulically adjustable |
| Integrated closing delay |
Yes |
| Closing force adjustment position |
Front |
| Optical closing force indicator |
Yes |
| Safety valve against intentional damage |
Yes |
| Thermostabilized valves |
Yes |
