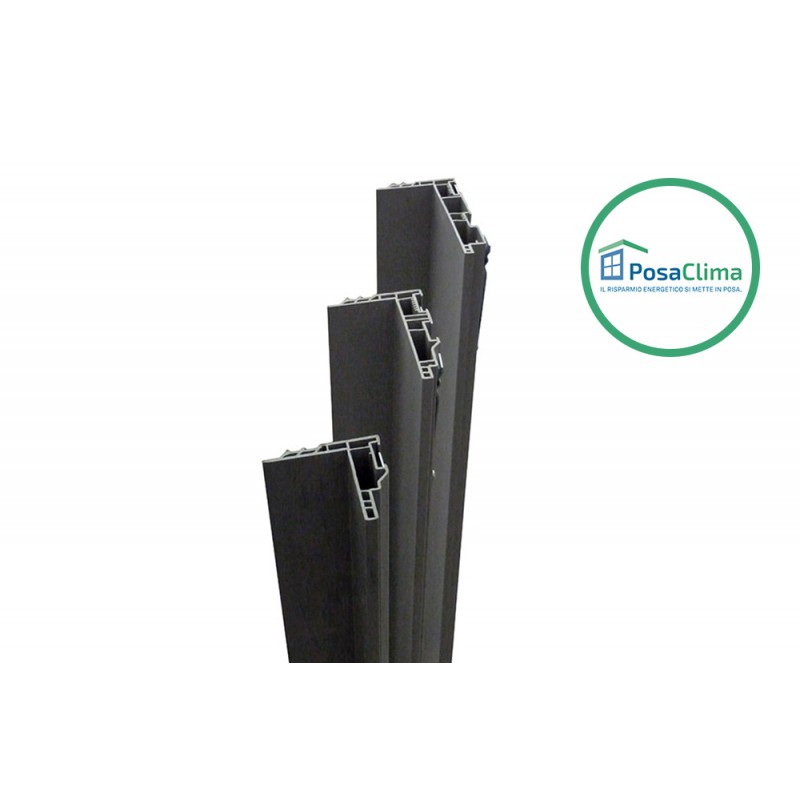

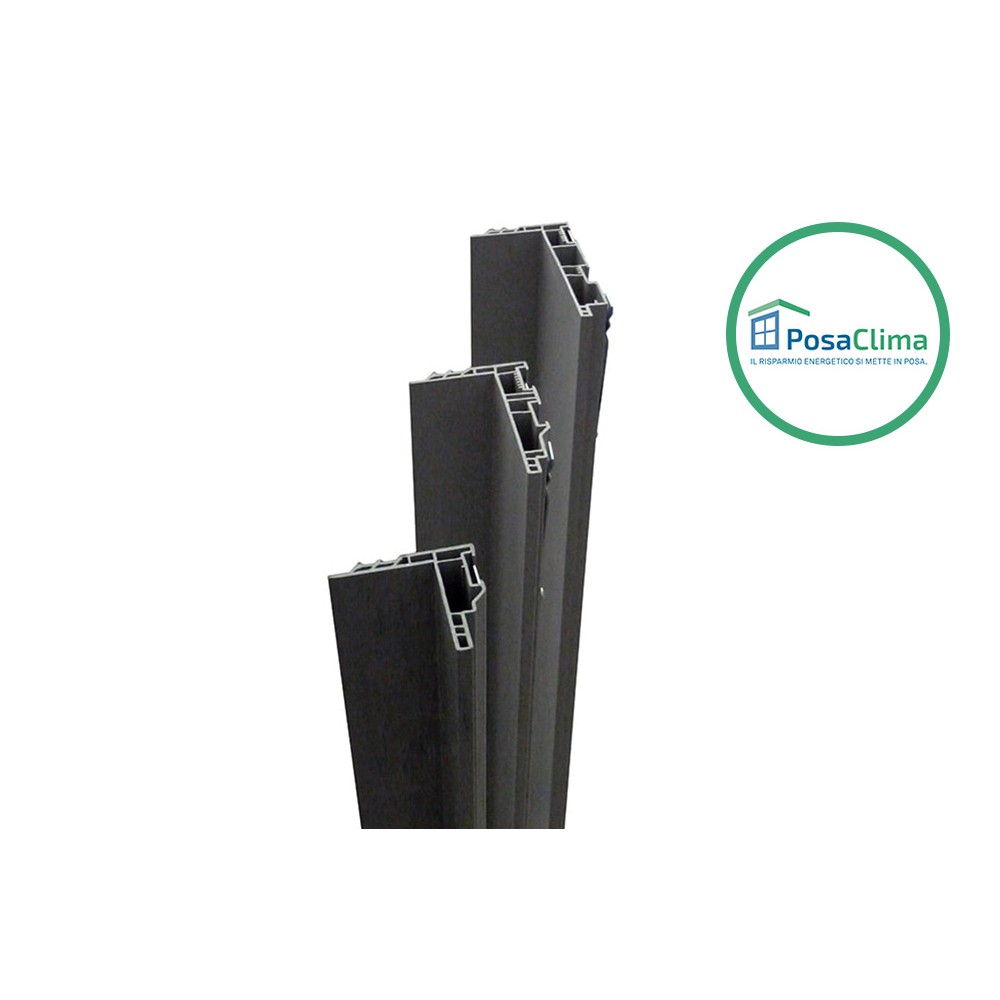

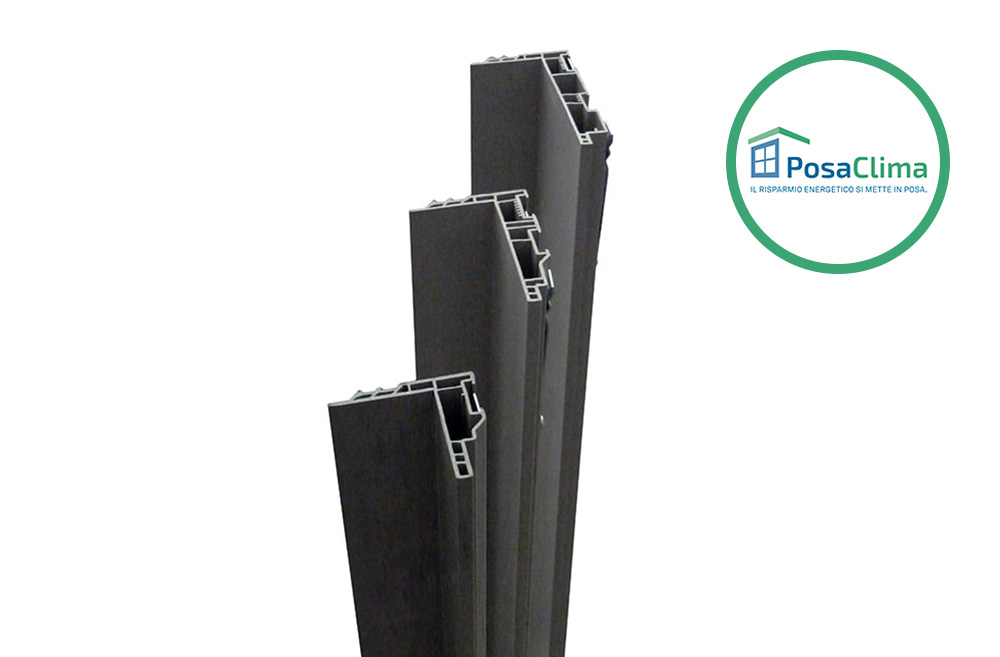

Klima Pro PosaClima Counterframe Wall Hole Squaring and Window Fixing
Klima Pro is the counterframe useful for framing the wall opening and for fixing the window frame
The Klima Pro counterframe is a real complete system for the squaring of the masonry hole and for fixing the window frame . It is made with an extruded PVC profile which simultaneously presents shoulder and stop for the window frame to which the modular thermal crossbar of the Posaclima system must be added on the lower side. Specific ribbing is obtained on the surface to accommodate the various accessories necessary for rapid assembly.
The edges are shaped for the application of the plaster holder profiles which guarantee a correct sealing to the wall in an elastic way and without the formation of cracks.
The material is made of
shockproof recycled PVC . It can be welded with the normal welding heads for the construction of PVC windows: this counter frame therefore represents the best solution for PVC window and door manufacturers who can assemble it very easily. Those who have the appropriate equipment can also bend the profile to form arched counterframes.
Thanks to the assembly accessories, however, the profile can also be mechanically assembled by means of brackets and therefore can be easily used even by window makers who build wooden or aluminum frames.
How does the Klima Pro PosaClima counterframe work?
Klima Pro has been designed to be used in the construction of high thermal efficiency counterframes for the installation of modern windows.
Klima Pro PosaClima ... what changes? Discover the advantages:
- Extremely versatile because it is available in various sizes;
- It has all the necessary accessories for an easy assembly and to insert the mosquito net and roller shutter;
- Designed to allow perfect construction of the primary connection node to the wall, with an elastic and durable seal, without cracks;
- It does not deform , rot or rust if it comes into contact with rain or if exposed to high humidity situations (eg new walls);
- It is not necessary to join the shoulder and the stop to build the "L" profile as the profile is already pre-formed;
- Great speed and ease of assembly thanks to the shaping to contain the assembly brackets and to the positioning references;
- Possibility of heat sealing and bending with common machines for the construction of PVC windows;
- Sturdy but light and therefore resistant and comfortable in handling;
- Flame retardant and self-extinguishing (class V0), i.e. it does not propagate the flame;
- It has an atlas of boards for correct installation.
Klima Pro PosaClima: 4 models with different shoulder widths
There are 4 models of different shoulder widths to be used according to the thickness of the frame and the accessories to be inserted. The sides always have a reduced end part to make covering easier even with windows that have a ledge of less than 20 mm. Each model is available as standard with three different stop measures but the stop can be trimmed to size by the customer.
Klima Pro PosaClima certifications and performances
- Specific Gravity : 1.52 +/- 0.002 G / cm3 (ASTM D792 method)
- Impact resistance : 0 ° C: 5 +/- 2 I 20 ° C: 7 +/- 2 Kg / cm (ASTM D256 method)
- Breaking load : 430 +/- 20 Kg / cm2 (ASTM D638 method)
- Shore hardness : 75 +/- 2 D / 15 (ASTM D1706 method)
- Vicat Grade : 72 +/- 3 ° C (ASTM D1525 method)
- Thermal conductivity : λ = 0.17 W / mk (ASTM D792 method)
PosaClima branded counter frames for sale online
PosaClima is the Made in Italy system for the installation of high energy efficiency windows . The advantages of this system range from high thermal and acoustic efficiency to flexibility in the construction phase. Discover all the PosaClima accessories in the Windowo online shop.
