Handle Panic Omec Composition doors two doors four points Closing

Omec
Brands: Omec
Code: COMP.5 MAN. ANTIP. OMEC
-30%
€ 327,10 € 467,28
Prices excluding VAT
Are you looking for a product of Omec catalog not present on our site? Contact us and ask for a quote.

- +

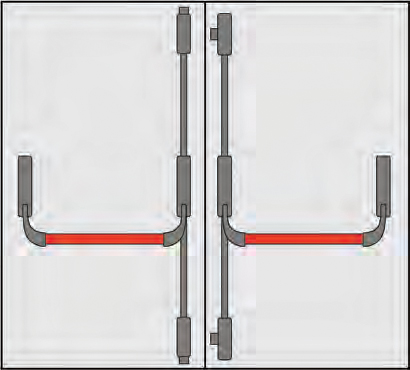

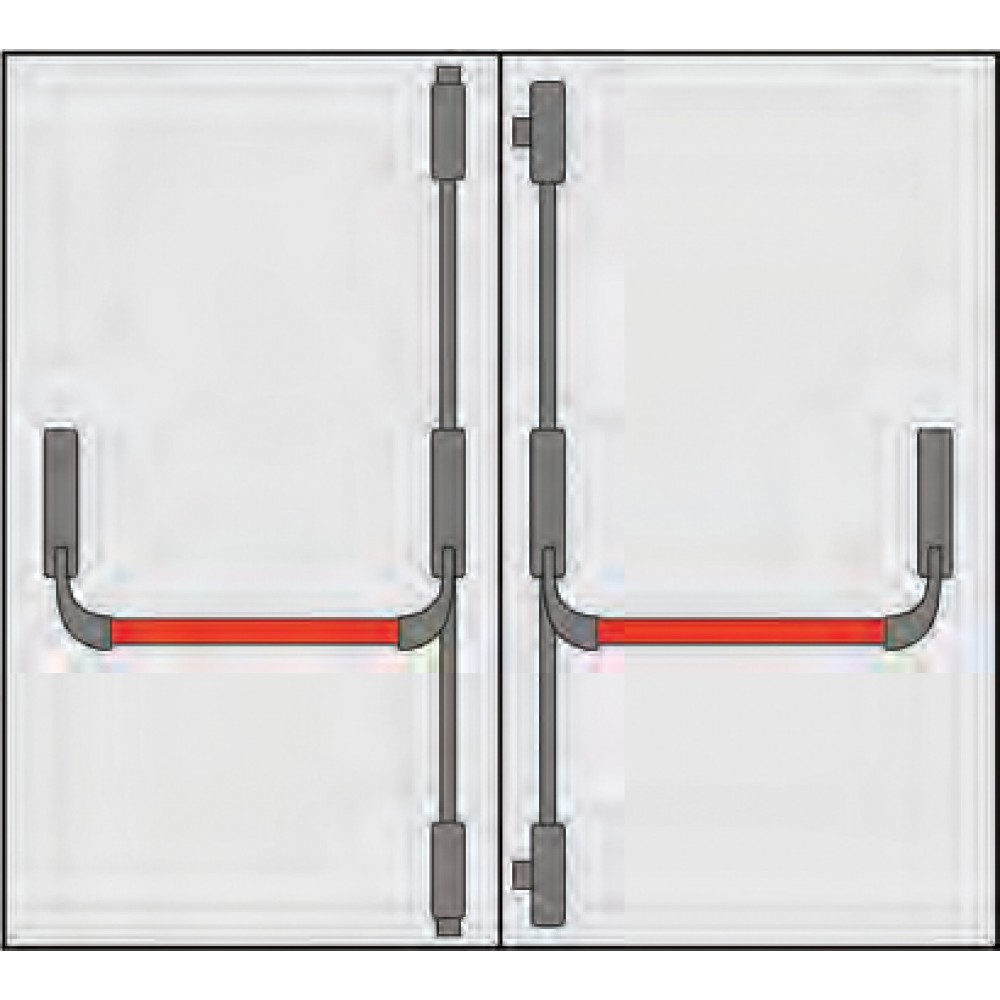

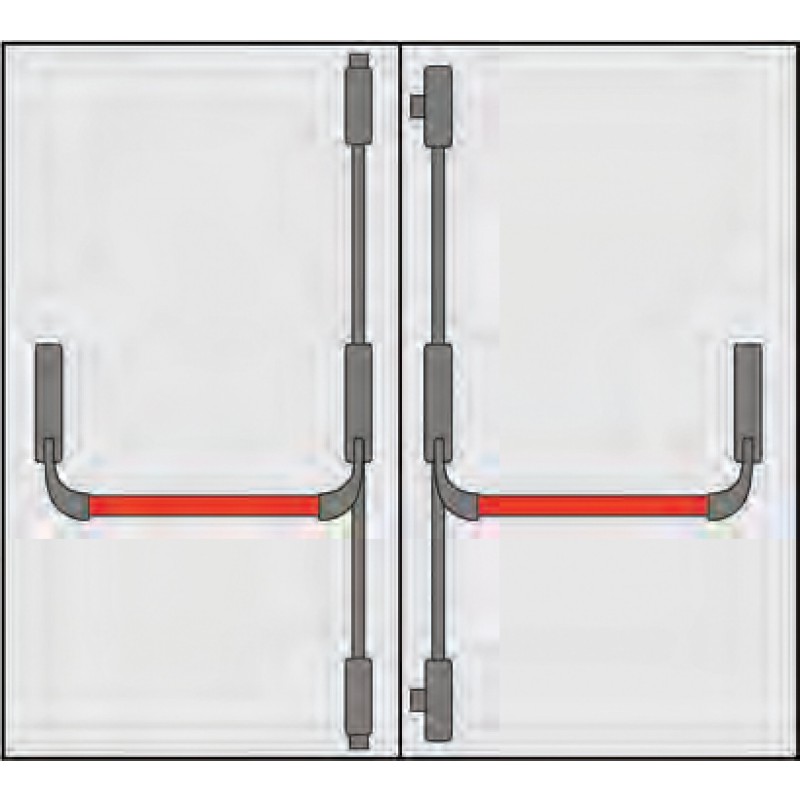

Manigl composition. Panic Omec x Reversible doors two doors; Four Points Closing
Individual items are purchased separately within the "handles Panic".


Omec items included in this composition Handle Panic (as shown):
Art. Name Quantity Characteristics
6213 Triple (modular) Reversible 2 pieces Boxes made ​​of galvanized steel - Lids aluminum painted - levers in special alloy painted - latch in special alloy nickel plated - Stainless steel springs
6005 AR Horizontal bar Red (RED RAL 3020) 2 pieces L 1130, Painted Steel
6040 Kit diverters High / Low (Black Black RAL 9005) 1 piece Boxes made ​​of galvanized steel - Lids aluminum painted - Scrocchi special alloy nickel plated - Stainless steel springs - Auctions galvanized steel - aluminum painted Copriasta
6041 Kit diverters Side (Black Black RAL 9005) 1 piece Boxes made ​​of galvanized steel - Lids aluminum painted - Scrocchi special alloy nickel plated - Stainless steel springs - Auctions galvanized steel - aluminum painted Copriasta


TECHNICAL Art.6213:
FEATURES: Boxes made ​​of galvanized steel - Lids aluminum painted - levers in special alloy painted - latch in special alloy nickel plated - Stainless steel springs.
OPERATION: latch controlled by the horizontal bar or by external commands.
PARTS SUPPLIED AS STANDARD: side, nylon caps, screws, installation instructions, drilling templates.


TECHNICAL Art.6005 AR:
MATERIAL: Painted steel.
PARTS EQUIPMENT: caps nylon.


TECHNICAL Art.6040:
FEATURES: Boxes made ​​of galvanized steel - Lids aluminum painted - Scrocchi special alloy nickel plated - Stainless steel springs - Auctions galvanized steel - Copriasta painted aluminum.
APPLICATION: Panic triple.
PARTS SUPPLIED AS STANDARD: lateral, strike-floor, screws and mounting accessories.


TECHNICAL Art.6041:
FEATURES: Boxes made ​​of galvanized steel - Lids aluminum painted - Scrocchi special alloy nickel plated - Stainless steel springs - Auctions galvanized steel - Copriasta painted aluminum.
APPLICATION: Panic triple.
PARTS EQUIPMENT: 2 backplates side, screws and mounting accessories.

OMEC
NOTE: By clicking "Documents" (above the details of this product) you can download the PDF on certifications handles Panic.
