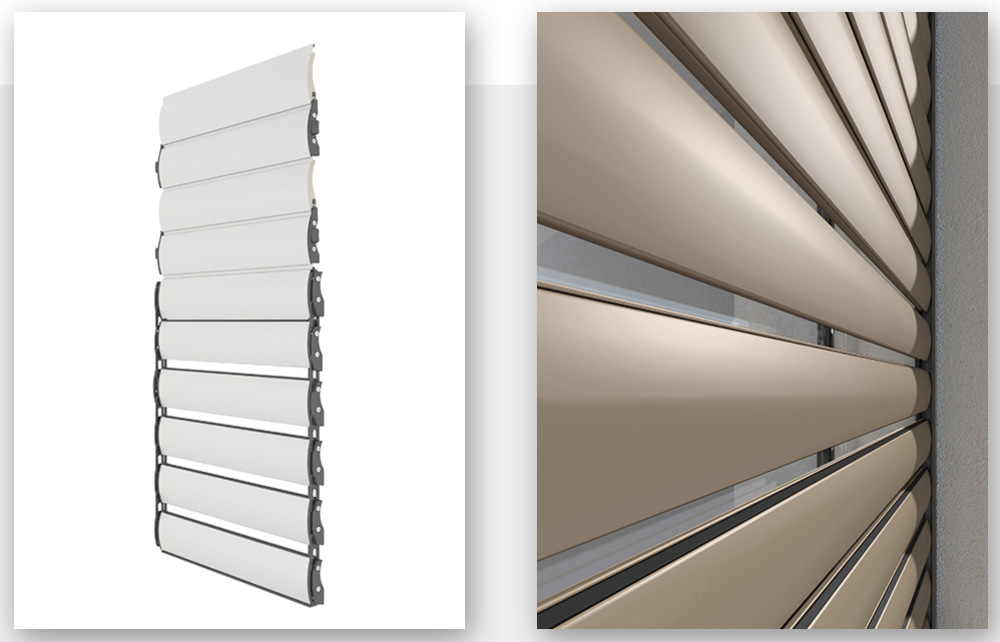

Espace Pinto is the roller shutter in aluminum insulated with high-density polyurethane designed to improve thermal insulation, living comfort and energy efficiency. Minimal design and high performance for a modern and sustainable environment.
The Espace Pinto shutter features a 13 x 50 mm profile, weighs approximately 5.5 kg per square meter, supports a maximum width of 3000 mm, and is made up of 20 slats per meter of height.
For larger dimensions, the Espace XL model is available: contact us to receive a free quote.

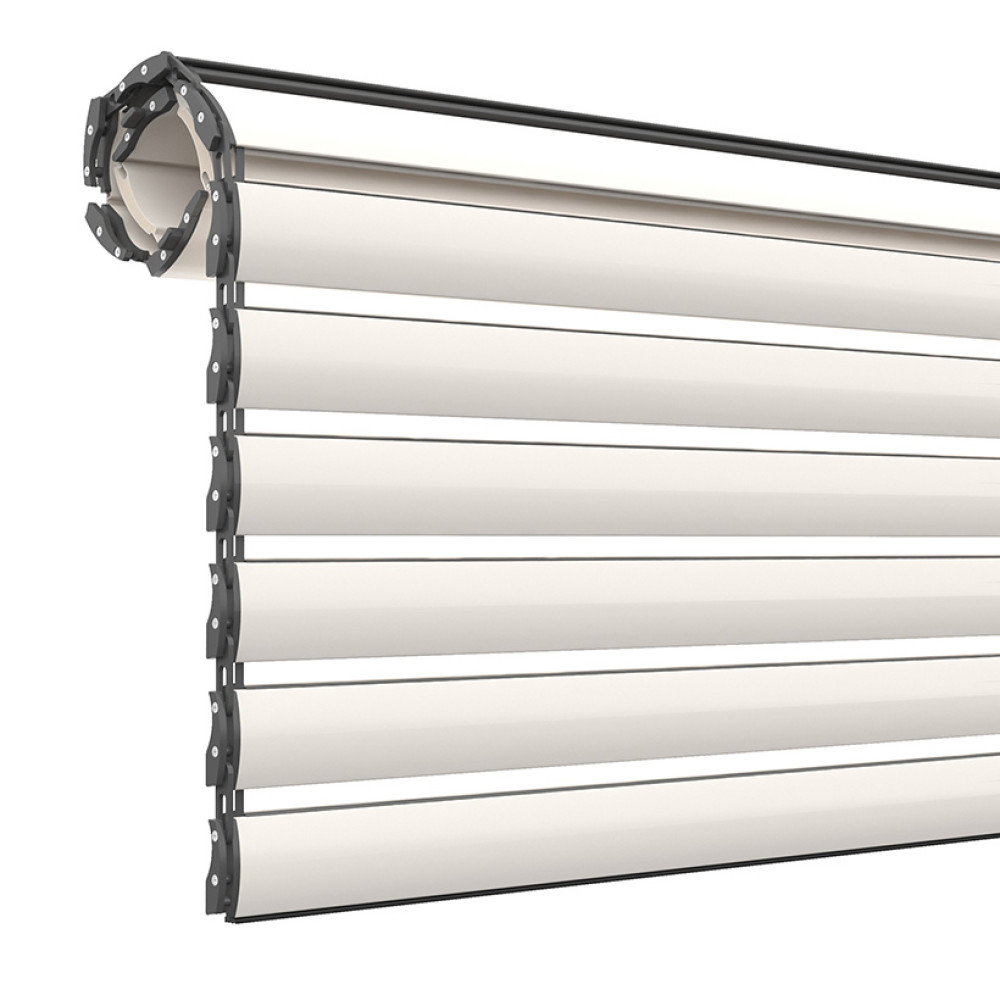

Espace Pinto - Aluminum Roller Shutter with High Density Polyurethane

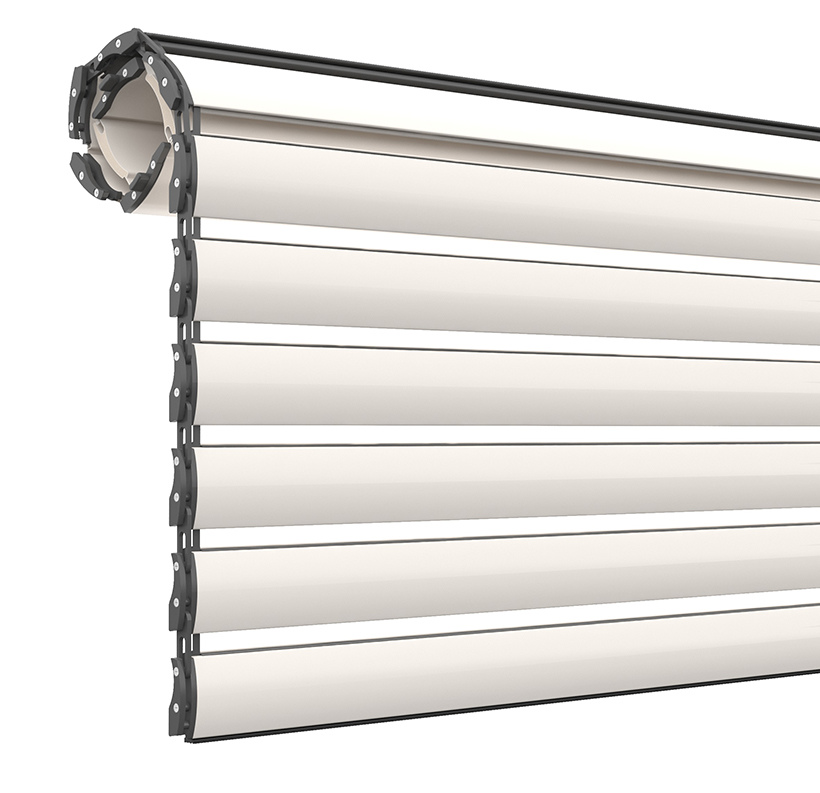

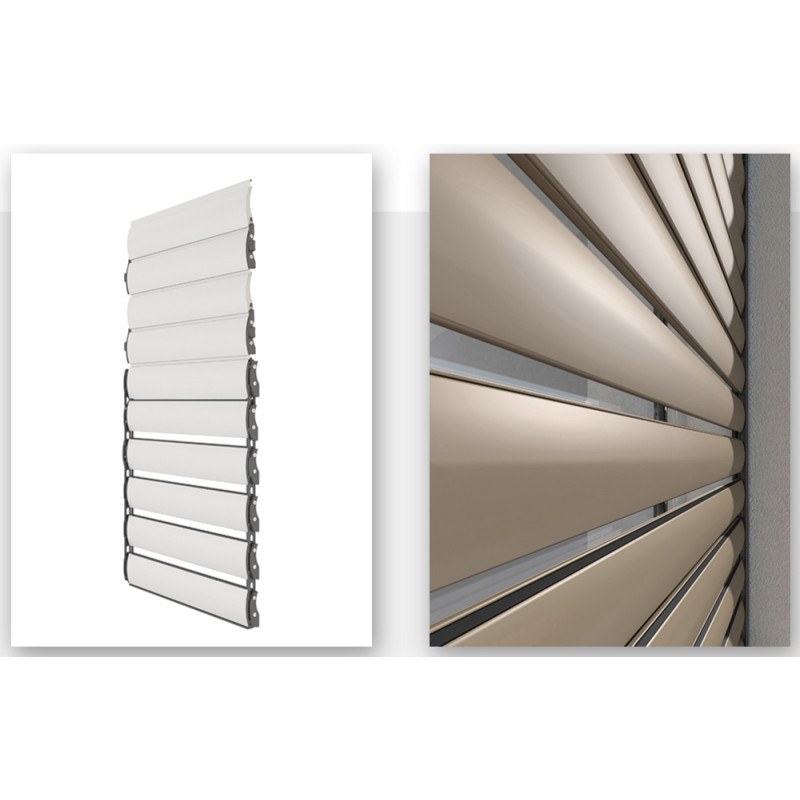

The Espace Pinto roller shutter is made of insulated aluminum and filled with high-density polyurethane , materials designed to improve living comfort and increase the energy efficiency of buildings.

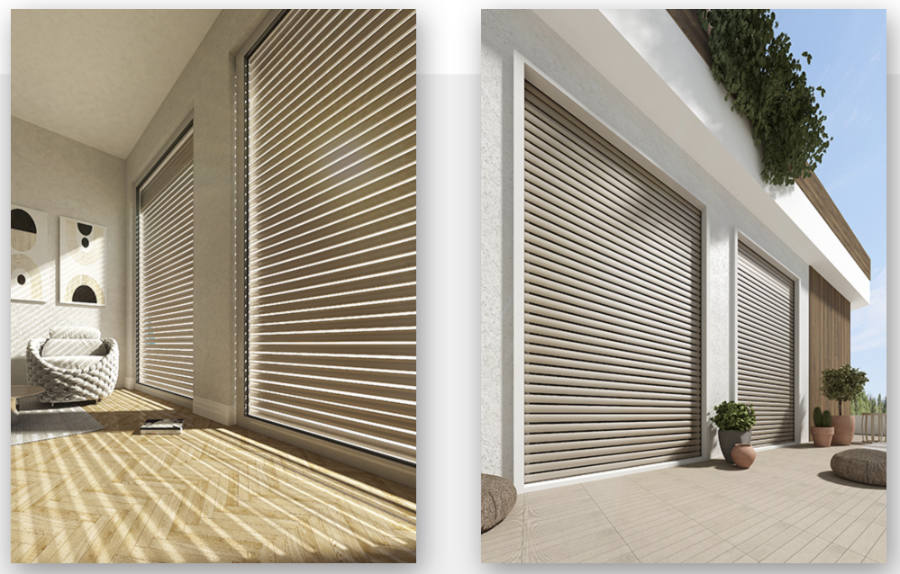

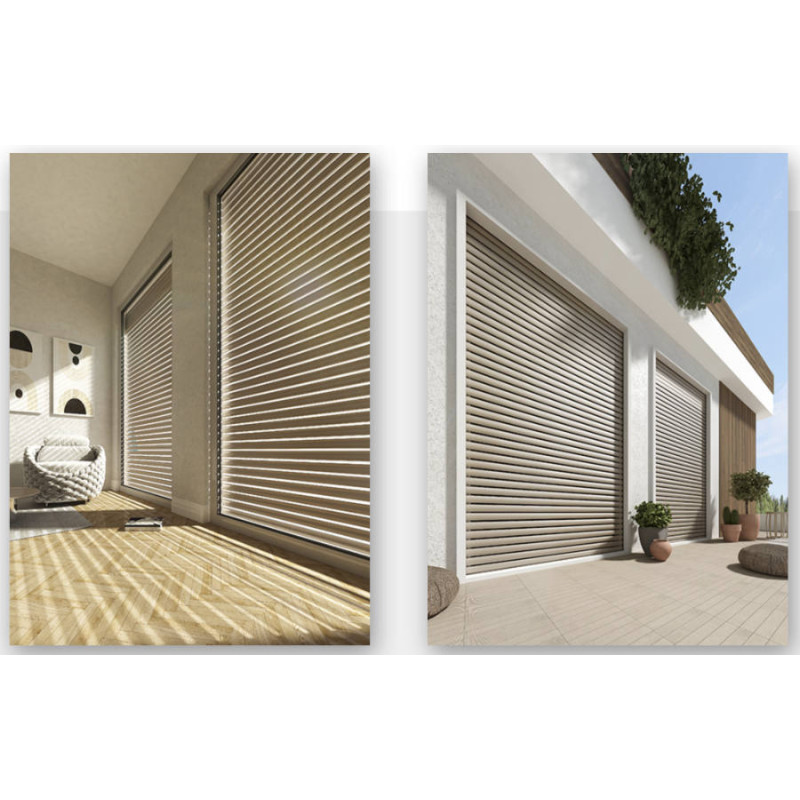

Designed to meet the needs of modern construction and sustainable building, it combines high technical performance with a minimal and elegant design, capable of giving rooms a contemporary, bright and dynamic style .
Thanks to the perfect integration of natural ventilation, sunlight and thermal insulation , Espace Pinto is a strategic solution for energy saving. By reducing the use of air conditioning systems and artificial lighting, it allows to reduce energy consumption and improve the overall sustainability of the building.
PLEASE NOTE: the price indicated includes the aluminium terminal and caps .

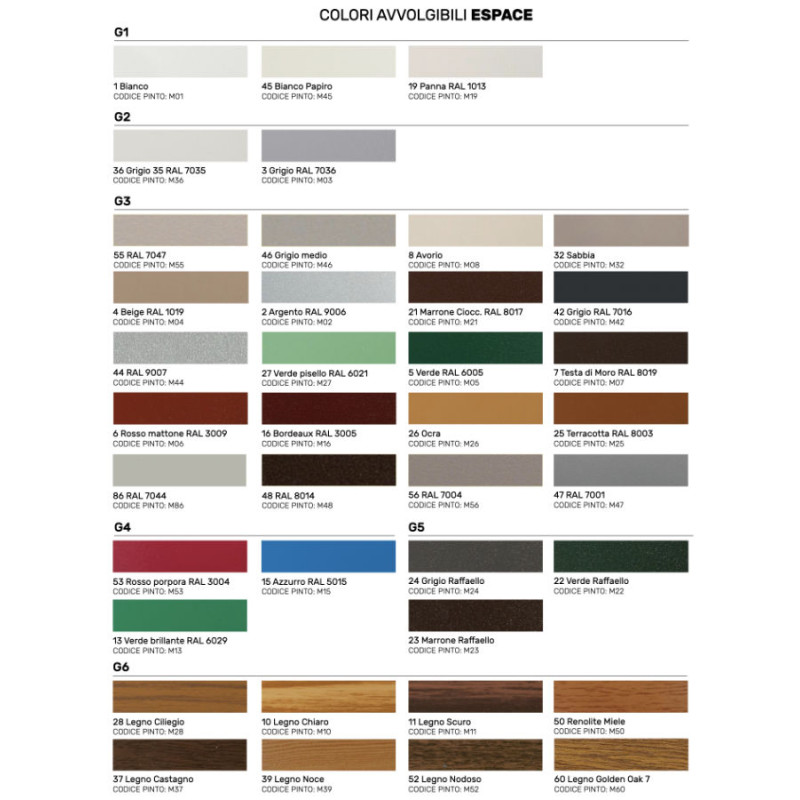

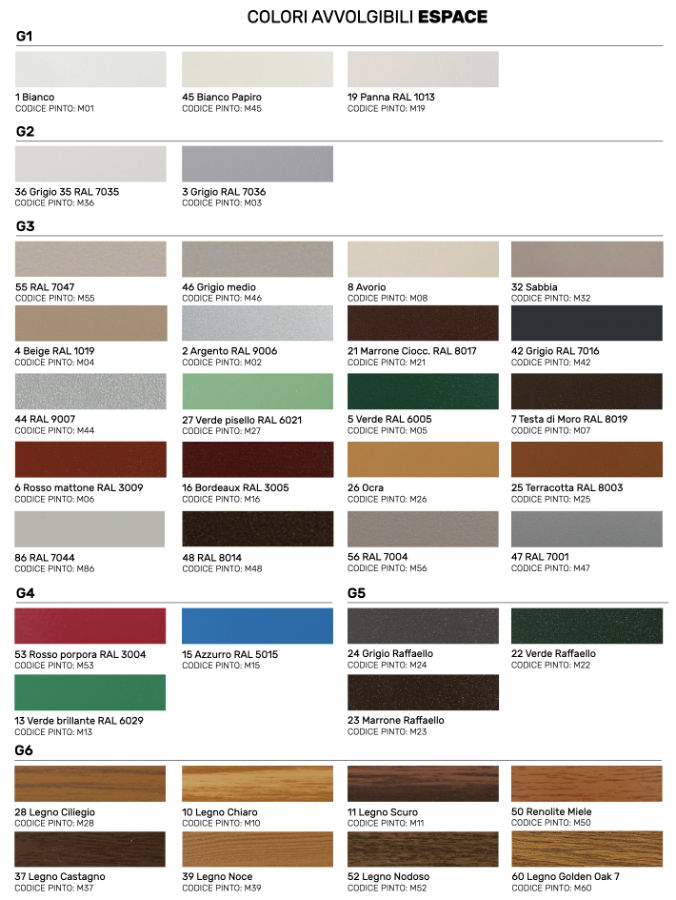

Choose your favorite color for your insulated aluminum roller shutter
To see the colors better, we recommend you look at the photos above. There are also colors with a faux wood effect available.
Security: add the deadbolt (optional)
The latch is a safety system for the roller shutter. In practice it prevents the roller shutter from being raised, and is very useful especially on warmer evenings, when we sleep only with the roller shutters lowered.
The deadbolt is optional and excluded from this product. Ask to add it to your PVC roller shutter.

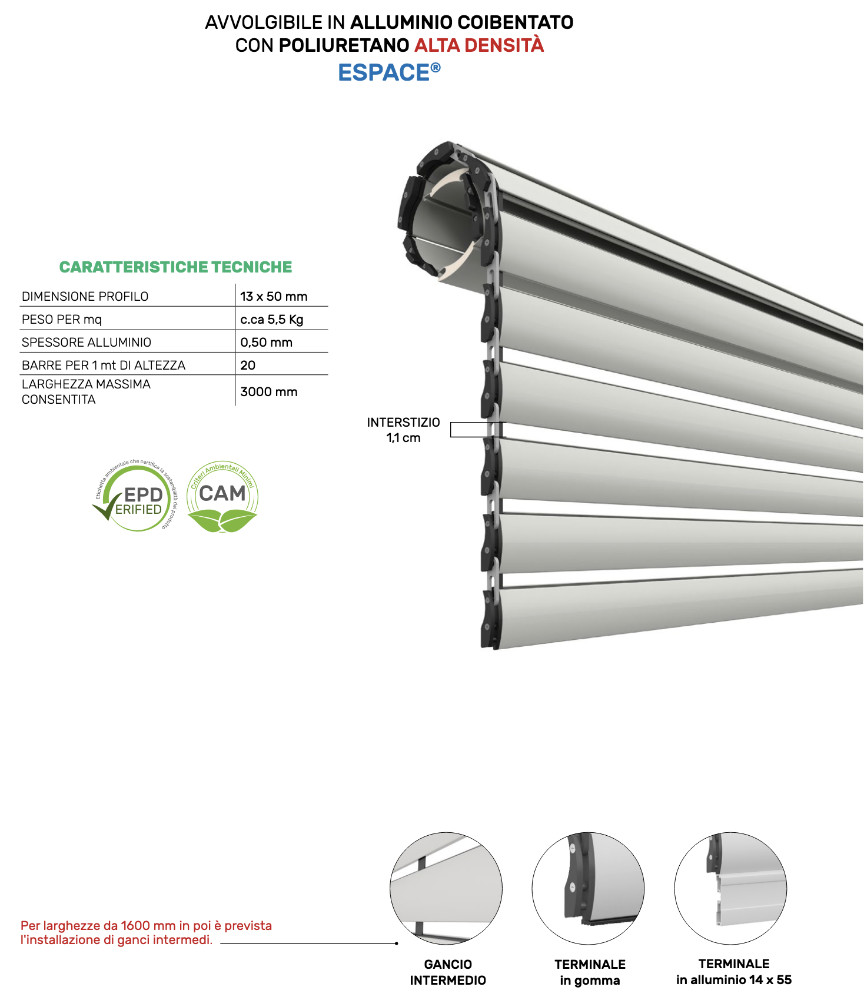

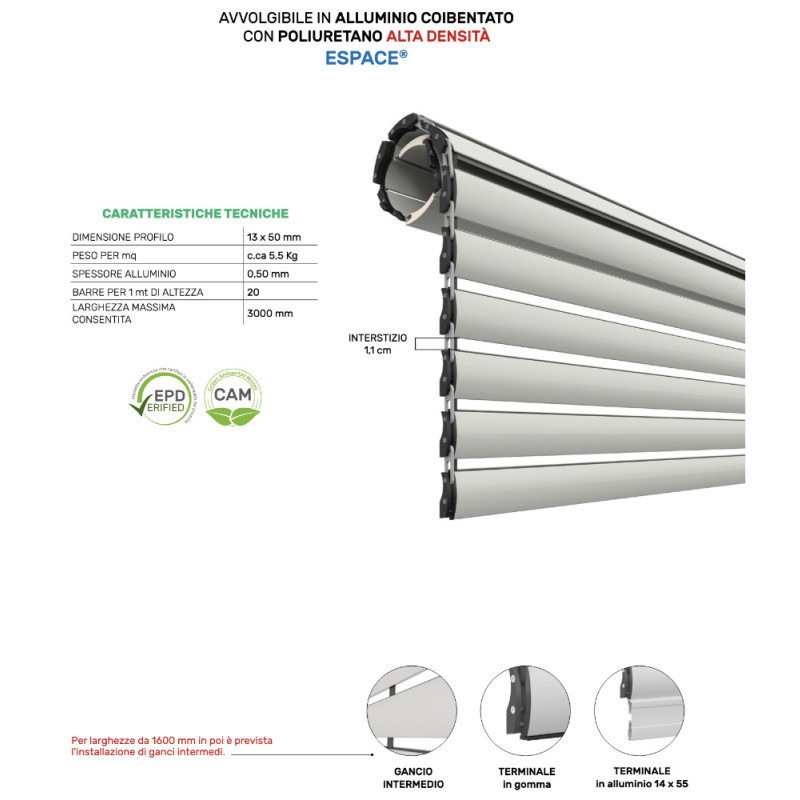

Technical features of the Espace Pinto aluminium roller blind
Roller shutter model : Espace Pinto;
Profile size : 13 x 50 mm;
Weight per m2 : approximately 5.5 kg;
Aluminum thickness : 0.50 mm;
Number of bars per 1 meter of height : 20;
Maximum permitted width : 3000 mm;
Gap between bars : 1.1 cm:
Aluminum slats : the aluminum is insulated with high density polyurethane;
ONLY Roller Shutter (this product does not include belts or motors to raise and lower the roller shutter);
Aluminum terminal (the terminal is the last rod that rests on the ground).

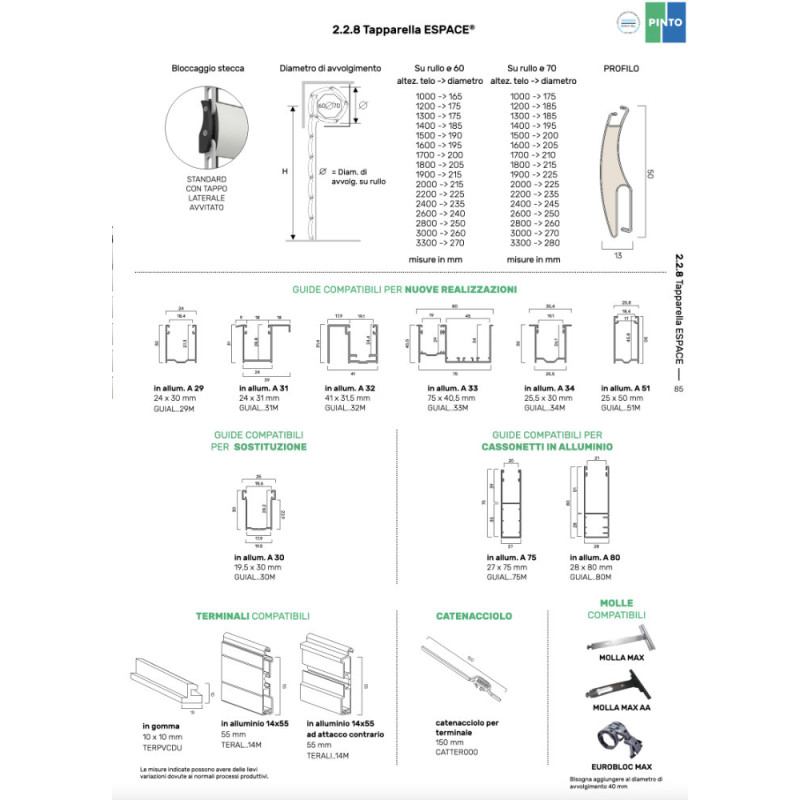

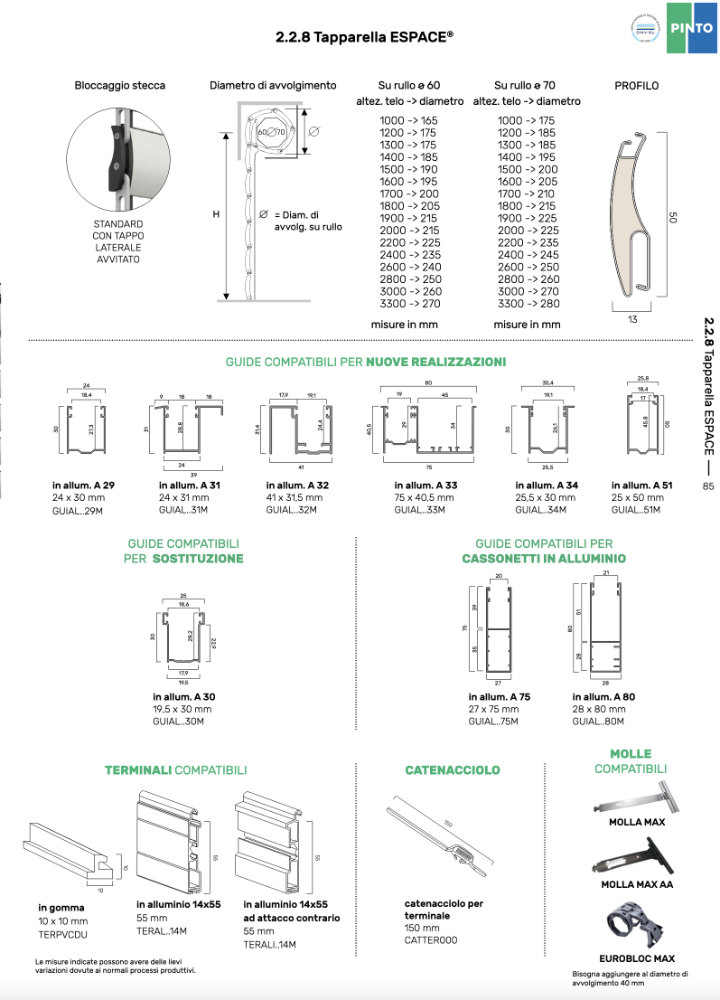

Compatible Guides: Discover the available options in the images
See the images and attachments to see the guides compatible with this roller shutter.
We have selected the right guides for:
New constructions;
Replacement of existing roller shutters;
Aluminum containers.
Before buying: how to correctly measure the roller shutter?
Here are some tips for taking correct measurements:
Replacing an existing roller shutter : you can base your decision on the size of the roller shutter you are replacing;
New installation or replacement of roller shutter and guides : consider the tolerances with respect to the guides you intend to use. If you want to reuse the old guides, check that they are in good condition and that they have at least 16.5 mm of internal usable space;
Always enter finished measurements , expressed in millimetres (base and height), which also include any side caps and accessories;
To correctly choose the roller shutter profile in case of replacement , measure the height of the single slat excluding the connecting hook.
Pinto Tapparelle: Italian quality without compromise
Pinto is an Italian brand renowned for the production of PVC and aluminum roller shutters.
On Windowo you can buy custom-made Pinto roller shutters online , made with high-quality materials to last over time.
