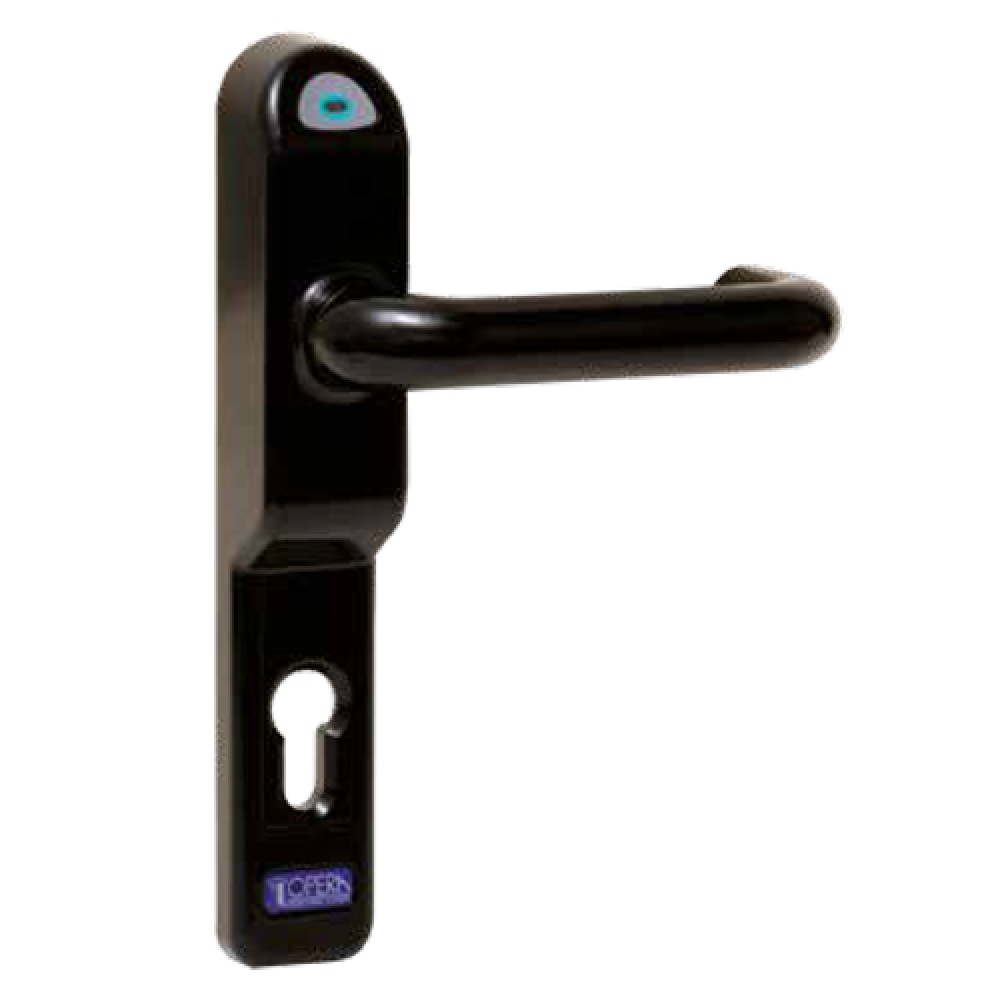

Electrically Operated Handle Black for Locks for Full Metal and Glass Fire Proof Doors 40600 Opera
Use
For locks for full metal and glass fire proof doors.
Not suitable for outdoor installation.
Variant timer:
Without timer
With timer: it allows to change the closing time
Variant with no power:
Fail safe - enabled: green LED
Fail secure - disabled: red LED
Technical info
Body made of black painted zinc alloy.
Handle made of black painted aluminium with steel core.
Internal mechanisms made of hardened steel.
Dimensions: 225 x 38 x 33 mm, handle H 85 mm.
Distance between cylinder and handle: 72, 92 mm.
Handle panel 9 mm (8 mm upon request).
Fixing on the door without having to make supplementary holes.
Power supply 12/24 V AC/DC (useful for french market)
Current consumption: at 12 V - 700 mA peak/500 mA maintenance at 24V - 300 mA peak/200 mA maintenance.
Version without timer
Use: replacement of traditional mechanical handle mounted outside door.
The handle, normally free turning, can be enabled by:
- De-energizing (
fail safe - enabled version).
- Or renergizing (
fail secure - disabled version) through a button contact or access control system. Action is limited to the duration of the impulse.
Version with timer
Use: replacement of traditional mechanical handle mounted outside door.
The handle, normally free turning, can be enabled by:
- Closing a NO button contact or access control system. In this version power supply is always on.
Additional features over the previous version:
Internal timer adjustable from 0-60 s (optional).
Open collector output can be coupled with a micro external relay to report handle enabled (art.
05258 available on Windowo).
Two colours red/green LED signalling the handle status enabled or disabled.
Internal acoustic signalling, excludable, for the access enabled indication.
IMPORTANT EMERGENCY EXIT
The use of split frames is required when fitting the electric handle to a panic bar through the mortice lock.
Ouverture Series Opera
Electronic handle for fire doors and emergency exits.
To be matched with all fire doors locks.
Can be mounted on narrow metal frames.
Electronics control unit with internal microprocessor.
Optic and acoustic integraded signalling.
